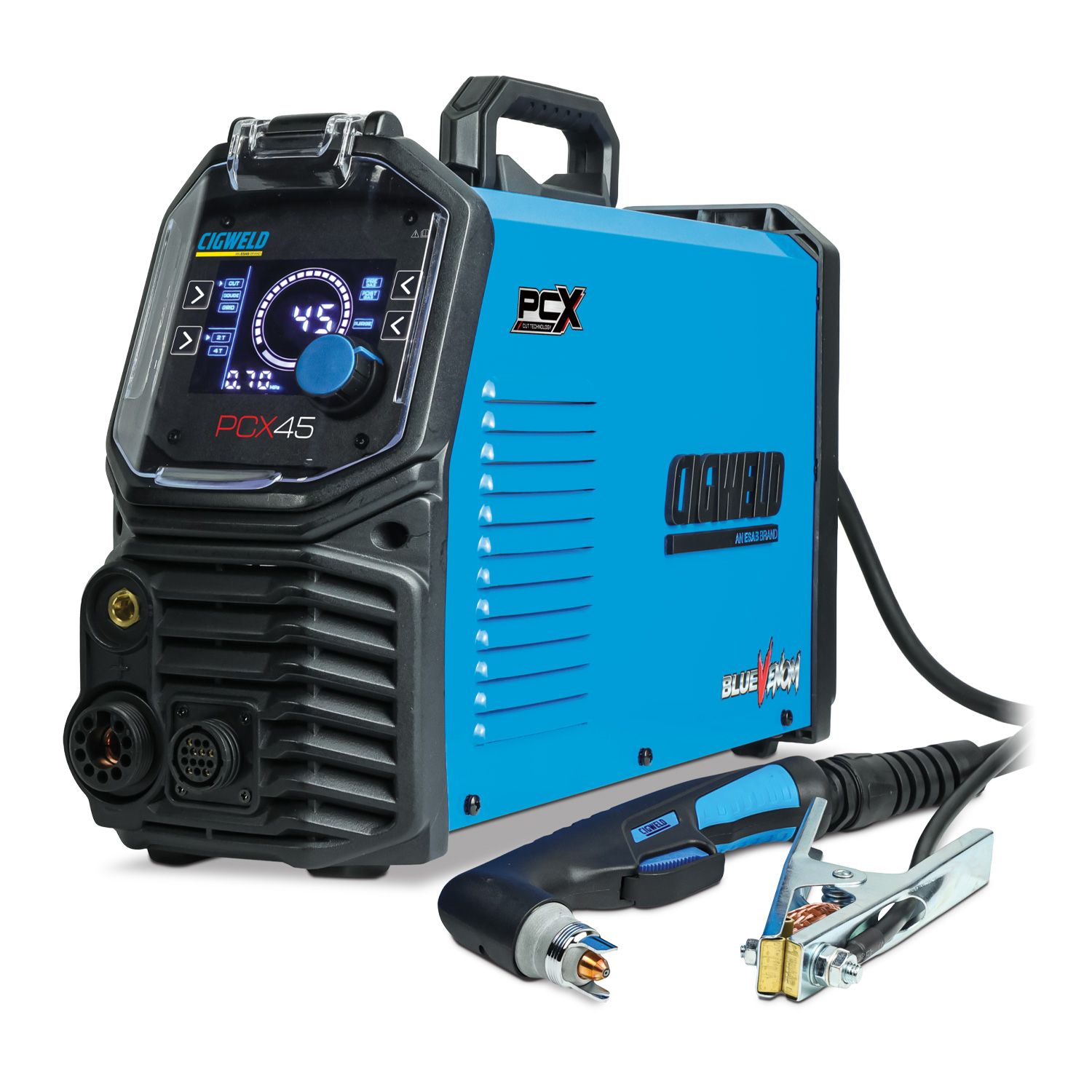

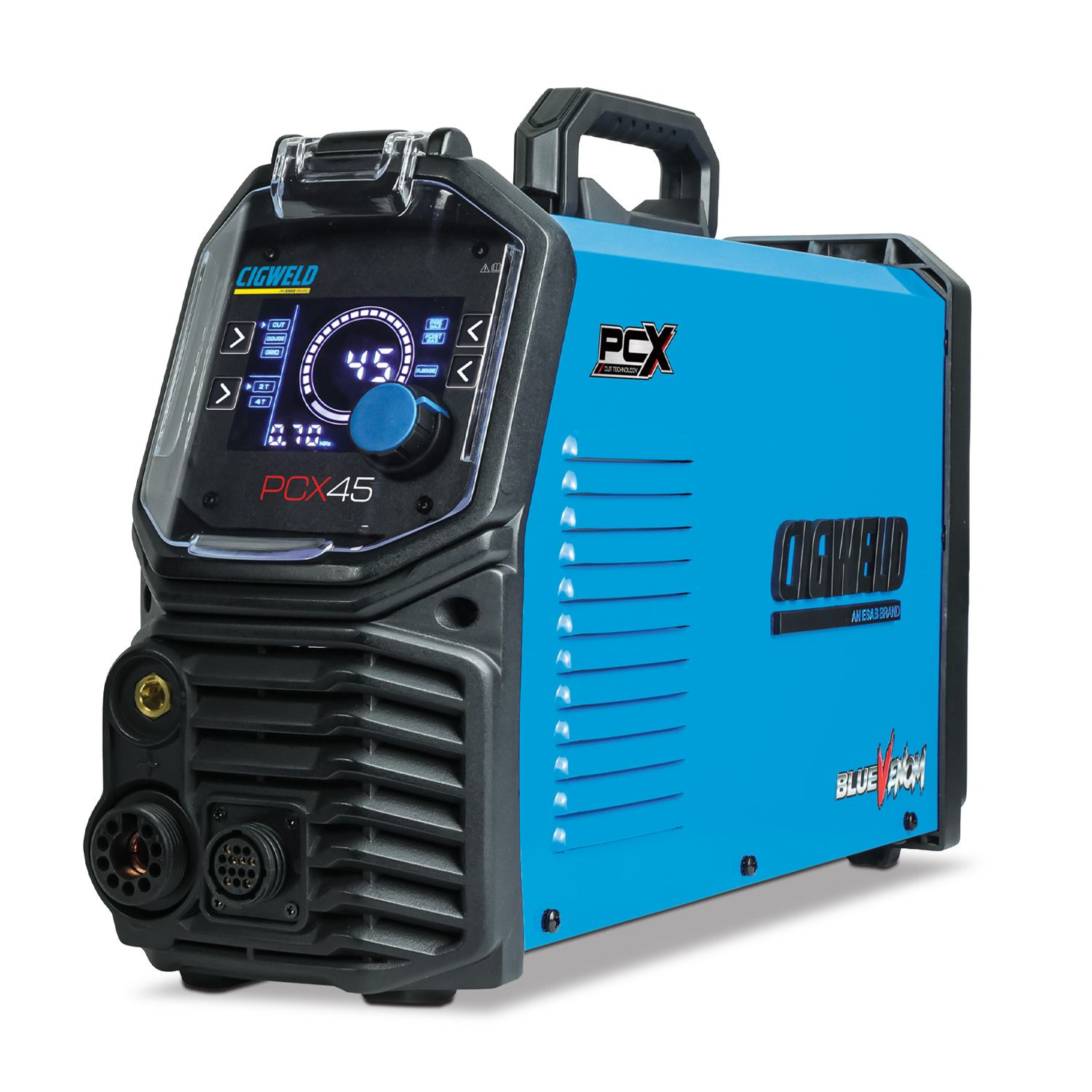

Cigweld 661602 BlueVenom PCX45 Plasma Cutter

The BlueVenom PCX45 plasma cutter delivers serious cutting power in a compact and portable package.With a clean cutting capacity of up to 16mm it is built for speed, precision, and productivity. Weighing under 10kg, it makes it easy to carry on-site or around the workshop without compromising power. It can be used as a portable handheld plasma cutter or integrated into a CNC cutting system for automated precision.

Includes:

  • 1 x BlueVenom PCX45 Power Source
  • 1 x BlueVenom 60A Plasma Torch 6m
  • 1 x Work Cable and Clamp 3m

Features:

  • Portable Power: Lightweight, compact plasma cutters built for workshop and site work
  • Precision Cutting Performance: Clean, accurate cuts across mild steel, stainless, and aluminium
  • CNC Ready Flexibility: Handheld portability with built-in CNC compatibility for future-ready cutting performance
  • Smarter Arc Starts: Hover Start technology helps reduce consumable wear while delivering smooth, reliable starts
Specifications:
  • Welding Process: Plasma Cutting
  • Power Supply: Single Phase 15A Plug
  • Number of Phases: Single Phase
  • Supply Frequency: 50/60Hz
  • Amperage Range: 20A – 45A
  • Rated Duty Cycle (40°C): 45A @ 35%, 98.0V
  • Mild Steel Clean Cut Capacity: 16mm
  • Mild Steel Severance Capacity: 25mm
  • Stainless Steel Clean Cut Capacity: 12mm
  • Aluminium Clean Cut Capacity: 12mm
  • Input Air Required: 0.38 – 0.75 MPa (5.5 – 7.5 bar)
  • Supply Lead & Plug: 15 Amp
  • Minimum Generator Requirement: 7kVA (0.8 Power Factor at Max Amps)
  • Power Source Dimensions (L x W x H): 483mm x 147mm x 292mm
  • Power Source Weight: 9.1kg
  • Package Dimensions (L x W x H): 560mm x 255mm x 345mm
  • Package Weight: 15kg

Warranty:

  • 5 Year Warranty as Covered by Cigweld
