Cigweld PP24MG130 BlueVenom MG130 Power Pack

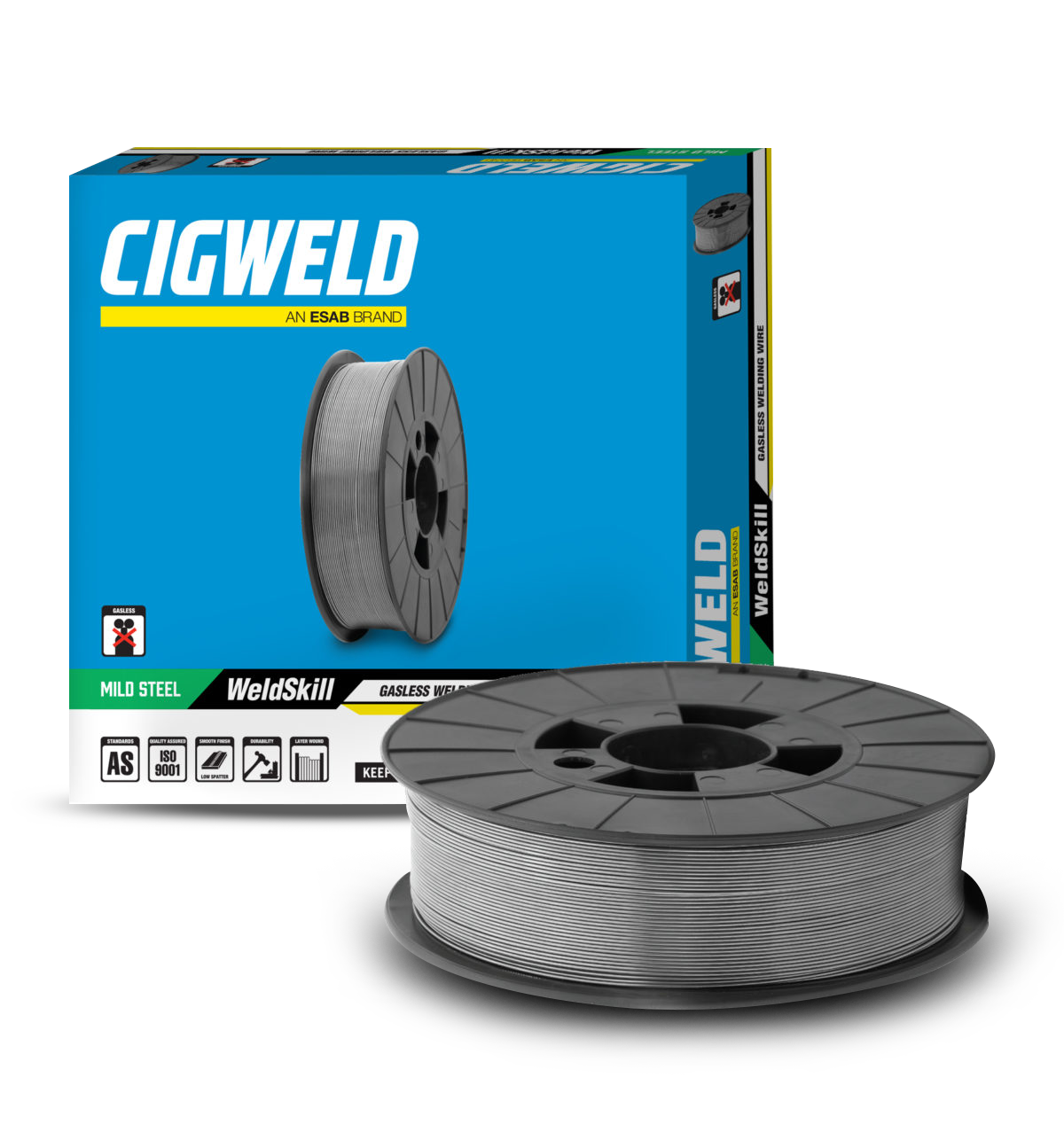

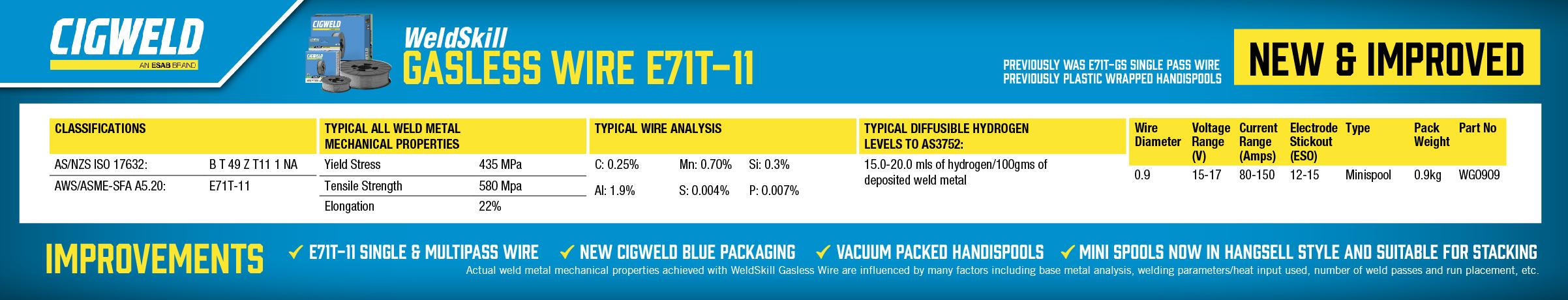

WeldSkill price-competitive self-shielded flux cored wires have the convenience of gasless operation while providing smooth rippled welds in all positions.

Features:

Specifications:

• Wire Diameter: 0.9 mm
• Voltage Range(Volts): 15 - 17
• Current Range(amps): 80 - 150
• Electrode Stickout (ESO): 12 - 15
• Pack Type: Minispool
• Weight: 0.9 kg

With a full sock lining for maximum comfort, and the highest of quality leather, the Weldskill Heavy Duty Welding Gloves will protect you from high heat output applications and keep you welding longer than with standard, lightweight alternatives. You can expect superior heat and abrasion resistance from this Heavy Duty option!

Features:

• Heavy Duty welding gloves suitable for a wide range of welding applications
• Manufactured from high quality leather for superior heat and abrasion resistance
• Kevlar stitching for increased durability
• Full sock lining for maximum comfort

Specifications:

• Size: L
• Dimensions (L x W x H): 300mm x 120mm x 20mm
• Weight: 0.8kg

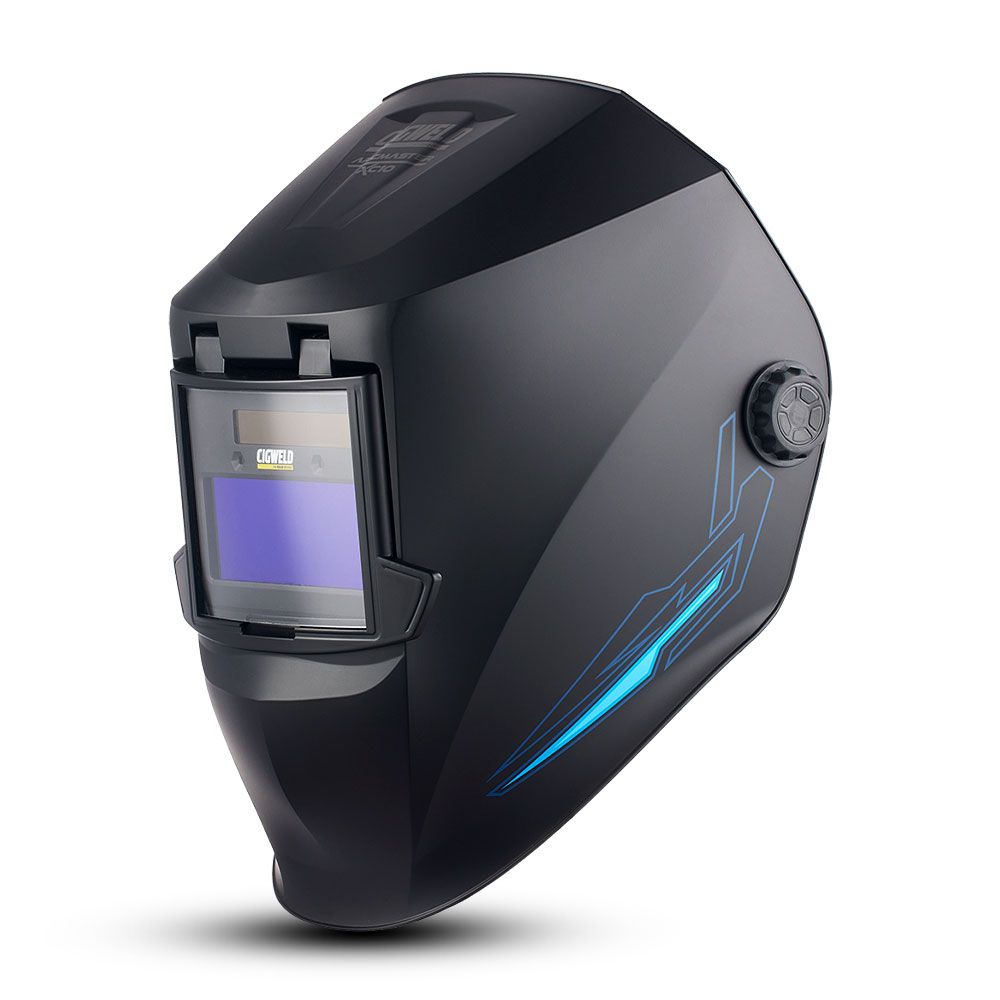

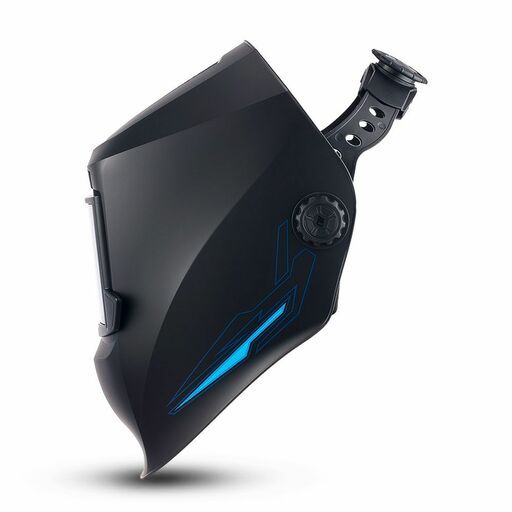

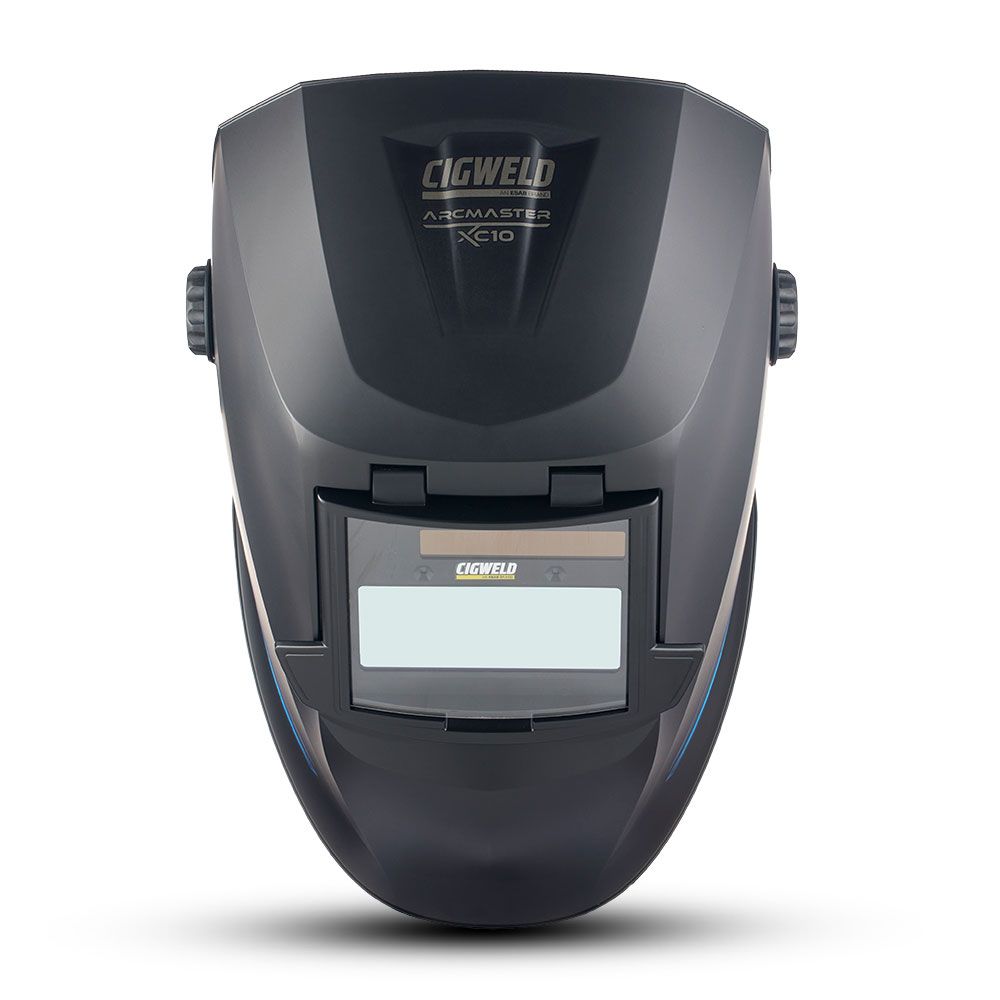

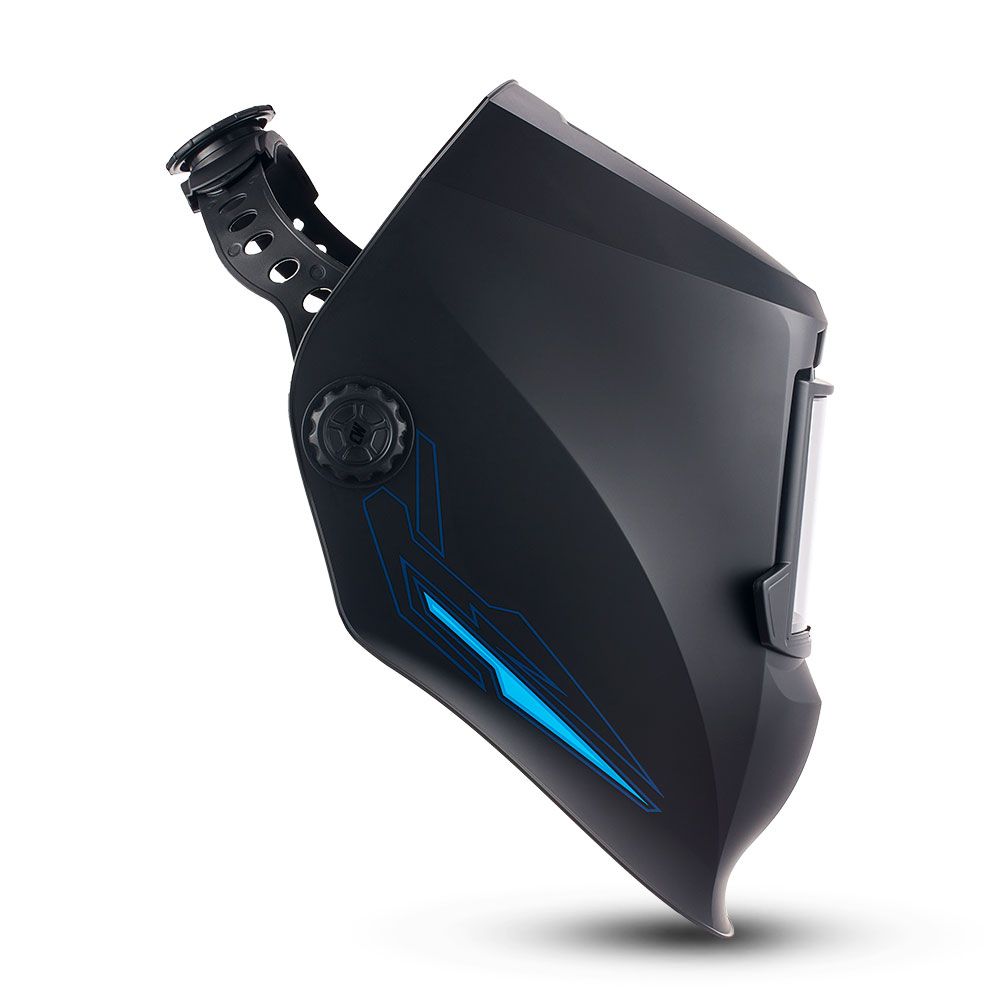

The ARCMASTER XC10 is one of the best value beginner auto-darkening welding helmets. Equipped with a lightweight high impact rated shell, a high-definition variable shade ADF and a flip-front design with high impact rated grinding lens. The XC10 is a great choice for apprentices and beginner DIY welders. Experience the simplicity and great design with CIGWELD’s best entry level auto-darkening welding helmet yet.

Includes:

• ARCMASTER XC10 Welding Helmet
• Front Cover Lens - WHCL95F (Spare x 1)
• Rear Cover Lens - WHCL67R (Spare x 1)
• Sweatband - WHSB03 (Fitted)
• Operating Manual

Features:

• High-definition optical viewing rating ISO 16321-2:V2 (Old Standard EN379 1/1/1/2) also approved to AS/NZS: 1338:1
• High-impact rating for grinding to AS/NZS: 1337:1
• 2 Arc sensors, excellent for all welding processes including TIG down to 20 Amps
• Variable welding shades 4-8 and 9-13
• Grinding Shade on ADF = 3
• Adjustable sensitivity and delay, fast reaction time

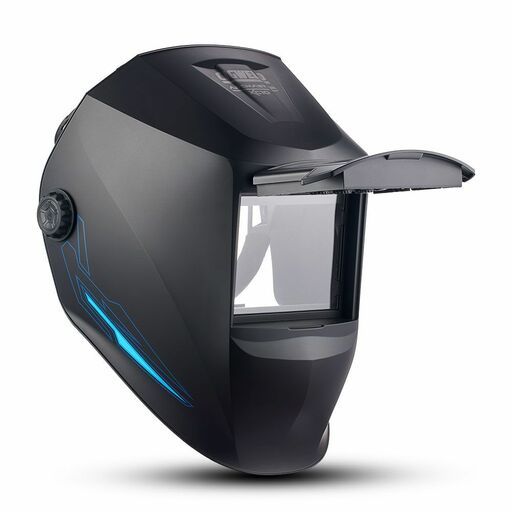

• Flip-front design with high impact rated grinding lens
• Magnification Frame (can be fitted with an optional CIGWELD magnification lens)
• Welding & Cut Modes and flip-up lid for clear grinding
• Suitable for Plasma Cutting & Oxy-Welding Operations
• Positive lock-up head harness mechanism

Specifications:

• Viewing Area: 96mm x 40mm = 62mm²
• Arc Sensors: 2
• Approved to AS/NZS: 1337.1 & 1338.1
• ISO 16321-2 Rating: V2 (Previously EN379: 1/1/1/2)
• Shade Range: 4-8/9-13
• Grinding Shade (ADF): 3
• Switching Speed: 0.2ms
• Harness Points: 3
• Analogue Controls: Yes
• Impact Rating: High Impact
• Battery: Solar Assist 1 x CR2032 (Replaceable Battery)
• Weight: 0.477kgs

Warranty:

• 2 Years Warranty Covered by Cigweld

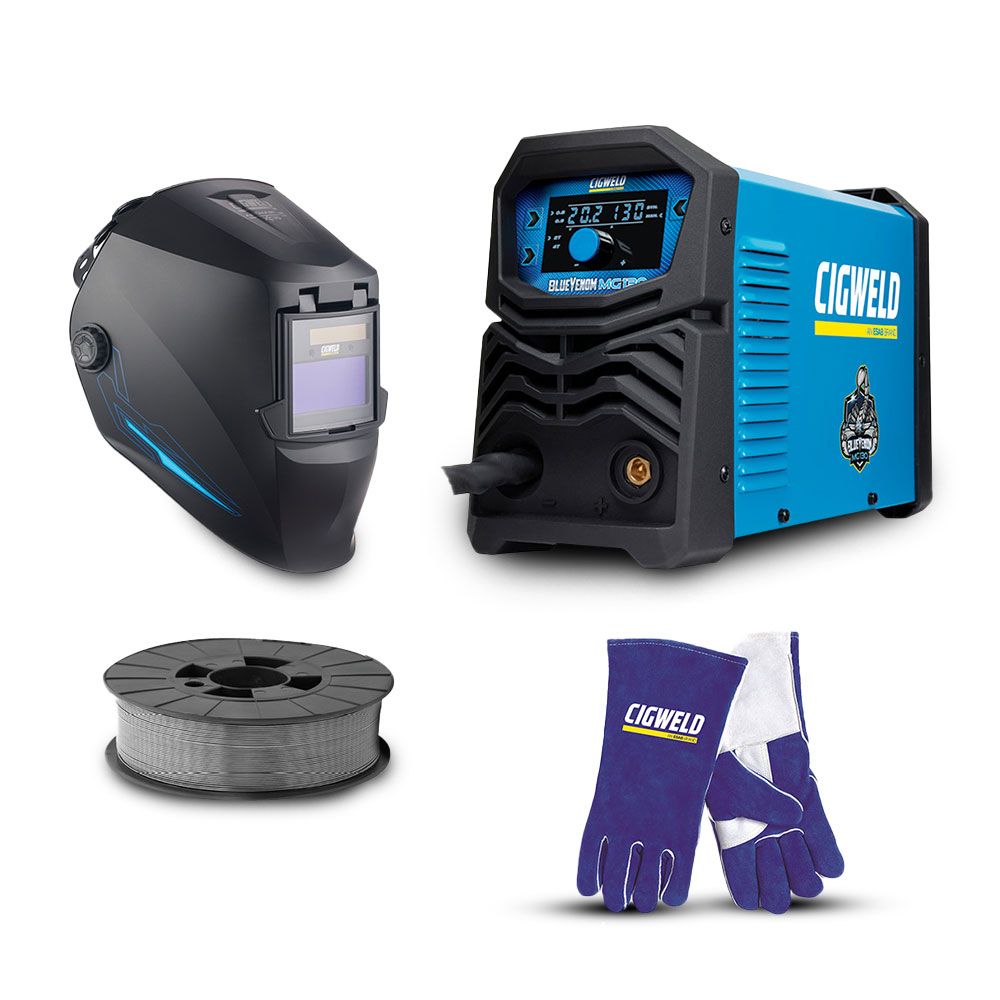

Delivering 130Amps of pure BlueVENOM, the MG130 is a compact and lightweight unit at 4.5Kg, and is ready to take on all those light welding jobs around the home, farm and building site. The perfect welder for people just starting out in welding or for those in trades who require simplicity with excellent results for smaller jobs. Being a Gasless MIG machine, you don’t need to worry about renting or buying shielding-gas or the costs that go with it – using CIGWELD’s tried and tested Gasless MIG wire, the MG130 is ready whenever you need it to be!

Includes:

• 1 x BlueVENOM MG130 Power Source
• 1 x Gasless MIG Gun 2.5m – Direct Connect
• 1 x Work Clamp with 1.5m Lead
• 1 x Feed Roll: 0.8/0.9mm Gasless – Knurled
• 1 x Gasless Nozzle – Fitted
• 1 x Contact Tips: 0.8mm (Fitted) & 0.9mm Included
• 1 x Carry Strap
• 1 x Operating Manual

Features:

• QuickSet, Plate Thickness Settings, allow simple set-up in a flash
• Produce ideal welding results from 230V/240V, 10A power
• Fine tuning of Pre-Set Wire Speed & Volts / Full control over manual settings
• Recommended Gasless MIG welding thickness range 0.8mm – 6mm
• 0.8mm / 0.9mm Welding wire size selection
• Suitable for 100mm Diameter Spools
• 2T/4T MIG Gun Trigger Modes
• Carry Strap for ease of portability
• Factory Settings reset feature

Specifications:

• Power Supply (Voltage): Single-Phase 230V/240V +/-10%
• Nominal Supply Frequency: 50/60Hz
• Supply Lead and Plug: 10 Amp
• Minimum Single Phase Generator Recommendation: 6kVA (at 0.8 Power Factor) at Max Amps
• Amperage Range (MIG): 30 - 130A
• Voltage Range (MIG): 10.5 - 23.5V
• MIG (GMAW) Duty Cycle @ 40ºC, 10 Minutes:
  • 130 Amps @ 20%
  • 75 Amps @ 60%
  • 58 Amps @ 100%
• Nominal DC Open Circuit Voltage in MIG Mode: 43V
• Australian Standard: AS 60974.1:2020
• Dimensions (L x W x H): 350mm x 140mm x 225mm
• Weight: 4.5kg
• Protection Class: IP 21S

Warranty:

• 2 Year Warranty Covered by Cigweld
