Cigweld CWGAUGE3 TRI-V Stainless Steel Welding Gauge (NAKA Style)

Cigweld CWGAUGE3 TRI-V Stainless Steel Welding Gauge (NAKA Style)

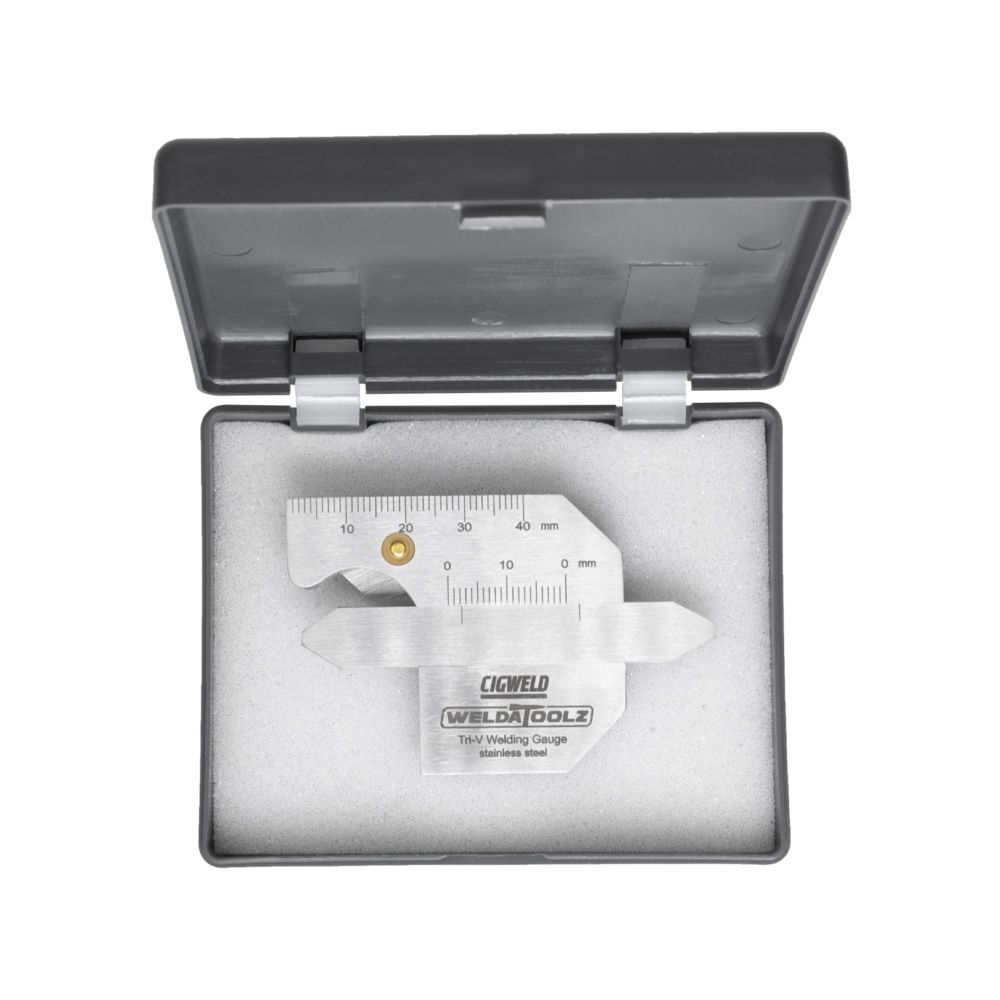

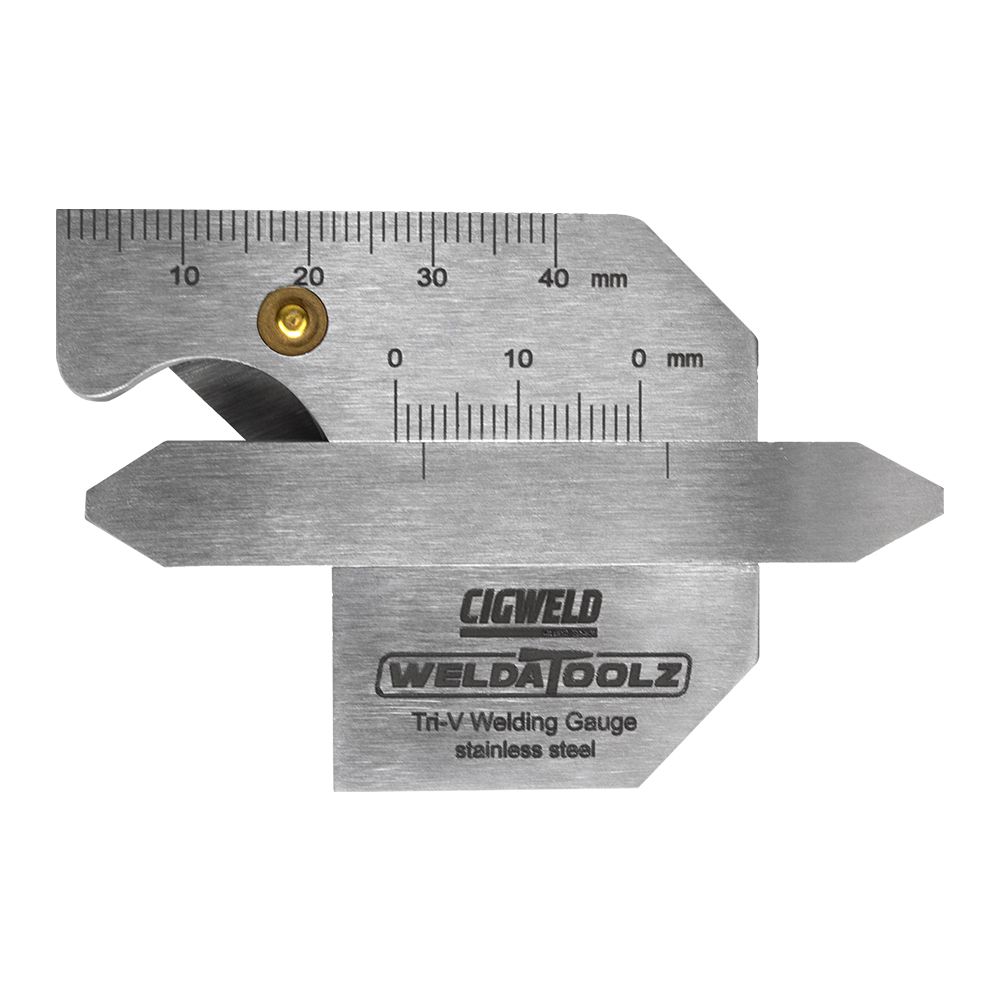

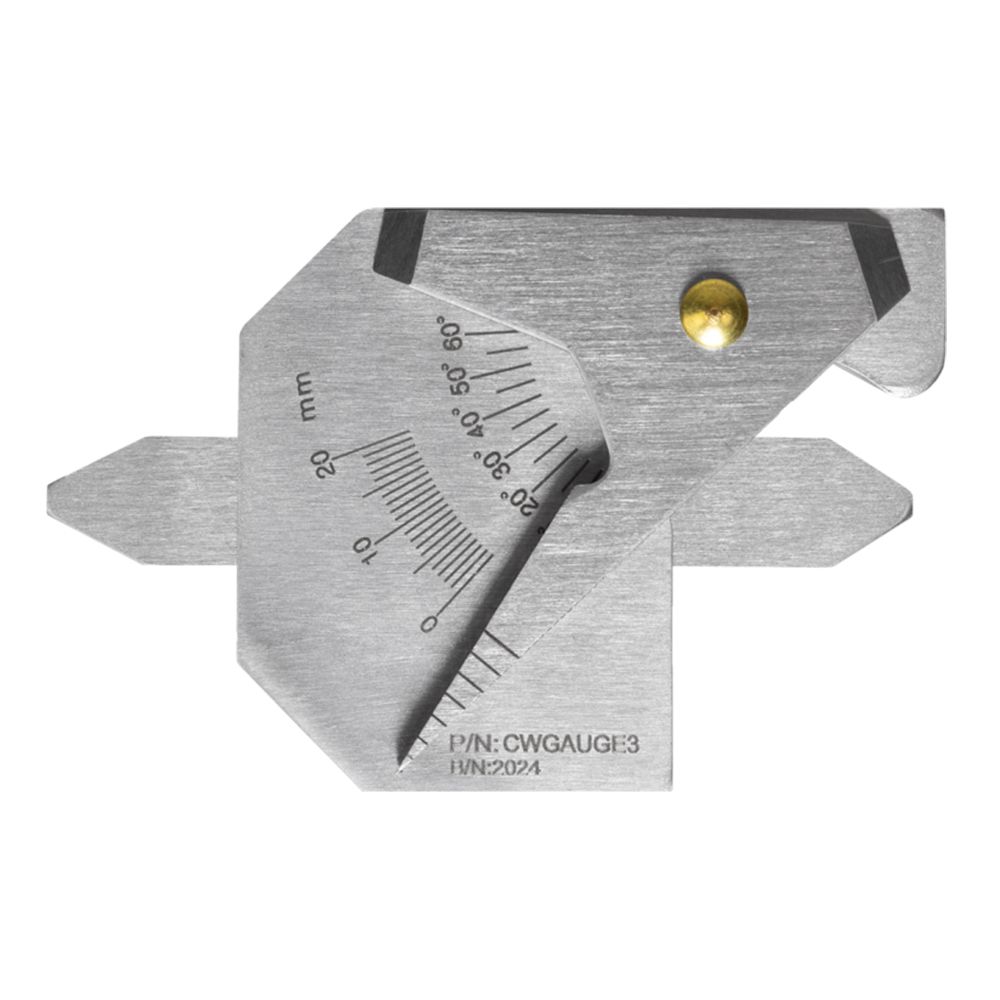

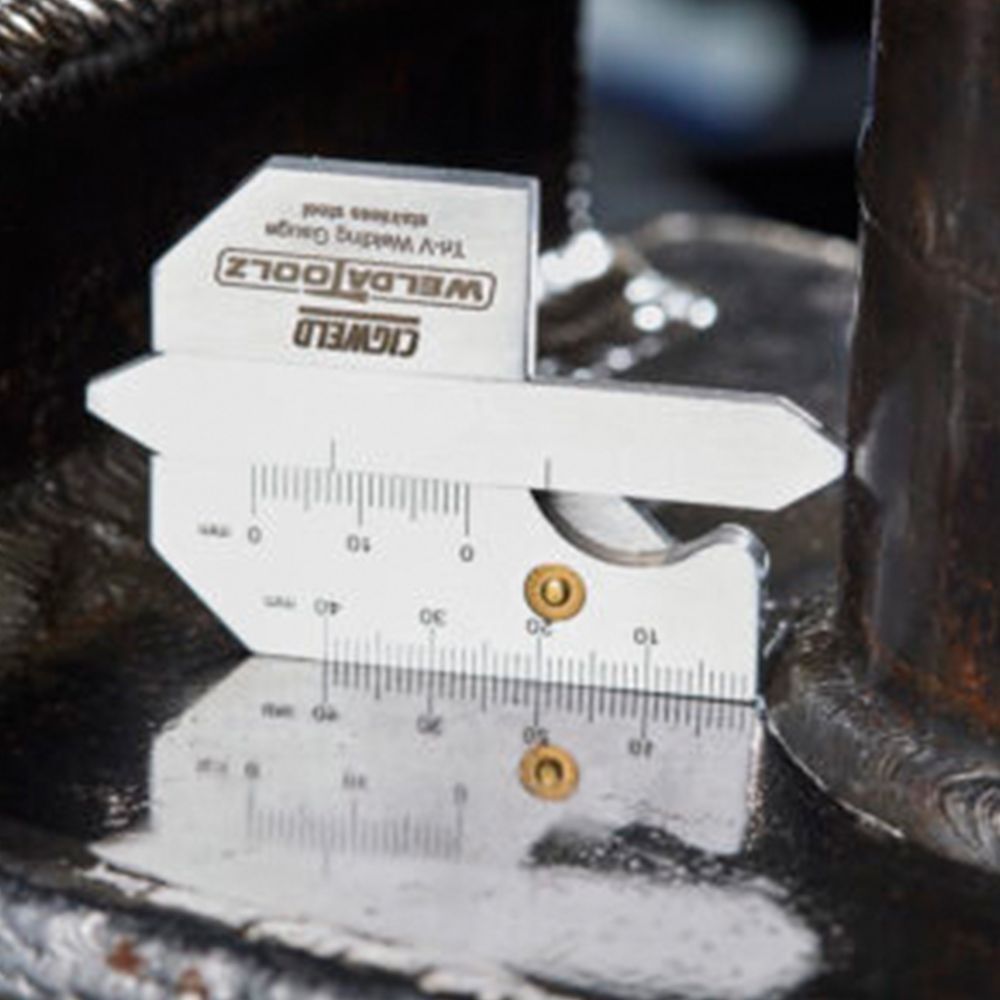

The Cigweld TRI-V Stainless Steel Welding Gauge (NAKA Style) is a precision tool designed for accurate measurement in welding applications. Constructed from durable stainless steel with a polished finish, it is ideal for verifying weld joint preparation angles, root gaps, plate thicknesses, fillet weld leg lengths, fillet weld throat thicknesses, and weld reinforcements. The gauge features a leg length and throat thickness of 20 mm, a root gap measurement range of 0.5 to 3 mm, and a groove (bevel) angle range from 0° to 60°, with 5° graduations. It offers length accuracy of ±0.01 mm, ensuring precise measurements for quality welding work

Includes:

• Plastic carry case

Feature:

• Precision-engineered for accurate welding measurements.
• Made from durable stainless steel with a polished finish for corrosion resistance.
• Designed to verify weld joint preparation angles, root gaps, plate thickness, fillet weld leg lengths, throat thickness, and weld reinforcement.
• Yearly certification ensures consistent accuracy.
• Compact and lightweight design for easy use in the field.

Specifications

• Material: Stainless Steel
• Measurement Accuracy: ±0.01 mm
• Root Gap Measurement Range: 0.5–3 mm
• Groove (Bevel) Angle Measurement Range: 0–60° with 5° graduations
• Leg Length Measurement Range: 20 mm
• Throat Thickness Measurement Range: 20 mm
