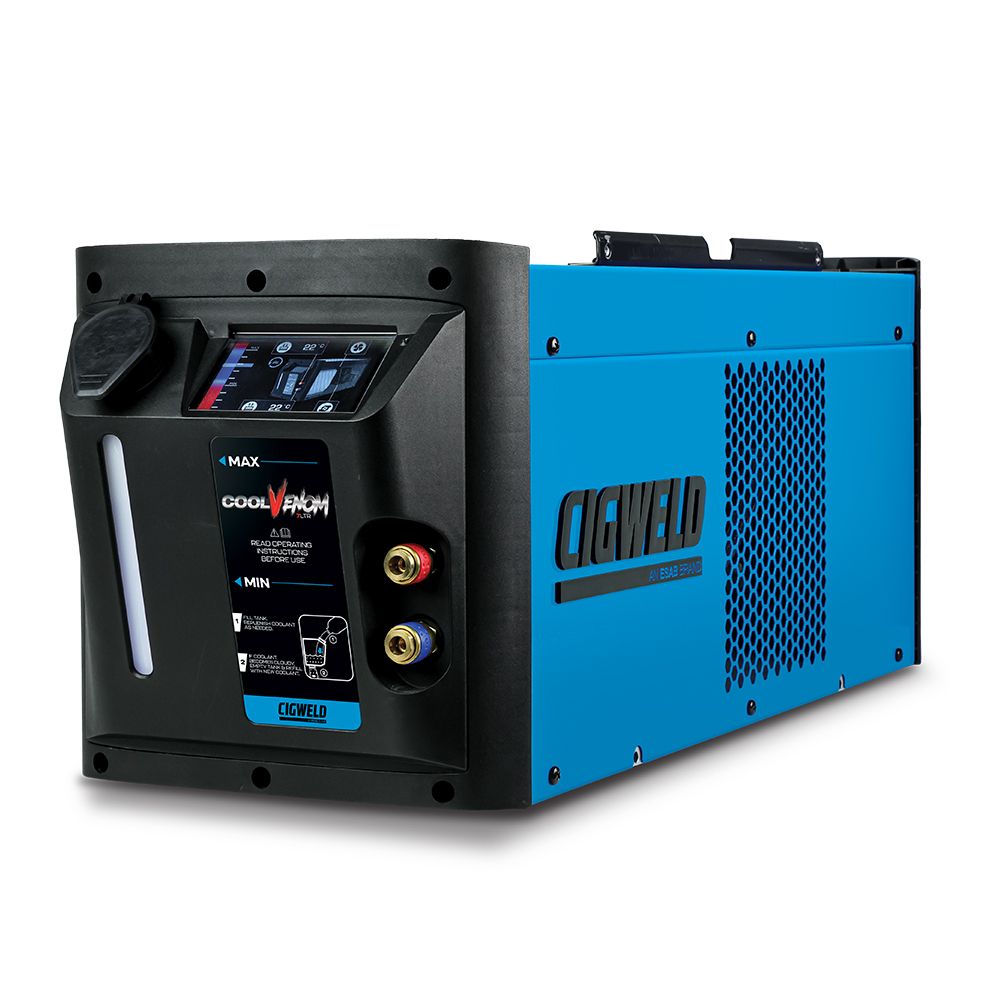

Cigweld COOLVENOM7LTR (W408270) 7L ARC Welding CoolVenom Water Cooler

Cigweld COOLVENOM7LTR (W408270) 7L ARC Welding CoolVenom Water Cooler

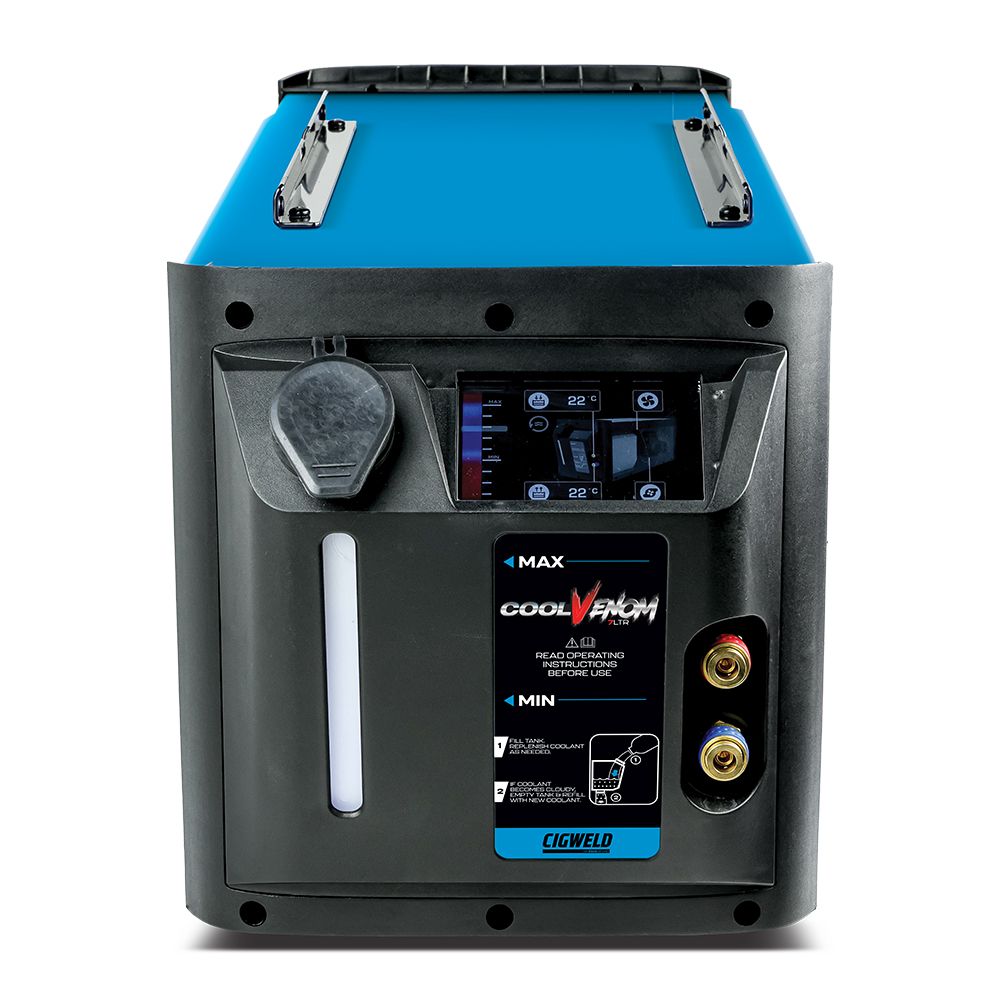

The CoolVenom 7LTR features an intuitive 4” Full Colour LCD display, providing all the information you need from the 1 screen. See the status of the water pump, cooling fan, water level, and temperature of the inlet and outlets at a glance. No more second guessing, know the exact temperature and cool your torch before it can overheat.

Includes:

• 1 x CoolVenom 7LTR Water Cooler
• 1 x CoolVenom Interconnection Lead
• 4 x Mounting Brackets
• 1 x Operating Manual

Features:

• Designed to suit the CIGWELD BlueVenom SiC welding range
• Large 7L coolant reservoir ideal for extended TIG welding applications
• Helps reduce torch temperatures during long welding runs
• Extends the service life of water-cooled TIG torches and MIG guns
• Intuitive 4" full-colour LCD display provides real-time system monitoring
• Displays water pump status, cooling fan operation, coolant level, and inlet/outlet temperatures at a glance
• Allows users to monitor coolant temperature to help prevent torch overheating
• High-performance cooling system with a large 150mm cooling fan
• 22 steel tube radiators provide fast and efficient heat dissipation
• Delivers up to 1.2kW of cooling power at 1L/min flow rate
• Maximum coolant flow rate of 10L/min for consistent cooling performance
• Dual inlet/outlet connections support two cooling circuits
• Compatible with torch leads up to 25m in length
• Compact, stackable design mounts securely beneath compatible BlueVenom SiC power sources
• Easy installation with included interconnection lead and mounting brackets
• Durable IP23S-rated construction suitable for workshop and industrial environments
• Backed by a 5-year CIGWELD warranty

Specifications:

• Nominal Supply (Voltage): 230 - 400VAC ±10%
• Australian Standard: EN IEC 60974-2:2019
• Nominal Supply: Frequency: 50/60Hz
• Maximum Input Current: 1.0 Amps
• Reservoir Volume: 7L
• Maximum Flow Rate: 10L/min
• Cooling Power: 1.2kW @ 1L/min
• Maximum Pressure: 0.25Mpa
• Maximum Torch Length: 25m
• Protection Class: IP23S
• Inlet/Outlet Pairs: 2
• Dimensions (L x W x H):
  • Water Cooler: 750mm x 260mm x 290mm
  • Package: 770mm x 330mm x 340mm
• Dry Weight (Water Cooler): 12.9kg
• Weight (Package): 15.5kg

Warranty:

• 5 Years Warranty covered by Cigweld
