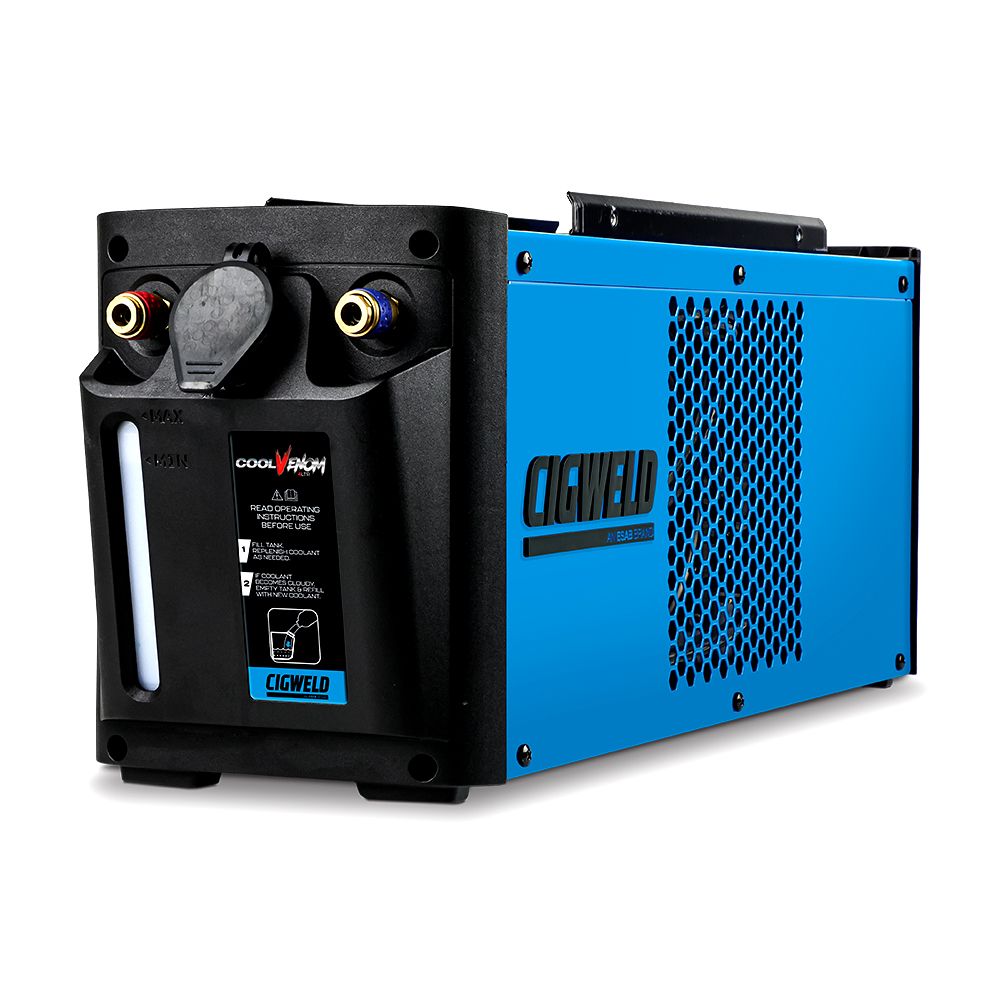

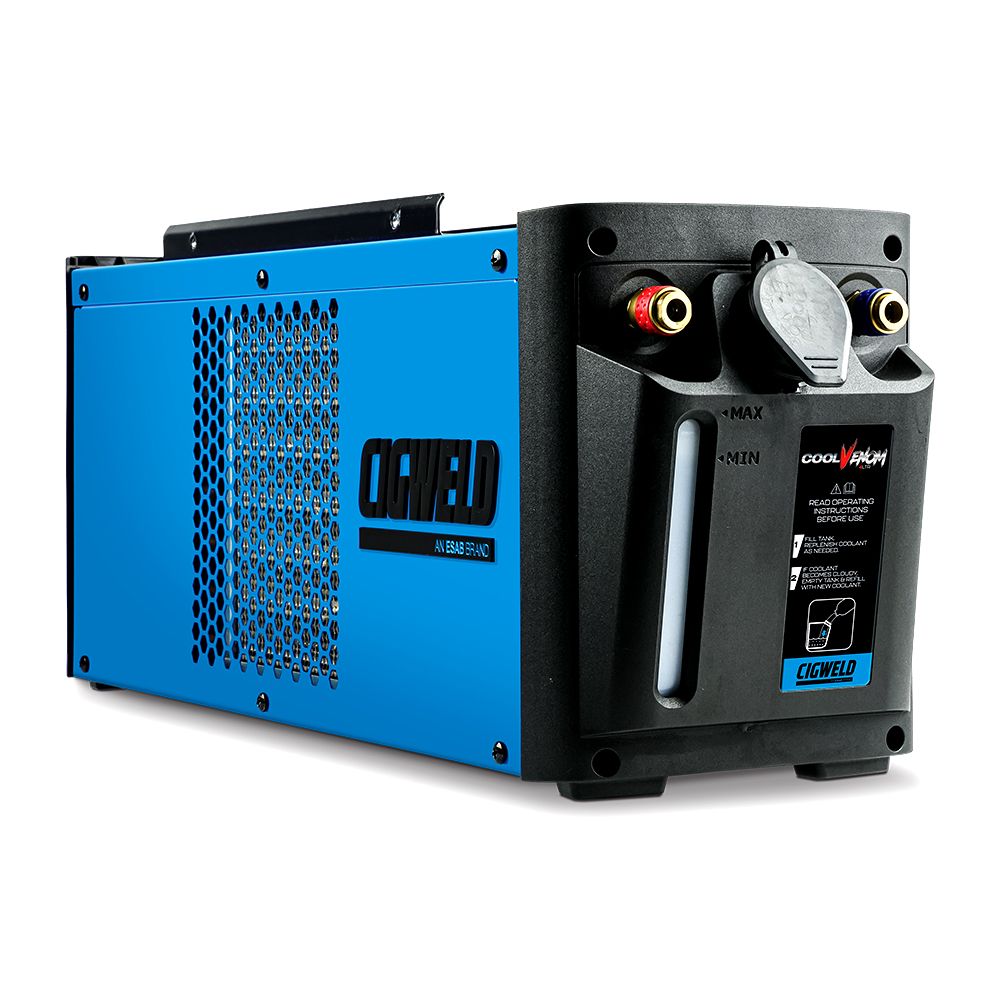

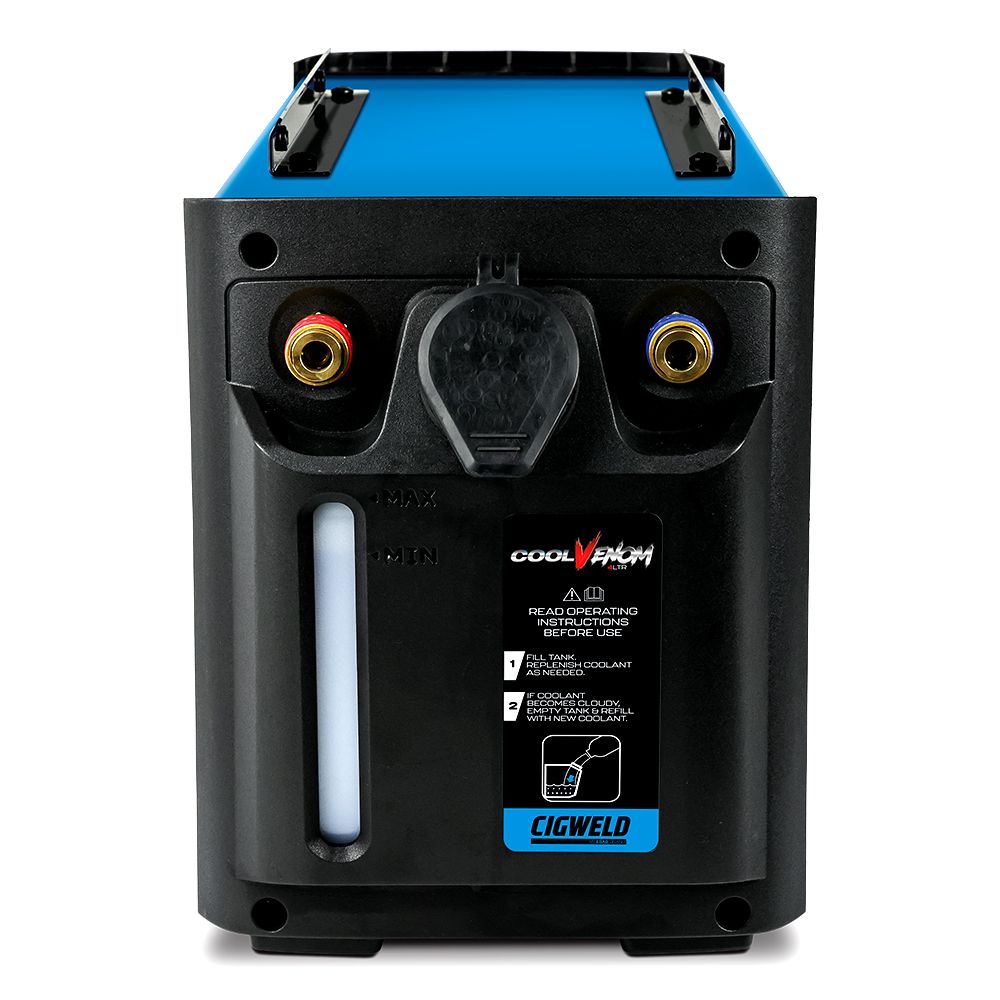

Cigweld COOLVENOM4LTR (W408240) 4L ARC Welding CoolVenom Water Cooler

Cigweld COOLVENOM4LTR (W408240) 4L ARC Welding CoolVenom Water Cooler

Introducing the CoolVenom 4LTR and CoolVenom 7LTR – 4 and 7 litre welding water coolers designed for the BlueVenom SiC range. The CoolVenom 4LTR and CoolVenom 7LTR are perfect for lengthy welding runs, mitigating heat and extending the life of your water-cooled TIG torches and MIG guns.

Utilizing a massive 150mm fan and 22 advanced steel tube radiators, the CoolVenom 4LTR and 7LTR provide fast and effective heat dissipation. Simply mount and screw in place the Power Source to the top of the Water Cooler for a strong and stable setup.

Includes:

• 1 x CoolVenom 4LTR Water Cooler
• 1 x CoolVenom Interconnection Lead
• 4 x Mounting Brackets
• 1 x Operating Manual

Features:

• Designed to suit the CIGWELD BlueVenom SiC welding range
• 4L coolant reservoir ideal for extended TIG welding applications
• Helps reduce torch temperatures during long welding runs
• Extends the service life of water-cooled TIG torches and MIG guns
• High-performance cooling system with a large 150mm cooling fan
• 22 steel tube radiators provide fast and efficient heat dissipation
• Delivers up to 1.2kW of cooling power at 1L/min flow rate
• Maximum coolant flow rate of 10L/min for consistent cooling performance
• Supports torch leads up to 25m in length
• Compact, stackable design mounts securely beneath compatible BlueVenom SiC power sources
• Simple installation with included interconnection lead and mounting brackets
• Durable IP23S-rated construction suitable for workshop and industrial environments
• Backed by a 5-year CIGWELD warranty

Specifications:

• Nominal Supply (Voltage): 230 - 400VAC ±10%
• Australian Standard: EN IEC 60974-2:2019
• Nominal Supply Frequency: 50/60Hz
• Maximum Input Current: 1.0 Amps
• Reservoir Volume: 4L
• Maximum Flow Rate: 10L/min
• Cooling Power: 1.2kW @ 1L/min
• Maximum Pressure: 0.25Mpa
• Maximum Torch Length: 25m
• Inlet/Outlet Pairs: 1
• Protection Class: IP23S
• Dimensions (L x W x H):
  • Water Cooler: 590mm x 190mm x 240mm
  • Package: 650mm x 240mm x 310mm
• Dry Weight (Water Cooler): 9.1kg
• Weight (Package): 11.5kg

Warranty:

• 5 Years Warranty covered by Cigweld
