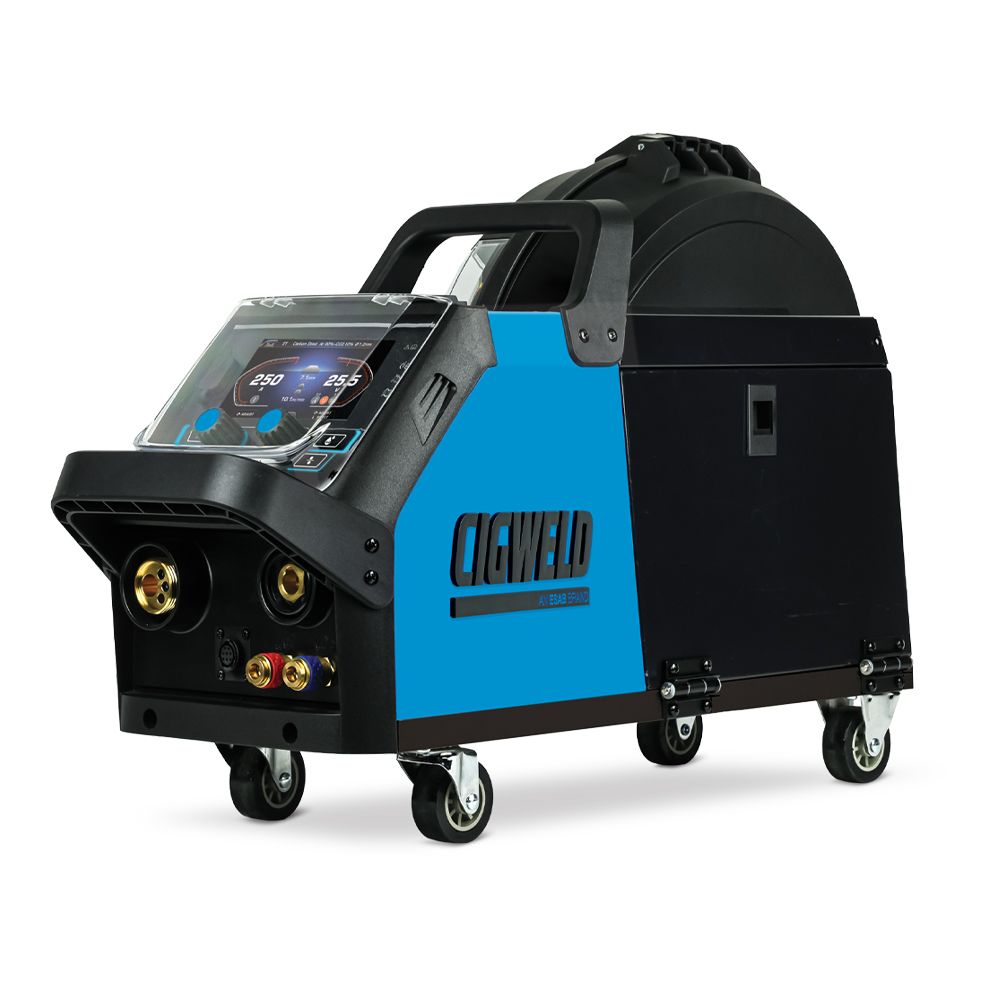

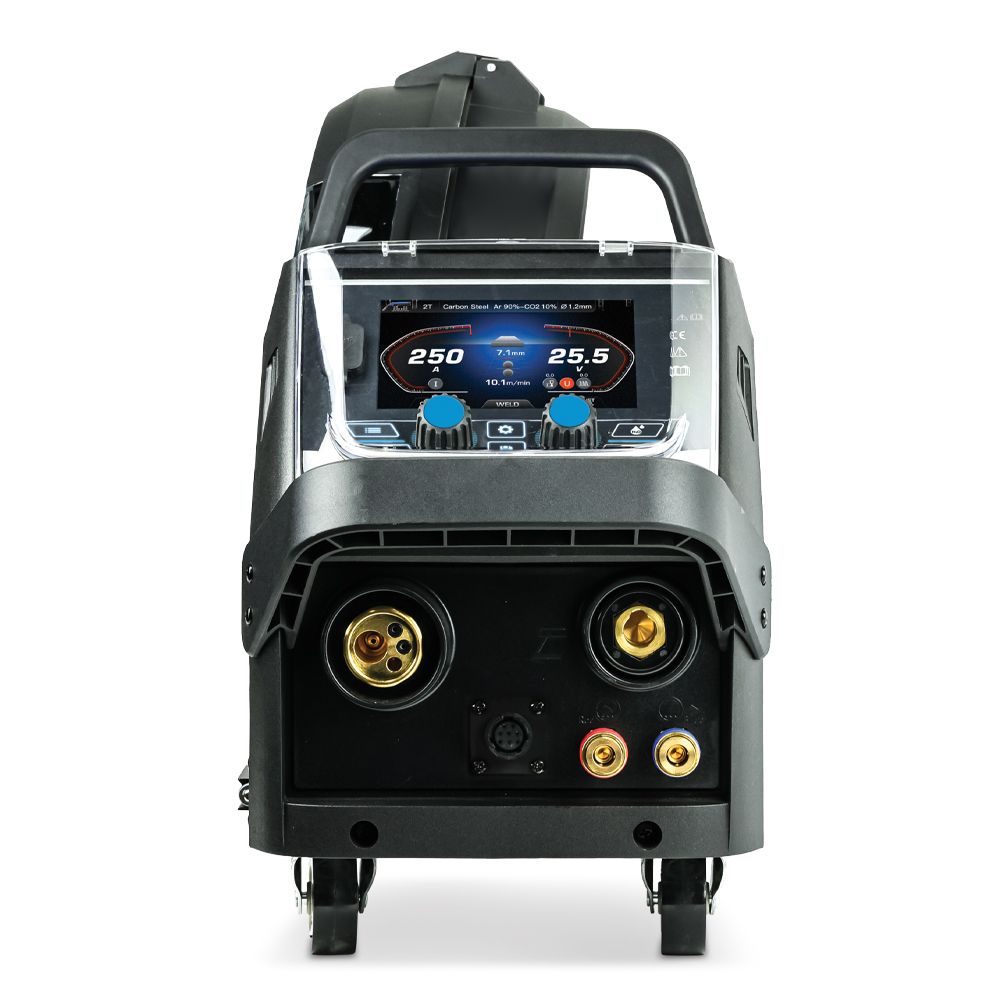

Cigweld BVFEEDX4 (W3000250) BlueVenom Heavy Duty Wire Feeder

Cigweld BVFEEDX4 (W3000250) BlueVenom Heavy Duty Wire Feeder

The BlueVenom FeedX4 is a heavy-duty wire feeder designed for the BlueVenom XF250-6in1 SiC. Featuring a massive 15m interconnection cable, it is ideal for long-distance welding applications. With the flexibility to be mounted to the power source using the 360° swivel mount or hung from a gantry, the FeedX4 provides greater freedom of movement while maintaining access to key welding controls through its intuitive 5″ full-colour touchscreen.

Includes:

• BlueVenom FeedX4
• 1 x Feed Rolls
• 1 x 15m water-cooled Interconnection lead
• 1 x Swivel Mount + Strain Relief Bracket for Interconnection Lead
• 1 x Operating Manual

Features:

• Water-Cooled Interconnection Cable: Designed for long-distance welding applications with the included 15m water-cooled interconnection cable, providing greater reach and flexibility on the job
• Advanced Welding Control: Supports MIG, MIG Single Pulse, MIG Double Pulse, and Stick (with Pulse) welding modes, with pre-set Synergic lines and Spool Gun and Push Pull Gun compatibility, all accessible through the intuitive 5" full-colour touchscreen
• 15kg Spool Capacity: Accommodates both 5kg (200mm) and 15kg (300mm) wire spools for increased flexibility across workshops and industrial applications
• 4-Roll Geared Wire Drive: 4-roll geared wire drive provides greater feeding force, increased grip, and a smoother wire delivery. Ideal for soft aluminium wire, reducing the risk of slippage and birdnesting

Specifications:

• Nominal Input Voltage: 24V DC
• Nominal Supply Frequency: 50/60Hz
• Amperage Range:
  • MIG: 30A –250A
  • STICK: 10A –250A
• STICK Duty Cycle @ 40°: 250A @100%, 30.0V
• MIG Duty Cycle @ 40°: 250A @100%, 26.5V
• Maximum Input Current: 3.5 Amps
• International Standard: EN IEC 60974-5:2021
• Certification: EN IEC 60974-2:2019
• Spool Gun Compatible: Yes, MIG MAN/SYN modes only
• Water Cooler Compatible: Yes
• Protection Class: IP23S
• Push-Pull Gun Compatible: Yes, all MIG modes
• Wire Spool Size(s):
  • 5kg (200mm)
  • 15kg (300mm)
• Dimensions (L x W x H): 650mm x 240mm x 360mm
• Weight: 12.7kg

Warranty:

• 5 Years Warranty covered by Cigweld
