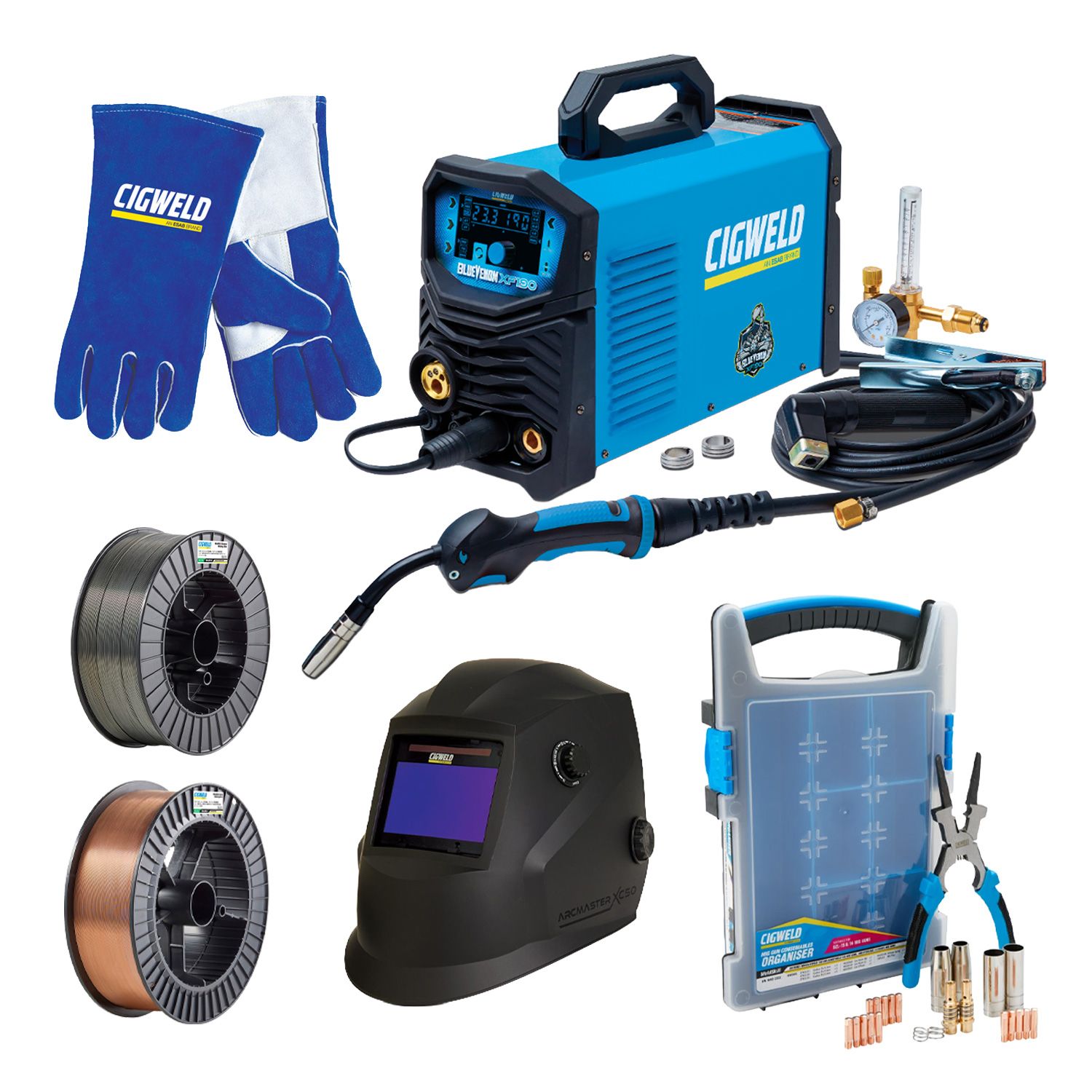

Cigweld 800190 BlueVENOM 3-in-1 Multi Process Welding Inverter 6pce PowerPack Combo Kit

The BlueVENOM XF190 is the perfect solution for light fabrication, maintenance and repairs or for DIY around the home, workshop, worksite or farm without compromising on quality, safety and performance! With the avid welder in mind, CIGWELD have introduced "Opti-Start", a feature that allows the user to customise theor starting arc characteristics through soft and hard start controls.

Includes:

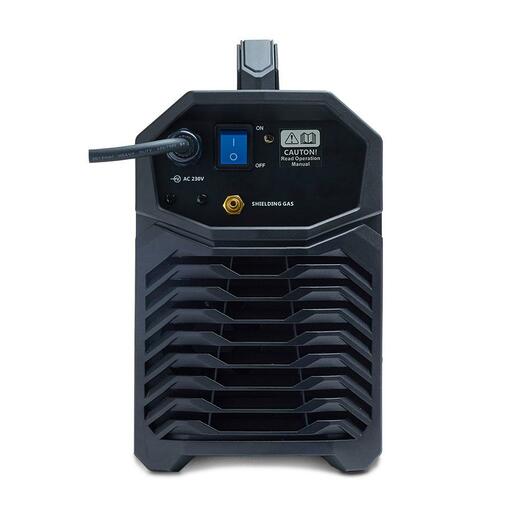

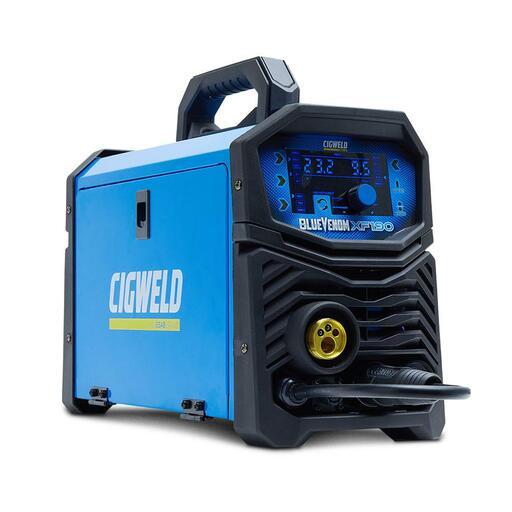

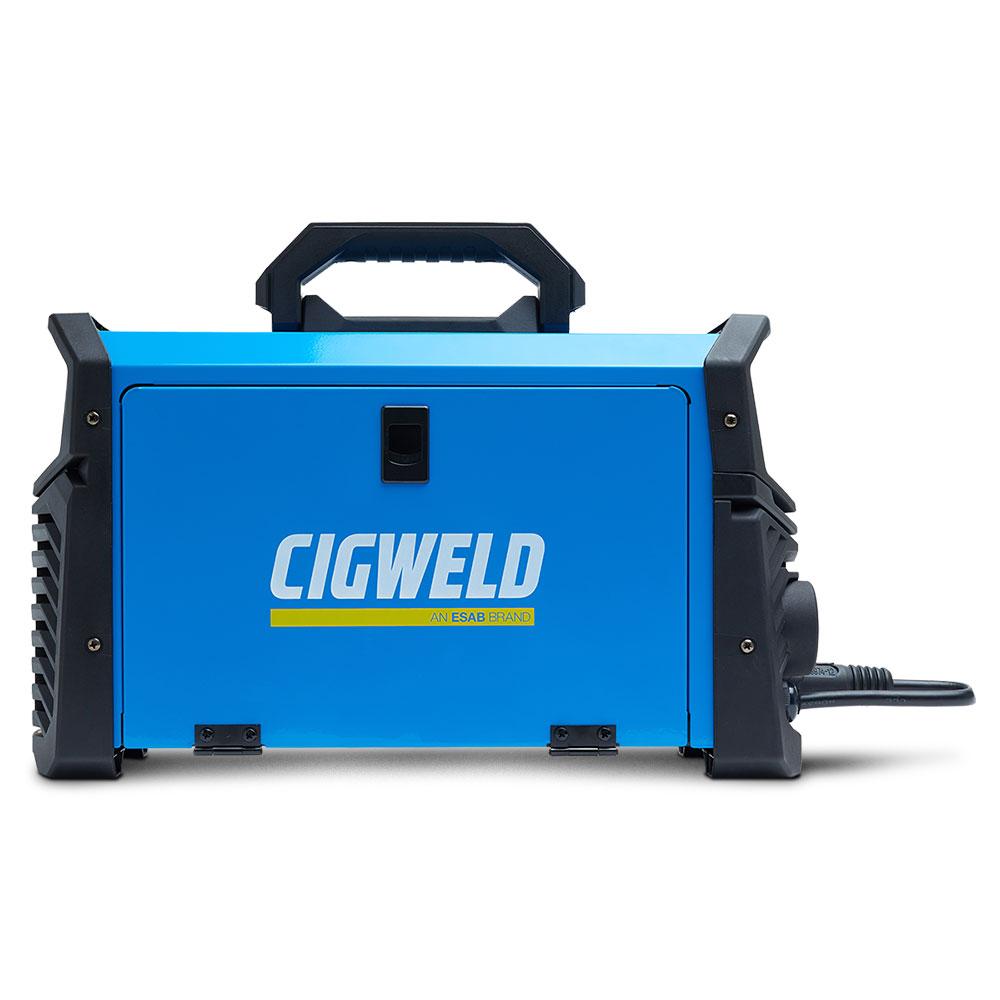

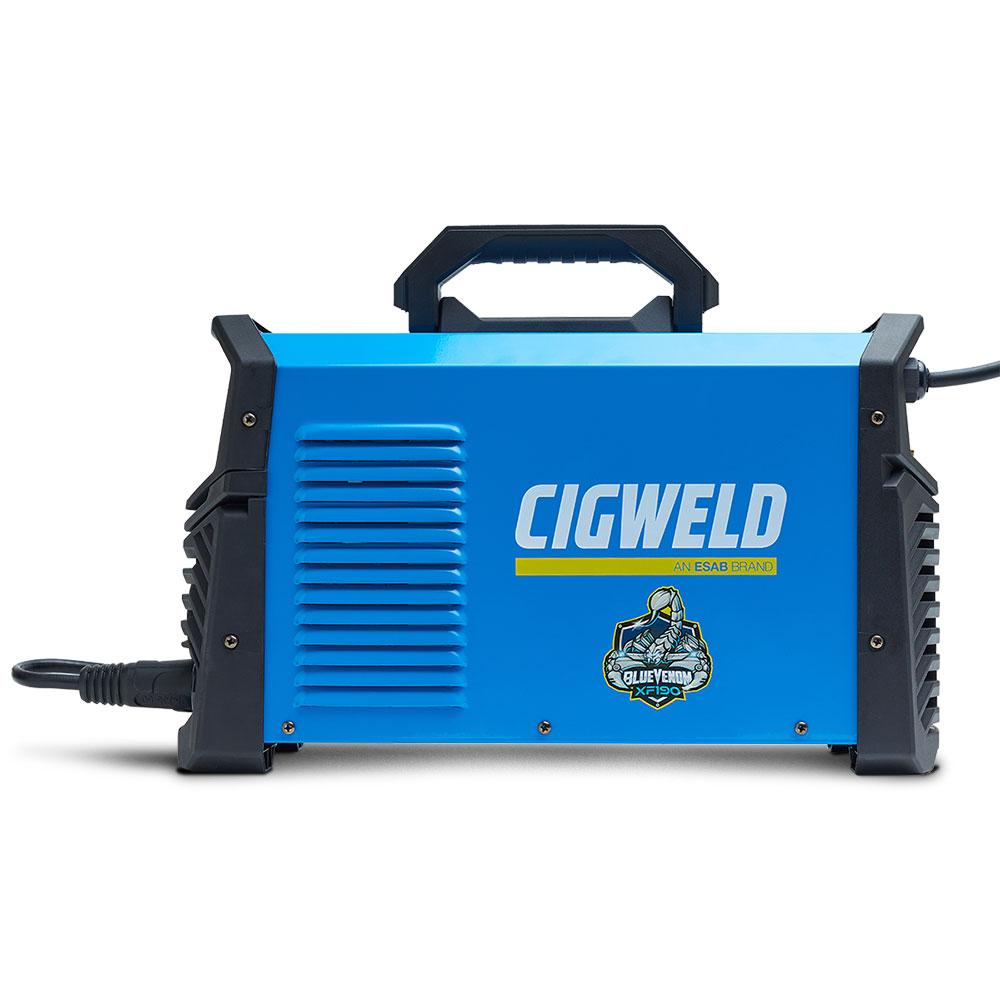

• BlueVENOM XF190 Power Source
• CMGBZ15E3 MIG Gun 3m-Euro quick Connector
• Work Clamp with 3m Lead
• 2x Feed Rolls: 0.8/0.9mm Gasless, 0.8/0.9mm Solid Wires (Fitted)
• 2m Argon Gas Hose and Gas Regulator
• Includes Nylon Inlet Guide for use on Soft Alloy Wires
• Operating Manual

Features:

• 2 x Roll All-Driven (Top & Bottom) Wire Device System
• MIG Adjustable Wire Burnback & Inductance
• MIG Adjustable Soft & Hard start (Opti-Start)
• MIG Wire Inch Button
• MIG Gas Purge Button
• MIG Side door wire installation, side loader
• MIG Anti de-spooling safety feature
• MIG Spool Gun Compatible
• STICK with voltage Reduction Device (VRD) Built-in for Safe Welding
• STICK adjustable Hot Start
• STICK adjustable Arc Force
• STICK Anti-Stick
• Thermal Overload Protection
• TIG Foot Control Compatible
• TIG Dial Remote Torch Compatible

Specifications:

• Power Supply (Voltage: Single-Phase 230V/240V +/- 15%
• Australian Standard: AS60974.1:2020
• Nominal Supply Frequency: 50/60Hz
• Supply Lead and Plug supplied: 10 Amp
• Minimum Single Phase Generator Recommendation: 10kVA (at 0.8 Power factor) at Max Amps
• Aperage Range (MIG): 30-190A
• Voltage Range (MIG): 15.5 - 26.0V
• MIG (HMAW) Duty Cycle at 40ºC, 10 minutes:
  • 185 Amps at 9%
  • 72 Amps at 60%
  • 56 Amps at 100%
• STICK(MMAW) Duty Cycle at 40ºC, 10 minutes:
  • 160 Amps at 10%
  • 50 Amps at 60%
  • 50 Amps at 100%
• TIG (GTAW) Duty Cycle at 40ºC, 10 minutes:
  • 190 Amps at 10%
  • 77 Amps at 60%
  • 60 Amps at 100%
• Nominal DC Open Circuit Voltage in MIG Mode: 52V
• Open Circut Voltage (VRD On) STICK mode:  <35V
• Weight of Power Source: 9.5kg
• Power Source Dimentions (mm)(L x W x H): 465 x 190 x 340mm
• Protection Class: IP 21S
• Weight of full package: 16.6kg

Warranty:

• 2 Year Warranty Covered By CIGWELD
• + 6 Months Extra Warranty ONLY When Regestered at cigweld.com.au

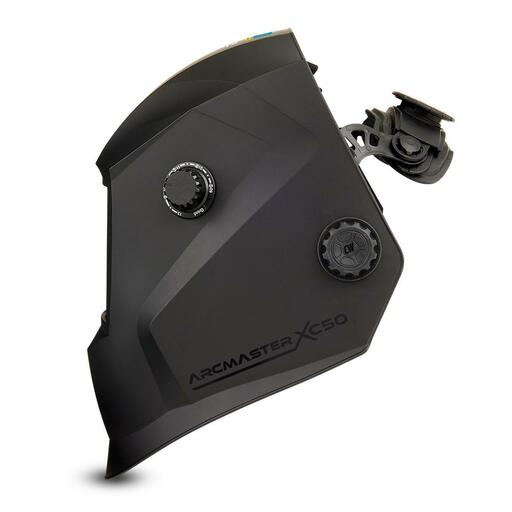

Features:

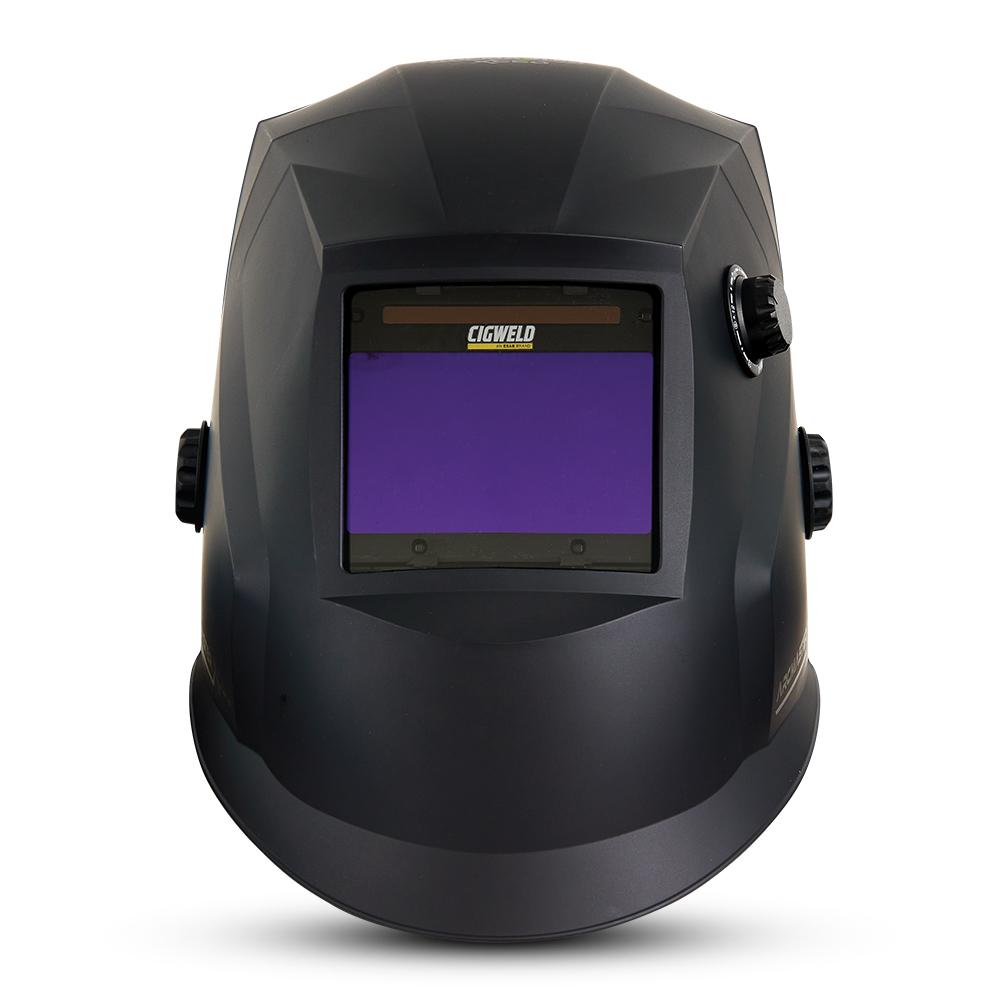

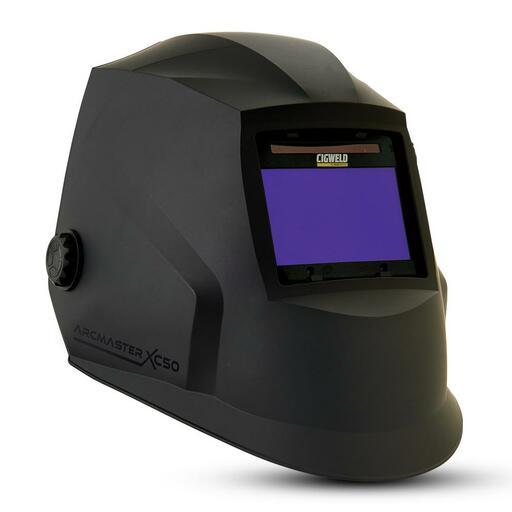

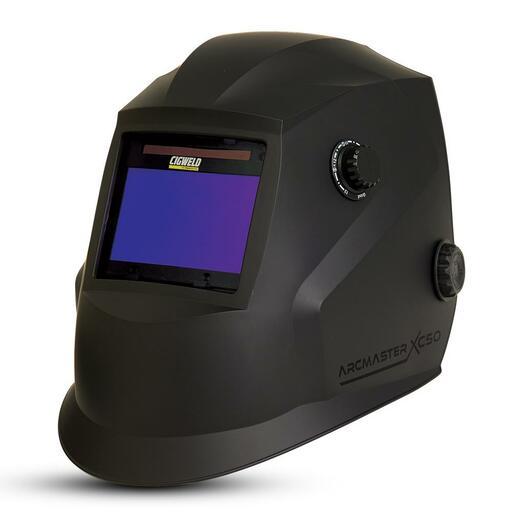

• Prime level welding helmet
• Quad-1, high definition optical viewing rating (EN379-1/1/1/1) approved to AS/NZS:1338.1
• 4 arc sensors, excellent for all welding processes including TIG down to 5 Amps, including pulse TIG
• Variable shade range 4/5-8/9-13 with grind mode easy accessible controls on the outside
• Ultra view lens with true colour view
• 4-point comfort harness
• High impact rating for grinding to AS/NZS:1337.1

Specifications:

• Viewing Area: 100mm x 60mm = 77.5mm²
• Arc Sensors: 4
• DIN Rating: Quad-1 (1/1/1/1)
• Shade Range: 5-8 / 9-13
• Switching Speed: 0.1ms
• Harness Points: 4
• Analogue Controls: Yes
• Ultra View: Yes
• OptiShade Technology: No
• Impact Rating: High Impact
• Grinding Shade: 4
• Gradual Mode: No
• Memory Mode: No
• Power Up: Solar Assist 1 x CR2450
• Weight: 0.58kg

Warranty:

• 3 Years Warranty Covered by Cigweld

With a full sock lining for maximum comfort, and the highest of quality leather, the Weldskill Heavy Duty Welding Gloves will protect you from high heat output applications and keep you welding longer than with standard, lightweight alternatives. You can expect superior heat and abrasion resistance from this Heavy Duty option!

Features:

• Heavy Duty welding gloves suitable for a wide range of welding applications
• Manufactured from high quality leather for superior heat and abrasion resistance
• Kevlar stitching for increased durability
• Full sock lining for maximum comfort

Specifications:

• Size: L
• Dimensions (L x W x H): 300mm x 120mm x 20mm
• Weight: 0.8kg

The Cigweld W4012303 MIG Front End Organiser Box is a handy consumables kit designed to keep essential MIG front end parts organised and ready to use. Suited to Binzel 15 / BZL-15 style MIG guns, it includes a mix of contact tips, nozzles, tip holders and insulators in a compact organiser box for easy storage and transport.

Includes:

• 2 x BZ15 Nozzles – Medium
• 2 x BZ15 Nozzles – Large
• 5 x Contact Tips – 0.6mm
• 5 x Contact Tips – 0.8mm
• 5 x Contact Tips – 0.9mm
• 2 x Tip Holders
• 2 x Insulators
• 1 x MIG Pliers
• 1 x Organiser Box

Features:

• Suits Binzel 15 / BZL-15 style MIG guns
• Organiser box keeps consumables neat and easy to access
• Includes a mix of commonly used front end MIG consumables
• Compact design for workshop storage or transport
• Ideal for maintaining and replacing worn MIG torch front end parts

Specifications:

• Product Type: MIG Front End Organiser Box / Nozzle Set
• Piece Count: 22 Piece
• Compatibility: BZL-15 / Binzel 15 MIG Guns
• Dimensions (L x W x H): 60mm x 205mm x 355mm
• Weight: 1kg

WeldSkill precision layer wound solid wires are copper-coated steel wires for all positional GMA (Gas Metal Arc) welding of mild and low allow steels. They are suitable for use with Argon-Based or CO shield gases. Available in an assortment of mini spools and handi-spools, these wires are ideal for the hobbyist, tradesman or for DIY projects.

Features:

• Copper coated steel wire for GMA Welding
• Use with CO and Argon based shielding gases
• Range of minispools and handispools packaging options

Suitable For:

• The positional Gas Metal Arc Welding (GMAW)
• Mild and low alloy steels
• General fabrication
• Structural work

Specifications:

• Size: 0.8mm
• Weight: 5kg

The CIGWELD WeldSkill WG4509 Gasless Welding Wire is a self-shielded E71T-11 flux-cored wire designed for MIG welding without the need for external shielding gas. Ideal for outdoor welding, maintenance and fabrication, it delivers excellent penetration, smooth arc characteristics and reliable all-position welding on mild and galvanised steels.

Features:

• Self-shielded flux-cored wire requires no external shielding gas
• AWS E71T-11 classification for single and multi-pass welding
• Suitable for welding mild and galvanised steels
• All-position welding capability
• Excellent tolerance to joint misalignment and poor joint fit-up
• Produces smooth rippled fillet welds with excellent edge wetting
• High penetration with stable arc performance
• Full slag coverage with easy slag removal
• Ideal for outdoor welding and windy conditions
• Perfect for fabrication, repairs and maintenance applications

Specifications:

• Wire Classification: AWS A5.20 E71T-11
• Wire Type: Self-Shielded Flux-Cored Welding Wire
• Wire Diameter: 0.9mm
• Voltage Range: 15V – 17V
• Current Range: 80A – 150A
• Electrode Stickout (ESO): 12–15mm
• Pack Type: Handispool
• Spool Weight: 4.5kg
• Suitable Materials: Mild Steel and Galvanised Steel
• Welding Process: Gasless MIG (FCAW)
• Shielding Gas: Not Required
• Welding Positions: All Positions
• Dimensions (L x W x H): 200mm x 200mm x 65mm
• Weight: 4.5kg
