Cigweld 661600 BlueVenom PCX35 Plasma Cutter

Cigweld 661600 BlueVenom PCX35 Plasma Cutter

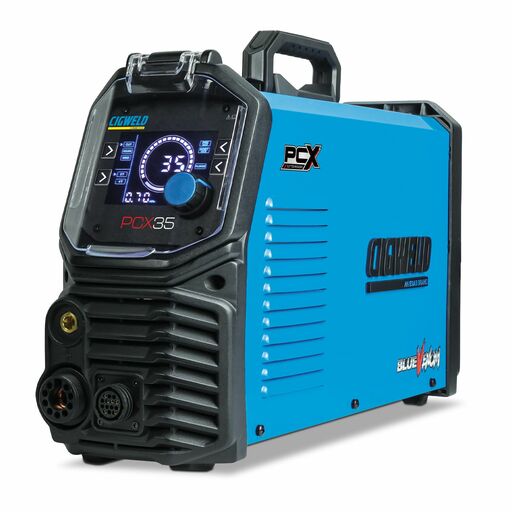

The BlueVenom PCX35 plasma cutter delivers serious cutting power in a compact and portable package. With cutting capacity of up to 12mm it is built for speed, precision, and productivity. Weighing under 9kg, it makes it easy to carry on-site or around the workshop without compromising power. It can be used as a portable handheld plasma cutter or integrated into a CNC cutting system for automated precision.

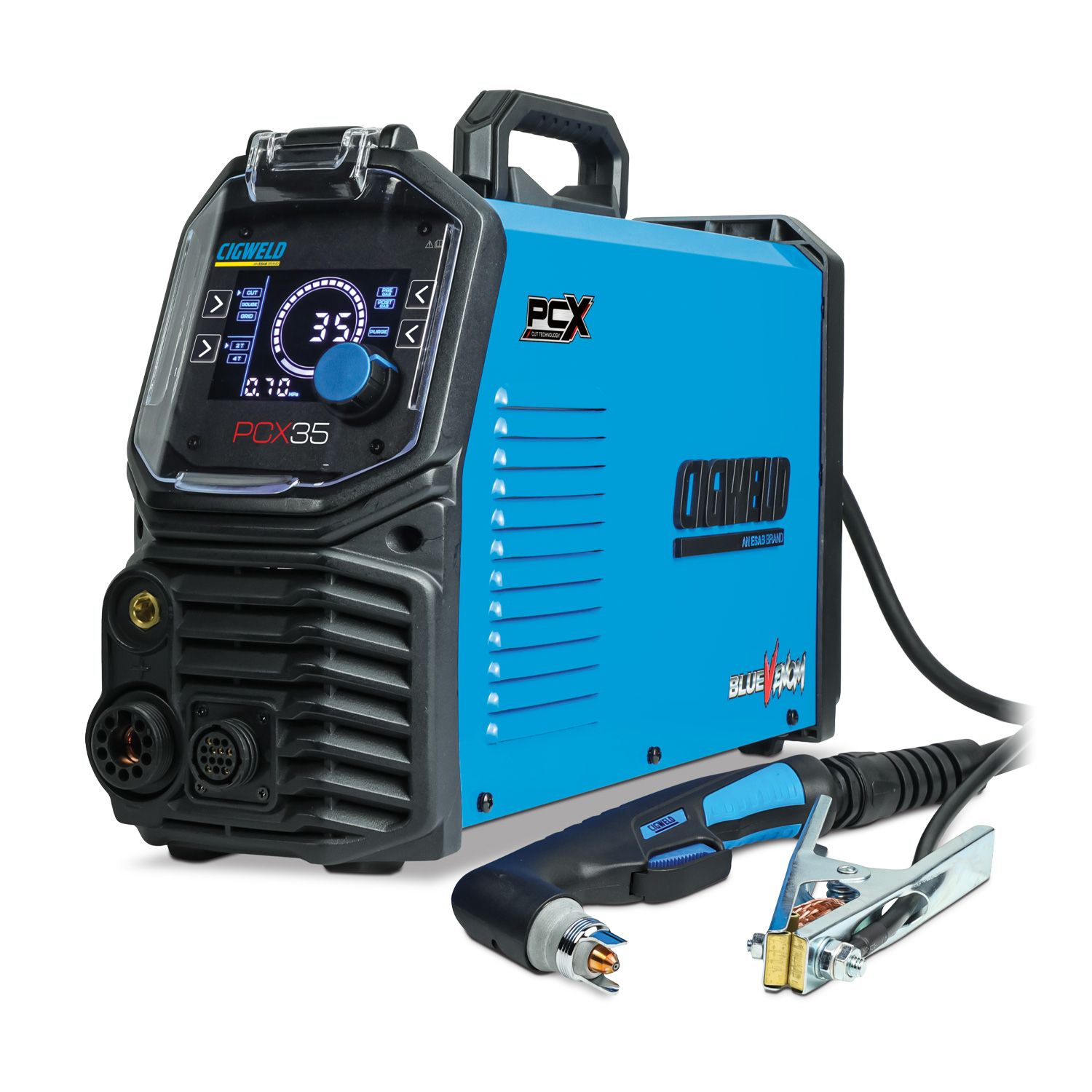

Includes:

• 1 x BlueVenom PCX35 (Power Source)
• 1 x BlueVenom60A Plasma Torch 6m
• 1 x Work Cable and Clamp 3m

Features:

Specifications:

• Welding Process: Plasma Cutting
• Power Supply: Single Phase 10A Plug, 230V ±15%
• Number of Phases: Single Phase
• Supply Frequency: 50/60Hz
• Amperage Range: 20A – 35A
• Rated Duty Cycle (40°C): 35A @ 35%, 94.0V
• Mild Steel Clean Cut Capacity: 12mm
• Mild Steel Severance Capacity: 16mm
• Stainless Steel Clean Cut Capacity: 10mm
• Aluminium Clean Cut Capacity: 10mm
• Input Air Required: 0.38 – 0.75 MPa (5.5 – 7.5 bar)
• Supply Lead & Plug: 10 Amp
• Minimum Generator Requirement: 6kVA (0.8 Power Factor at Max Amps)
• Power Source Dimensions (L x W x H): 483mm x 147mm x 292mm
• Power Source Weight: 8.8kg
• Package Dimensions: 560mm x 255mm x 345mm
• Package Weight: 15kg

Warranty:

• 5 Year Warranty as Covered by Cigweld
