Cigweld 208573 TIG Tungsten Grinder Attachment

Cigweld 208573 TIG Tungsten Grinder Attachment

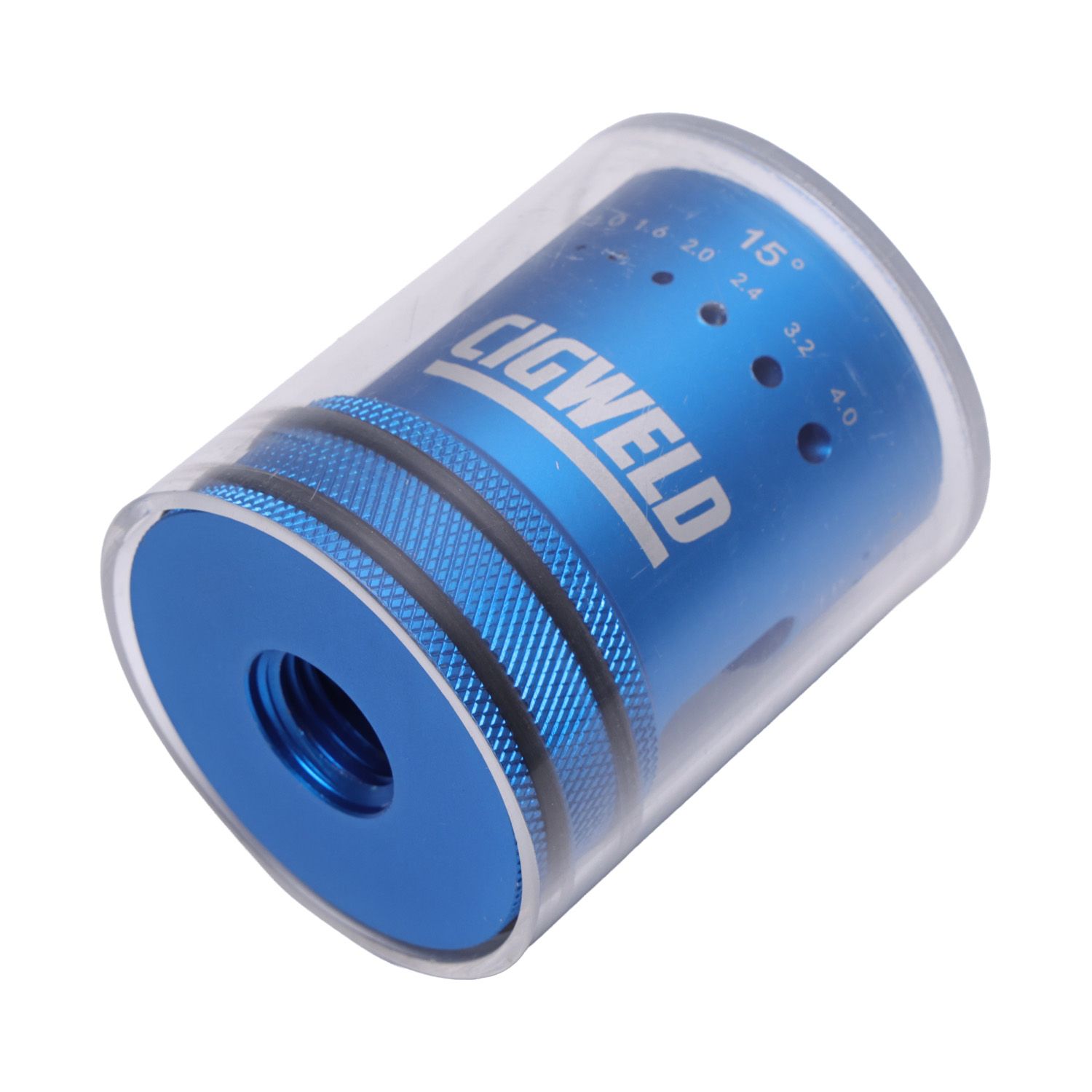

The CIGWELD TIG Tungsten Grinder Attachment is designed for use with the rotary tool supplied in the CIGWELD TIG Tungsten Grinder Kit. It provides a convenient replacement attachment solution for accurate and consistent grinding of TIG tungsten electrodes.

Compact and easy to use, the attachment helps achieve precise, repeatable grinding angles and consistent tungsten electrode preparation for reliable TIG welding performance.

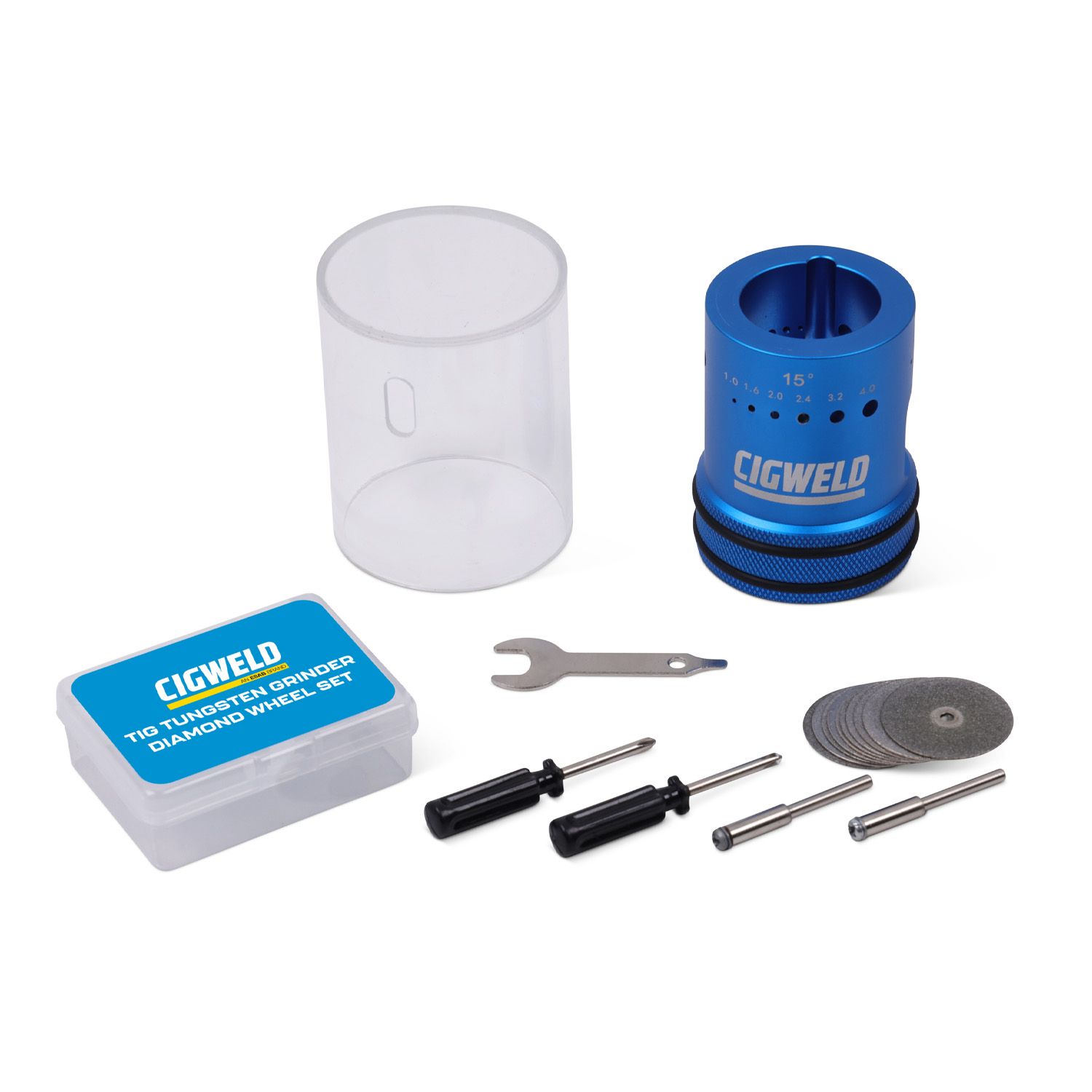

Includes:

• Tungsten Grinder Attachment
• Protective Transparent Cover
• 10 x Diamond Grinding Wheels
• 2 x Spindles
• Spanner & Screw Drive

Features:

• 3 preset grinding angles of 15°, 22.5° and 32°, suitable for six tungsten electrode diameters from 1.0 mm to 4.0 mm, for accurate and consistent grinding
• Helps achieve a precise tungsten point with a clean finish, delivering repeatable grinding results for more consistent TIG welding performance while helping maximise the usable life of each tungsten electrode
• Integrated Protective Cover, helps contain grinding debris and reduce dust and particle spatter during operation for a cleaner, more controlled grinding process

Specifications:

• Preset Grinding Angles: 15°, 22.5°, and 32°
• Grinding Electrode Diameter Sizes: 1.0mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm and 4.0mm
• Grinding Wheel:
  • Thickness: 0.55mm
  • Diameter: 30mm
• Spindle Diameter: 3.15mm
• Weight: 0.34kg (Whole Kit)

Warranty:

• 3 Years Warranty covered by Cigweld
