Cigweld 208572 TIG Tungsten Grinder Kit

Cigweld 208572 TIG Tungsten Grinder Kit

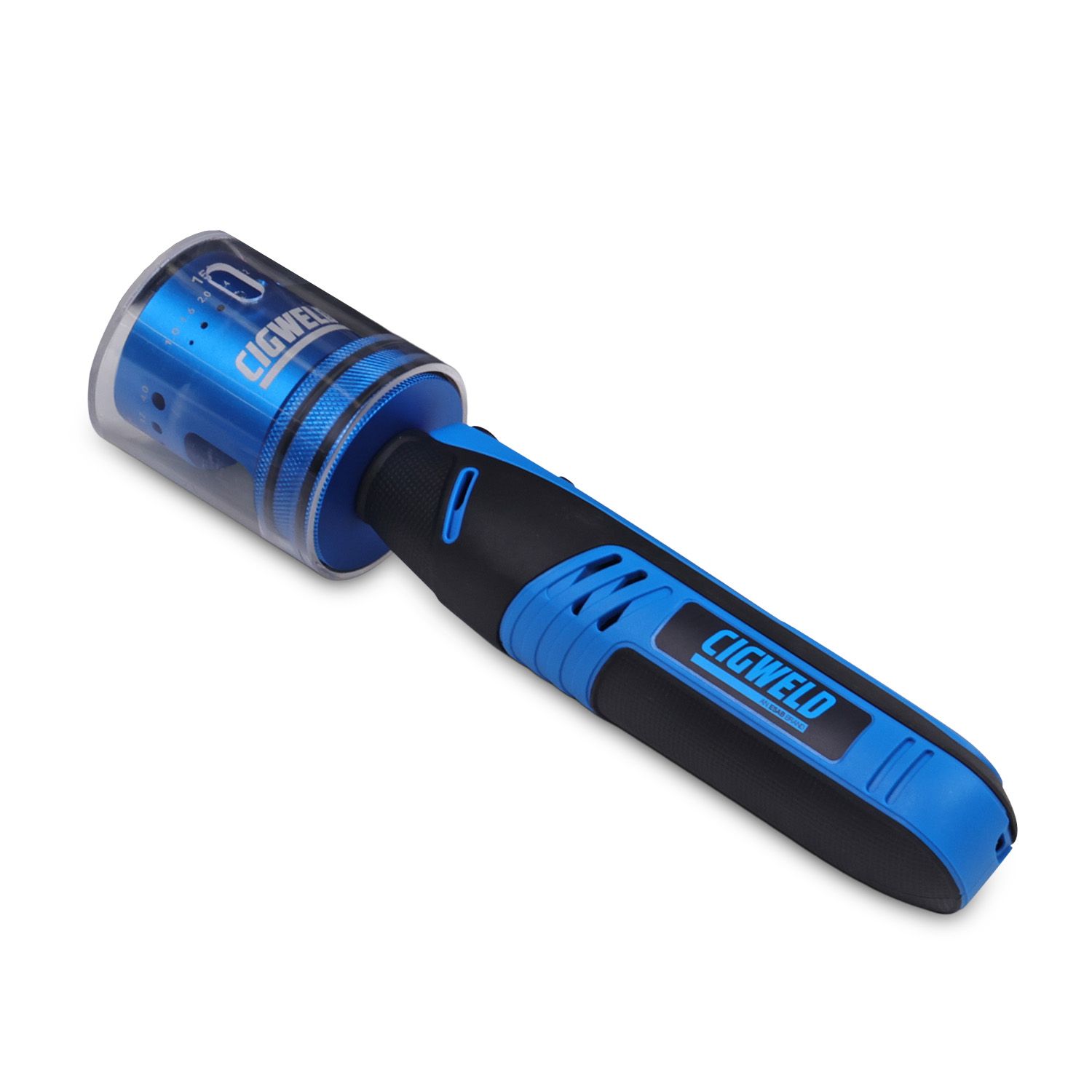

The CIGWELD TIG Tungsten Grinder is a professional-grade, portable solution designed for accurate and efficient grinding of TIG tungsten electrodes. It helps eliminate the inconsistencies of manual grinding, delivering precise, repeatable angles and a clean finish for consistent tungsten electrode preparation. Compact and easy to use, the kit includes a rotary tool, tungsten grinder attachment and grinding wheel set, all conveniently stored in a protective carry case for easy transport and use in the workshop or on site.

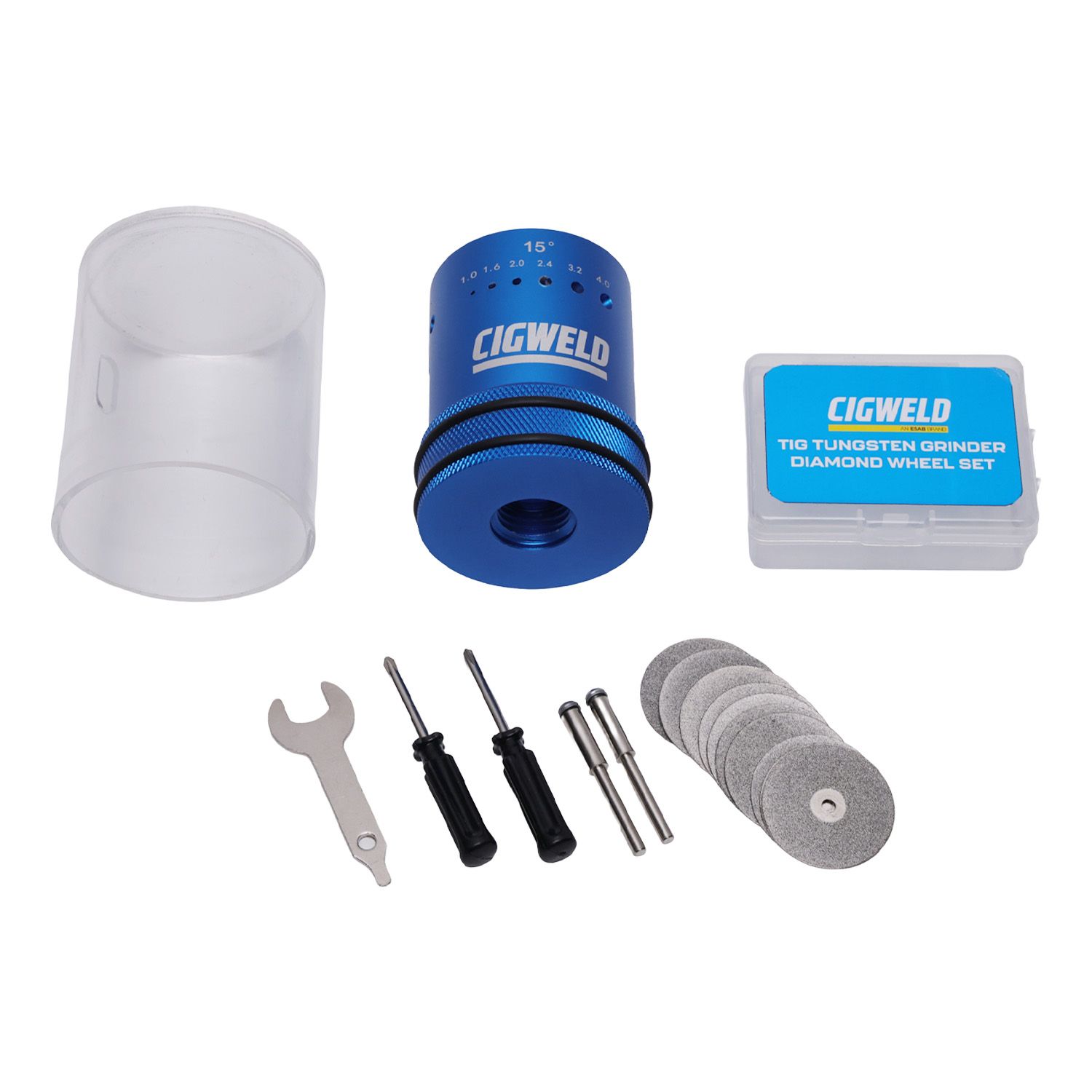

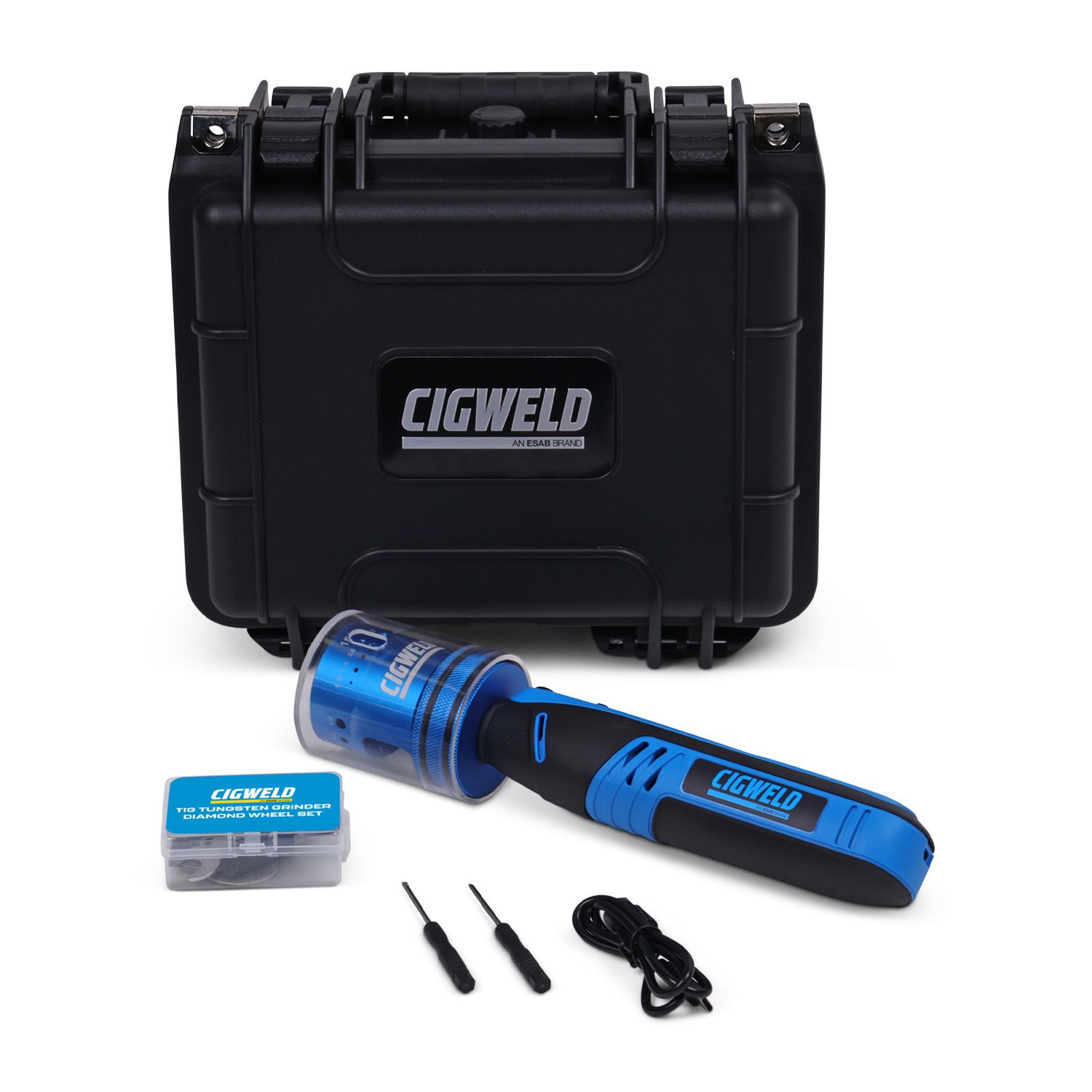

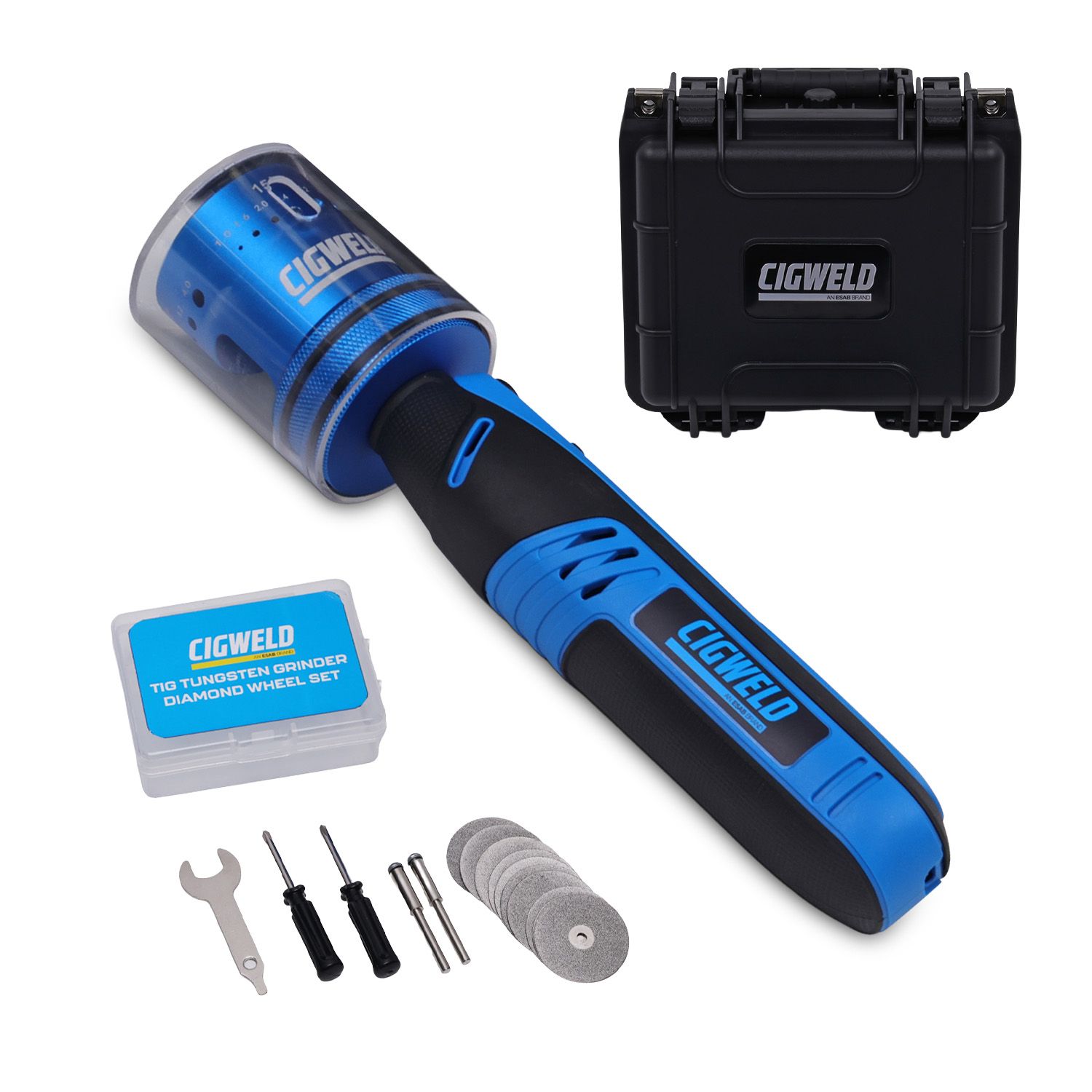

Includes:

• Tungsten Grinder Attachment

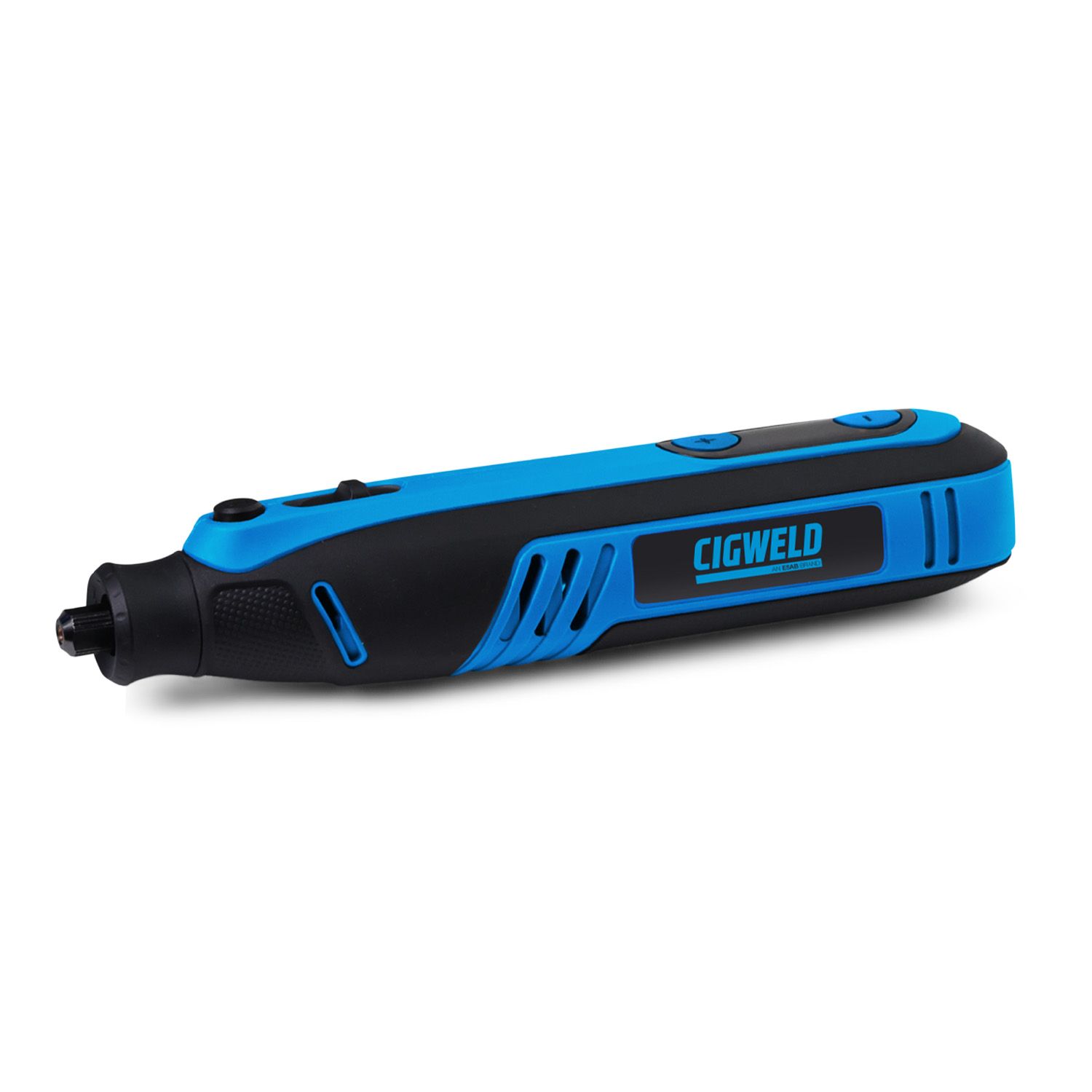

• Cordless Rotary Power Tool
• Protective Transparent Cover
• 10 x Diamond Grinding Wheels
• 2 x Spindles
• Spanner & Screw Driver
• Heavy Duty Case

Features:

• 3 preset grinding angles of 15°, 22.5° and 32°, suitable for six tungsten electrode diameters from 1.0 mm to 4.0 mm, for accurate and consistent grinding
• Helps achieve a precise tungsten point with a clean finish, delivering repeatable grinding results for more consistent TIG welding performance while helping maximise the usable life of each tungsten electrode

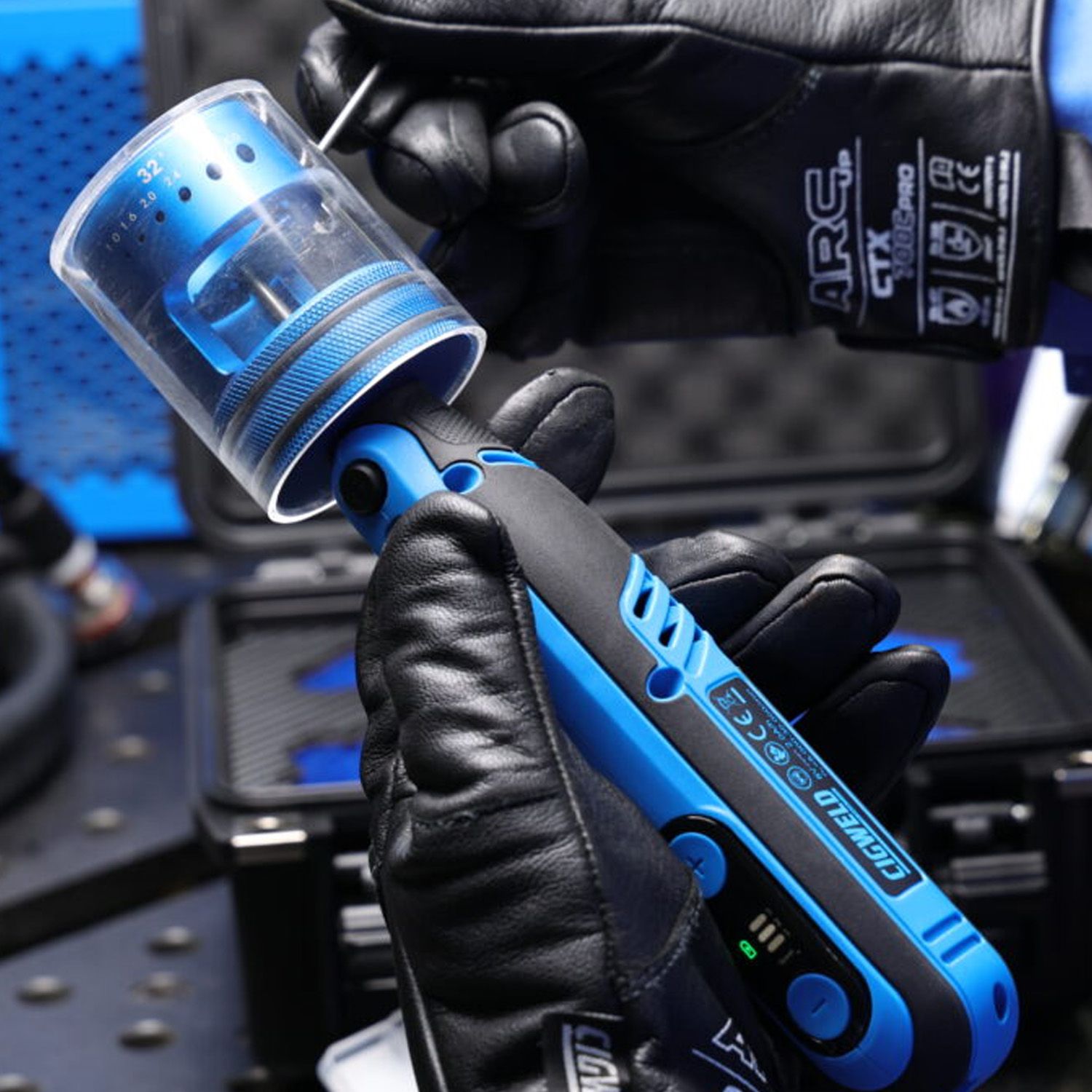

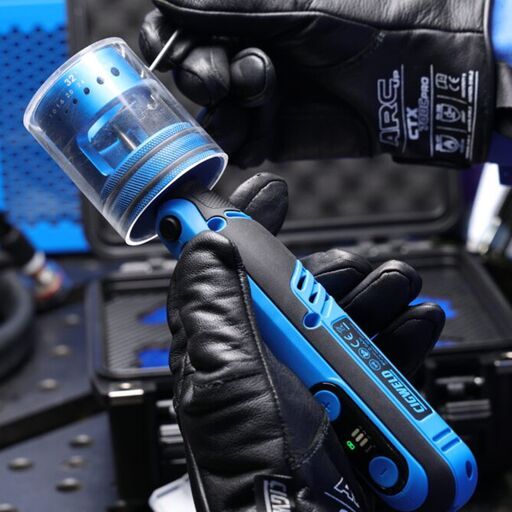

• Integrated Protective Cover, helps contain grinding debris and reduce dust and particle spatter during operation for a cleaner, more controlled grinding process

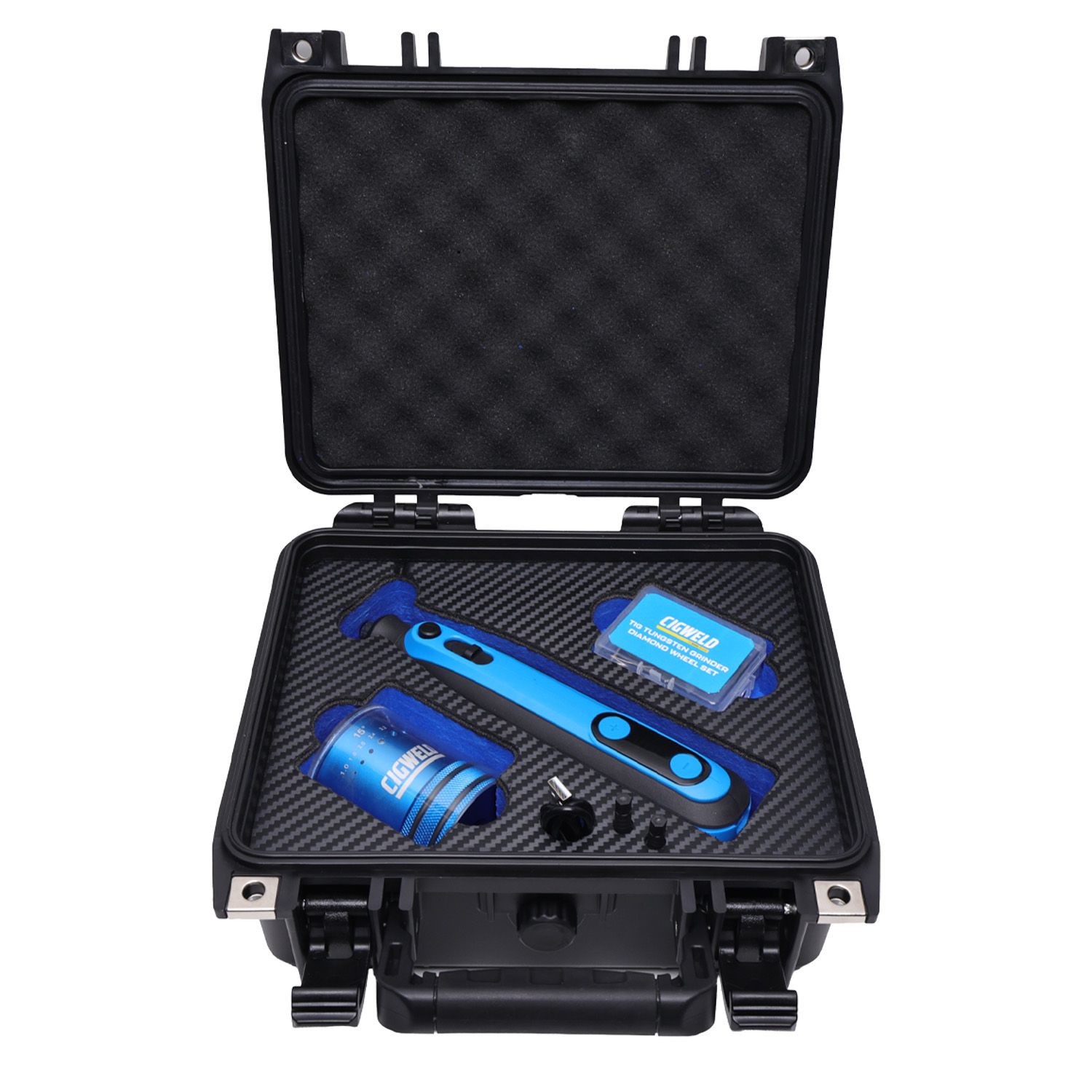

• Supplied in a durable carry case that keeps the rotary tool, grinder attachment and accessories securely organised and protected for convenient storage and easy portability between jobs

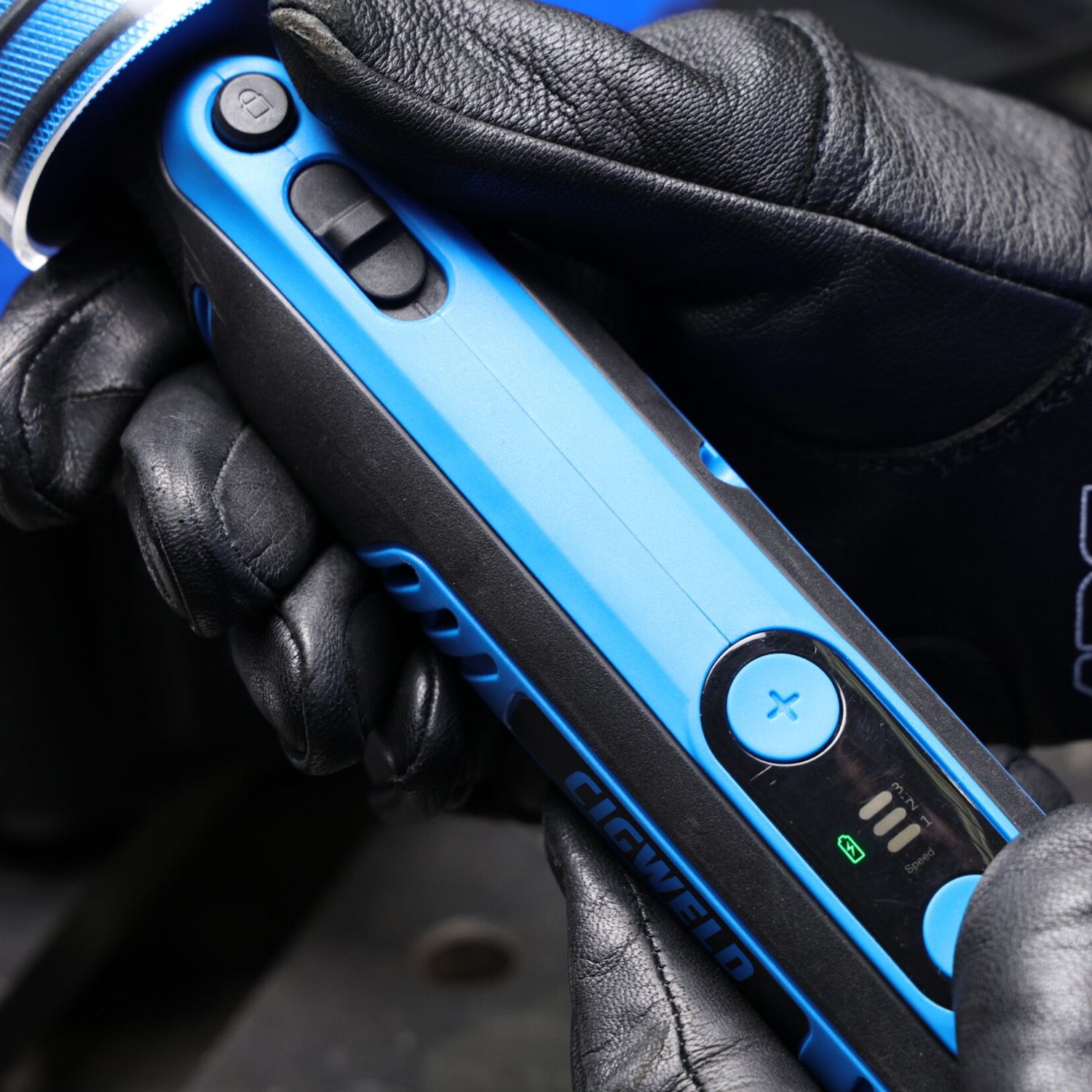

• Features a comfortable, ergonomic handle for improved control during grinding, combined with robust construction suited to demanding workshop and jobsite environments

Specifications:

• Preset Grinding Angles: 15°, 22.5°, and 32°
• Grinding Electrode Diameter Sizes: 1.0mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm and 4.0mm
• Grinding Wheel:
  • Thickness: 0.55mm
  • Diameter: 30mm
• Spindle Diameter: 3.15mm
• Rotarty Tool:
  • Speed Levels: 1 - 5 (6,000 - 30,000 RPM)
  • Display: Digital
  • Battery Capacity: Lithium – Ion 5VDC 2000mAH
  • Charging Compatibility: USB-C
• Max. Run Time: 30 min
• Weight: 2.12kg (Whole Kit)

Warranty:

• 3 Years Warranty covered by Cigweld
