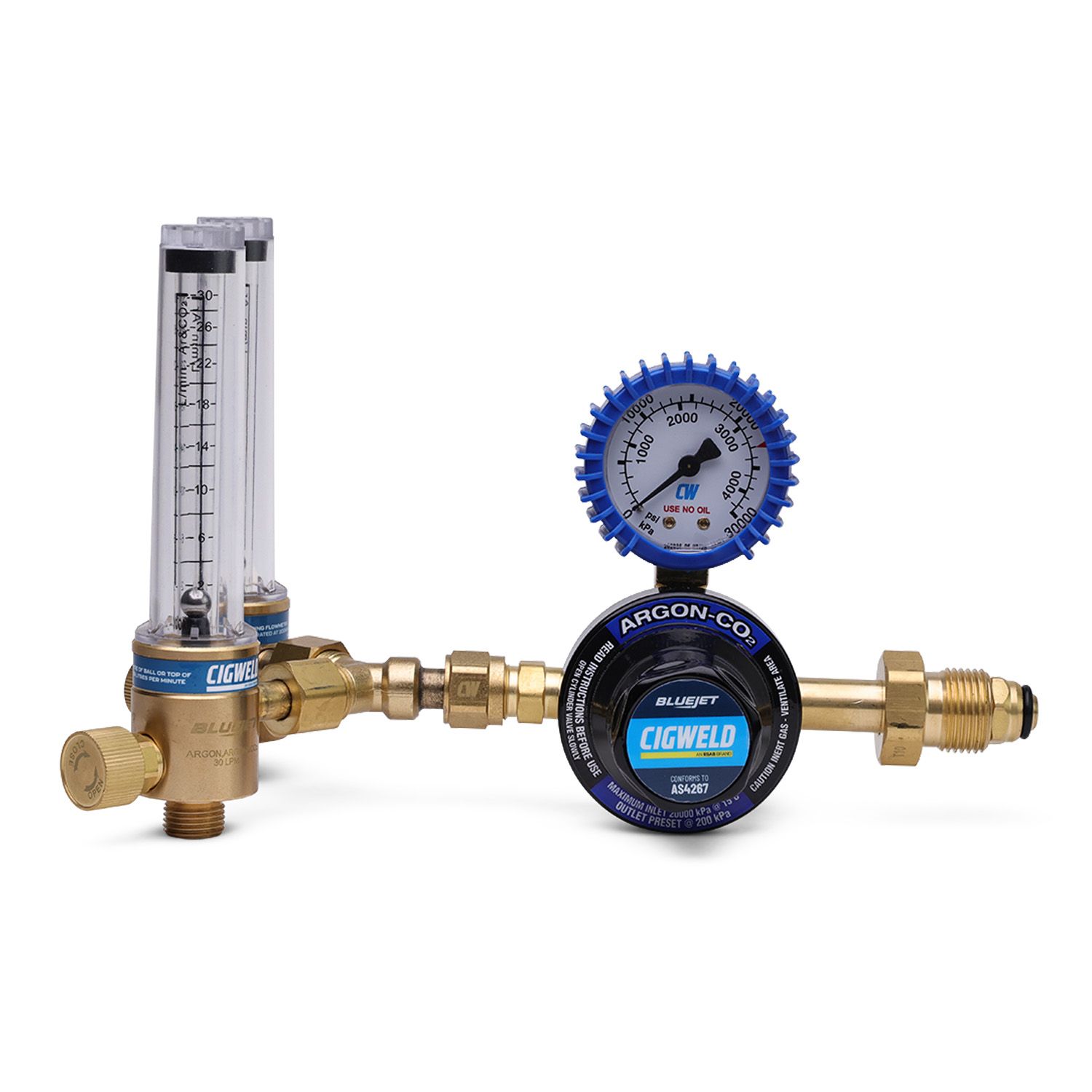

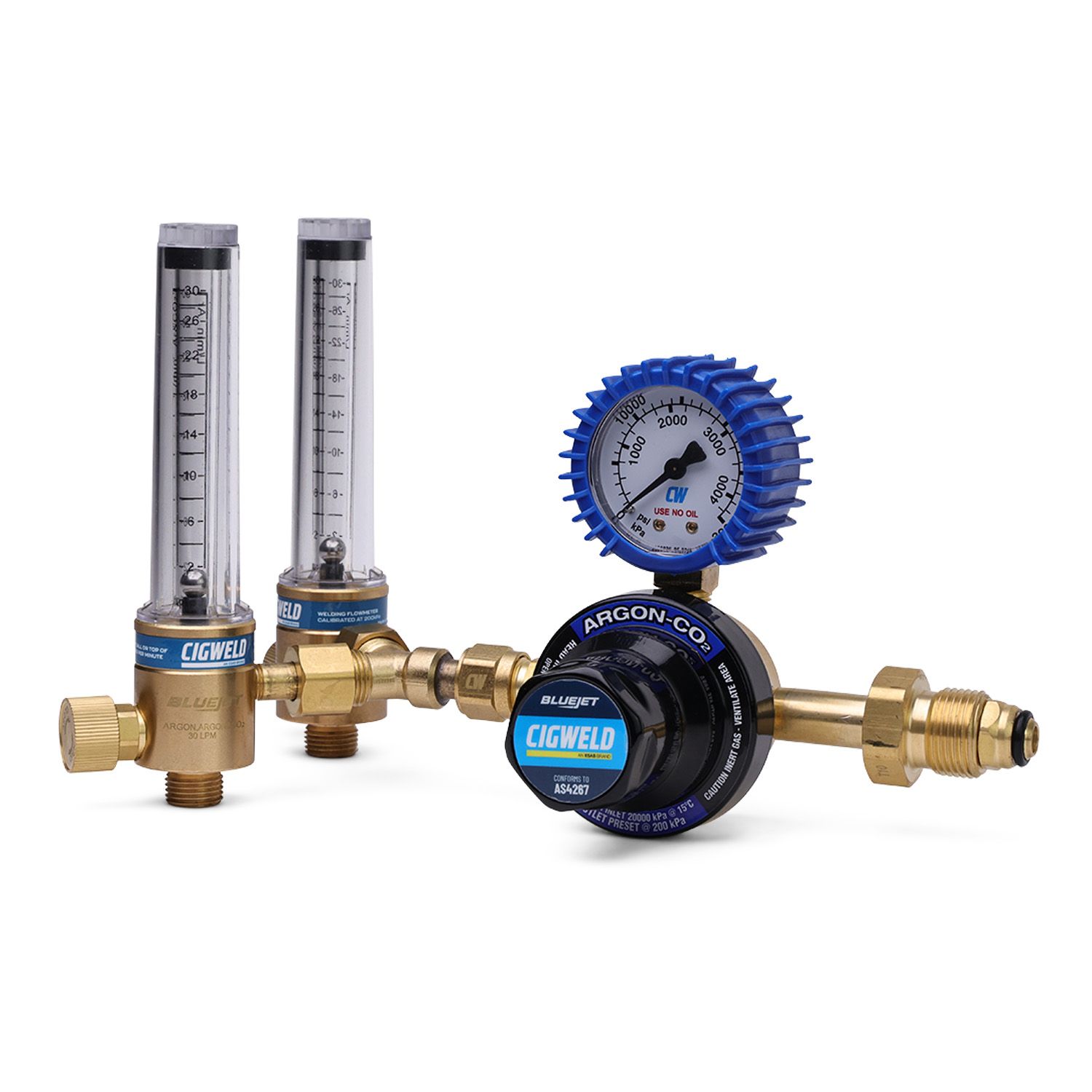

Cigweld 201075 BlueJet 30 L/min Argon, Argon/CO2 Twin Flowmeter& Regulator Kit

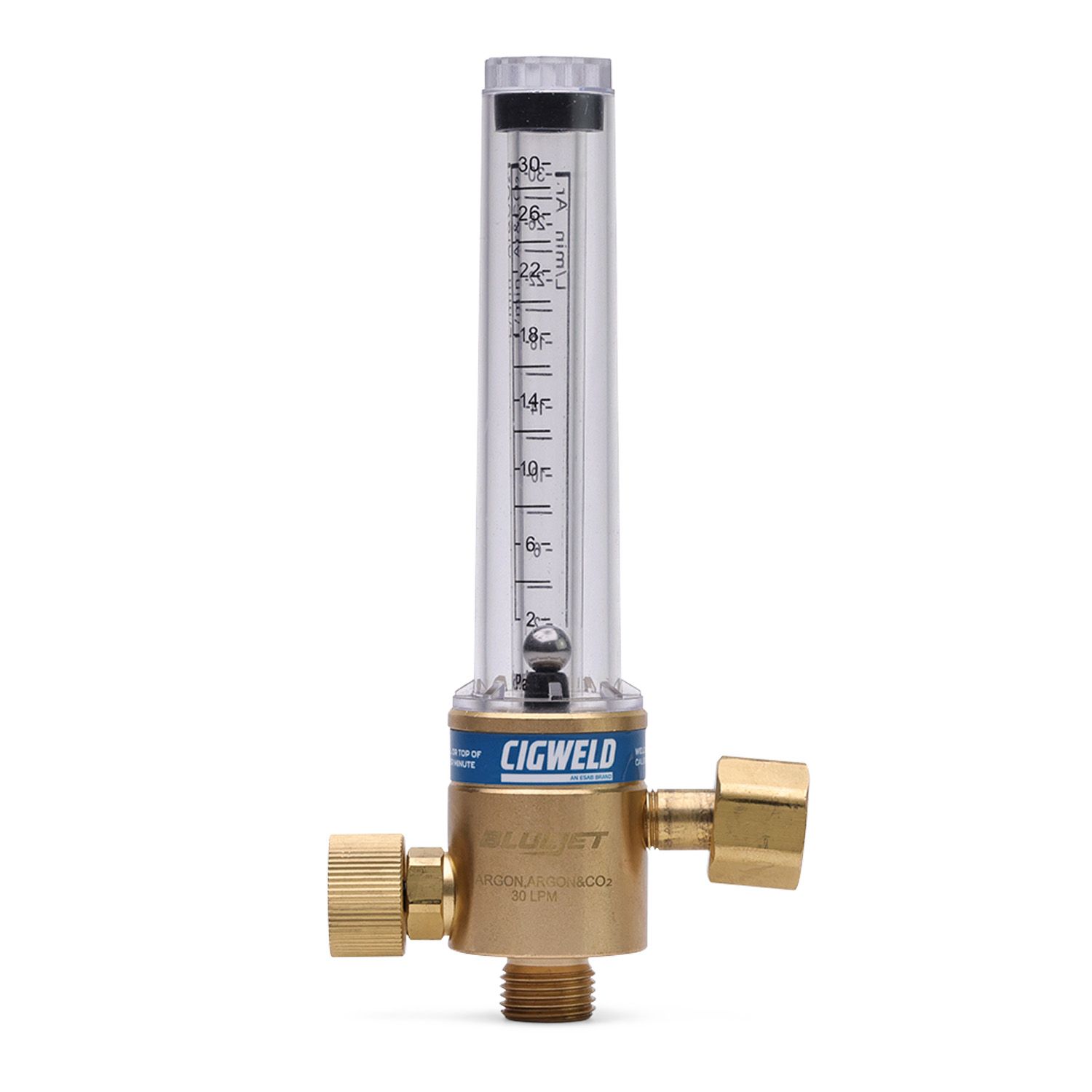

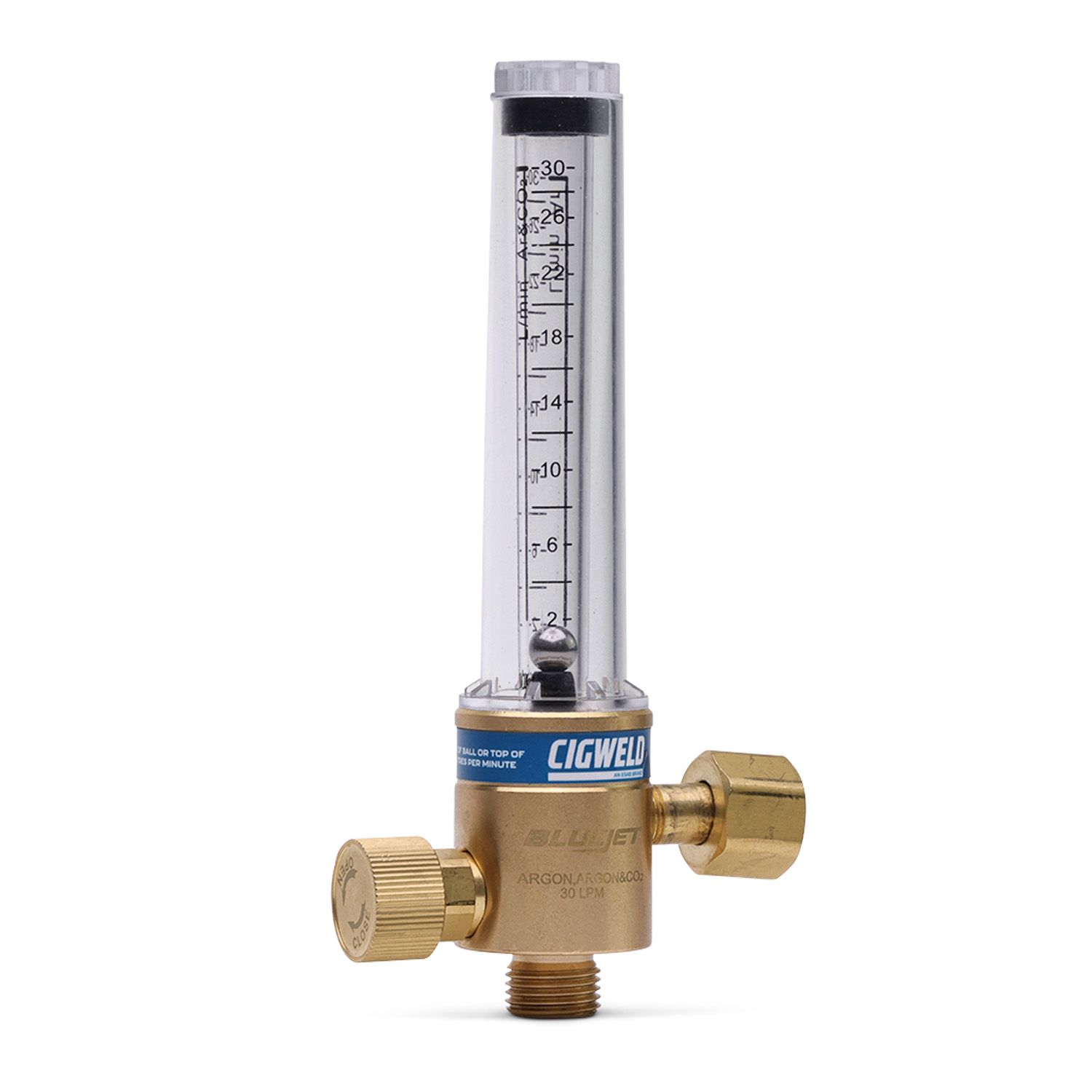

BlueJet Dual-Scale Flowmeters provide accurate and reliable shielding gas control for a wide range of welding applications. Featuring dual-scale calibration for both Argon and Argon/CO₂ gas mixtures, they enable precise flow adjustment to help maintain weld quality and consistency.

Available in single and dual outlet configurations, the range offers flexible solutions for TIG, MIG, and purging operations with flow capacities from 2–30 L/min to suit diverse workshop and industrial requirements

Features:

• Dual-scale flow calibration for Argon and Argon/CO₂ gases
• 2–30 L/min flow capacity suitable for a wide range of welding applications
• Accurate gas flow control helps improve weld quality and consistency
• Flexible usage options to support single or multi processes
• Available in single and dual outlet configurations to suit different operational needs
• 201073 & 201074 are suitable for both TIG & MIG
• 201075 is suited for TIG & purging

Specifications:

• Gas Type: Argon, Argon/CO₂
• Inlet Connection: 5/8"-18 UNF Female
• Outlet Connection: 5/8"-18 UNF Male
• Flow Rate: 2-30L/min
• Inlet Pressure: 200 kPa

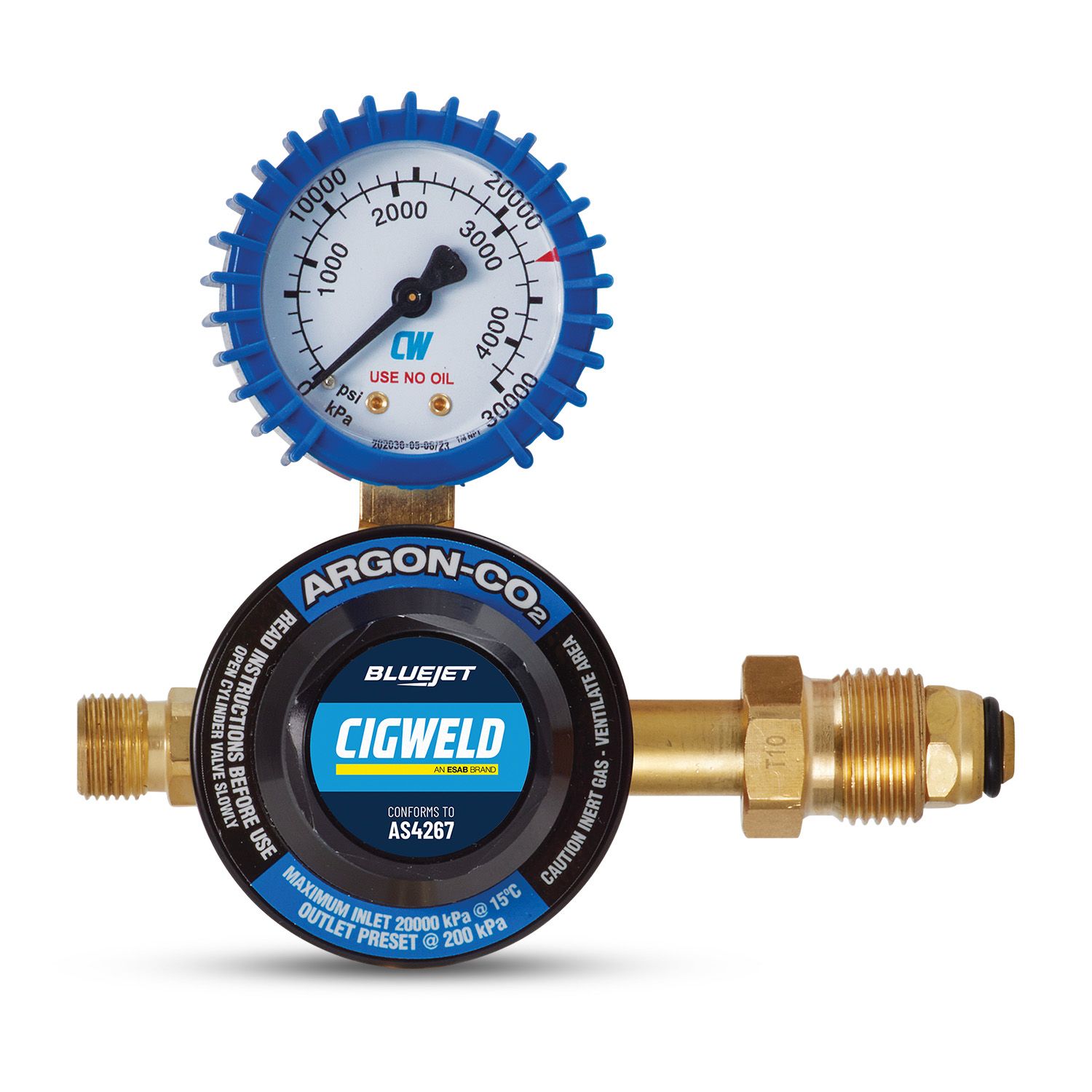

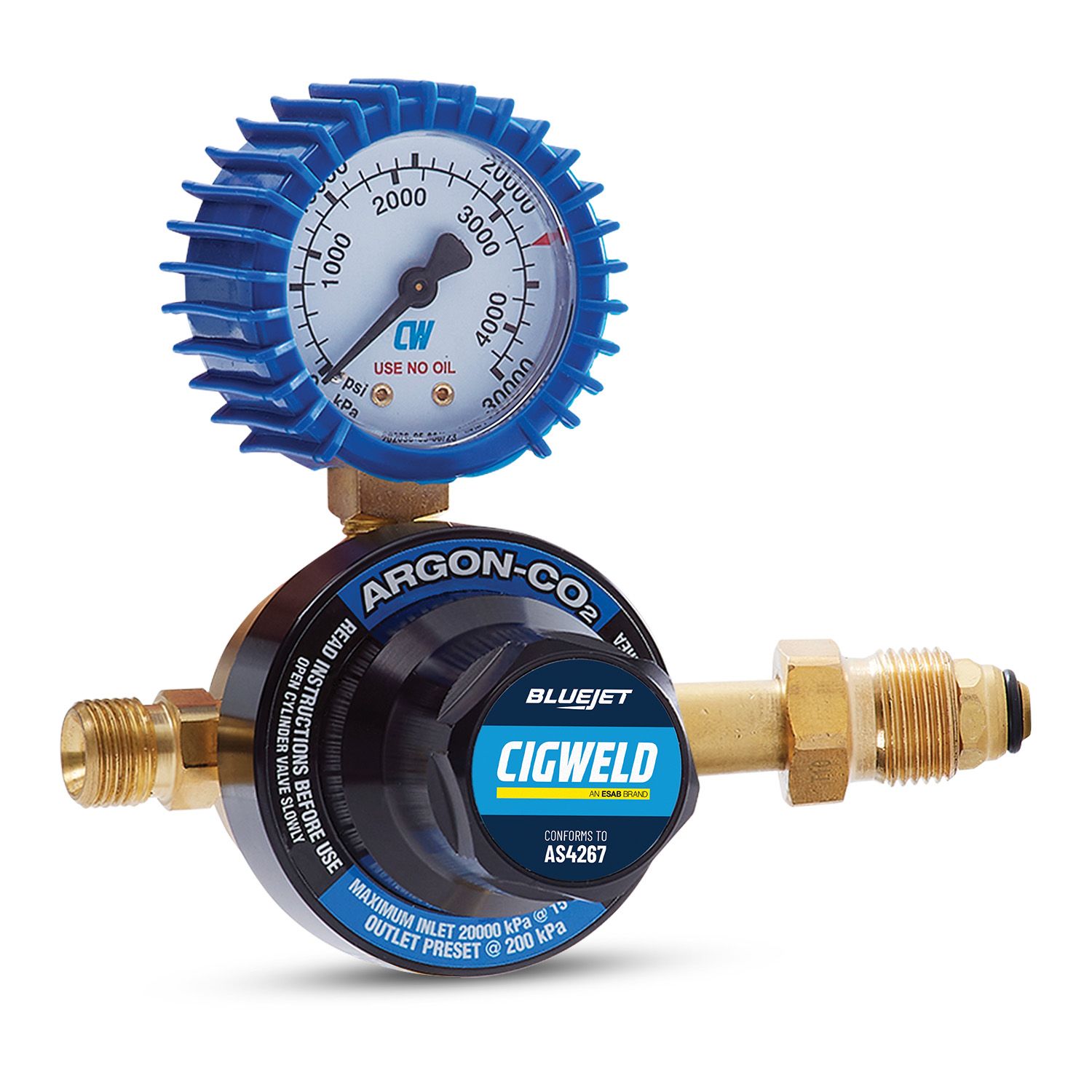

BlueJet regulators are specifically made for the price-conscious consumer and provide outstanding quality and performance with the majority of light- to medium-duty applications. The BlueJet design, which provides durability and renowned CIGWELD quality represents real value for money.

Features:

• Conform to Australian Standard AS4267
• Robust alloy bonnet and brass fittings
• Factory set optimal delivery pressure
• Ergonomic knobs ensure precise gas adjustment
• Captive control knob prevents loss and tampering
• Failsafe against over pressure
• Diaphragm is protected against flashback
• Robust, failsafe, and accurate pressure gauges
• Color coded for gas identification
• Ideal for the Tradesman, Contractor, and Handyman

Specifications:

• Certification: Australian Standard AS4267
• Gas Type: Argon
• Inlet Connection: Type 10 SI
• Outlet Connection: 5/8"-18 UNF-RH
• Max. Working Pressure: Preset 200 kPa

Warranty:

• 5 Years Warranty covered by Cigweld

This adaptor by CIGWELD allows a single regulator outlet (threaded 5/8″-18 UNF right-hand) to branch into two hose connections. Ideal for manifold setups, or when you need to supply gas from one source to dual hoses in welding or cutting operations.

Features:

• Thread size: 5/8″-18 UNF RH (standard regulator outlet)
• Right-hand (RH) variant — check hose/regulator side to ensure compatibility
• Made for industrial gas equipment – ensures secure connection and minimizes leaks
• Compact Y-piece design, enabling two hoses from one regulator port
• Suitable for use with the BlueJet and general gas-cutting/brazing systems from CIGWELD

Specifications:

• Thread: 5/8″-18 UNF RH
• Configuration: 1 input → 2 outputs (Y-piece)
• Model/Part Reference: Often listed under CIGWELD “Y-Piece Adaptor RH 5/8-18 UNF”
