Cigweld 201031 Cutskill Regulator Argon CO2 30LPM Side Inlet

Cigweld 201031 Cutskill Regulator Argon CO2 30LPM Side Inlet

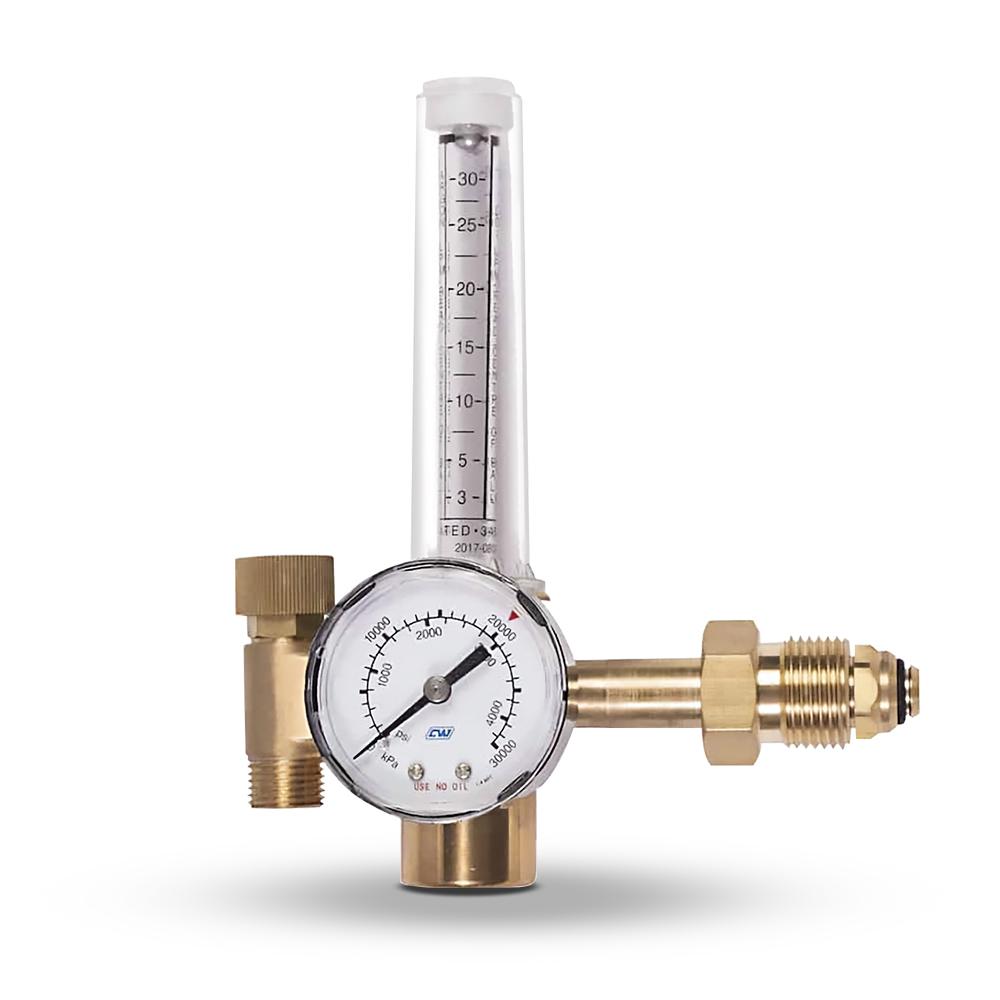

The CutSkill Side Inlet Regulator Flowermeter provides accurate indication of flow rate of shielding gases for MIG and TIG welding processes. The Regulator/Flowmeters have been designed for TIG processes and for MIG, Short Arc and Spray Arc applications and are calibrated for O to 30 LPM.

The metering ball is stainless steel. They are constructed with a machined brass body and cap, are back pressure compensated and have a self-reseating relief valve - not designed to protect down stream equipment.

Includes:

• 1 x CutSkill Regulator

Specifications:

• 0 to 30 LPM (Vertical / Side Inlet)
• Inlet Connection 5/8" BSP - 18 Type 10
• Outlet Connection 5/8" - 18 UNF - RH
• Maximum 30 LPM Flow Rate
• Maximum Inlet Pressure 20,000kPa
• Robust Brass Body and Fittings
• Failsafe Against Over Pressure
