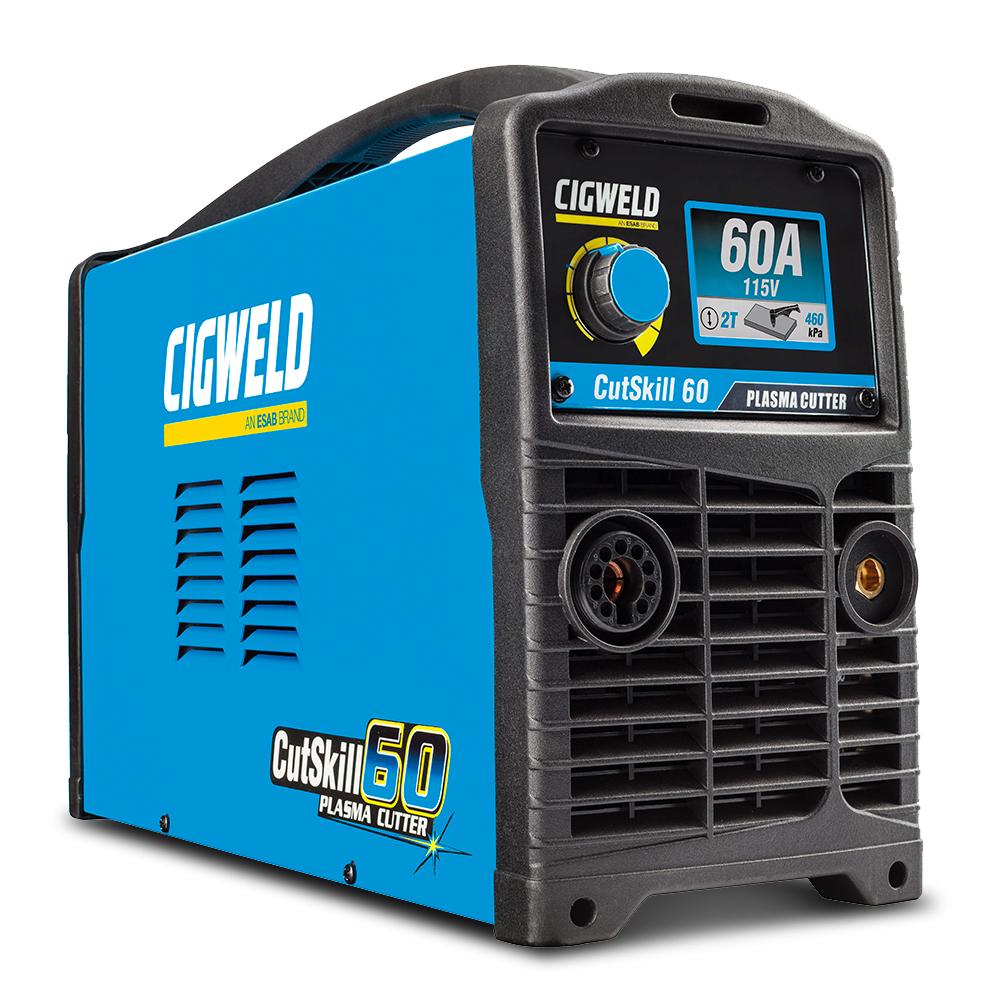

Cigweld 1-1601-60 (CUTSKILL60) CutSkill 60 Plasma Cutter System

Cigweld 1-1601-60 (CUTSKILL60) CutSkill 60 Plasma Cutter System

CIGWELD has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma machines. CutSkill 60 machines from CIGWELD feature a user interface that not only incorporates the latest in colour LCD technology, but also simplifies the entire cutting set up process.

Features:

• Fully Compliant to AS 60974.1-2006. Enclosure rated to IP23S.
• 2.8” Colour LCD Screen Allows for full interactive digital control
• Air Compressor Recommended air compressor required: Cutskill 35 & 45 - 730kPa,12 CFM Cutskill 60 - 800kPa,12 CFM
• CutSkill 60A Plasma Torch
• Gouging Tip Gouging Tip 1.1mm

Specifications:

• Power: 240V, 1Ph, PFC, 15A Minimum recommended circuit breaker is 2
• Duty Cycle: 20% @ 60A**
• Current range: 20-60 Amps
• Input Air Required: 800kPa, 110LPM
• Generator required: 15kVA
• Mid Steel clean cut: 20mm
• Mild steel severance: 28mm
• Stainless clean cut: 14mm
• Aluminium clean cut: 12mm
• Dimensions (L x W x H): 437mm x 176mm x 324mm
• Weight: 13.2kg

Warranty:

• 3 Year warranty covered by Cigweld
