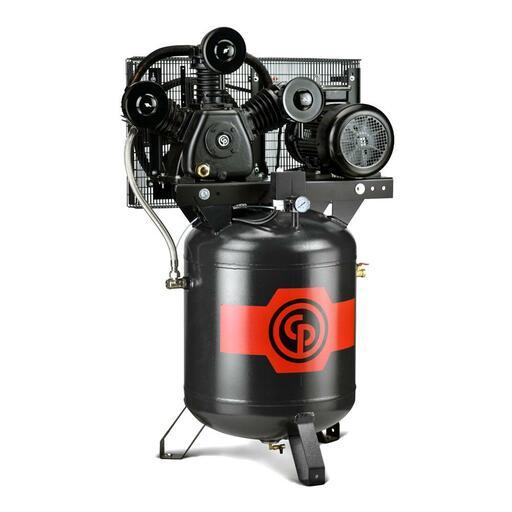

Chicago Pneumatic Ironman 10-200V (1129741029) 7.5kW - 10HP 200L Belt Driven Vertical Air Compressor

Chicago Pneumatic Ironman 10-200V (1129741029) 7.5kW - 10HP 200L Belt Driven Vertical Air Compressor

The Ironman Vertical range is Chicago Pneumatic's latest series of Piston Air Compressors. Easy to use, efficient and reliable, the Ironman Series meets the compressed air demands of many industries including cabinet making, tire shops, paint shops, car dealers, maintenance shops, etc. A seamless product in terms of user friendliness, reliability and life duration. This series of compressors is made for tough and hard working conditions.

Features:

• Low revving, long lifetime cast iron pump providing strong performance
• Optimal cooling is guaranteed by using cylinder heads with deep cooling fins
• The large oil sight glass makes it easy to check the oil level
• The long lifetime and low wear level of the pump are made possible by making use of a cast iron shaft, connecting rod and cylinders
• Losses are minimized thanks to the use of stainless steel valves and valve plates.
• Minimum floor space used

Specifications:

• Compressor type: Piston
• Power: 7.5kW - 10HP
• Electric: 400V/3Ph/50Hz
• Tank: 200L
• Available in 10 bar:  -10bar/145psi
• Air Displacement: 36.4 cfm
• Weight: 276kg
