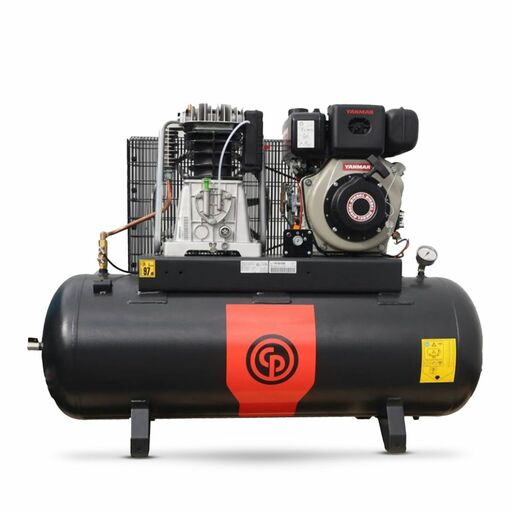

Chicago Pneumatic EngineAir 6/200 (4116007441) 6hp 17CFM 200L Diesel Piston Compressor with YANMAR Motor

Chicago Pneumatic EngineAir 6/200 (4116007441) 6hp 17CFM 200L Diesel Piston Compressor with YANMAR Motor

Built for performance in the toughest environments, the Chicago Pneumatic EngineAir 6/200 is a high-capacity, diesel-powered piston air compressor equipped with a premium YANMAR diesel engine. Ideal for remote worksites, heavy-duty construction, and agricultural operations where electric power is unavailable or impractical.

Features:

• Engine: YANMAR diesel engine, trusted for reliability, fuel efficiency, and long life
• Power Output: 6 HP
• Air Delivery: 17 CFM
• Maximum Pressure: 145 PSI (10 bar)
• Tank Capacity: 200 Litres, large horizontal receiver for extended air supply
• Pump Type: Heavy-duty, oil-lubricated, twin-cylinder piston compressor
• Drive: Belt-driven with cast iron pump and high-efficiency cooling system
• Portability: Sturdy frame with transport wheels and handle
• Durability: Industrial-grade components for reliable operation in rugged environments
• Safety Features: Includes pressure relief valve, regulator, and tank drain

Specifications:

• Power Source: Diesel
• Pump Type: Piston
• Power (HP): 6
• Power (kW): 4.5
• Tank Size: 200
• Max Pressure (PSI): 145
• Max Pressure (Bar): 10
• Displacement (CFM): 23
• Displacement (L/sec): 11
• Displacement (L/min): 650
• FAD (CFM): 17
• FAD (L/sec): 8
• FAD (L/min): 478
