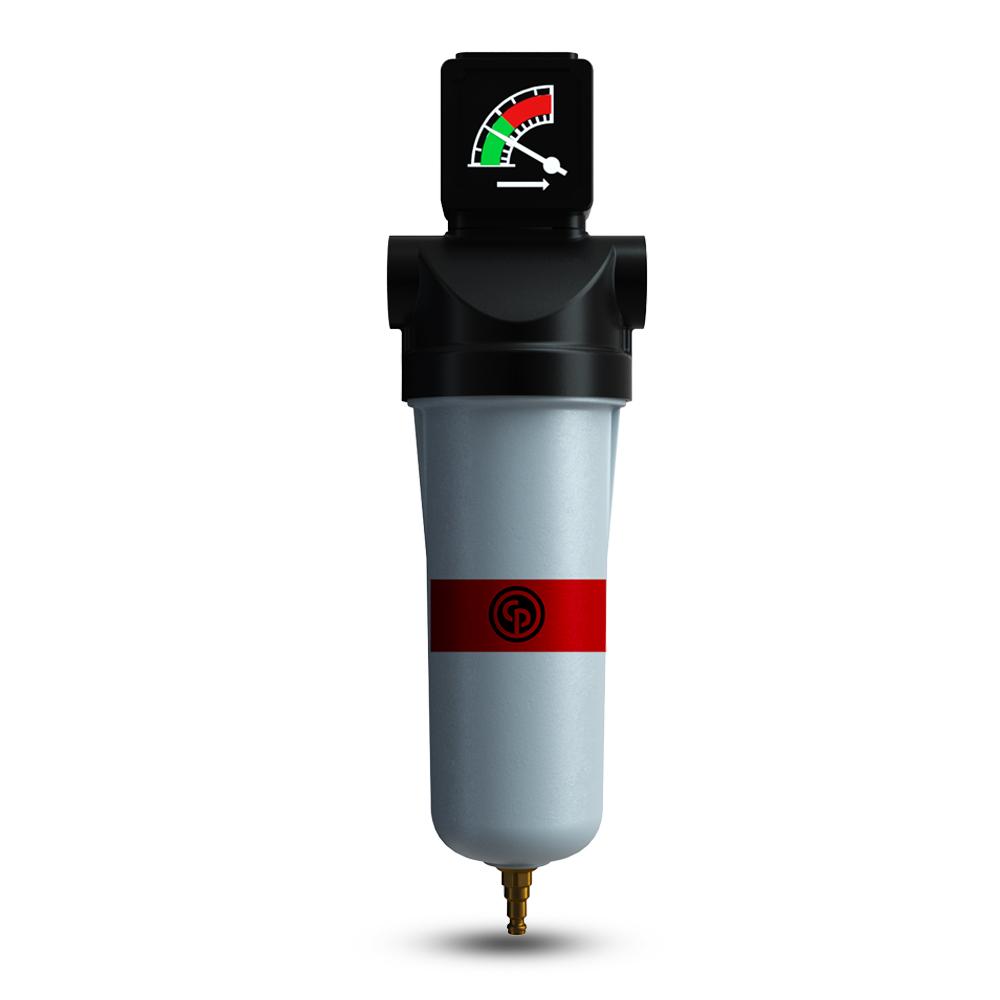

Chicago Pneumatic CPFV 35 - 106CFM 1" V Activated Carbon Filter to suit Screw Air Compressors

Chicago Pneumatic CPFV 35 - 106CFM 1" V Activated Carbon Filter to suit Screw Air Compressors

Atmospheric air contains already in its origin impurities like: dust, various forms of hydrocarbons and water in form of humidity, which once sucked by the compressor is compressed and delivered to the line together with eventual oily particles. These polluting agents, interacting among each other, may generate abrasive and corrosive emulsions able to damage the distribution lines, the pneumatic devices and the product itself.

Activated carbon filter for removal of oil vapour an hydrocarbon odors with a maximum remaining oil content of 0,003 mg/m³ (0,003 ppm). 1000 hour lifetime.

Features:

• Enjoy a reduced pressure drop and increased savings thanks to the unique head design
• A venting hole will give an audible alarm if the filter is dismantled under pressure
• Removing the filter bowl is an easy job as the external ribs allow for a firm grip on the filter
• No need to worry about corrosion - The die cast aluminum housing with special anodized treatment protects our filters both on the inside and the outside
• Easy monitoring via sight glass
• Smooth draining of the filter ensures a reliable performance guaranteed by our high performance manual drain
• High Efficiency Coalescence filter - 0.003mg/m3 residual oil

Specifcations:

• Nominal Capacity:
  • l/min: 3000
  • M³/h: 180
  • CFM: 106
• Maximum Pressure:
  • Bar: 16
  • PSI: 232
• Connection (NPT) : 1"
