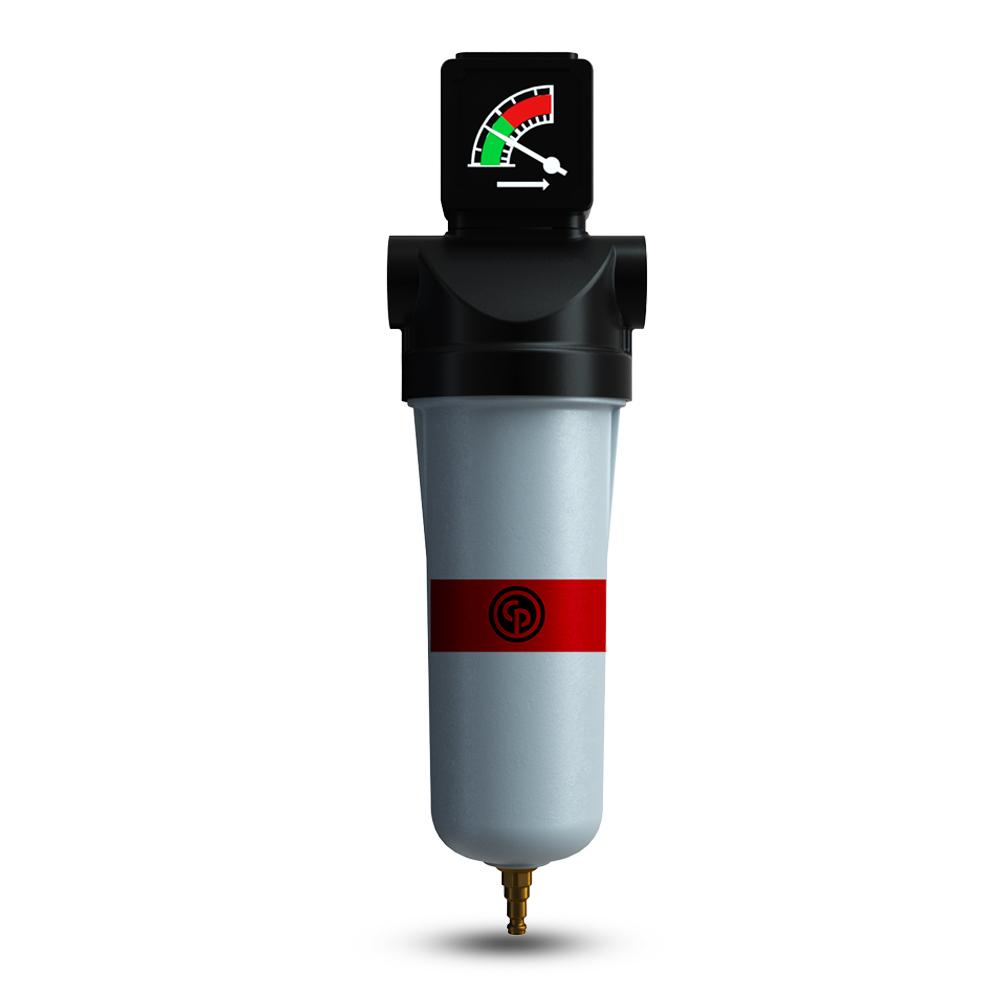

Chicago Pneumatic CPFG 18 - 53CFM 3/4" G Inline Pre Filter to suit Screw Air Compressors

Chicago Pneumatic CPFG 18 - 53CFM 3/4" G Inline Pre Filter to suit Screw Air Compressors

Atmospheric air contains already in its origin impurities like: dust, various forms of hydrocarbons and water in form of humidity, which once sucked by the compressor is compressed and delivered to the line together with eventual oily particles. These polluting agents, interacting among each other, may generate abrasive and corrosive emulsions able to damage the distribution lines, the pneumatic devices and the product itself.  The G-range of Coalescing filters are used for general purpose protection, removing solid particles, liquid water and oil aerosol. Total Mass Efficiency: 99%. For optimum filtration, a G filter should be preceded by a water separator.

Features:

• Enjoy a reduced pressure drop and increased savings thanks to the unique head design
• A venting hole will give an audible alarm if the filter is dismantled under pressure
• Removing the filter bowl is an easy job as the external ribs allow for a firm grip on the filter
• No need to worry about corrosion - The die cast aluminum housing with special anodized treatment protects our filters both on the inside and the outside
• Easy monitoring via sight glass
• Smooth draining of the filter ensures a reliable performance guaranteed by our high performance automatic drain
• Pre filter 1um - 99.9% efficiency with 0.1mg/m3 residual oil

Specifcations:

• Nominal Capacity:
  • l/min: 1500
  • M³/h: 90
  • CFM: 53
• Maximum Pressure:
  • Bar: 16
  • PSI: 232
• Connection (NPT) : 3/4"
