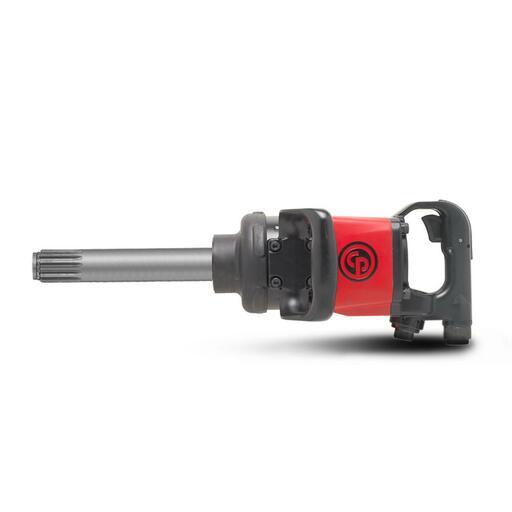

Chicago Pneumatic CP7782-6 (8941077826) 1" D Handle Air Impact Wrench with 6" Anvil Extension

Chicago Pneumatic CP7782-6 (8941077826) 1" D Handle Air Impact Wrench with 6" Anvil Extension

Features:

• 1" D-handle impact wrench with dual retainer (Hole + Ring)
• 6" Extended Anvil
• Pinless closed reinforced rocking dog impact mechanism
• Ergonomic side handle
• Integrated protective cover on the clutch housing
• Full teasing trigger
• Regulator with integrated forward/reverse with 3-position power settings in both directions

Specifications:

• Actual air consumption: 19.2 l/s
• Air inlet thread size: 1/2 "
• Average air consumption: 4.8 l/s
• Blows per minute: 500
• Bolt size: M32 mm
• Box dimensions: 670x245x130 mm
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: ISO 15744
• European Standards: EN ISO 11148-6:2013
• Free speed: 5200 rpm
• Length: 370 mm
• Maximum Torque (reverse): 2600 Nm
• Min. hose size: 13 mm
• Net weight: 10.1 kg
• Over carton: 670x245x130 mm
• Power/weight ratio: 257.4 Nm/kg
• Sound Power: 111 db(A)
• Sound pressure: 100 db(A)
• Sound uncertainty: 3 db(A)
• Square drive: 1 "
• Vibration: 7.8 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 1.8 m/s²
• Working Torque Range (fwd): 500 - 2000 Nm

Warranty:

• 12 Month Warranty covered by Chicago Pneumatic
