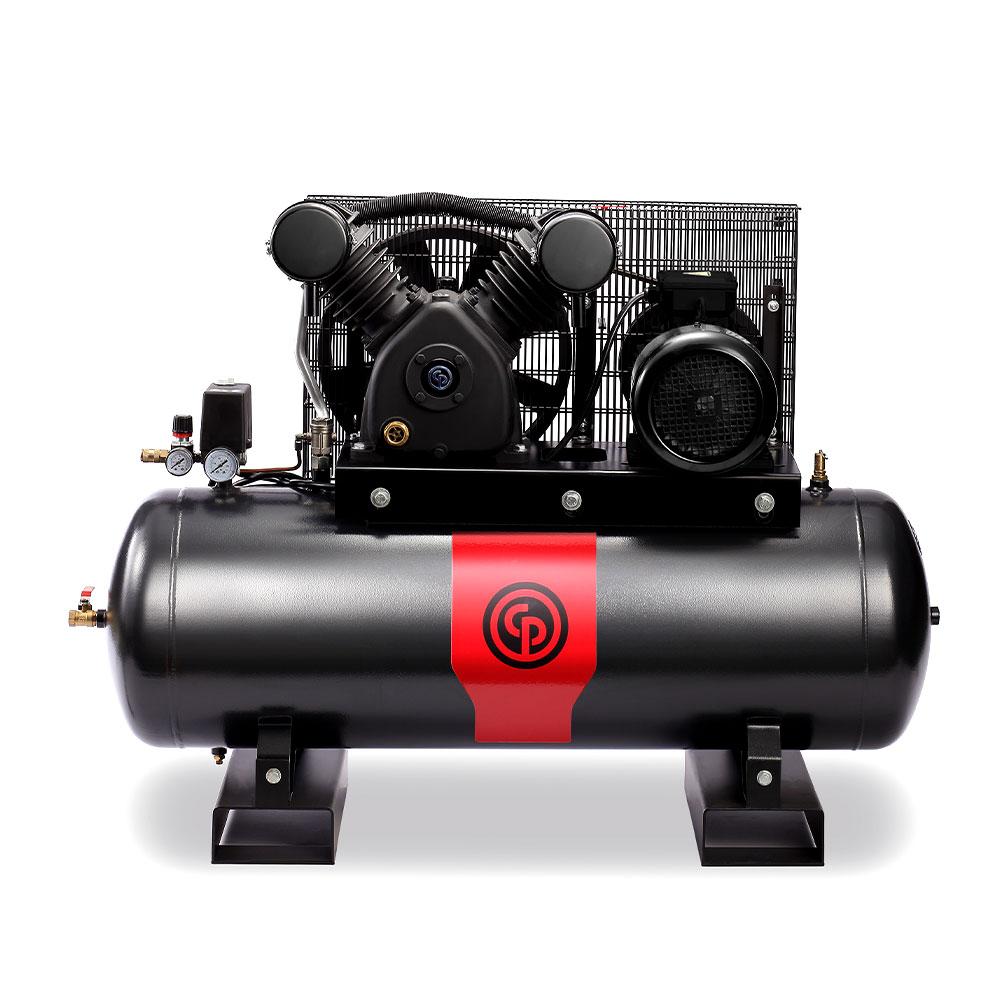

Chicago Pneumatic CP Ironman 5-150 (1129740156) 5.5HP 150L 3 Phase Air Compressor

Chicago Pneumatic CP Ironman 5-150 (1129740156) 5.5HP 150L 3 Phase Air Compressor

Slow turning, long lifetime cast iron pumps provide strong performance. Optimal cooling is guaranteed by using cylinder heads with deep cooling fins, a cast iron flywheel and a strong copper outlet pipe. The large oil sight glass makes it easy to check the oil level. The long lifetime and low wear level of the pump are made possible by making use of a cast iron shaft, connecting rod and cylinders. Losses are minimized thanks to the use of stainless steel valves and vale plates.

Features:

• Efficiency: MEPS compliant, highly efficient IP55 motor with copper windings guarantuees reliable protection from dust, oil and water
• Quality: Reliable oepration with high-quality Condor pressure switch installed on all models
• Stability: AS certified air tanks up to 500 litres with forklift feet for better performance and easy transportation
• Strong and Robust: Full range of specially selected cast iron pumps. High-quality components
• User Comfort: Easy maintenance and clear oil level indicators. Single phase models are delivered with filter-regulator and quick-couplings

Specifications:

• Motor:
  • 5.5HP
  • 4kW
  • 400/3/50 V/Ph/Hz
  • 8.8 Amps
• Tank Capacity: 150 litres
•  Dispalcement:
  • 718 l/min
  • 25.4 cfm
• Free Air Delivery:
  • 508 l/min
  • 17.9 cfm
• Maximum Pressure:
  • 1000 kPa
  • 10 bar
• Speed: 850rpm
• Pump: 2/1 Cycl/St
• Dimensions (L x W x H): 1360mm x 440mm x 1040mm
• Weight: 171kg
