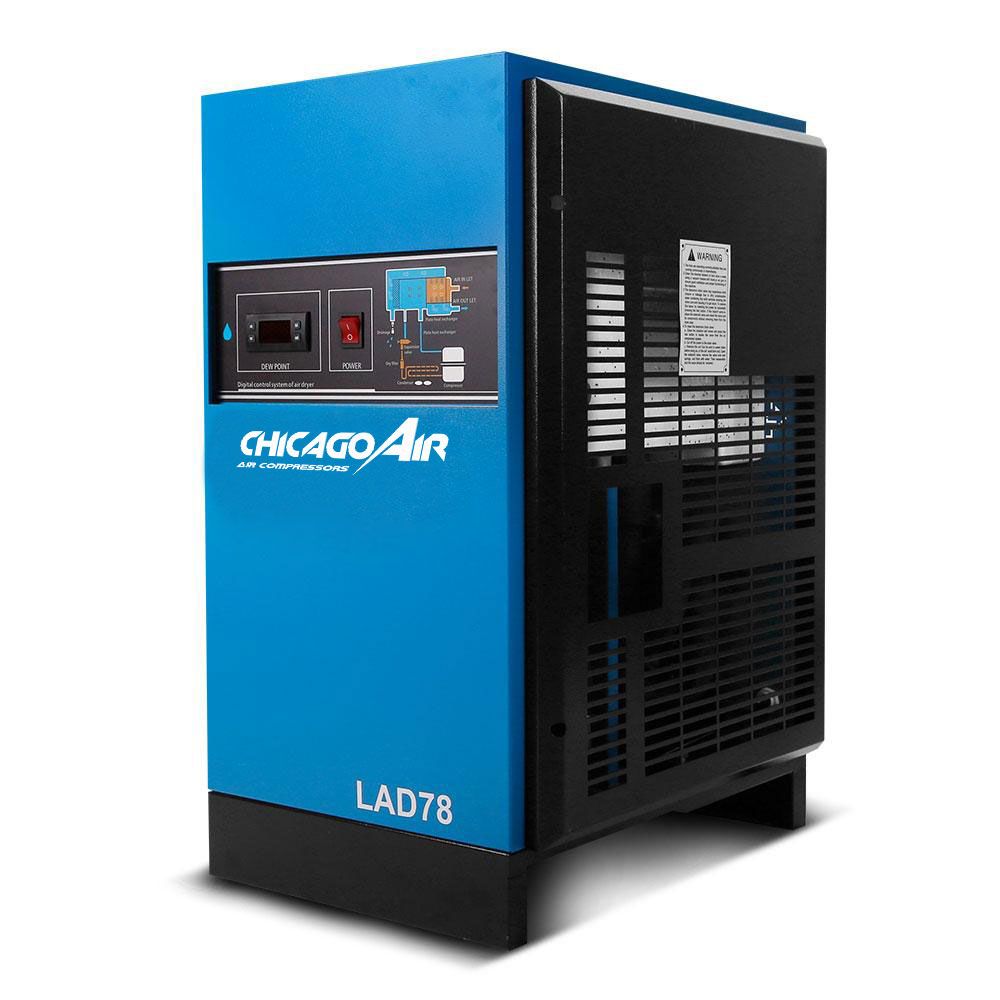

Chicago Air LAD78 0.52kW 78CFM Refrigerated Compressed Air Dryer

Chicago Air LAD78 0.52kW 78CFM Refrigerated Compressed Air Dryer

The Chicago Air Refrigerated Compressed Air Dryer is compact and cost effective with a flow rate of 78CFM and is designed to operate at ambient temperatures up to 40°C. Featuring an easily to operate dew point panel with a range from 2-10ºC and on-board operation and assembly diagram.

Features:

• High flow rate of 2400L/min

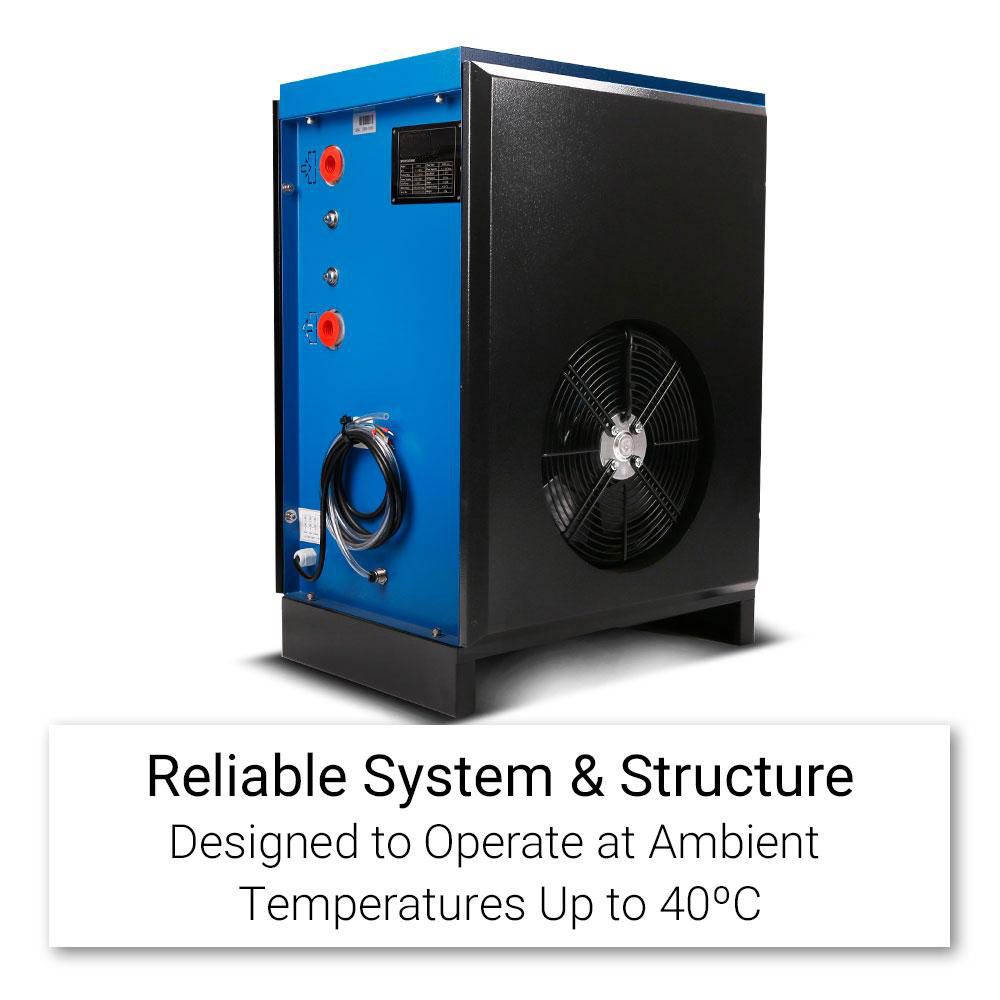

• The complete unit is designed to operate at ambient temperatures up to 40°C
• All the main components are easily accessible, ensuring fast and simple maintenance

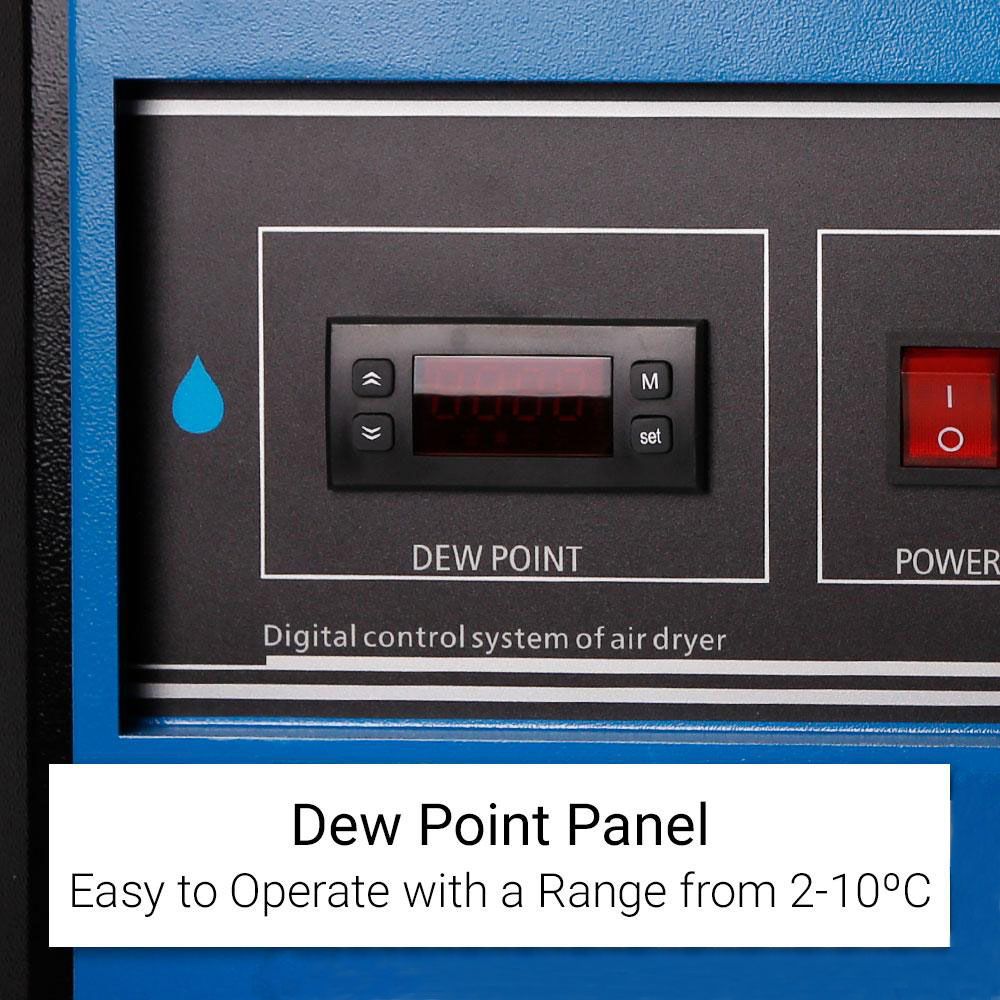

• Easily to operate dew point panel with a range from 2-10ºC

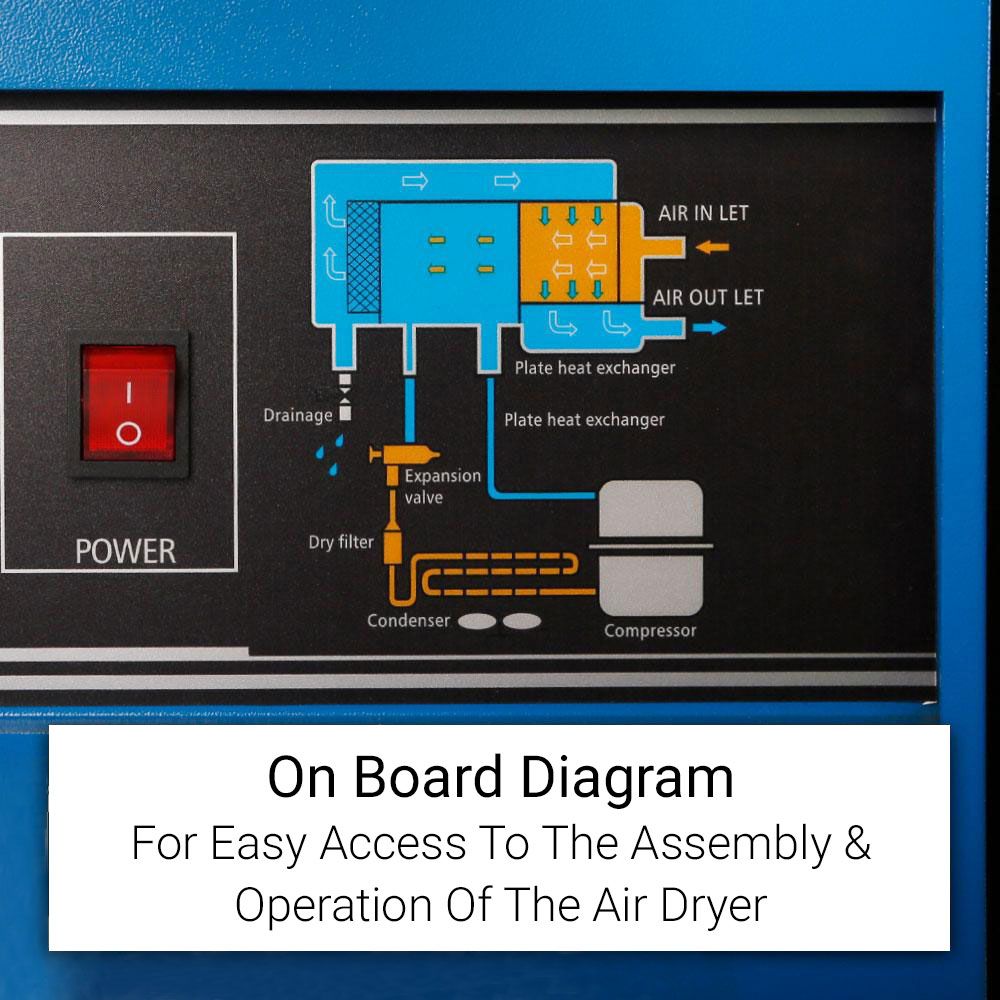

• On-board operation and assembly diagram
• Australian Engineered

Specifications:

• Power Supply: 240V 50Hz
• Power: 0.52kW
• Working Pressure: ≤1.6MPa
• Flow Rate: 2400L/min
• Flow Capacity: 2.4Nm³/min
• Cooling Type: Air Cooled
• Inlet Temperature: ≤60ºC
• Ambient Temperature: ≤40ºC
• Dew Point: 2-10ºC
• Refrigerant: R134a

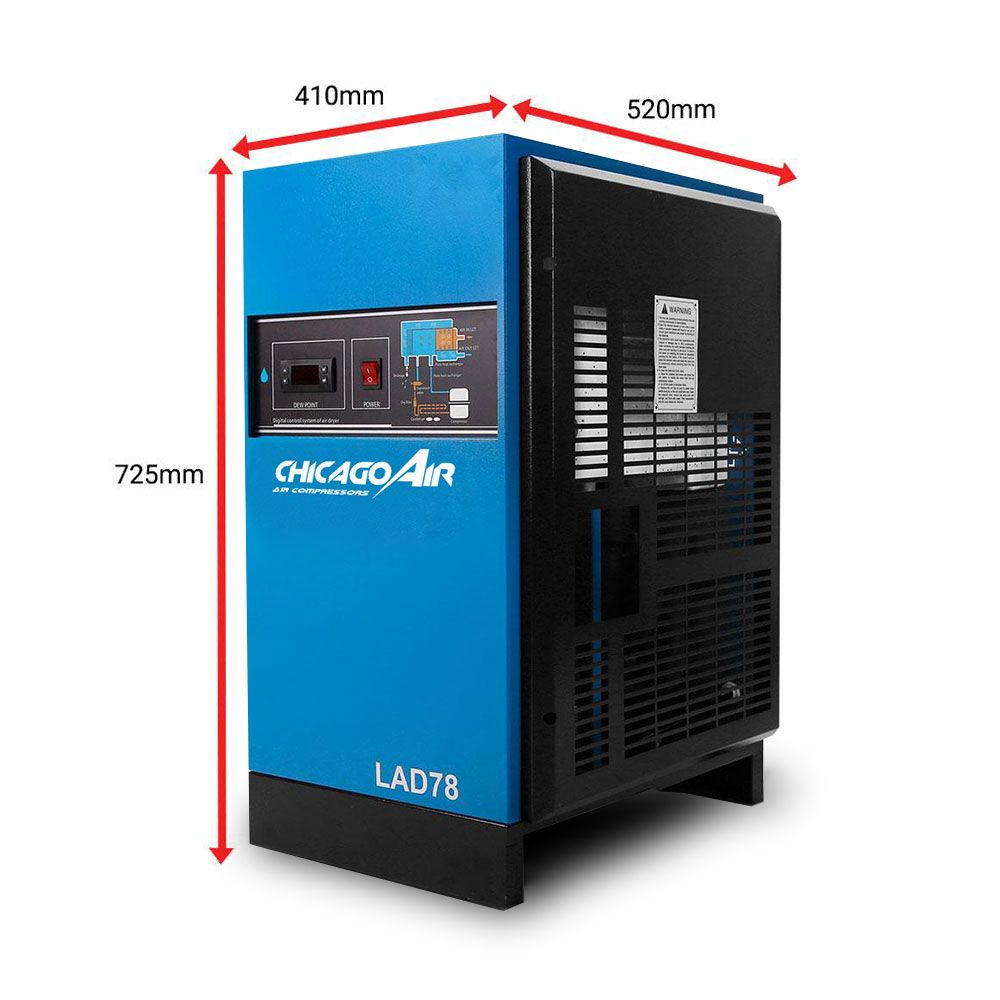

• Dimensions (H x W x L): 520mm x 410mm x 725mm
• Weight: 42kg

Warranty:

• 12 Months Warranty Covered by Chicago Air
