Chicago Air L15LDR 15HP Rotary Screw Compressor With Dryer & Tank

Chicago Air L15LDR 15HP Rotary Screw Compressor With Dryer & Tank

The Chicago Air L15LDR 15HP Rotary Screw Compressor features a compressor, tank and dryer all in one unit, taking up less space in comparison to stand-alone units. The L15LDR ensures the highest reliability in most work conditions due to its high performance 15HP electric motor. It gives you total control through the user-friendly digital display, ensuring you can navigate the control board with ease to change pressure settings and control the machine.

Features:

• Compressor, tank and dryer all in one unit, taking up less space in comparison to stand-alone units

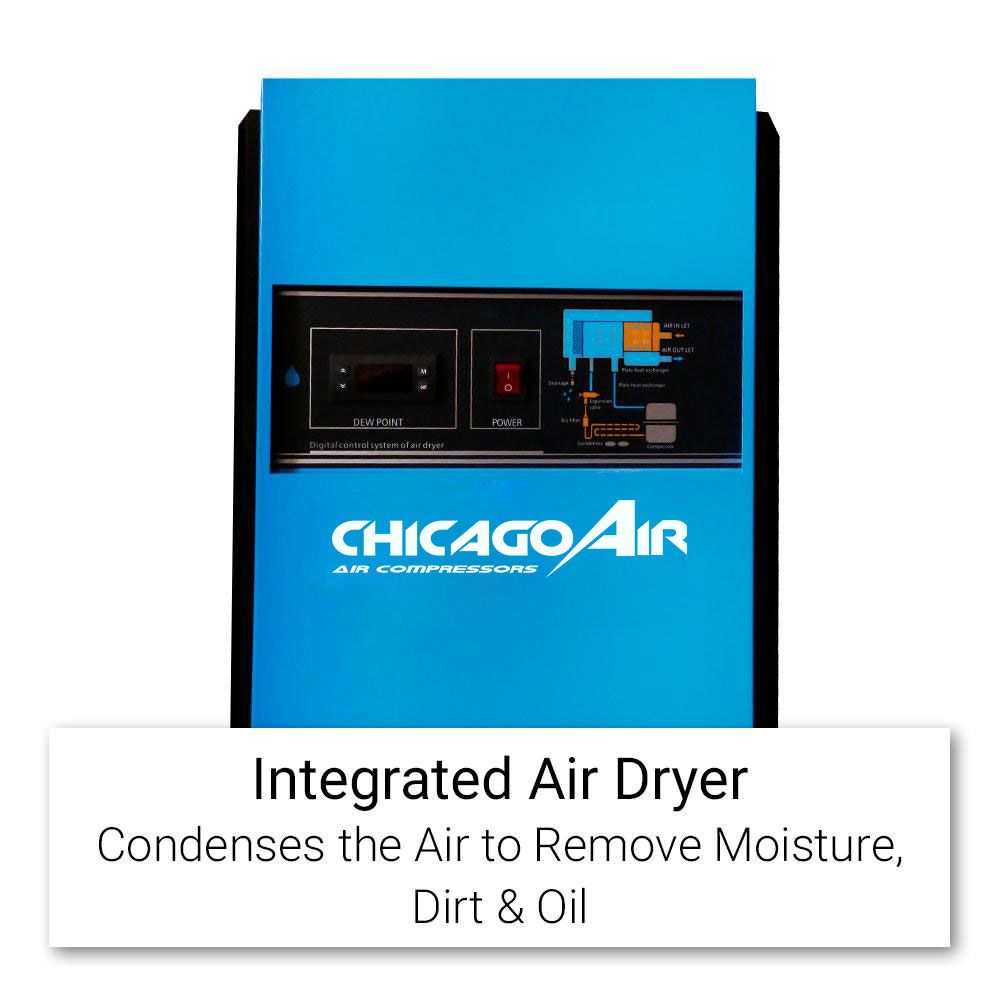

• Integrated Air Dryer: Condenses the air to remove moisture, dirt and oil

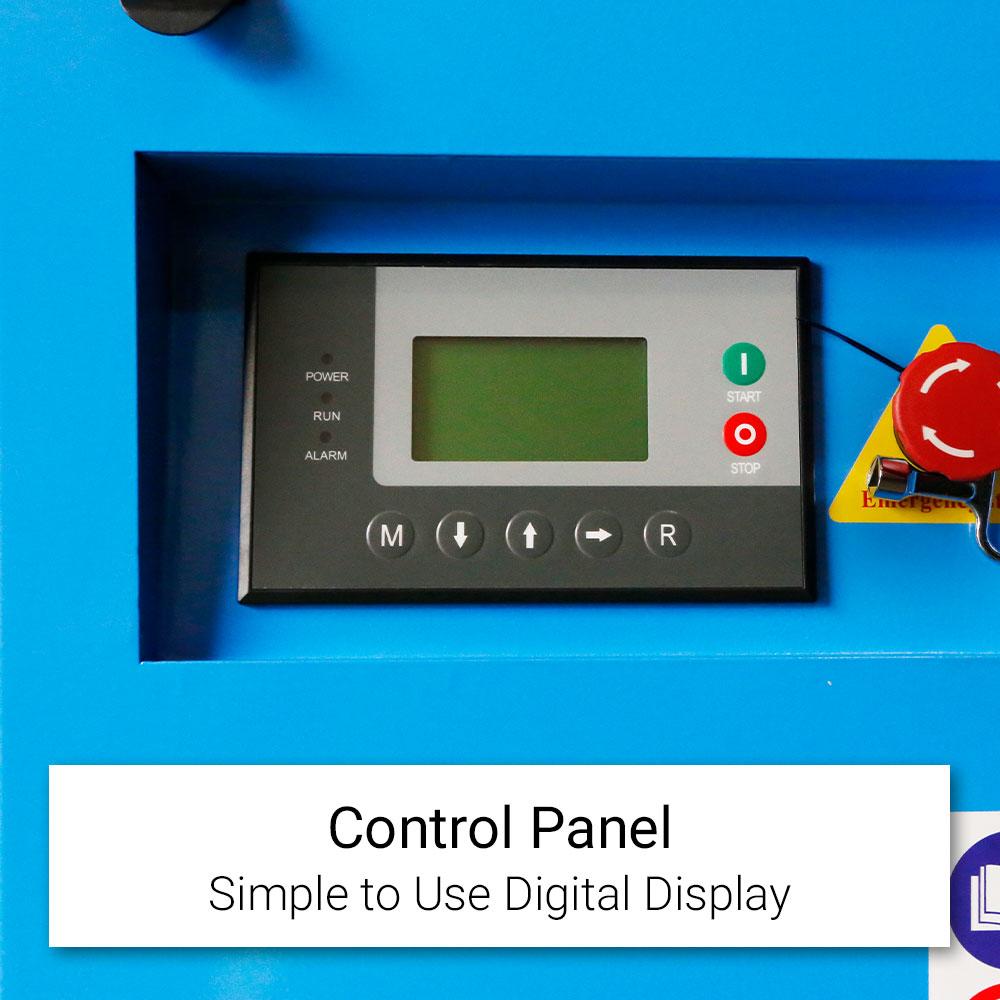

• Control Panel: Simple to use digital display
• Separate Dryer Control Board: Allows independent controlling of the air dryer as a separate component to the compressor

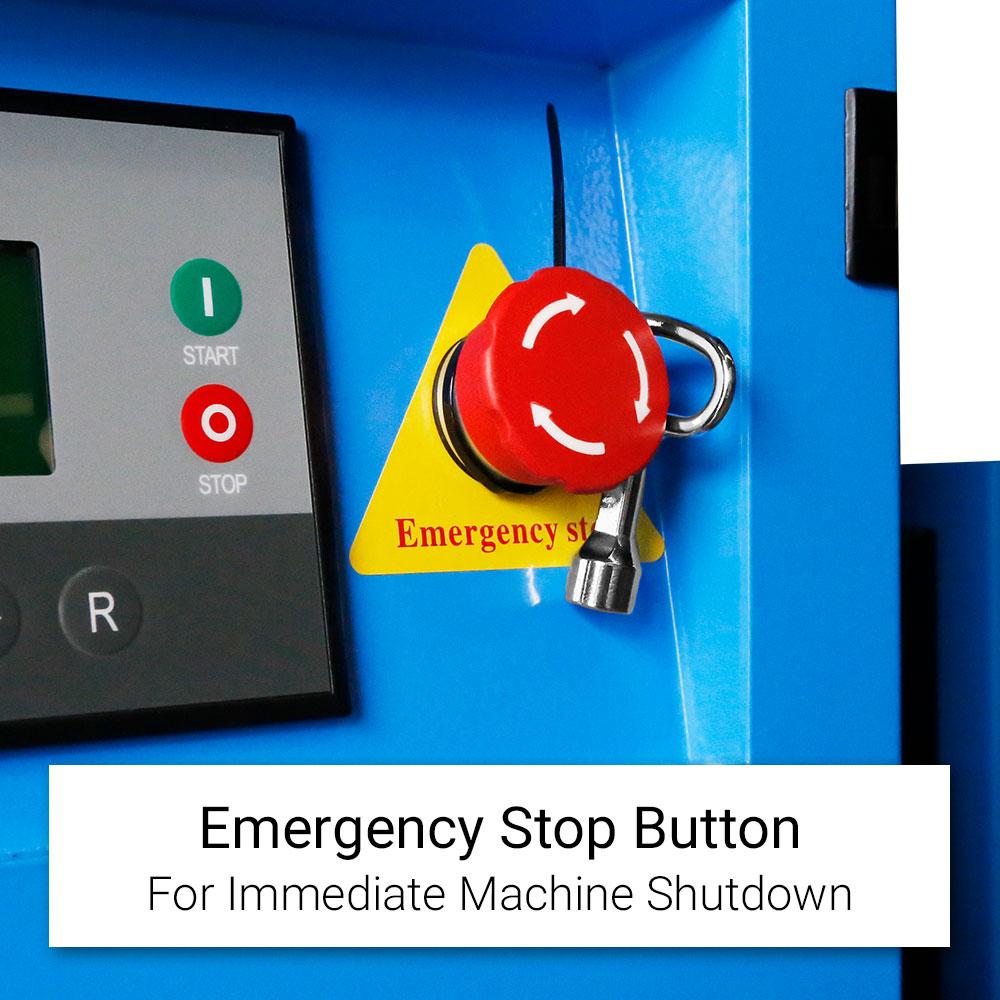

• Emergency Stop Button: For immediate machine shutdown in case of an emergency

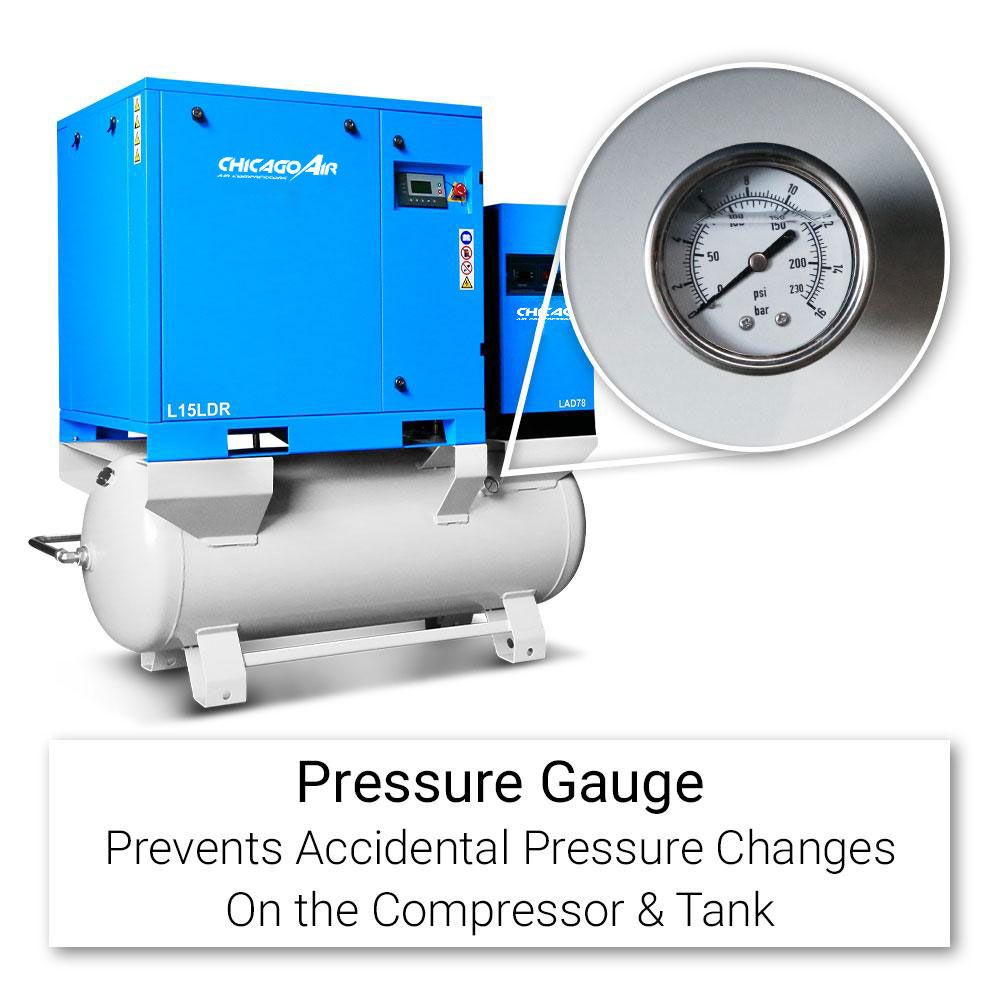

• Pressure Gauges: Prevents accidental pressure changes on the compressor and tank

Specifications:

• Air tank size: 360 Litres
• Sound level: 67dBA
• Capacity: 1.6m³/min
• Rated Pressure: 10bar
• Rated Power: 15Hp
• Voltage/Hz/Phase: 415V/50Hz/3Phase
• Specific Power: 7.13kW/(m³/min)

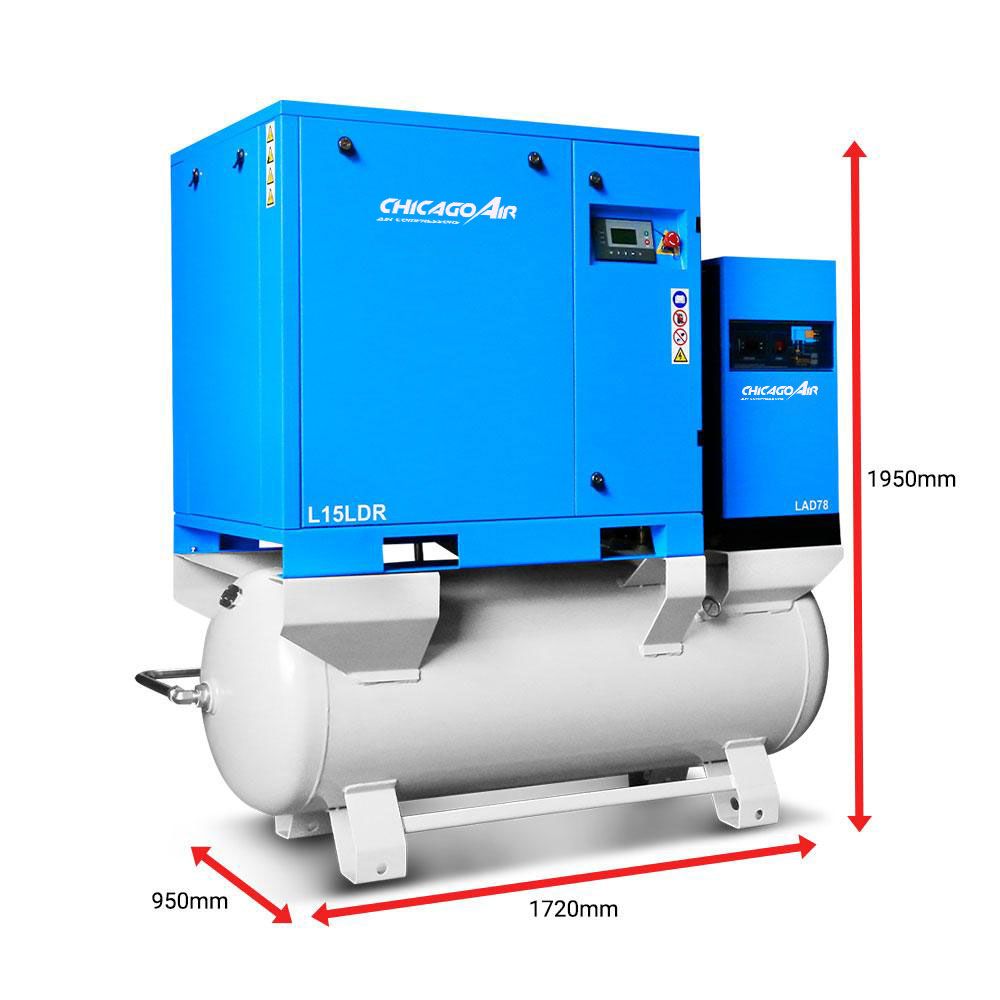

• Dimensions (L x W x H): 1950mm x 950mm x 1720mm
• Weight: 550kg

Warranty:

• 12 Months Warranty Covered by Chicago Air
