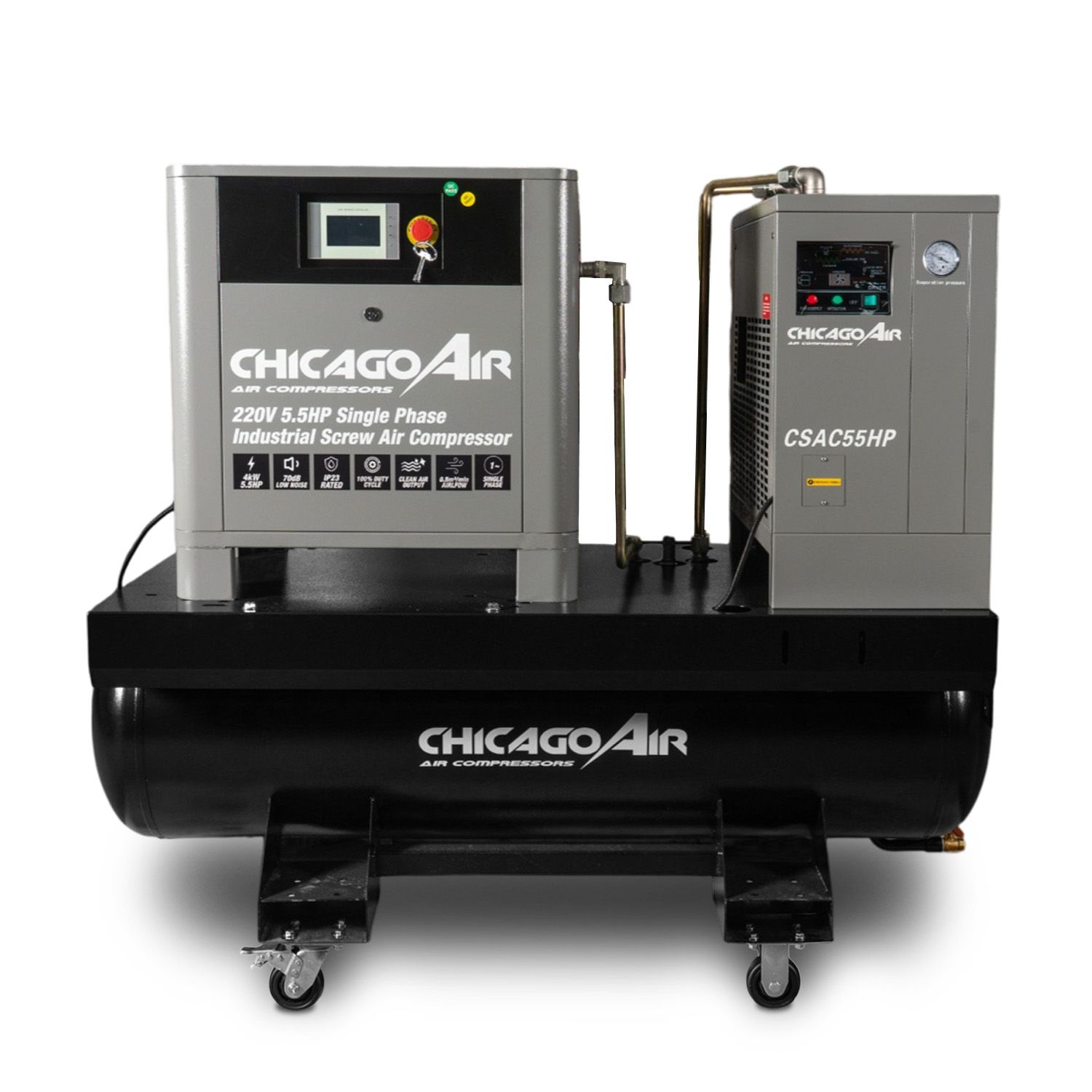

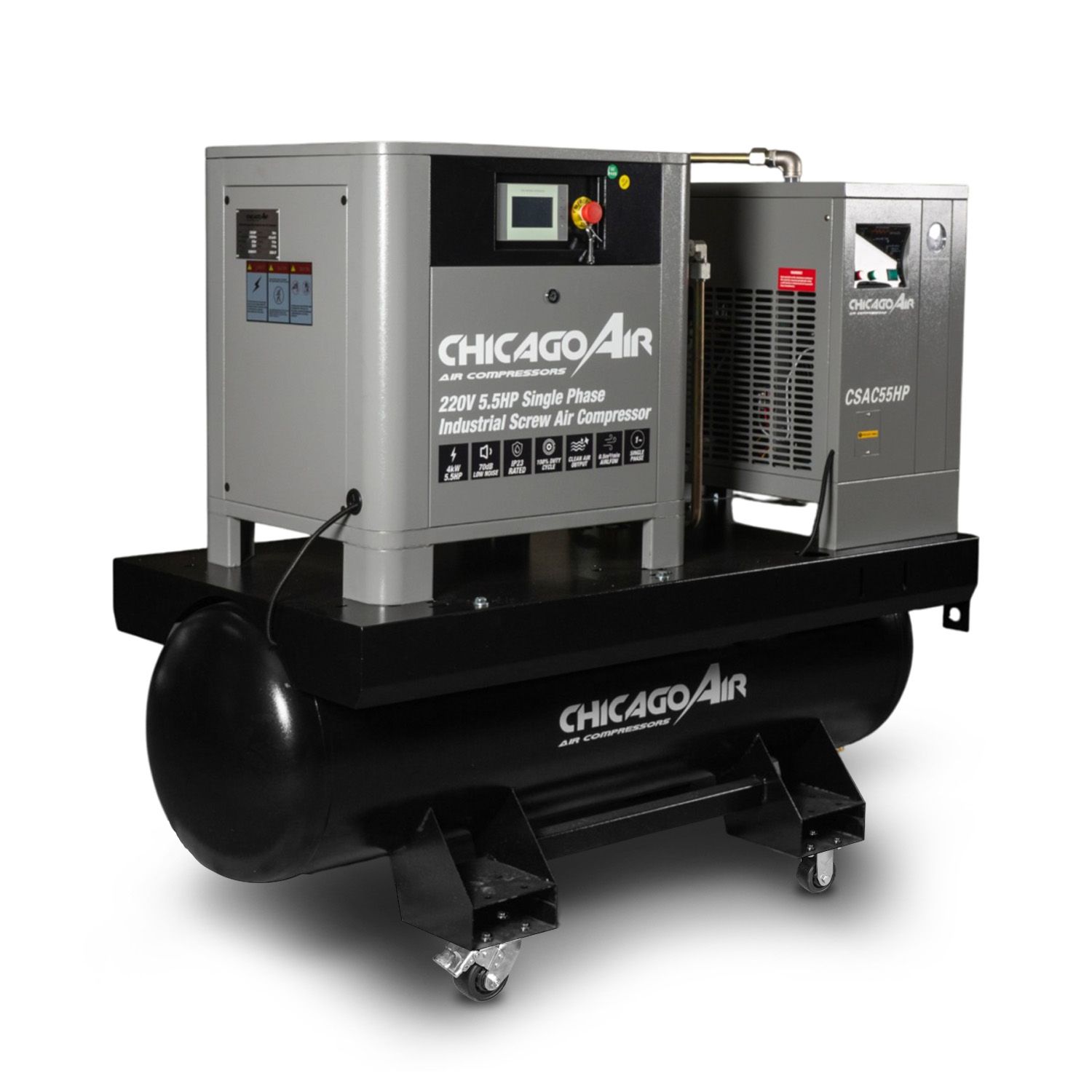

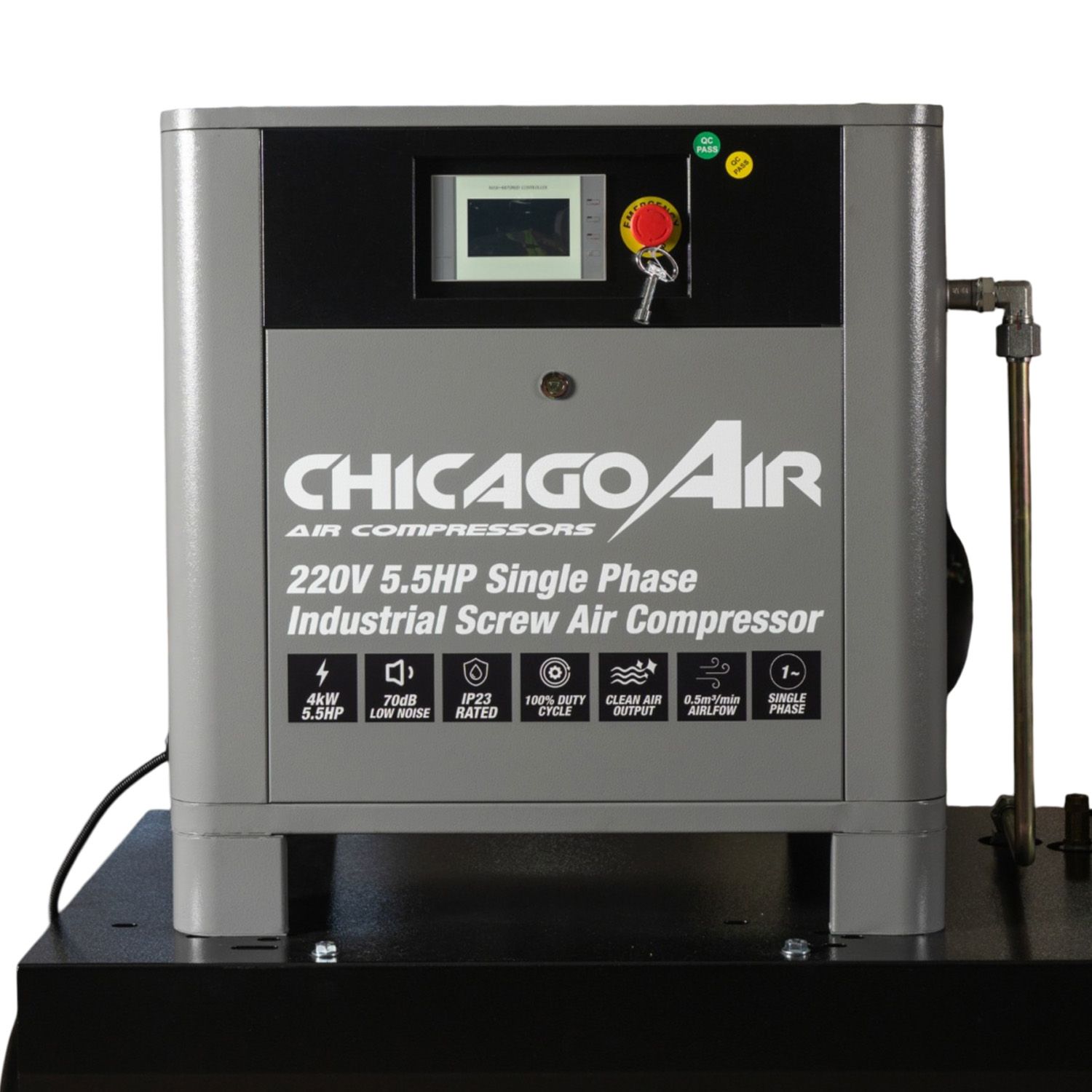

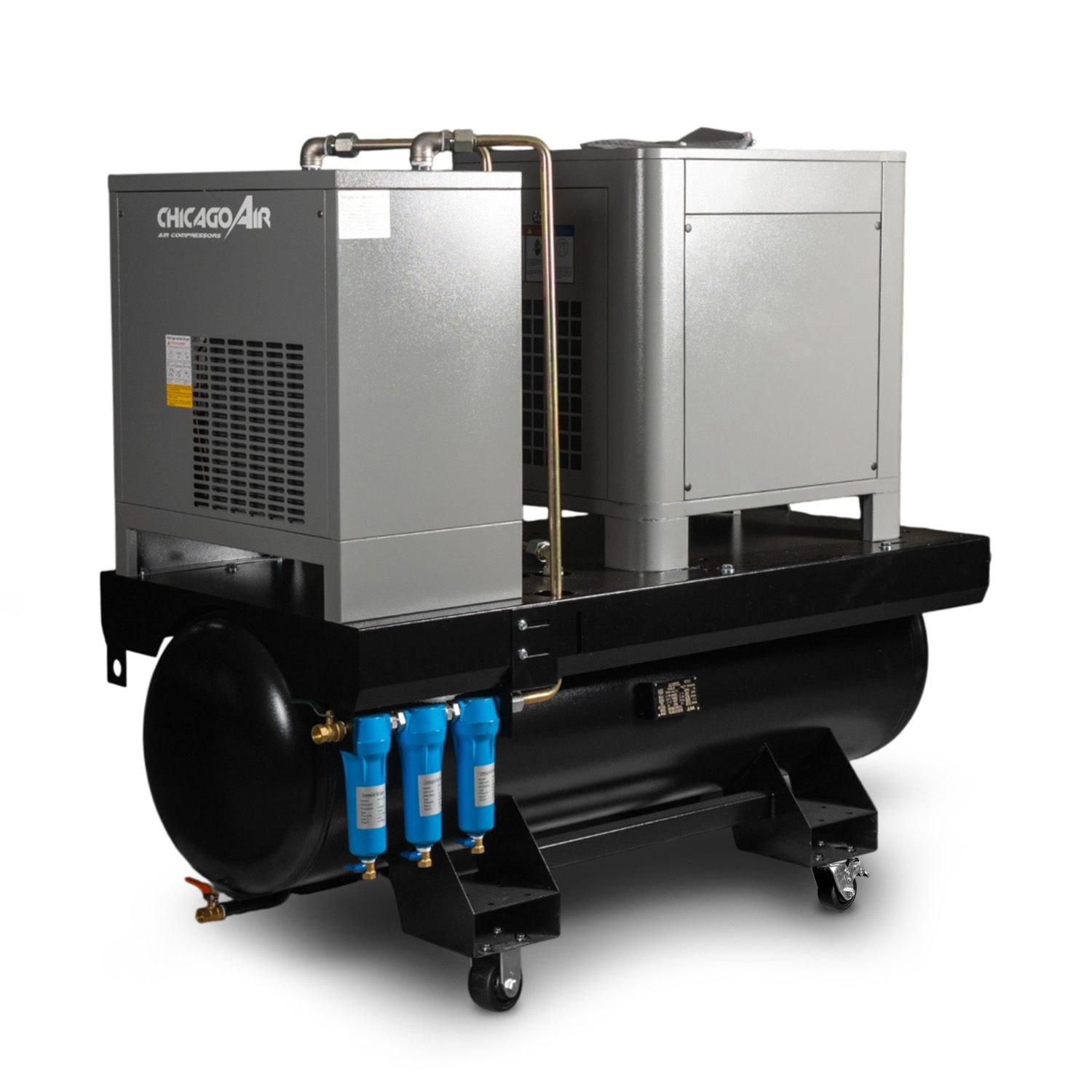

Chicago Air CSAC55HP 220V 5.5HP Single Phase Industrial Screw Air Compressor

Chicago Air CSAC55HP 220V 5.5HP Single Phase Industrial Screw Air Compressor

The Chicago Air 4kW Industrial Screw Air Compressor is designed for reliable, energy-efficient performance in workshops, garages, and light industrial applications. Delivering a steady 0.5 m³/min airflow at 0.8 MPa, it provides consistent compressed air for operating air tools, machinery, and workshop equipment with dependable pressure stability. Its advanced 4kW motor with variable frequency starting ensures smooth, efficient startup while reducing electrical load and improving operational efficiency.

Built with a compact direct-drive design and advanced air cooling system, this compressor is engineered for dependable performance in demanding Australian conditions from -5°C to +45°C. Producing clean compressed air with ≤3 ppm oil carryover, it is suitable for both general workshop use and applications where air quality is important. With low noise output, automatic gas volume adjustment, and a durable industrial build, it offers reliable day-to-day operation while maintaining a compact footprint for easy installation.

Features:

• 4kW Industrial Motor Power: High-efficiency performance for workshops and light industrial applications
• Continuous Duty Screw Compressor: Designed for reliable long-term operation with stable airflow
• 0.5 m³/min Airflow @ 0.8 MPa: Delivers consistent compressed air for air tools and workshop equipment
• Variable Frequency Starting System: Smooth startup operation with improved energy efficiency
• Low Noise Operation (72 dB): Suitable for indoor workshop and shared work environments
• Advanced Air Cooling System: Maintains stable operating temperatures for enhanced reliability
• Clean Air Output (≤3 ppm Oil Carryover): Suitable for precision applications and clean air requirements
• IP23 Rated Motor Protection: Designed for dependable operation in workshop environments
• Wide Operating Range (-5°C to +45°C): Built for tough Australian operating conditions
• Heavy-Duty Direct Drive System: Efficient power transmission with reduced maintenance requirements
• Automatic Gas Volume Adjustment: Optimises compressor performance and efficiency
• Compact Industrial Design: Space-saving footprint for convenient workshop installation

Specifications:

• Electric Motor:
  • Power: 4KW
  • Speed: 3000RPM
  • Starting Method: Variable Frequency Starting
  • Voltage: 220V
  • Frequency: 200Hz
  • Protection Leve: IP23
  • Class: F Classs
• Fan:
  • Power: 0.055kW
  • Voltage: 240V
  • Frequencey: 50Hz
  • Speed: 1440rpm
  • Air Volume: 880 m³/h
• Nominal Volume Flow: 0.5m³/min
• Rated exhaust pressure: 0.8MPa
• Ambient Temperature: -5~+45ºC
• Cooling Method: Air Cooling
• Exhuast Temperature: ≤Ambient temperature+15ºC
• Lubricating Oil Quantity: 3L
• Transmission Mode: Direct Type
• Gas Volume Adjustment Method: Automatic Adjustment
• Oil Content in Gas: ≤3 ppm
• Noise: 70±2 dB(A)
• Safety Valve Set Pressure: Rated working pressure x 1.1 MPa
• Outlet Pipe Diameter: G 3/4"
• Dimensions (L x W x H): 740mm x 590mm x 775mm
• Weight: 310kg

Warranty:

• 12 Month Warranty Covered by Chicago Air
