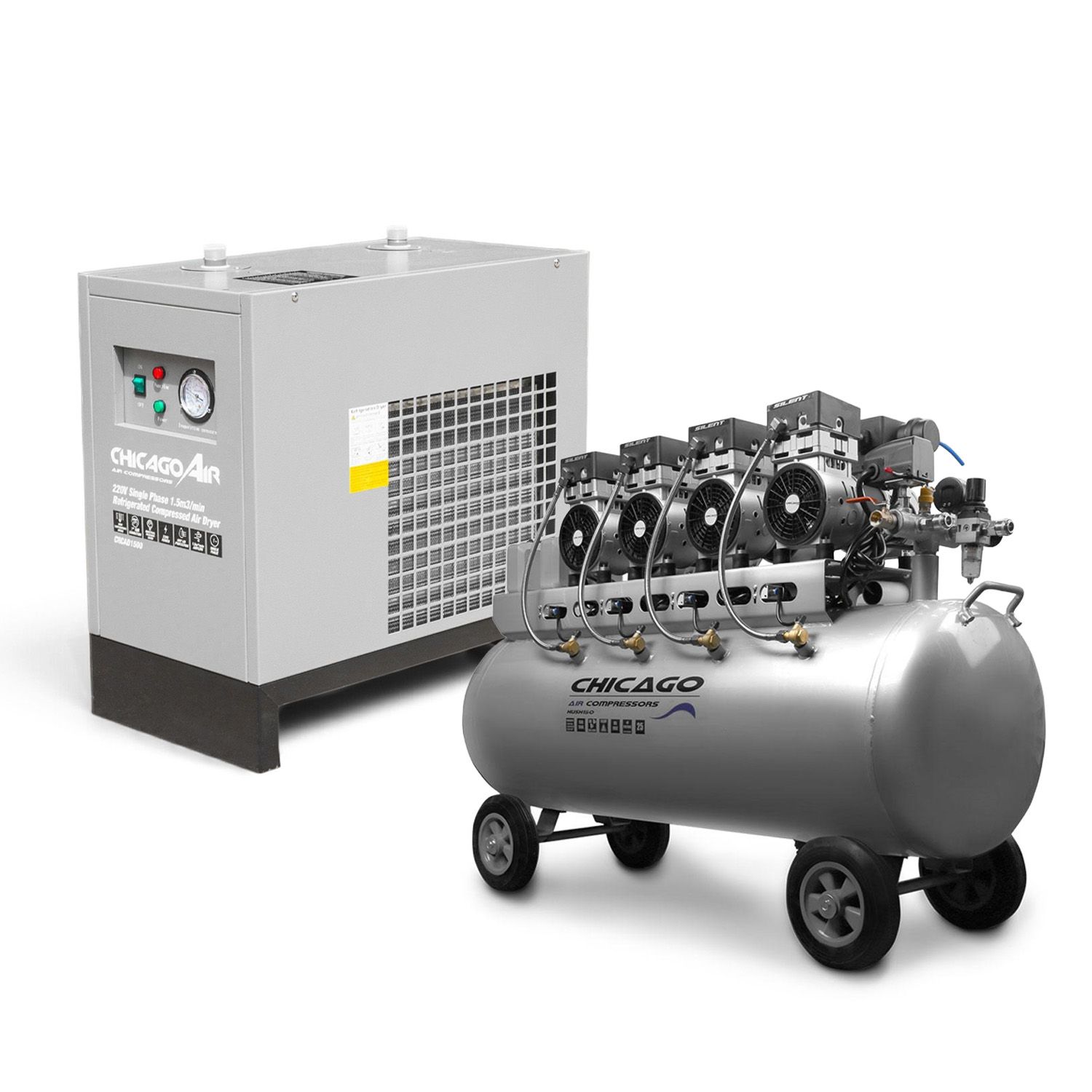

Chicago Air CRCAD1500+HUSH150 220V 1.5m3/min Refrigerated Compressed Air Dryer & 150L Silenced Air Compressor

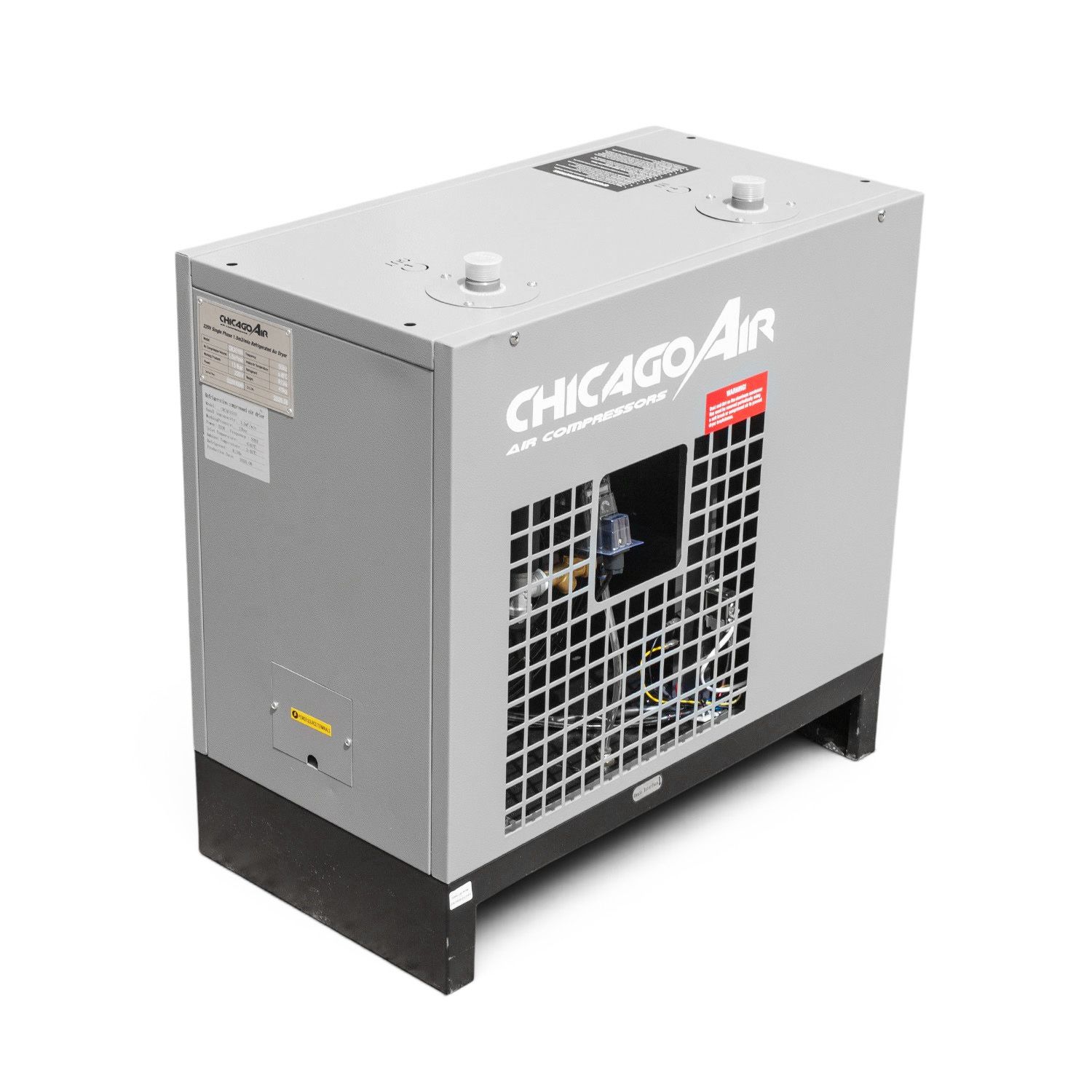

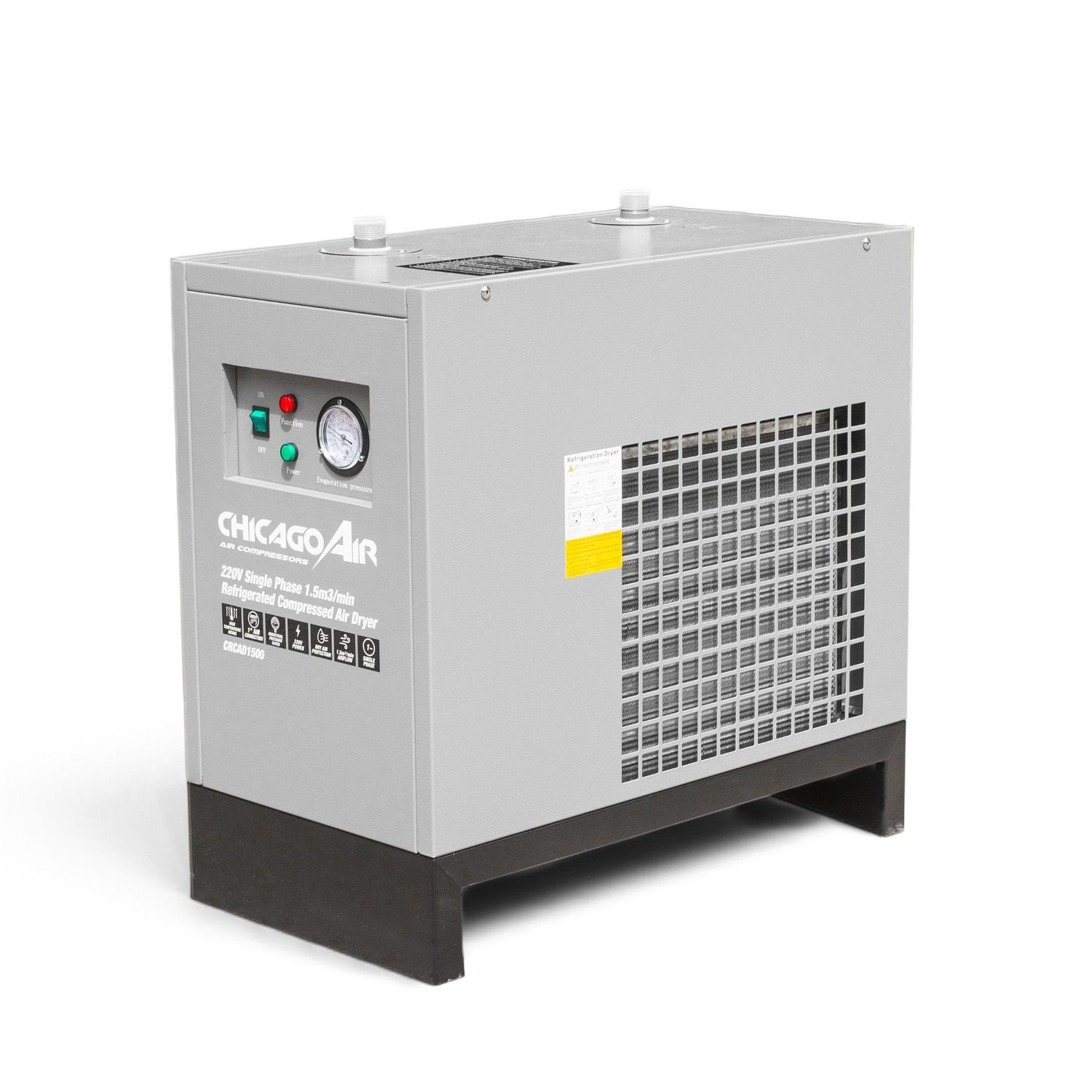

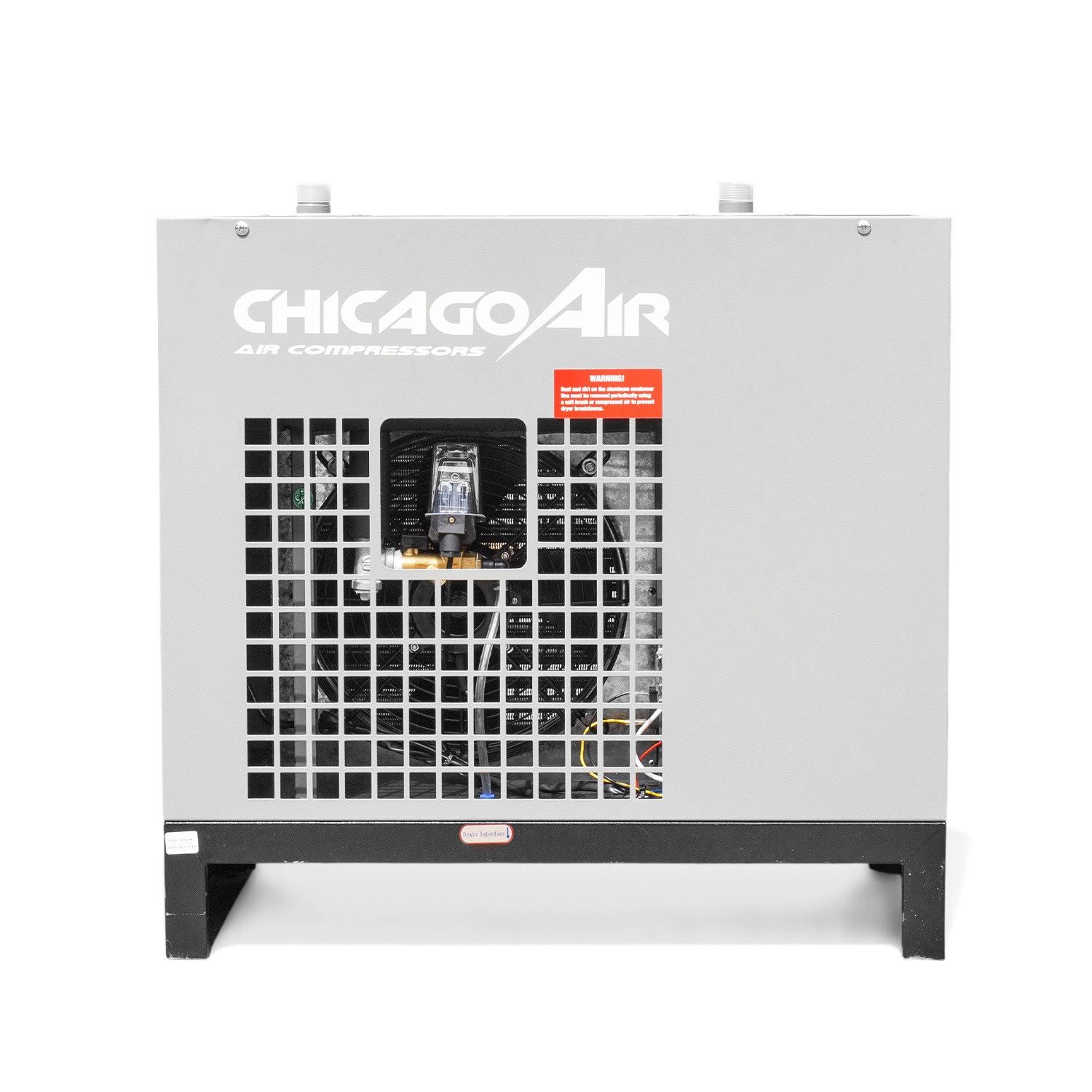

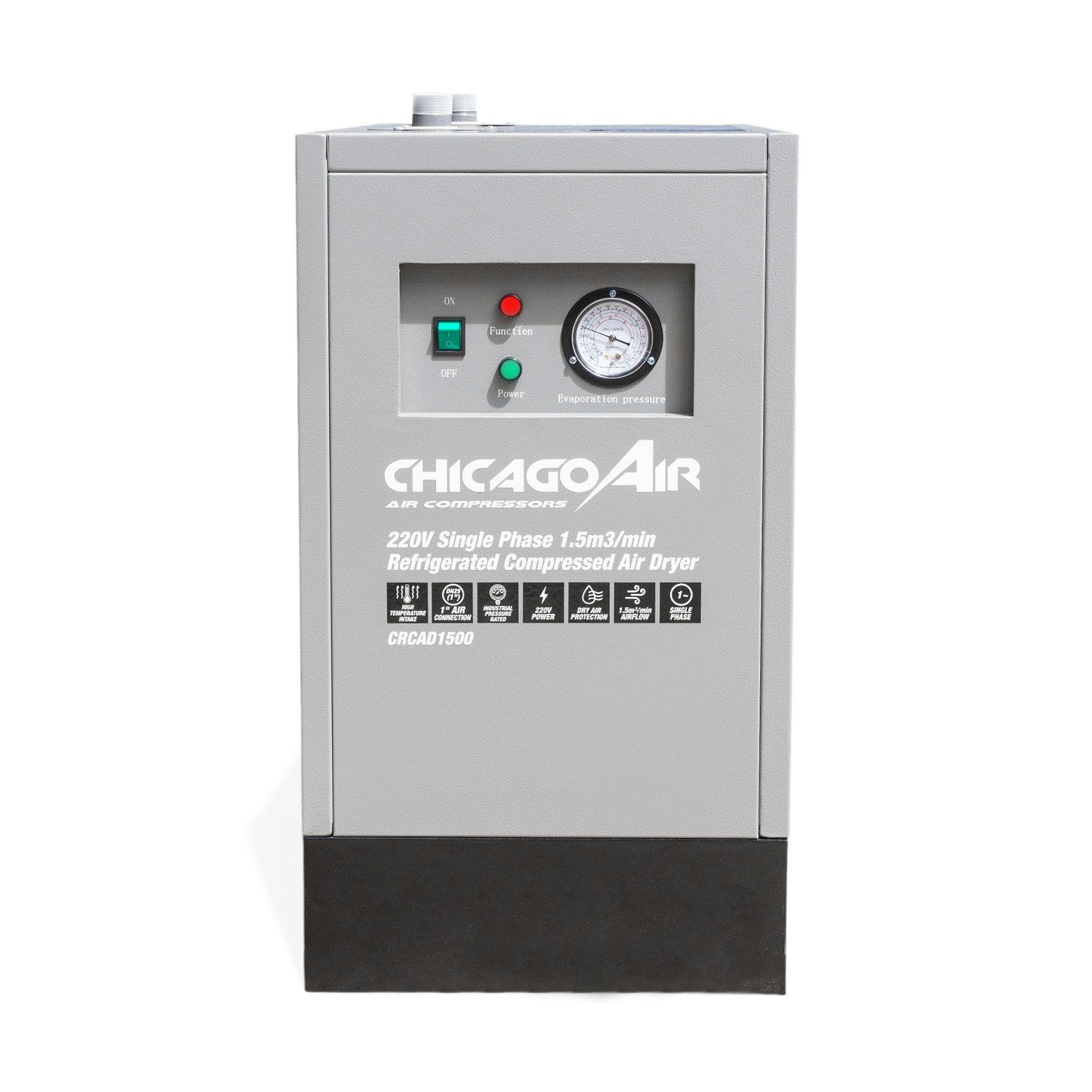

The Chicago Air CRCAD1500 1.5m3/min Refrigerated Compressed Air Dryer is a reliable and efficient solution for removing moisture from compressed air systems. Delivering an airflow capacity of 1.5m³/min with a pressure dew point of 3–10°C, it helps protect air tools, machinery, and pneumatic equipment from water contamination. Designed for industrial and workshop applications, this unit operates on standard 240V power, supports pressures from 0.6–1.3 MPa, and features a compact, durable design with a DN25 (1") air connection for easy installation.

Features:

• High-capacity refrigerated compressed air dryer with 1.5m³/min airflow
• Maintains a pressure dew point between 3–10°C for cleaner, drier air
• Suitable for compressor systems operating from 0.6–1.3 MPa
• Handles intake air temperatures up to 45°C
• Efficient 230W operation on standard 220V power
• Durable DN25 (1") male threaded air connection
• Compact footprint for workshop and industrial installations
• Reliable cooling system with 0.52kW coolant compressor
• Designed for consistent moisture removal to protect pneumatic equipment and tools

Specifications:

• Air Compression Volume: 1.5m³/min
• Power: 220V
• Frequency: 50Hz
• Pressure Dew Point: 3-10ºC
• Intake Air Temperature: ≤45ºC
• Pressure Loss: ≤0.02 Mpa
• Operating Pressure Range: 0.6-1.3 Mpa
• Coolant Compressor: 0.52kW
• Cooling Water Temperature: Standard: 35ºC
• Air Port Diameter: DN25 (1" Male Thread)
• Dimensions (L x W x H): 730mm x 390mm x 690mm
• Weight: 40kg

Warranty:

• 12 Months Warranty Covered by Chicago Air

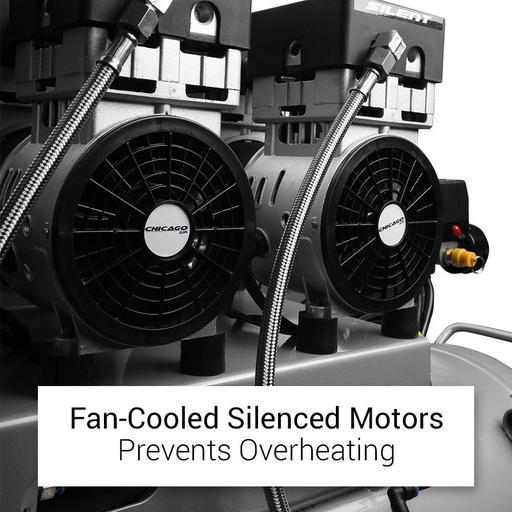

The Chicago Air HUSH150 Silenced 150L Air Compressor is a heavy-duty, low-noise air compressor designed for professional workshops, framing, and pneumatic applications requiring consistent high airflow. Featuring advanced OFD3 oil-free technology and 4 running motors with 8 direct-drive pistons, it delivers a massive intake volume of 548 L/min and an FAD of 397 L/min while maintaining a comfortable 71 dB noise level.

Features:

• OFD3 technology: Faster pumping, High Durablity, Oiless operation
• Air receiver tank compliant with Australian Standards, Workplace Health and Safety Regulations

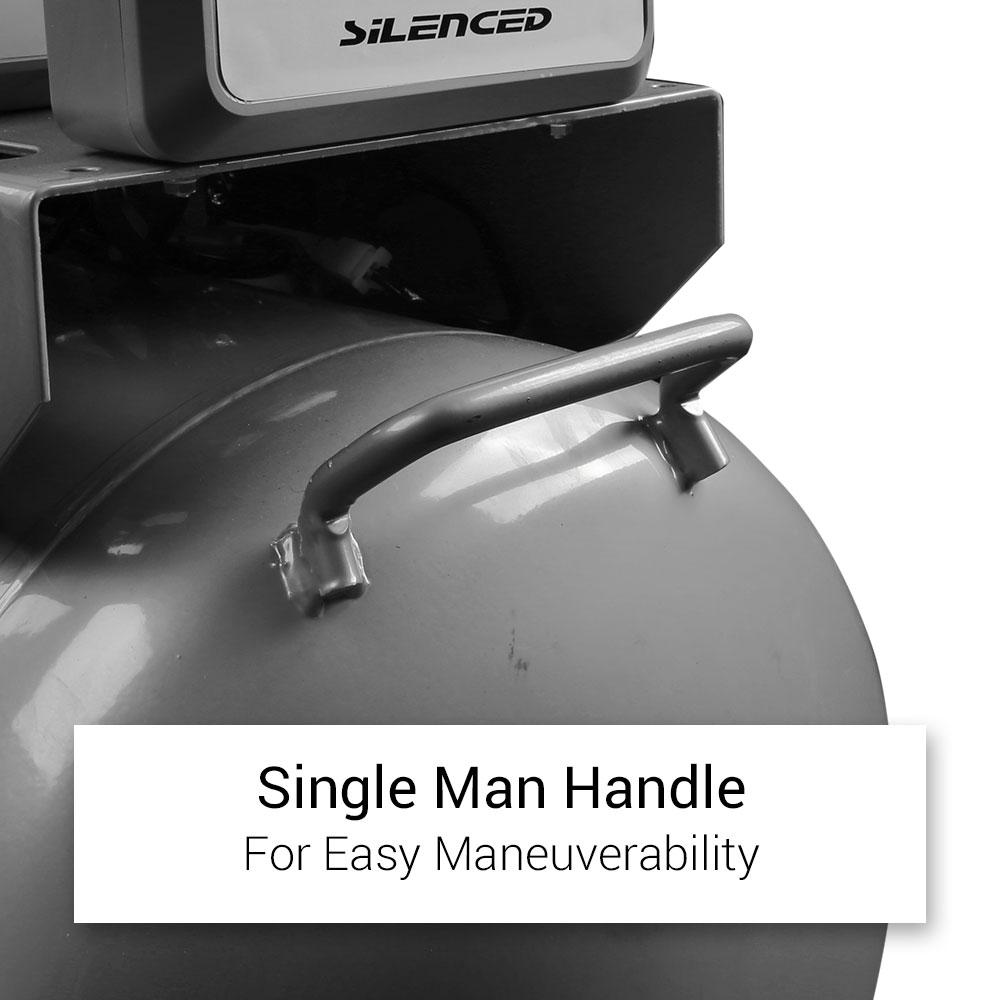

• Dual Handled 150 litre tank design
• At 105kg dry weight comes with with solid wheels it is easy to transport on the job. Critical for a unit of this size
• High Durability Steel Tank
• Minimum footprint wheeled design eliminates rust marks on driveways and other surfaces

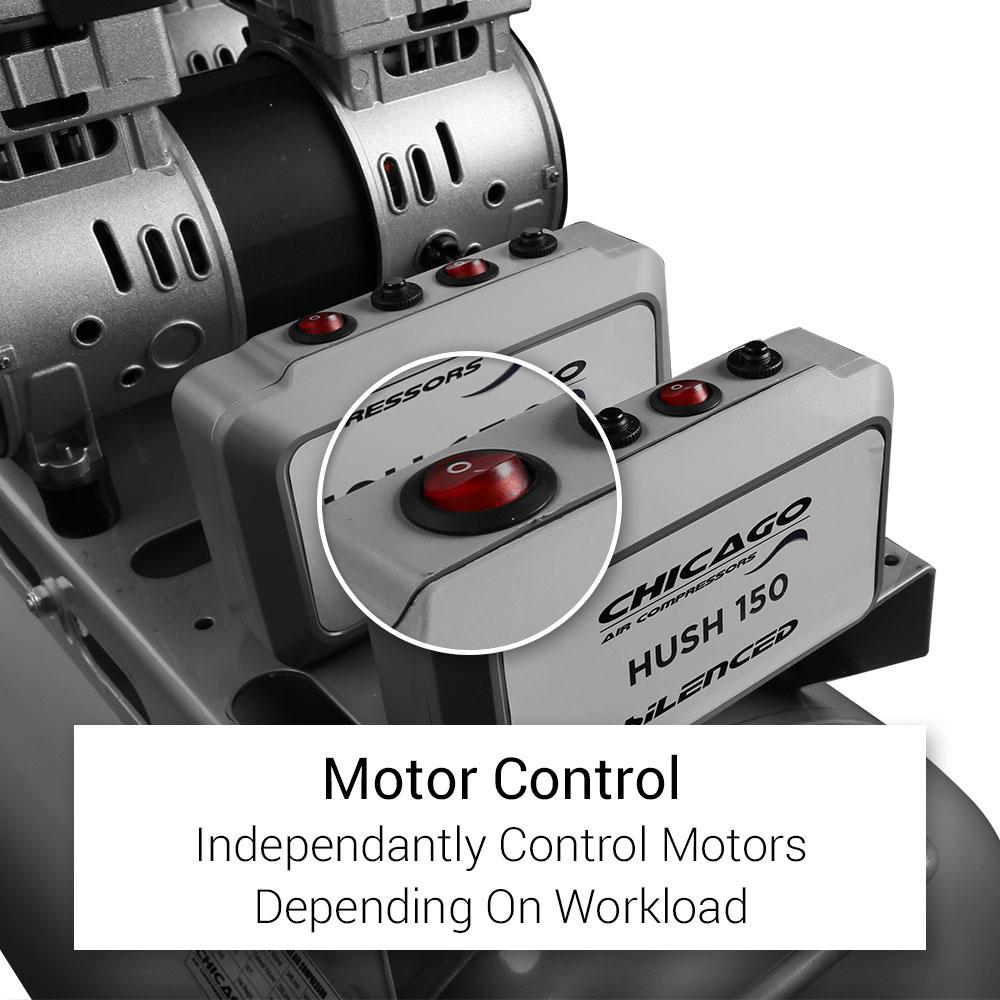

• Fully automatic on-off motor control and built-in overload protection
• 4 durable 1.1 running HP motors produces maximum air flow without cutout. Perfect to run any pneumatic application you can throw at it
• 8 Direct Drive pistons for continuous operation for any use

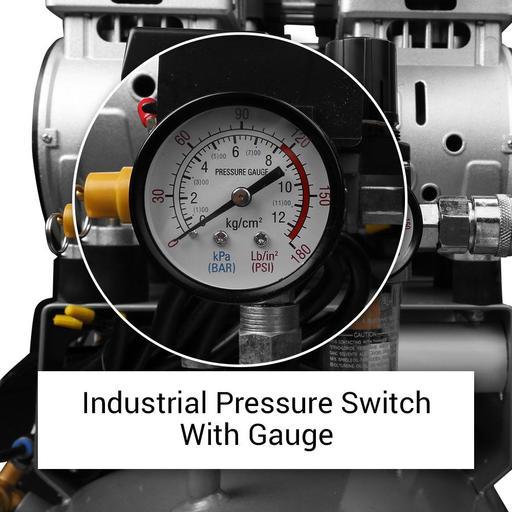

• Easy-to-read Tank & Compressor twin gauges

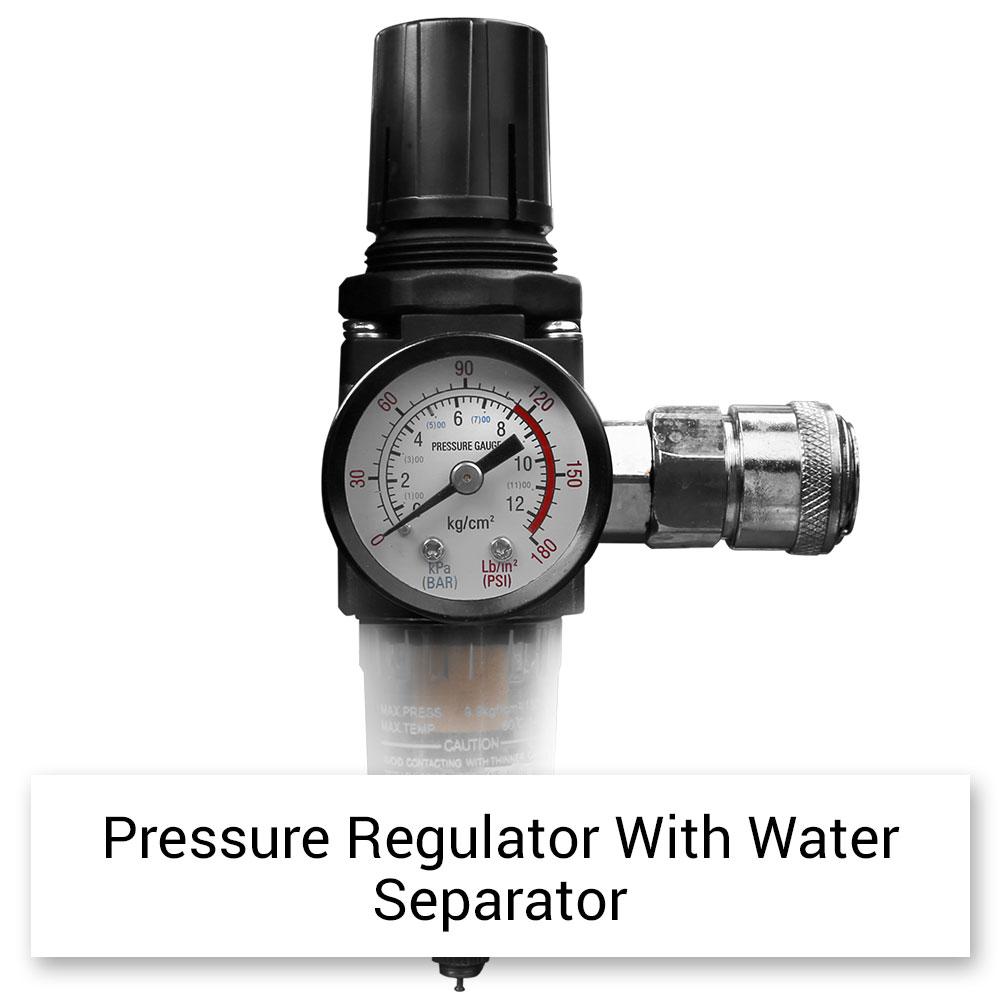

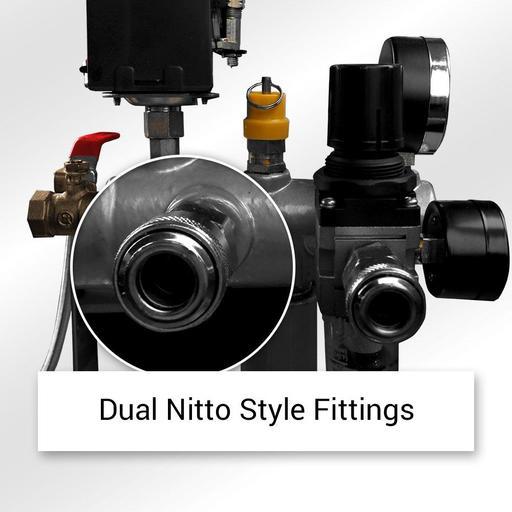

• Fitted with quality brass male coupler and water filter regulator

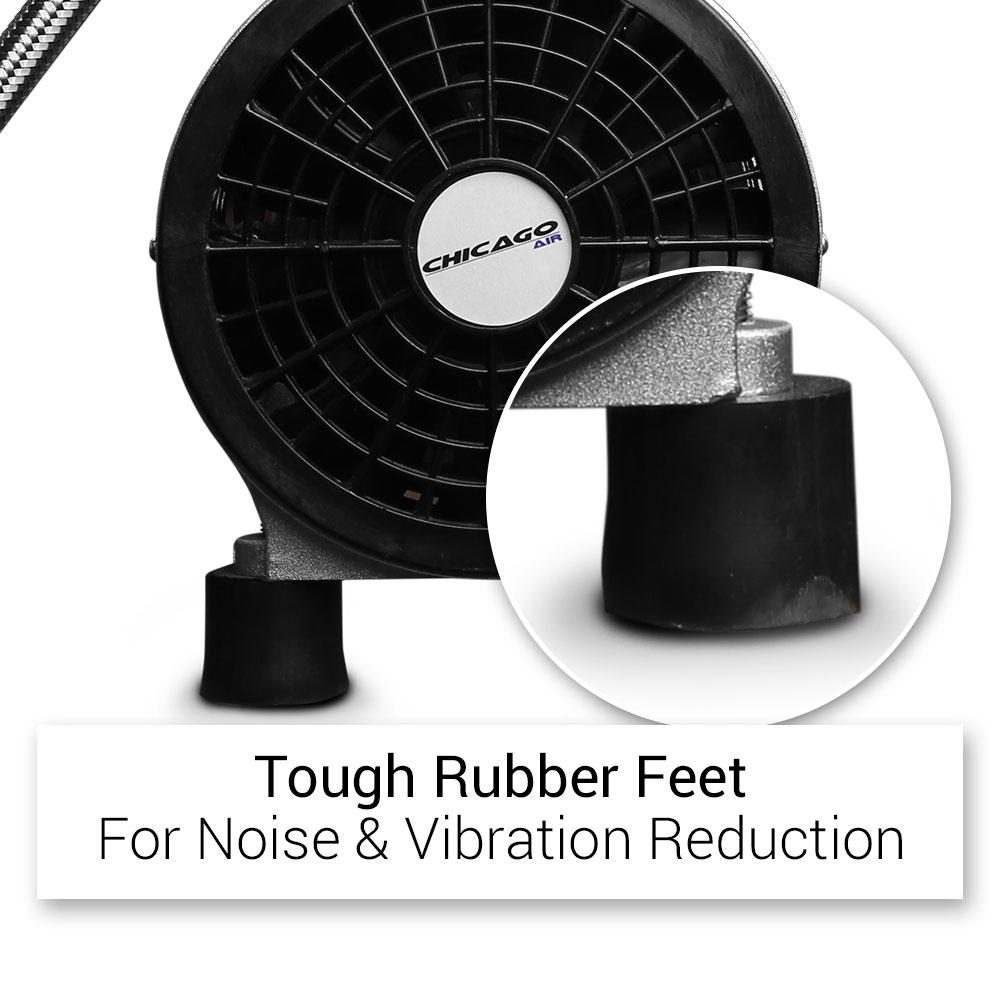

• Rubber Dampeners
• Oil-free pump delivers long lasting, maintenance-free reliability - Look after your tools for longer

Suitable for:

• Spray painting
• All air brushing
• Multiple framing and fixing applications
• Most pneumatic tools which require higher air flow
• All sanders and pneumatic tools

Specifications:

• Power: 0.78kW*4
• Motor Speed: 1440RPM
• Voltage: 220~240V/50Hz
• Current: 13.56A
• Working Pressure: 8bar
• Tank: 150L
• Intake Volume: 548L/min
• CFM: 14.02
• FAD: 397L/min
• Hazard Level: C
• Noise: 71dB
• Dimensions (L x W x H): 1310mm x 480mm x 820mm
• Weight: 119kg

Warranty:

• 5 Years Warranty on Tank Covered by Chicago Air
• 1 Year Warranty on Pump & Fittings Covered by Chicago Air
