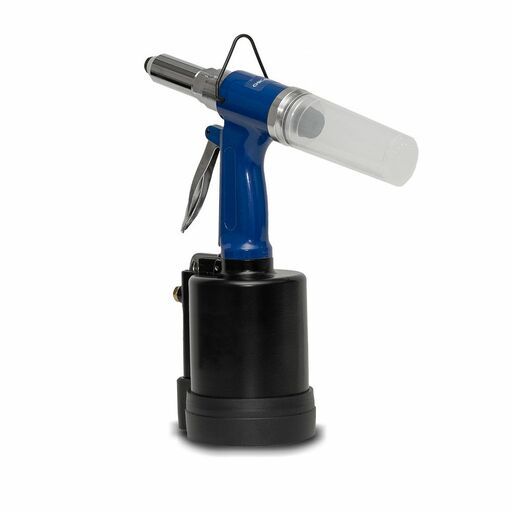

Chicago Air CAHAR14 3.2mm - 6.4mm Rivet 16mm Stroke 1/4" Hydraulic Air Riveter

Chicago Air CAHAR14 3.2mm - 6.4mm Rivet 16mm Stroke 1/4" Hydraulic Air Riveter

The Chicago Air Hydraulic Air Riveter is a high-performance tool designed for versatility and efficiency in riveting tasks. It accommodates rivets ranging from 3.2mm to 6.4mm, making it suitable for various materials like aluminum, steel, and stainless steel. With a 16mm stroke, this riveter delivers strong pulling force for secure and reliable rivet installations, even in demanding applications.

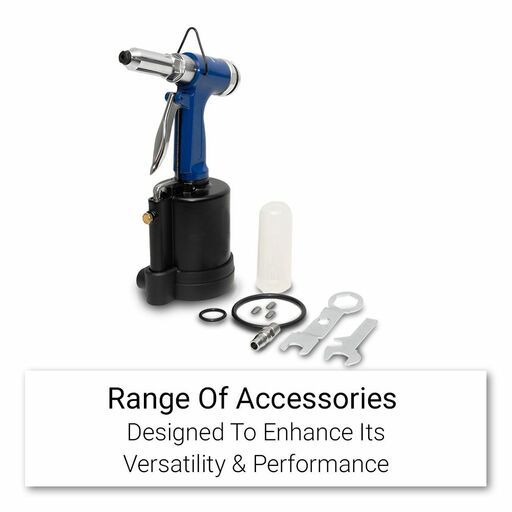

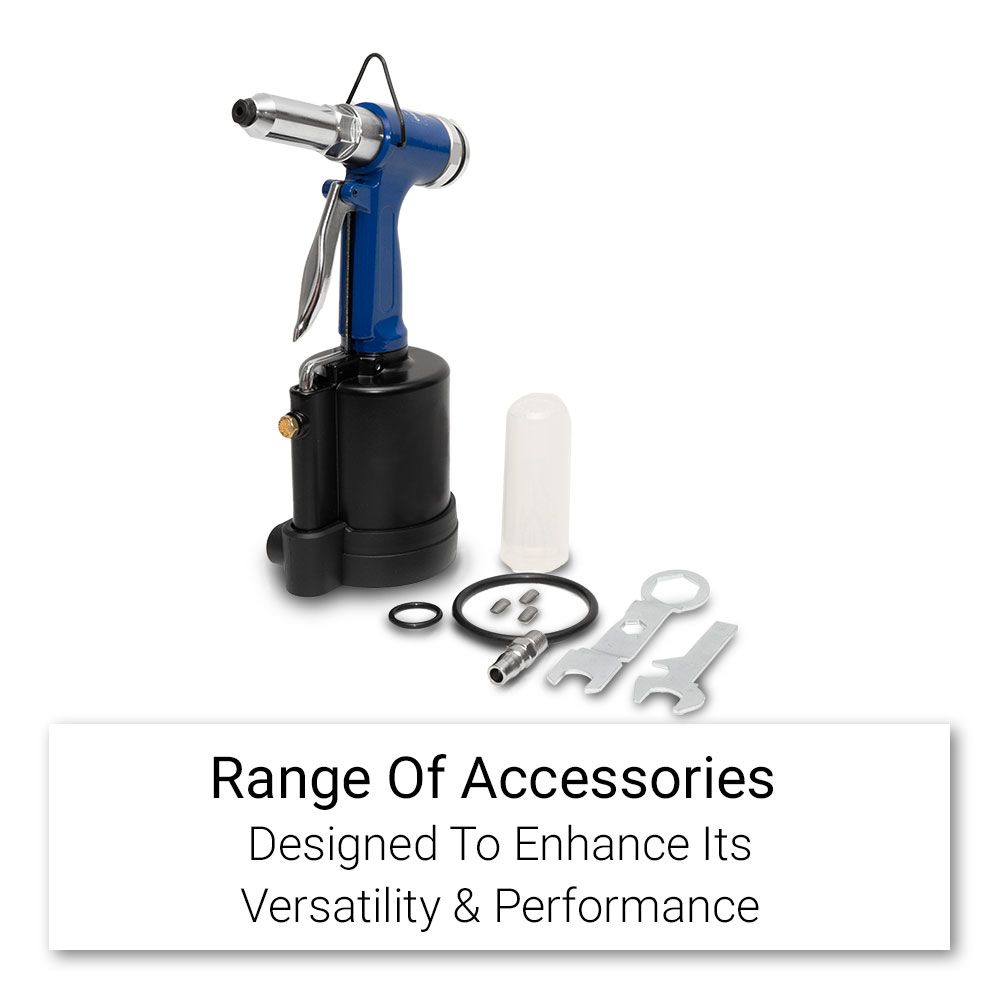

Includes:

• 4 x Nosepieces
  • 3.2mm, 4.0mm, 4.8mm, 6.4mm
• 2 x Wrenches
• 3 x Jaws

Features:

• Installs both steel and aluminium blind rivets
• Up to 1400kg of pulling force allows for powerful and quiet operation
• Lightweight  and durable metal construction

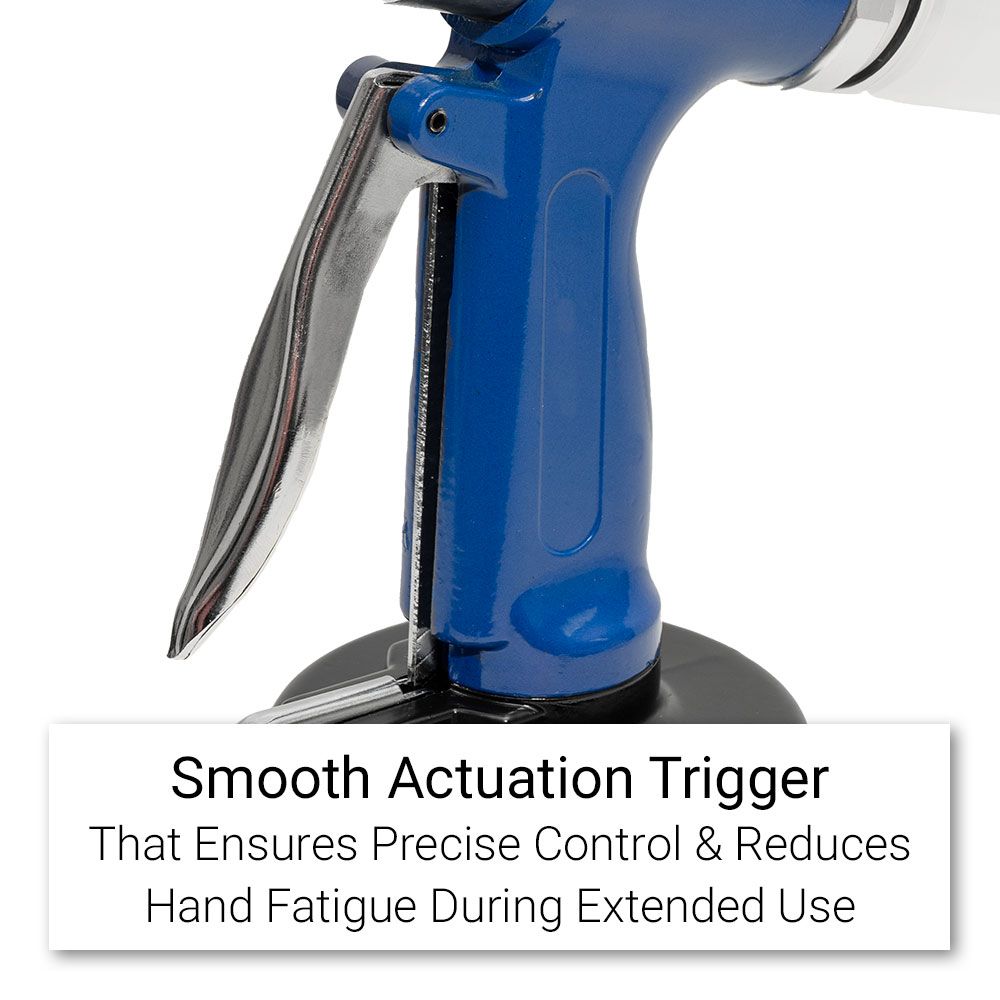

• Hardened steel jaw assembly and smooth actuation trigger for easy and balanced performance and convenient one handed operation

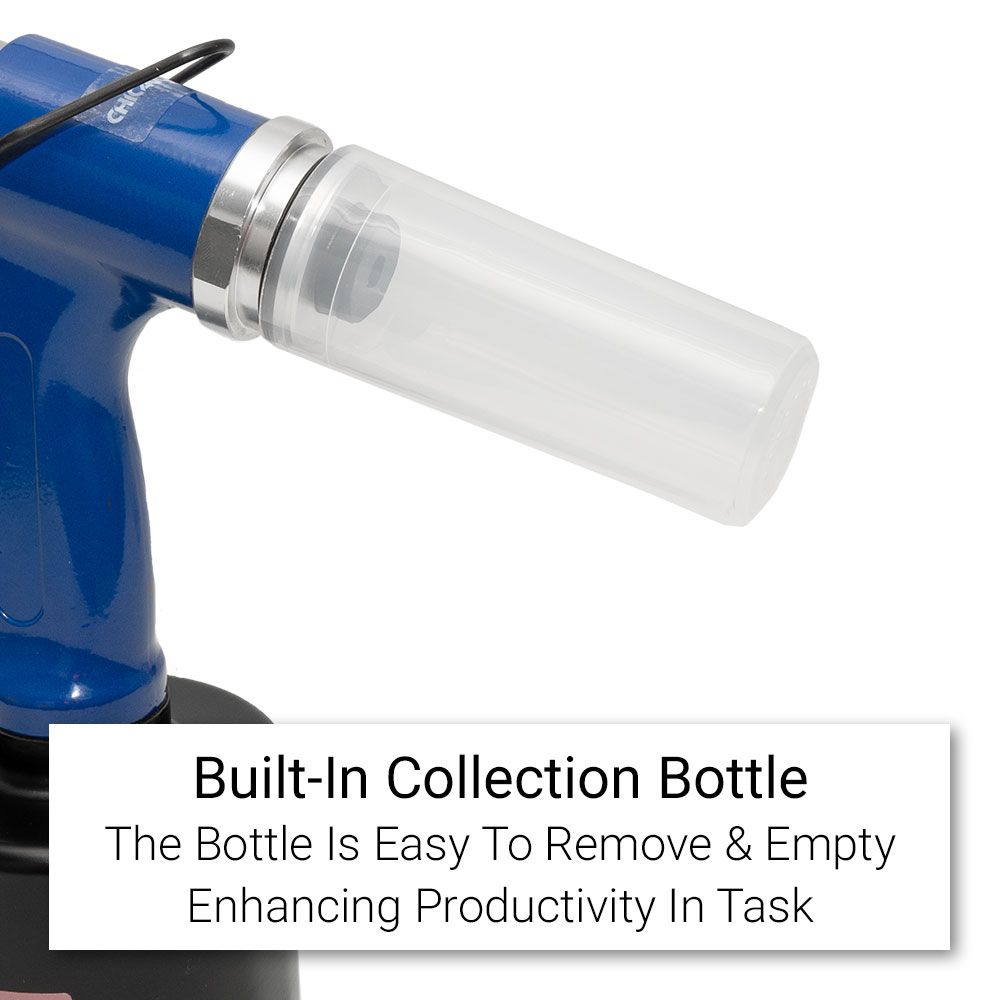

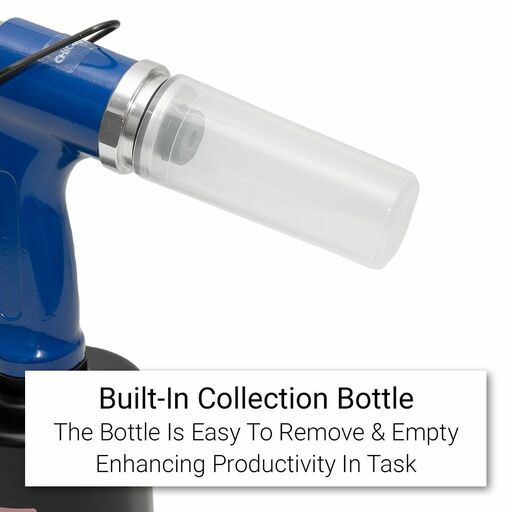

• Clear safety cap catches spent rivet stems for late disposal

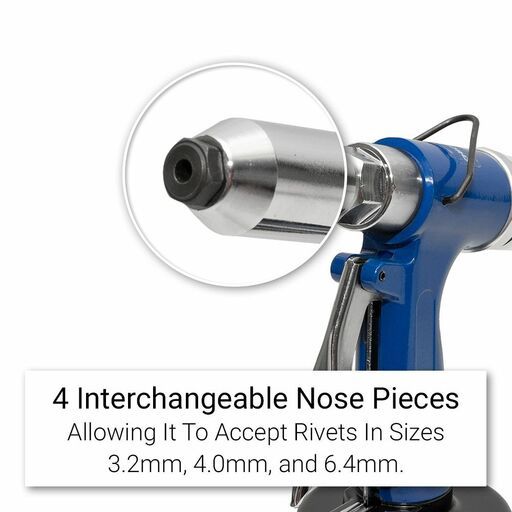

• 4 nosepieces to accept  rivets, 3.2mm, 4.0mm, 4.8mm and 6,4mm

Specifications:

• Blind Rivet Setting Capacity:
  • 3.2mm, 4.0mm, 4.8mm & 6.4mm
• Stroke Length: 5/8" (16mm)

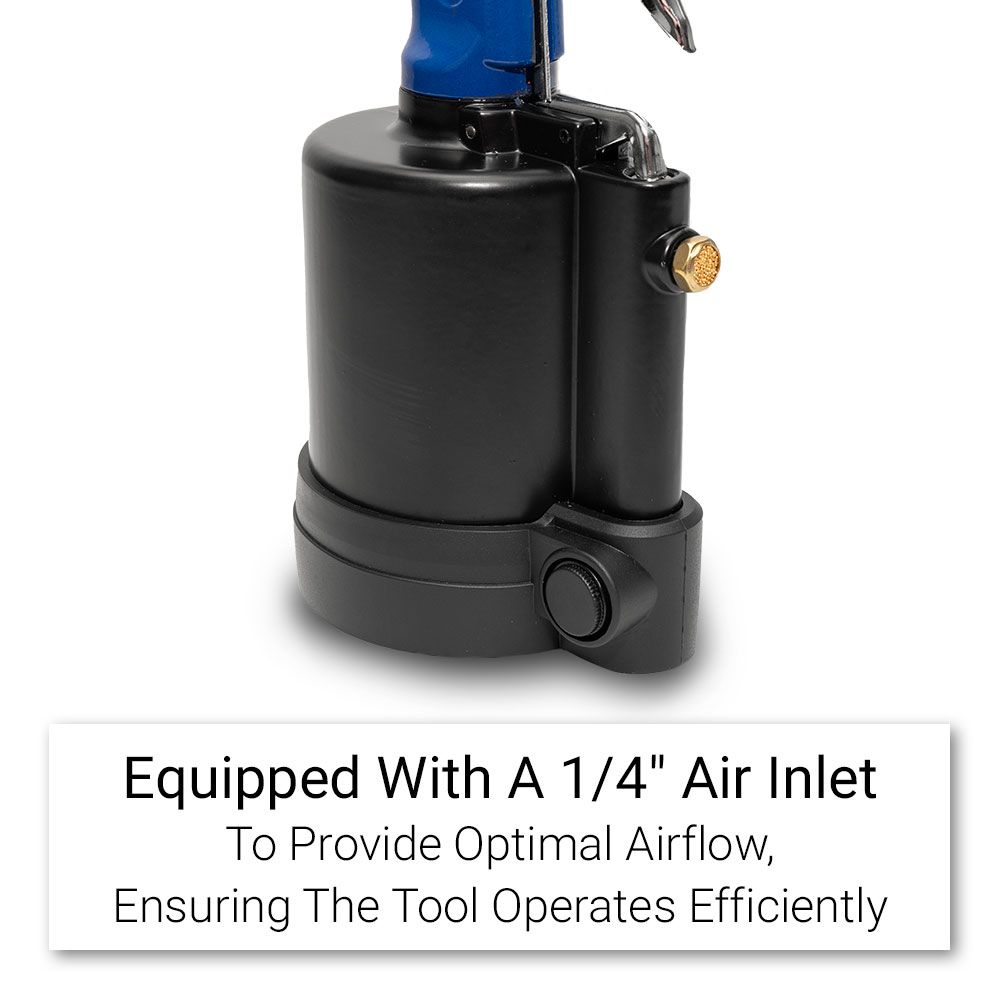

• Air Inlet: 1/4"
• Pulling Force: 1400kg (3086lbs)
• Average  Air Consumption : 0.03cfm
• Working Pressure: 90psi
• Dimensions (L x W x H): 165mm x 95mm x 290mm
• Weight: 1.5kg



Warranty

• 12 month Warranty Covered  By Chicago Air
