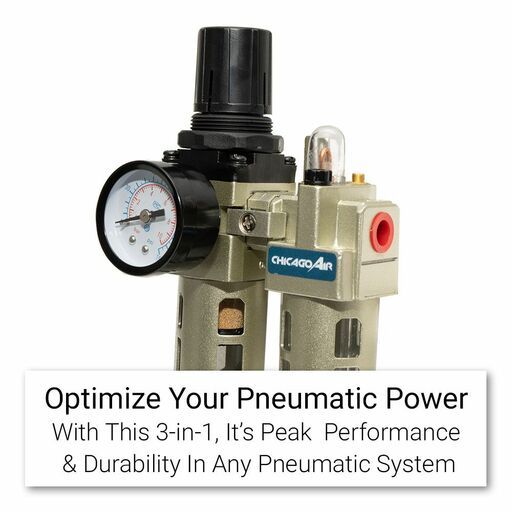

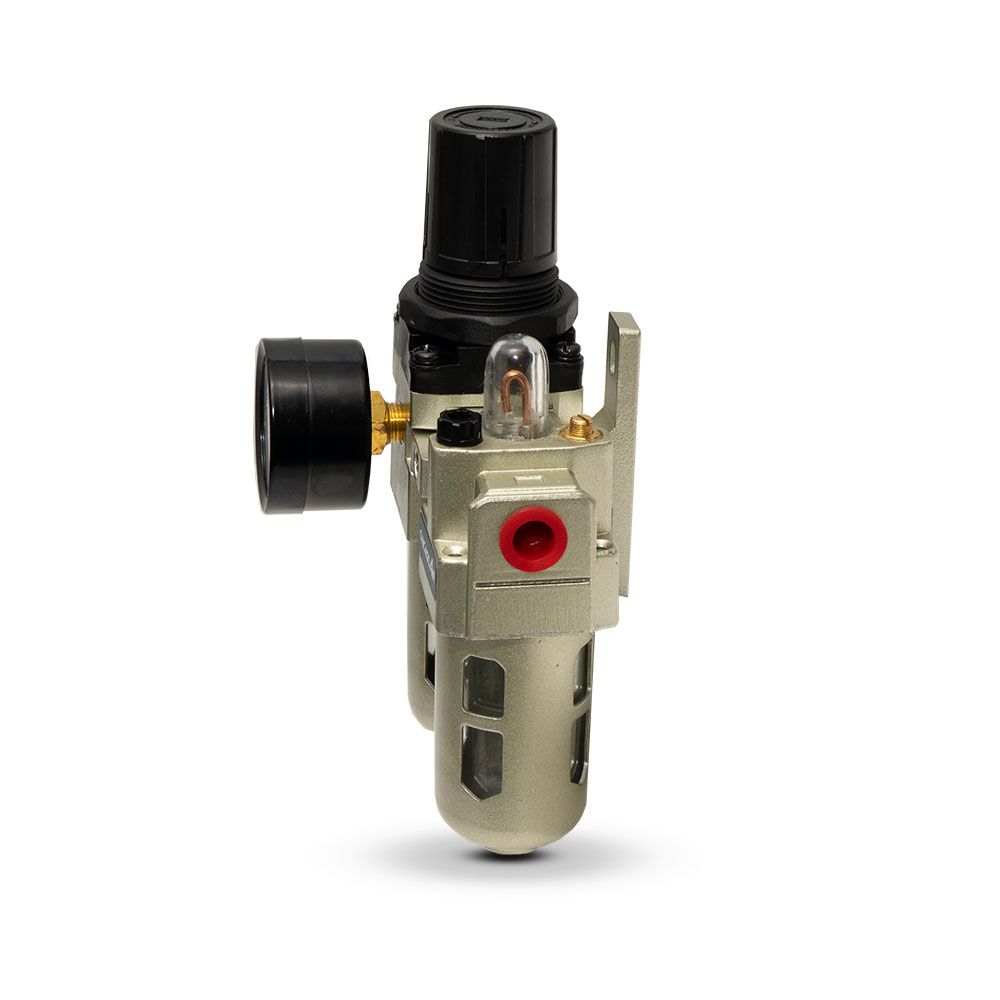

Chicago Air CAFRL14 1/4" Air Filter, Regulator & Lubricator Unit

Chicago Air CAFRL14 1/4" Air Filter, Regulator & Lubricator Unit

The Chicago Air 1/4" Air Filter, Regulator & Lubricator Unit guarantees clean, regulated, and properly lubricated airflow for optimal pneumatic performance. This unit is expertly designed to extend the life of your air tools by efficiently removing contaminants, controlling air pressure, and adding lubrication to prevent wear and tear. Its compact 1/4" design is perfect for small to medium air systems, providing unwavering and dependable operation. It is the ideal choice for both professional and DIY applications.

Includes:

• 1 x 1/4" Air Regulator & Lubricator Unit

Features:

• Lightweight & Compact size
• The regulator maintains a steady outlet pressure
• Maintains constant oil-to-air density over a wide range of flow

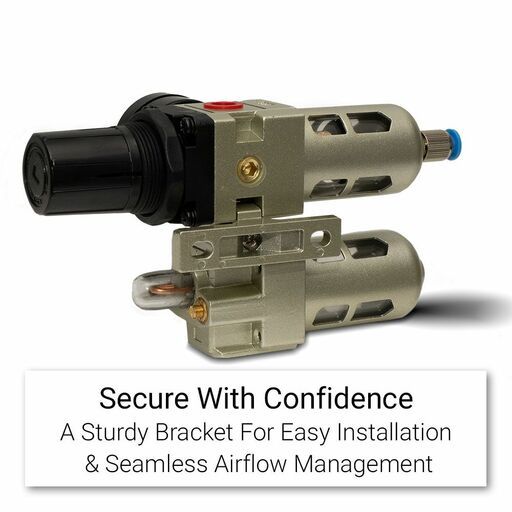

• Includes mounting brackets
• Onboard pressure readings while in use



Specifications:

• Gauge Size (Diameter): 40mm
• Gauge Readings: 0-150psi
• Max Supply Pressure: 175psi (12Bar)
• Max Outlet Pressure: 145psi (10Bar)
• Max Flow Rate: 40CFM at 90psi
• Air Inlet/Outlet: 1/4" Female
• Dimensions (W x H x L): 100mm x 55mm x 175mm
• Weight: 1.7kg

Warranty

• 12-month Warranty Covered  By Chicago Air
