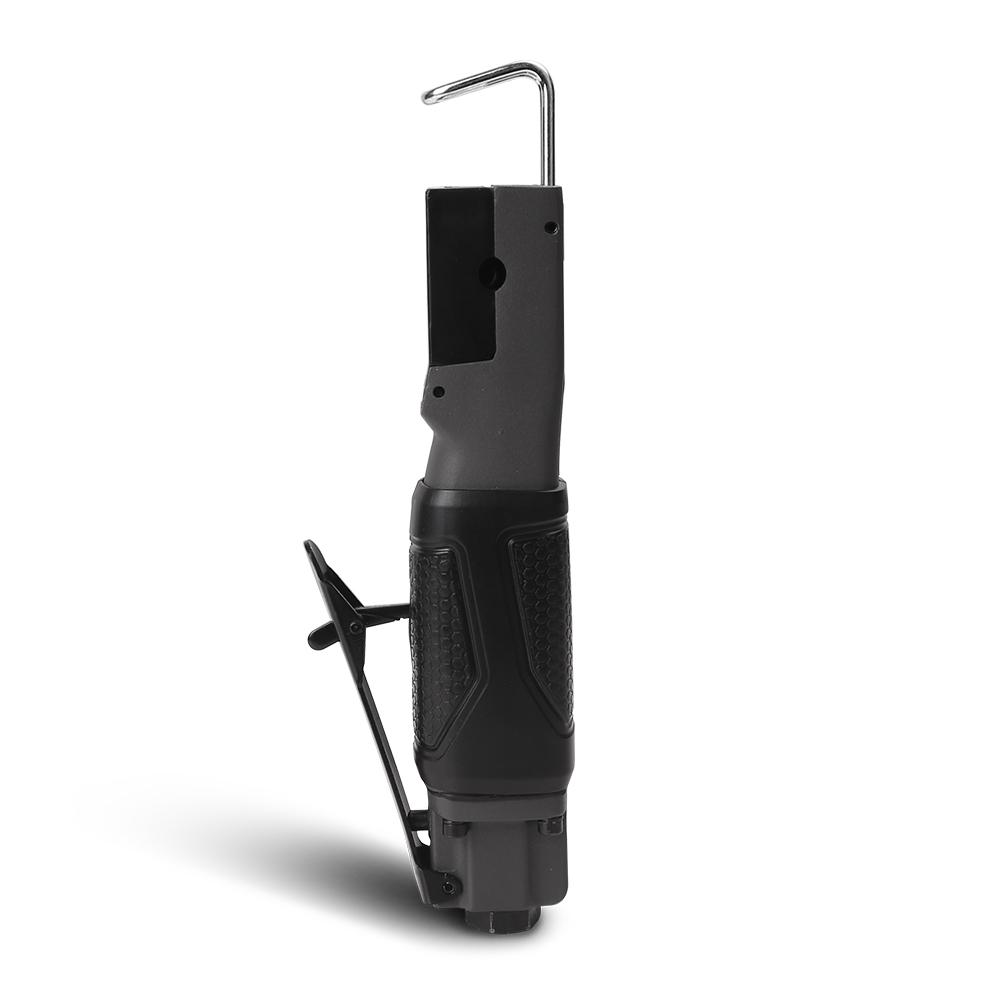

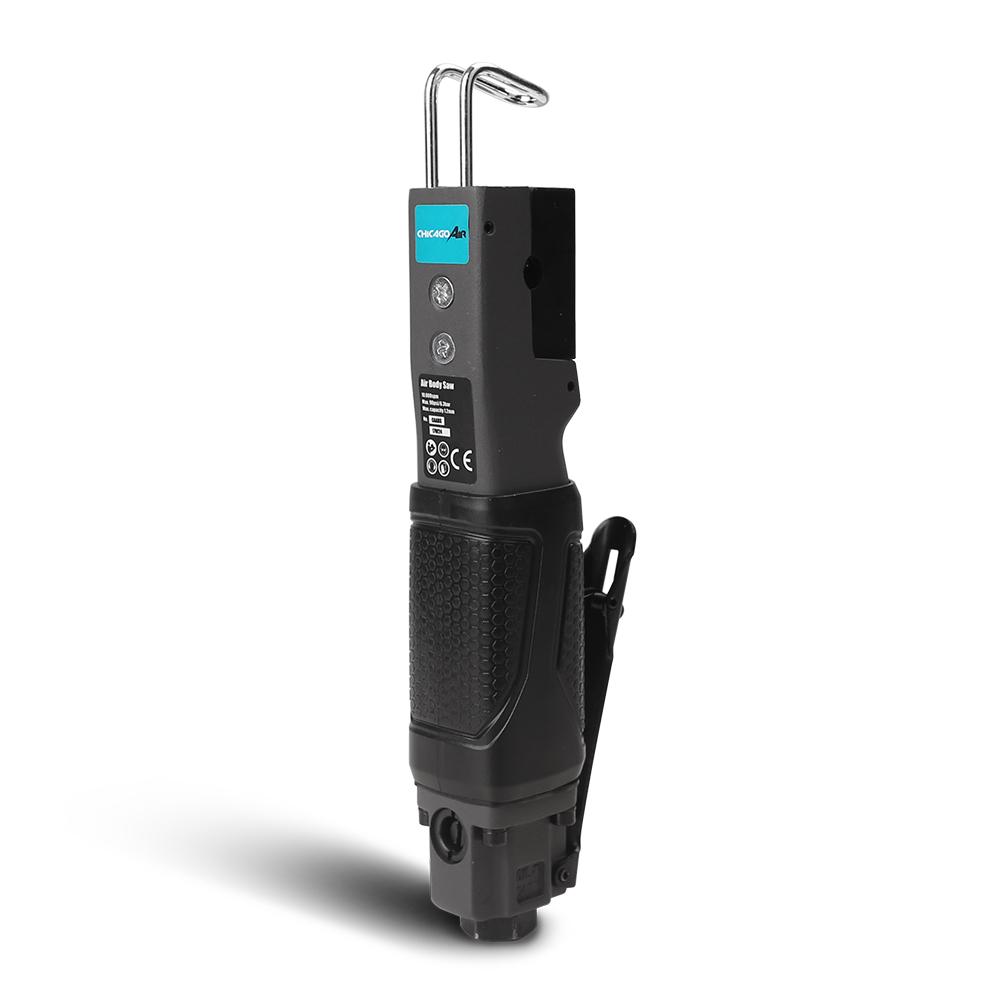

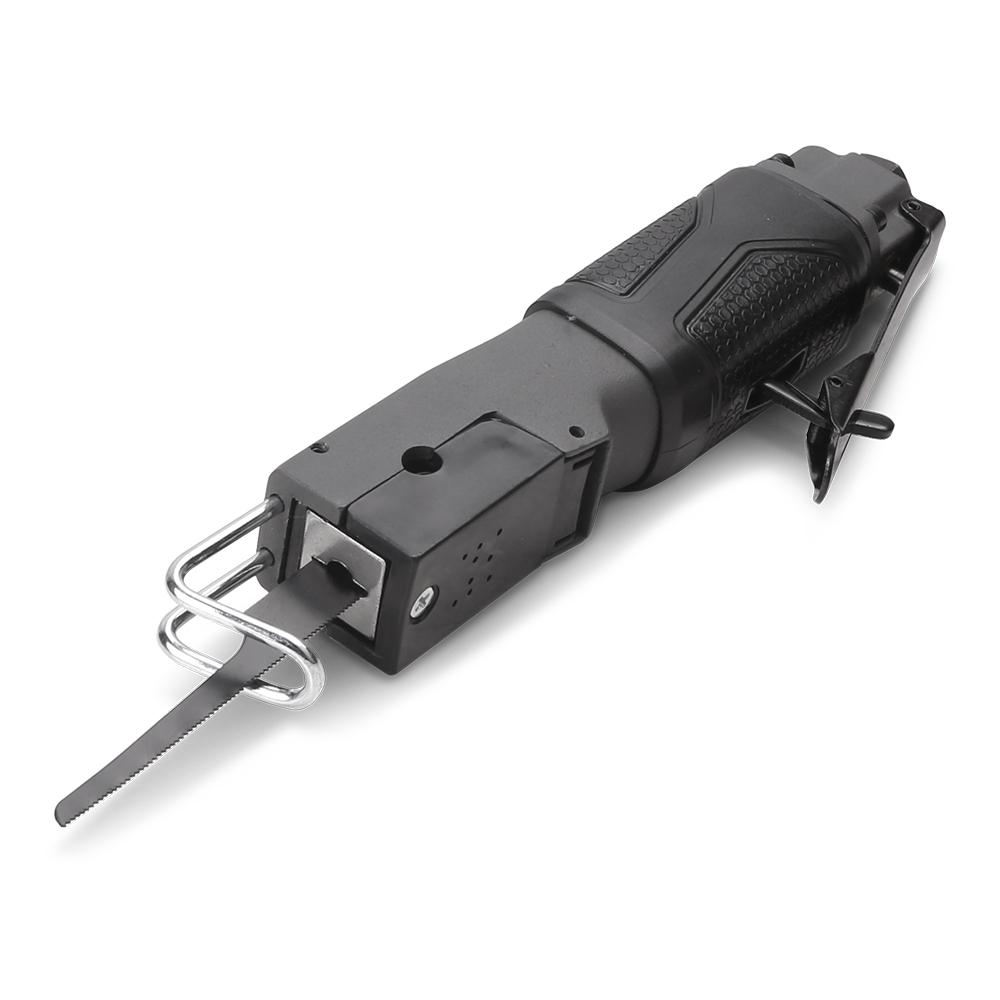

Chicago Air CAABS Air Body Saw

Chicago Air CAABS Air Body Saw

The Chicago Air Body Saw is the perfect addition to any workshop with an air compressor. As well as being lightweight the unit's compact size allows the user to work in confined spaces, great for autobody shops, muffler/exhaust work and sunroof installations. It's designed to work on most home and workshop compressors.

Features:

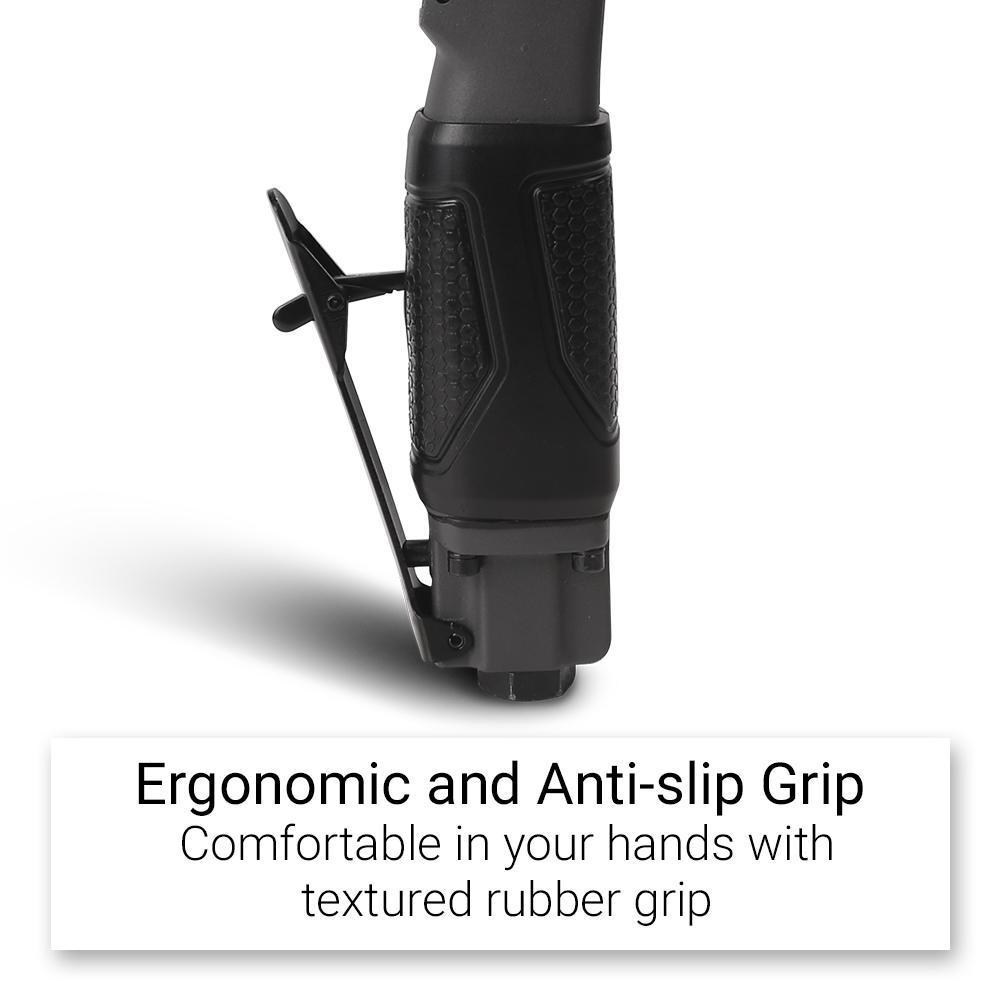

• Compact and ergonomic design with rubber grip

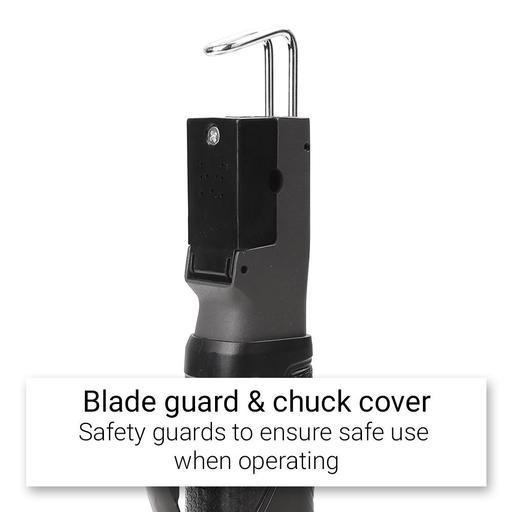

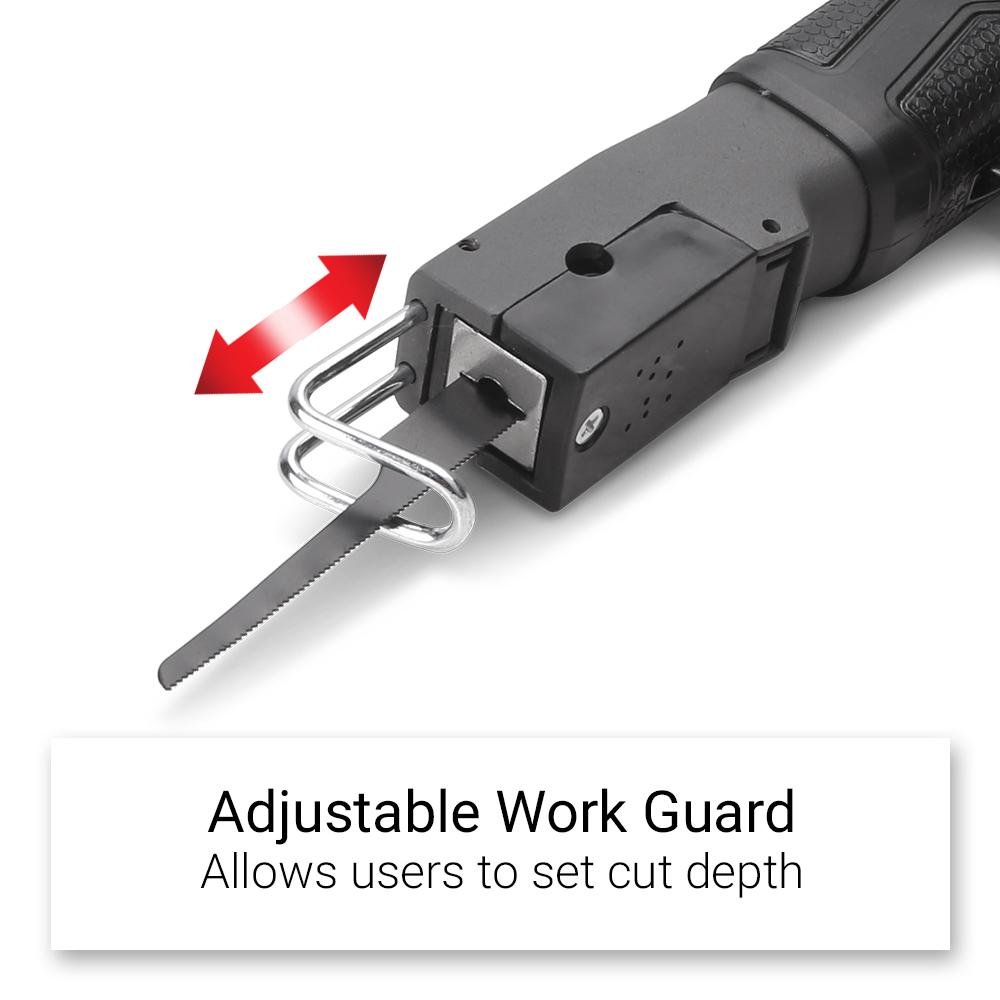

• Adjustable work guard to set up cut depth

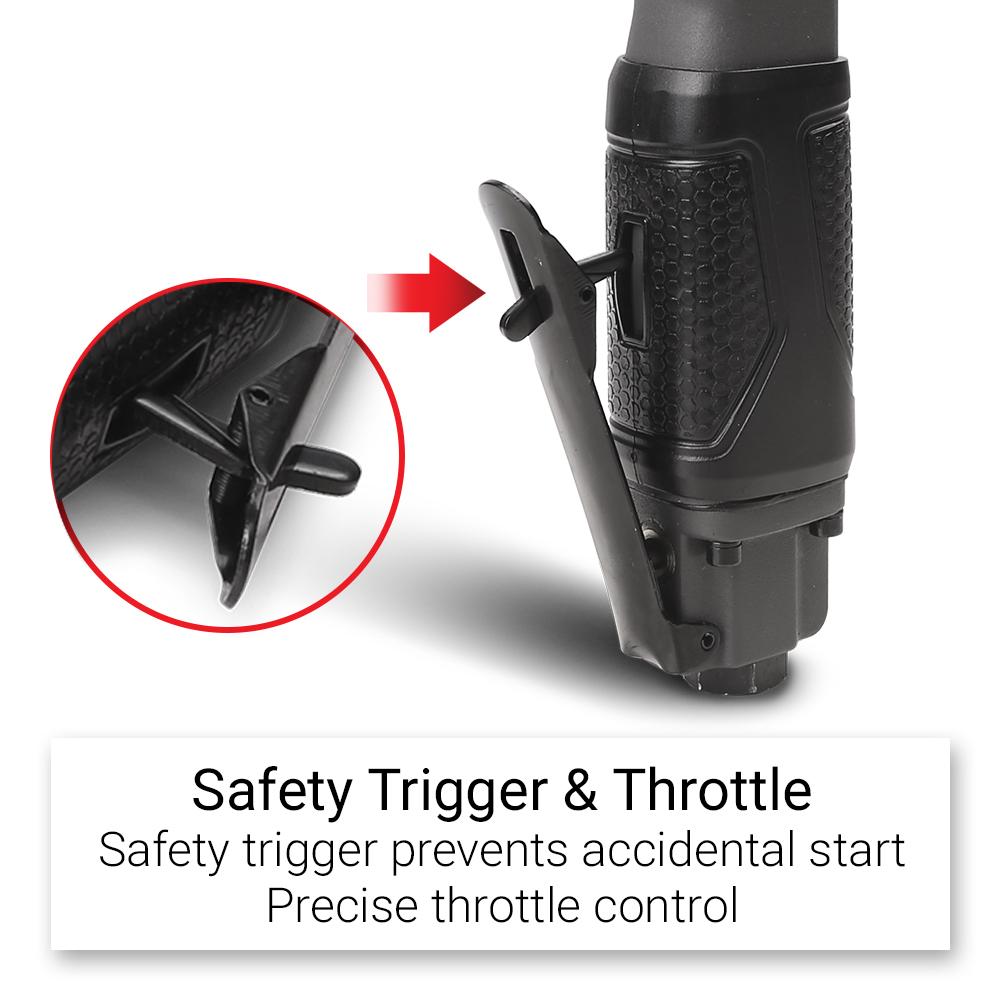

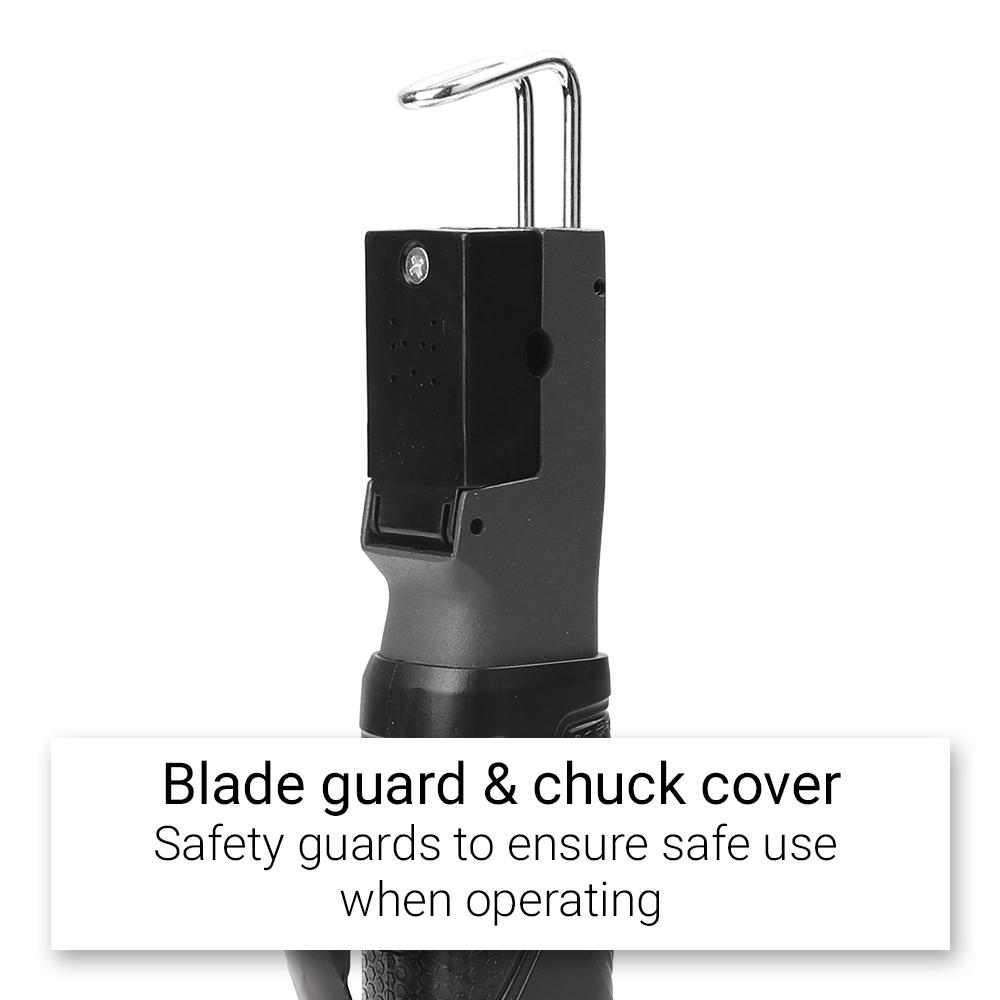

• Safety trigger prevents accidental start
• Performs straight scroll cuts on mild steel (1.2mm max)

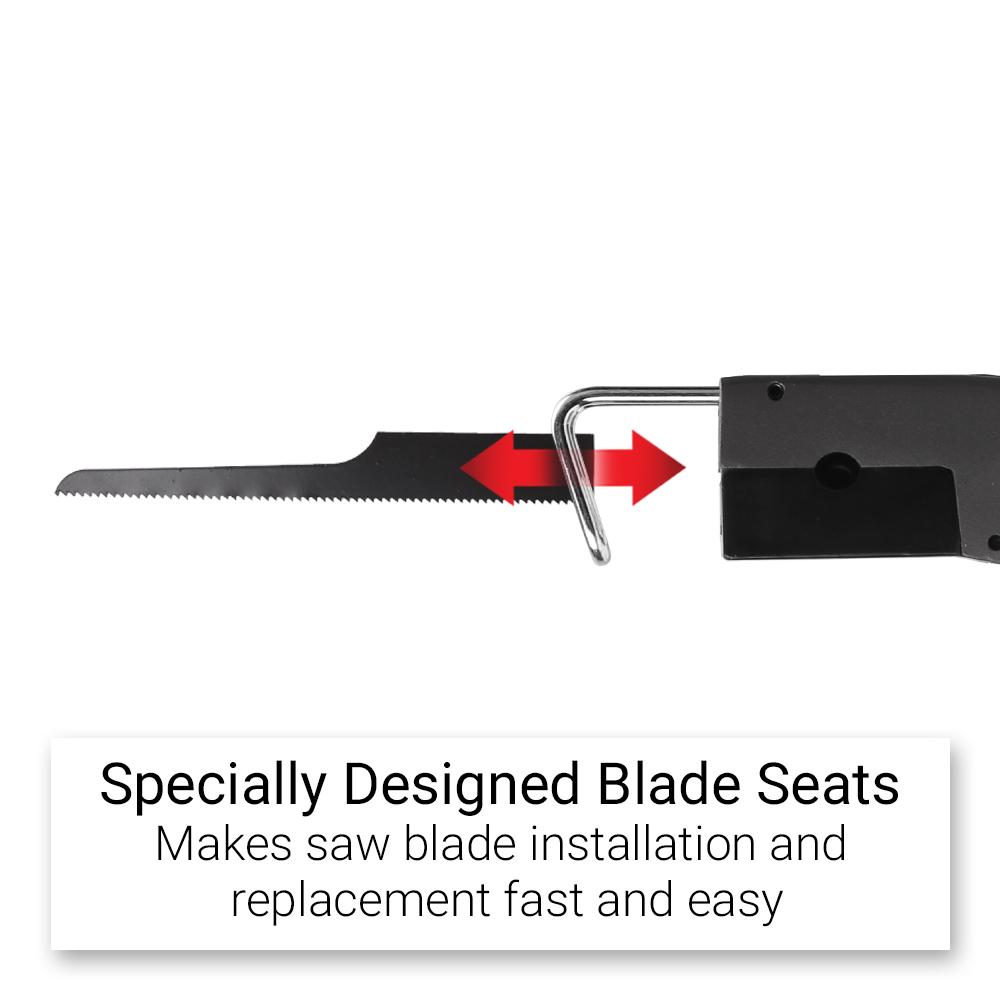

• Specially designed blade seats makes the saw blade installation and replacement fast and easy
• Front exhaust location
• Excellent for autobody shops, muffler/exhaust work and sunroof installations
• Works on most home and workshop compressors



Specifications:

• Max. air pressure: 90PSI
• Air inlet: 1/4" - 18 NPT
• Max. speed: 9,000 SPM
• Average air consumption: 4 CFM @ 90 PSI
• Length of stroke: 3/8"
• Steel cutting capacity: Up to 16 Gauge

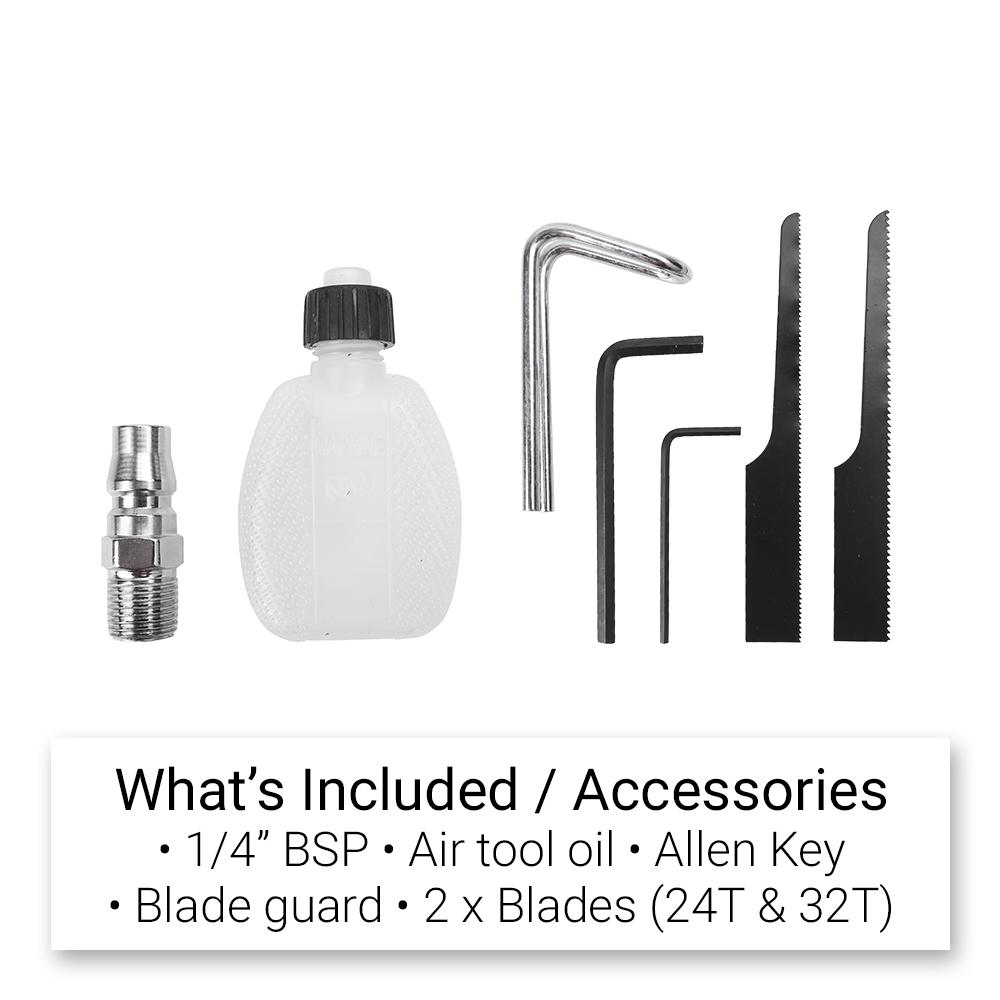

• Blades: Coarse blade 24T, Fine blade 32T
• Dimensions (L x H): 235mm x 70mm
• Weight: 0.68kg



Warranty:

• 2 Year Limited Warranty Covered By Chicago Air
