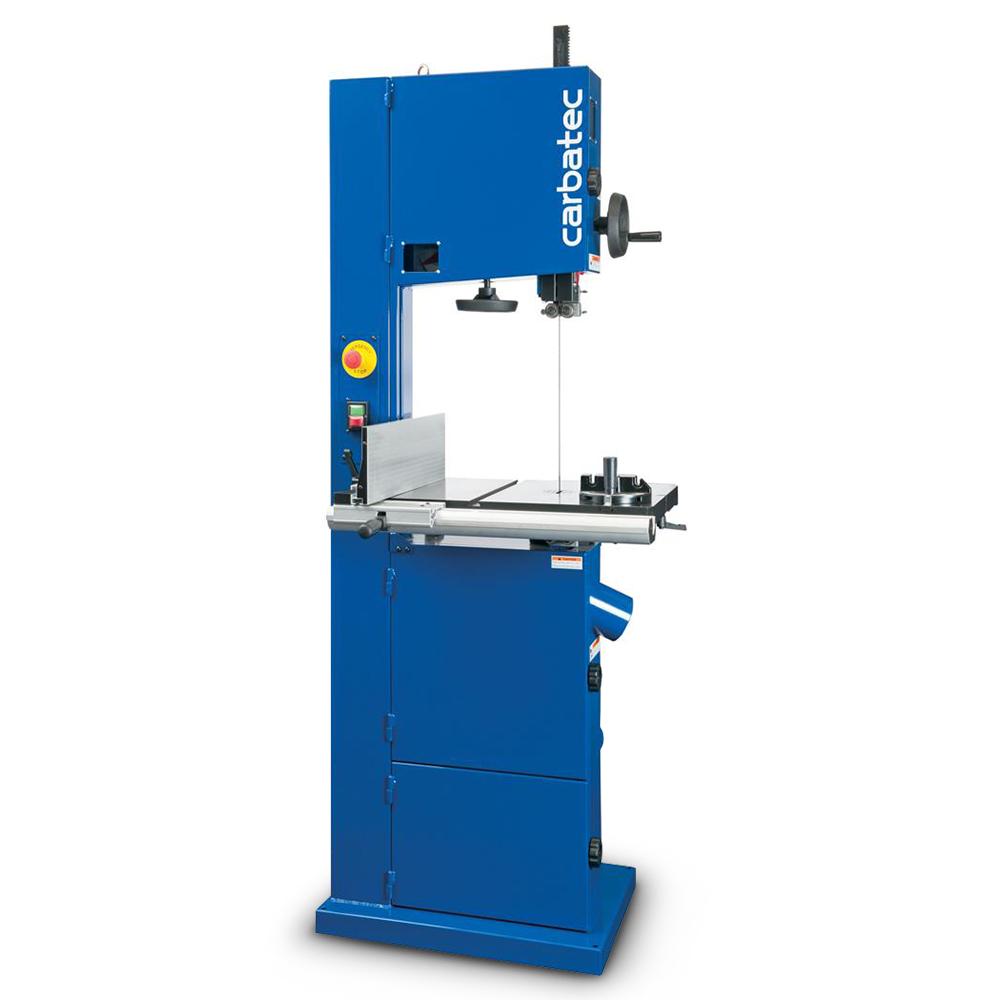

Carbatec BS-X3453C 2200W 345mm (14") Heavy Duty - High Capacity 3HP Band Saw

Carbatec BS-X3453C 2200W 345mm (14") Heavy Duty - High Capacity 3HP Band Saw

Whether cutting turning blanks, children's toys, slicing veneers or anything in between, Carbatec's new 14" High Capacity bandsaw has the features and power to do it. 360mm cutting capacity with a 14" bandsaw, the "high capacity" provides one of the highest cutting depths on the market, and 3HP motor, the workhorse is here.

It has been designed from the bottom up from the beefy 3HP motor, the large table adjustment handles which are conveniently positioned so not to knock is pinch fingers or hands when making table changes.

There are two 100mm dust ports located for efficient dust extraction, and have grills fitted to prevent accidental injury, couple this with a lower compartment for tool and blade storage. Two viewing windows make blade tracking and tensioning possible while the machine is running, the door micro switching prevents the motor from being switched on while the doors are opened, so the windows allow adjustments not previously possible.

The blade guides are double roller bearings providing maximum support to the blade, with the rear thrust bearing featuring a slot, further offering stability for the blade. These blade guides have tool free adjustment.

So whether placed into a workshop environment where it will be used all day every day by a variety of staff, or the backyard shed and someone who will use it on weekends, this bandsaw may be small in size, but will surprise with what it can do.

Features:

• Powerful 3HP motor
• Automatic electronic braking system to stop the blade quickly
• Micro switched doors prevent starting with doors open
• Solid cast iron wheels for performance
• Extra high cutting capacity - 360mm
• Double Ball Bearing Guide with Grooved Thrust Bearing
• Twin 100mm Dust Ports
• Includes Blade: 3/8" x 6TPI (10mm x 6TPI)

Specifications:

• Motor: 2200W (3.0HP) Induction, 15A plug
• Switch Type: Magnetic NVR
• Blade Guard: Rack & Pinion Adjust
• Blade Guides: Double Roller Bearing - Tool Free Adjustment
• Blade Length: 3080mm
• Blade Release: Quick Release Lever
• Depth of Cut: 360mm
• Dust Port: 2 x 100mm (4")
• Minimum Blade Width: 3.2mm (1/8")
• Maximum Blade Width: 19mm (3/4")
• Maximum Rip Capacity: 345mm
• Table Height: 940mm
• Table Size: 555mm x 410mm
• Table Tilt: -10° / +45°
• Wheel Type: Cast Iron
• Brake System: Automatic Electronic
• Fence Style: High/Low Lever Locking rip
• Dimensions (L x W x H): 740mm x 850mm x 1920mm
• Weight: 149kg

Warranty:

• 3 Year Warranty Covered By Carbatec
