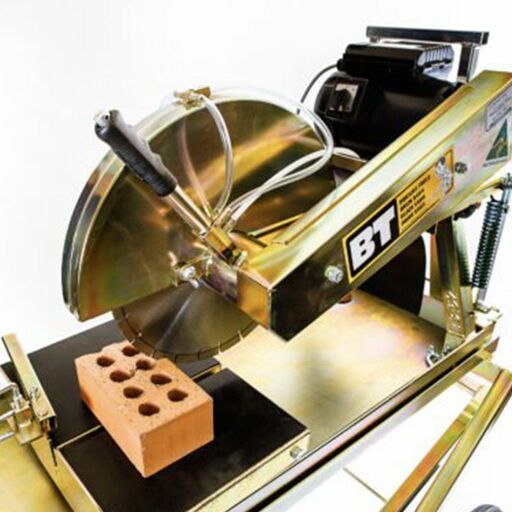

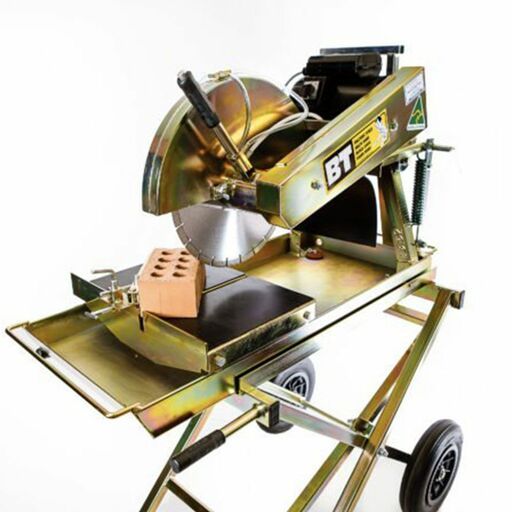

B.T. Engineering 10500 14″/16″ Electric Brick Saw

B.T. Engineering 10500 14″/16″ Electric Brick Saw

• Blade is not Included

• Engineered optimal dust suppression, with our custom-designed 3-way independent water button. On/Off, hands-free or constant flow water modes.
• Fitted rubber splash guard reduces water spray and slurry build up
• Customed designed & durable carriage tray with removable mitre guide for precise cuts of any length or shape.
• Lightweight detachable base and stand with puncture proof tyres, ensures easy manoeuvrability onsite and convenient transport.
• Updated blade guard to fit both 14” & 16” blades. Hinged mechanism for continued user protection, effective water disbursement and easy blade changeover.
• 3 cutting options using a fixed position, pull down handle or foot pedal.
• Zinc electroplating ensures the BT Brick Saw repels dust and corrosion for many years of operation.
• Added mounts for belt driven water circulation pumps.
• Plus, a wide range of parts to keep your saw running.

Specifications:

• 1800 watt electric Fasco motor
• Voltage: 240 (50hz)
• Current draw (Amps):
  • Max (Start Up): 55.57
  • Minimum: 7.97
  • Normal: 8.86
• RPMs 2230
• Blade diameter:
  • Minimum: 14″ (355mm)
  • Maximum: 16″ (406mm)
• Blade bore diameter: 25.4mm / 1″
• Depth of cut: 125mm (14″) to 145mm (16″)
• Length of cut: 500mm
• Clearance up to 200mm
• Carriage Dimensions (L x W): 310mm x 440mm

• Weight: 90kg

• Dimensions (L x W x H): 1200 mm x 680 mm x 800 mm

Warranty:

• 12 Month Warranty Covered By B.T. Engineering
