The Bosch GTC 12V-450-13 Professional Thermal Imaging Camera is a compact and robust diagnostic tool designed for fast and efficient visualisation of temperature differences. Featuring a 256 x 192 pixel infrared sensor with 49,152 measuring points, it provides clear thermal images across a wide -20°C to +450°C measurement range. Designed for professional HVAC, electrical, automotive, industrial and renovation applications, the GTC 12V-450-13 features a wide 56° x 42° field of view to help quickly locate temperature variations and potential problem areas. A 2.8" display provides a clear view of thermal images, while the integrated visual camera, laser and worklight make inspection and documentation easier in a variety of working environments.

The camera starts up in approximately 3 seconds and can store up to 500 images internally, with USB-C connectivity allowing convenient image transfer. Its durable IP54-rated construction and 2m drop resistance make it suitable for demanding jobsite conditions. Dual power capability also allows operation using a Bosch Professional 12V battery or AA batteries with the supplied adapter.

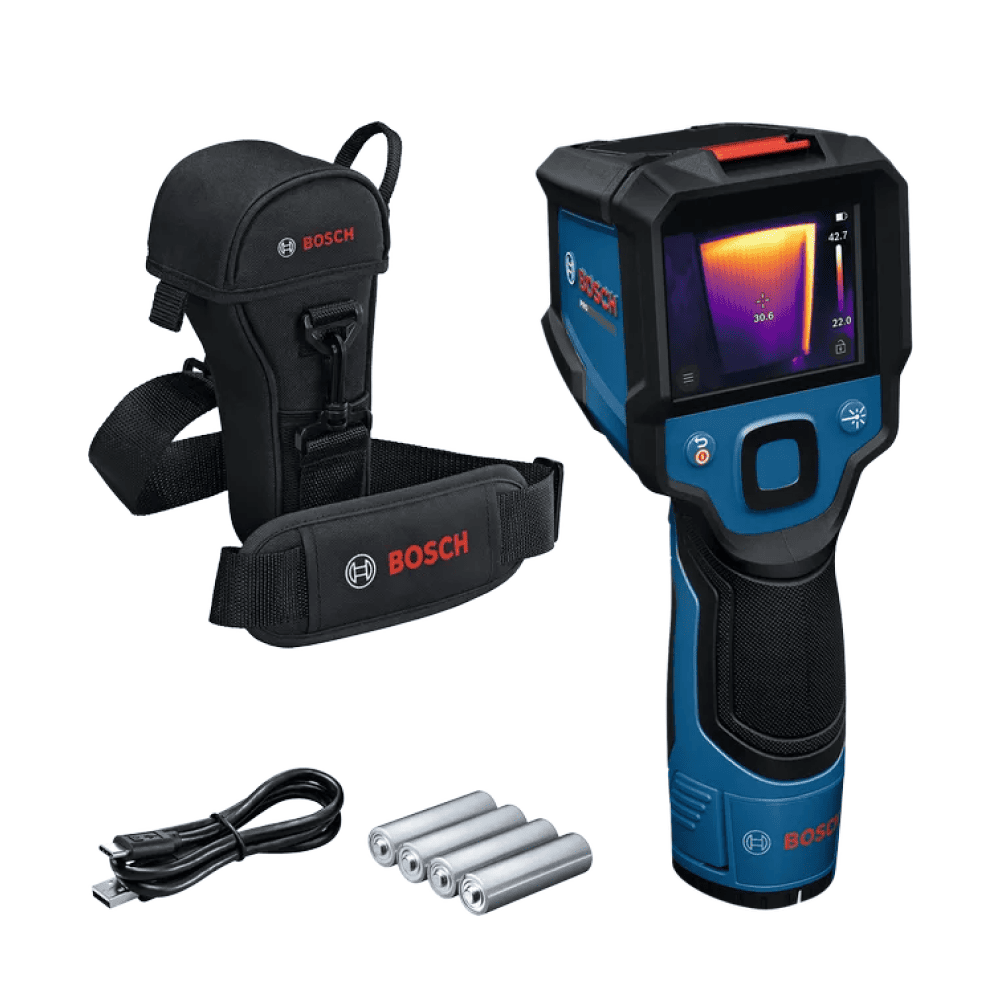

Includes:

• 1 x AA1 Alkaline Battery Adapter
• 4 x 1.5V LR6 AA Batteries
• 1 x Tool Bag
• 1 x USB-C Cable

Features:

• 256 x 192 pixel infrared sensor provides detailed thermal imaging
• 49,152 individual measuring points for effective temperature analysis
• Wide measurement range from -20°C to +450°C
• ±2.0°C infrared measuring accuracy
• 0.1°C temperature resolution
• ≤50 mK thermal sensitivity (NETD)
• Wide 56° x 42° field of view for efficient inspection of larger areas
• 2.8" display provides a clear view of thermal images
• Integrated visual camera supports transparency and picture-in-picture functionality
• Integrated laser assists with identifying the measuring point
• Built-in worklight improves visibility in dark working areas
• Fast approximately 3-second startup for quick inspections
• Internal memory stores up to 500 images
• USB-C connectivity for convenient image transfer
• Dual power source supports Bosch Professional 12V batteries or AA batteries with adapter
• Up to 8 hours runtime with a Bosch GBA 12V battery
• Up to 4 hours runtime using 4 x AA batteries
• IP54 dust and splash protection for demanding jobsite environments
• Drop resistant from heights of up to 2m
• Compact design for convenient storage and transport
• Suitable for HVAC, electrical, industrial, automotive and renovation applications

Specifications:

• Model: GTC 12V-450-13
• Order Number: 06010839K0
• Battery Voltage: 12V
• Measurement Range: -20°C to +450°C
• IR Measuring Accuracy: ±2.0°C
• Resolution: 0.1°C
• IR Sensor Resolution: 256 x 192 pixels
• Measuring Points: 49,152
• Thermal Sensitivity (NETD): ≤50 mK
• Field of View (FOV): 56° x 42°
• Display Size: 2.8"
• Thermal Image Refresh Rate: 9 Hz
• Minimum Focus Distance: 0.5m
• Laser Diode: 645–660nm
• Internal Image Capacity: 500 images
• Image File Format: JPG
• Data Transfer: USB-C
• Dust & Splash Protection: IP54
• Shock Protection: Up to 2m
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +50°C
• Power Supply: Bosch Professional 12V Li-ion battery or 4 x AA batteries with adapter
• Runtime with AA Batteries: Up to 4 hours
• Runtime with GBA 12V Battery: Up to 8 hours
• Tool Dimensions (L x W x H): 79 x 89 x 209mm

Warranty:

• 6 Years Standard Warranty Covered By Bosch With Online Registration
