Bosch GPH 18V-60 (0.601.9P0.140) 18V Li-ion Professional Cordless Hydraulic Crimping Tool - Skin Only

Bosch GPH 18V-60 (0.601.9P0.140) 18V Li-ion Professional Cordless Hydraulic Crimping Tool - Skin Only

If you are looking to crimp cable lugs onto copper or aluminium cables, the GPH 18V-60 crimping tool is an ideal choice with its consistent pressure and instant feedback. The tool provides reliable and constant 60kN output force thanks to an electronic pressure sensor that monitors pressure levels. The status LED conveniently indicates reached target pressures, tool status, and maintenance. Additionally, with the manual pressure release function, you can always retract. Each tool comes with a certificate that guarantees 100% end-of-line quality control.

Includes:

• 1 x XL-BOXX (1 605 438 1JG)

Features:

• Reliable hydraulic crimping with quality control through visual feedback on status LED
• Precise monitoring of pressure through electronic pressure sensor
• Long lifetime with outstanding maintenance interval of 20,000 crimps
• Comfortable to use thanks to ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity

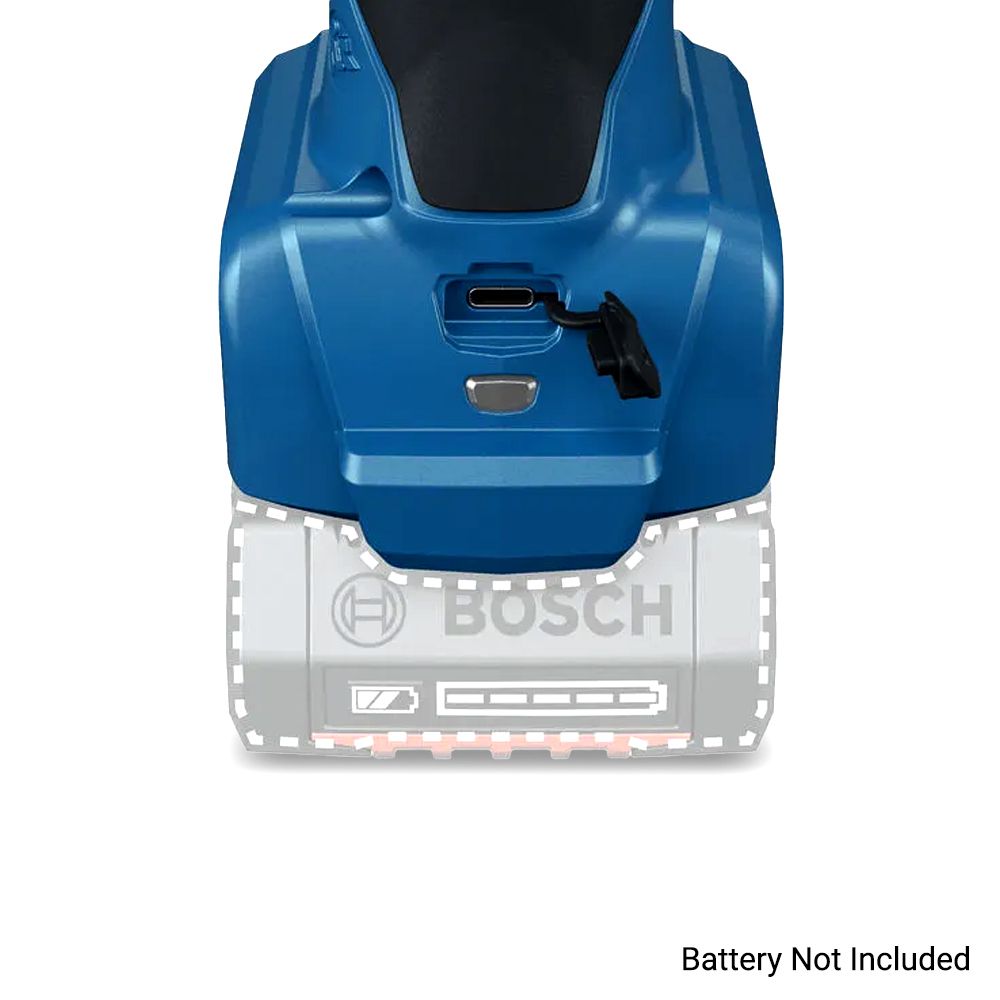

• Convenient overview of tool’s crimping history, important parameters, and maintenance intervals through USB connection and read-out software

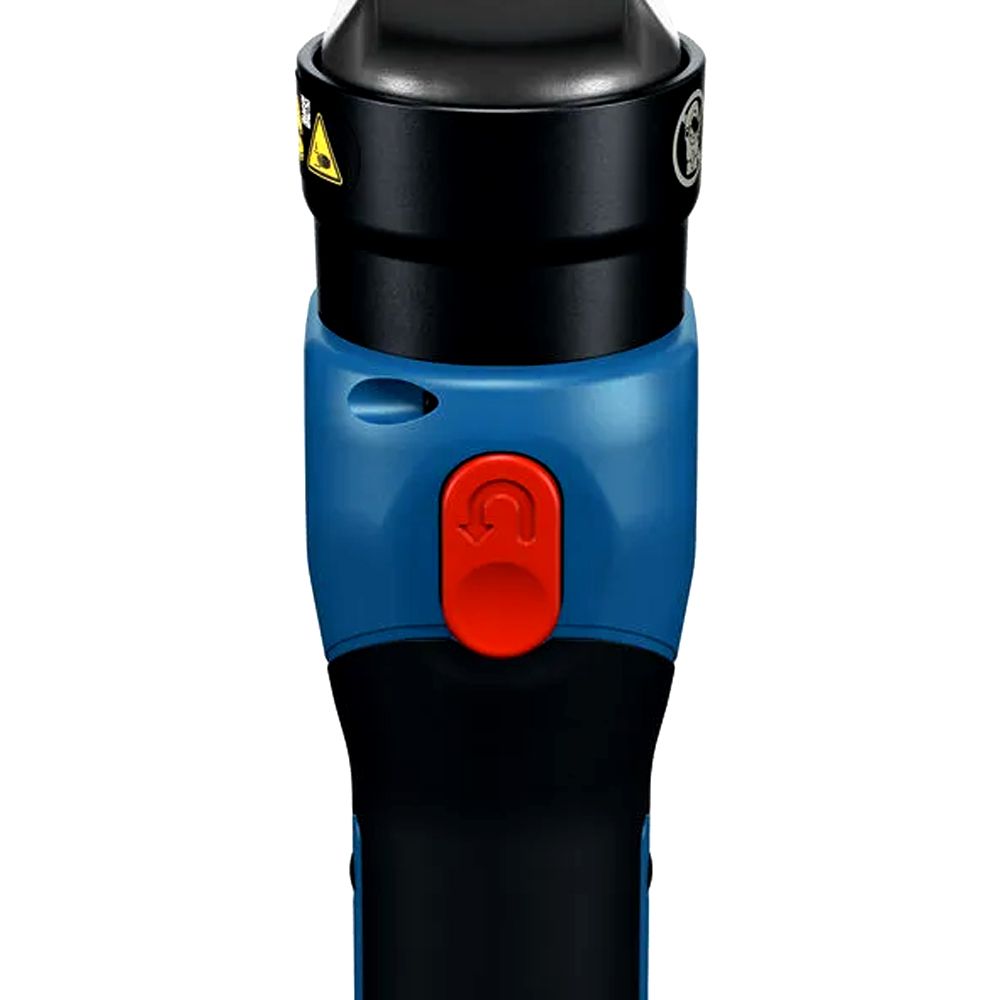

• Manual Pressure release Function for maximum Convenience: Enables user to release pressure manually if needed
• Accessories: Crimping Dies: Designed to crimp cable lugs onto cables for:
  • Cables in the range of 6mm²-300mm² for copper
  • Cables in the range of 10mm²-300mm² for aluminum
• Monitoring Functions:
  • Avoidance of unsuccessful crimping cycles due to continuous monitoring of the remaining battery charge
  • Motor shutdown and automatic re-opening of jaws after completed crimping process
  • Automatic pressure limitation and monitoring
• Strong performance & long lifetime:
  • Reliable pressure of 60kN (6tons)
  • Maintenance cycle every 20.000 crimping processes

Applications:

• The GPH 18V-60 is suitable for crimping cable lugs onto copper and aluminum cables up to 300 mm². The USB connection and read-out software (free and available to download below) offer an overview of the tool’s crimp history, error messages and maintenance needs.

Specifications:

• Battery Voltage: 18V
• Crimping force max: 60 kN
• Crimping range max: 300mm²
• Crimping range min: 6mm²
• Head rotation: 340°
• Stroke length max: 17mm
• Automatic retraction: Yes
• Connecting material Cu and Al: Yes
• Maintenance interval: 20.000 cycles
• Manual pressure release: Yes
• Manual retraction stop: Yes
• USB connector: Yes
• Read-Out Functionality: Yes
• Work light: Yes
• Automatic pressure limitation and monitoring: Yes
• USB mode: USB 2.0
• Crimping time: 2 s to 5 s (depending on cable cross-section)
• Dimensions (L x W x H): 97.4mm x 77.2mm x 357mm
• Weight: 3kg

Warranty:

• 2 Year Standard Warranty Covered by Bosch Australia
• 6 Years Standard Warranty Covered By Bosch Australia With Online Registration
