Bosch GKH 18V-50 (0.601.9P0.040) 18V Li-ion Cordless Hydraulic Cable Cutter - Skin Only

Bosch GKH 18V-50 (0.601.9P0.040) 18V Li-ion Cordless Hydraulic Cable Cutter - Skin Only

When you’re cutting copper and aluminum cables, you want a robust tool that delivers clean, high-quality cuts. Here’s where the GKH 18V-50 comes in. With this tool, wearying cable cutting is a thing of the past thanks to its special blades and comprehensive pressure monitoring functions. The status LED function provides feedback on tool status and maintenance, ensuring that you’re in control. And with the manual pressure release function you can always retract. The blades are made of reinforced steel for clean, precise cuts and reduced wear. Each tool comes with a certificate that guarantees 100% end-of-line quality control.

Includes:

• 1 x XL-BOXX (1 605 438 1JG)

Features:

• Strong, reliable performance with clean cuts thanks to special blades and electronic pressure monitoring
• Automatic Intelligent Cutting Detection:
  • Ensures most efficient cutting
  • Automatic retraction after completed cut saves time and protects tool & accessories
• Long lifetime with outstanding maintenance intervals needed only after 20,000 cuts
• Efficient cutting thanks to intelligent cutting detection which opens jaws automatically after each cut
• Comfortable to use thanks to ergonomic design, 360-degree rotatable head, and optimized center-of-gravity
• Convenient overview of tool’s cutting history, important parameters, and maintenance intervals, through USB connection and read-out software
• Monitoring Functions:
  • Avoidance of unsuccessful cutting cycles due to continuous monitoring of the remaining battery charge
  • Motor shutdown and automatic re-opening of jaws after completed cutting process
  • Automatic pressure limitation and monitoring
• Status LED gives direct Feedback regarding: Tool failures & Required maintenance
• USB Connection and read-out Software:
  • Enables data-read-out of all cutting processes and reached pressures, error-messages and maintenance monitoring
  • Documentation of cutting processes via report functionality

Applications:

• The GKH 18V-50 cuts fine and multi-stranded copper and aluminium cables of up to ∅40 mm. A USB connection and read-out software (free and available to download below) make it easy to view cutting history, error messages and maintenance needs.

Specifications:

• Battery Voltage: 18V
• The most important data
• Cutting force max: 50 kN
• Head rotation: 360 °
• Max. capacity cable diameter: 40 mm
• Automatic retraction: Yes
• Cu- and Al-cables (multi and fine stranded): Yes
• Intelligent cutting detection: Yes
• Maintenance interval: 20.000 cycles

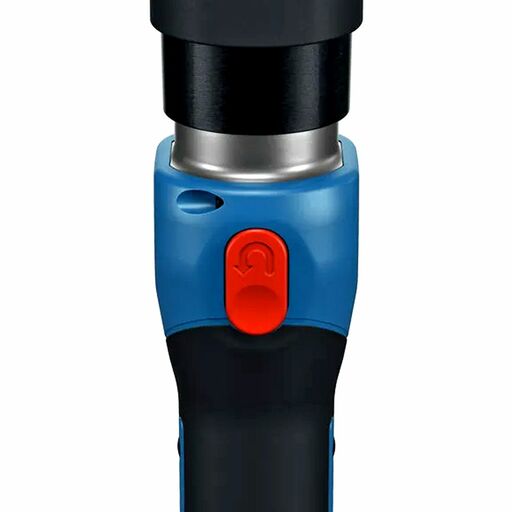

• Manual pressure release: Yes
• Manual retraction stop: Yes

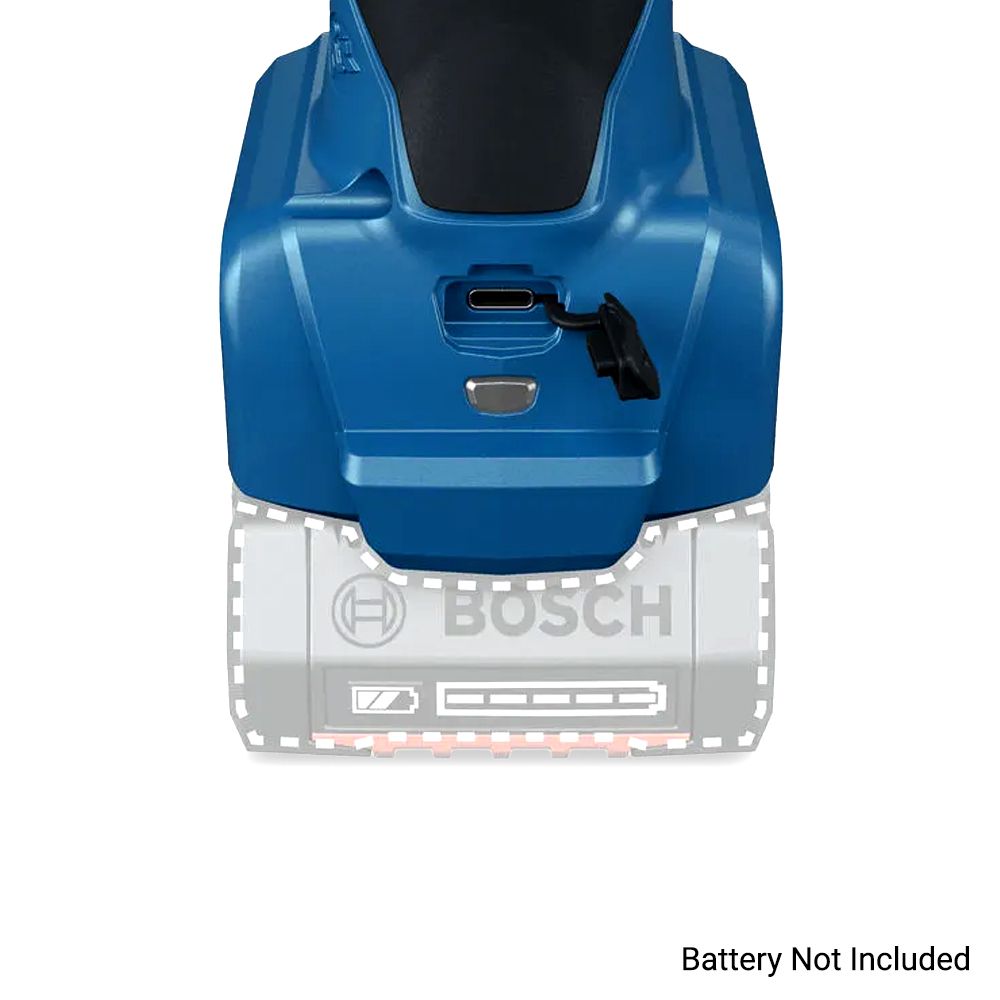

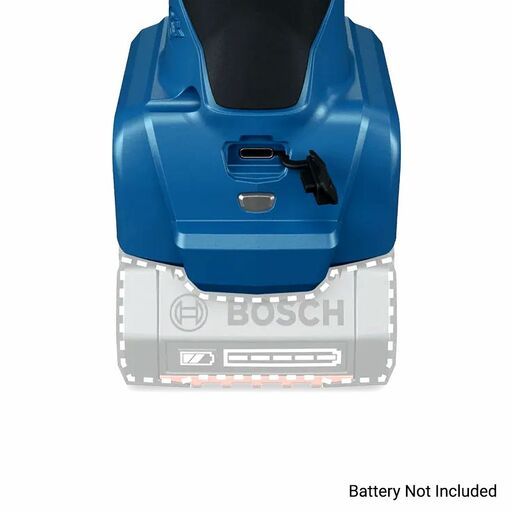

• USB connector: Yes
• Steel Cable (ACSR): No
• Read-Out Functionality: Yes
• Work light: Yes
• Automatic pressure limitation and monitoring: Yes
• USB mode: USB 2.0
• Cutting time: 2 s to 5 s (depending on cable cross-section)
• Dimensions (L x W x H): 97.4mm x 77.2mm x 427.5mm
• Weight: 2.7kg

Warranty:

• 2 Year Standard Warranty Covered by Bosch Australia
• 6 Years Standard Warranty Covered By Bosch Australia With Online Registration
