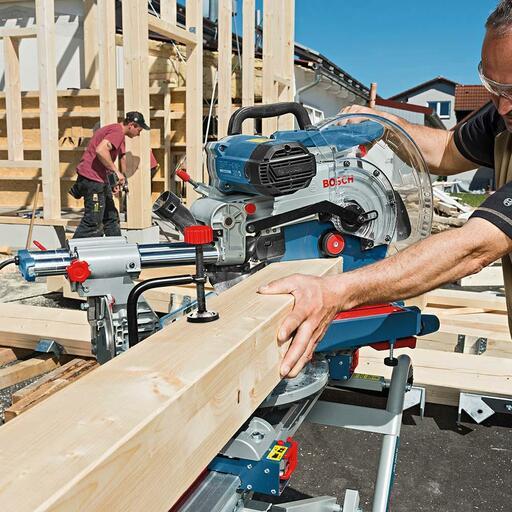

Bosch GCM 12 SDE (0.601.B23.140) 1800W 305mm (12") Slide Mitre Saw

Bosch GCM 12 SDE (0.601.B23.140) 1800W 305mm (12") Slide Mitre Saw

Make light work of large workpieces with the GCM 12 SDE Professional. Its extremely high cutting capacity of 120 mm vertical and 400 mm horizontal enables cuts in very large and bulky objects. The mitre saw´s variable cutting speed makes the GCM 12 SDE Professional highly versatile for use in various materials. For highest convenience, it ensures quick and tool-less saw blade changes.

Features:

• Extremely high cutting capacity 120 mm vertical and 400 mm horizontal enables cuts in very large workpieces
• Variable cutting speed ensures high versatility in various materials
• Fast, tool-free saw blade change ensures easy and convenient handling
• Dust extraction directly into the integral dust bag on the tool and/or using an all purpose dust extractor
• Efficient work with higher user protection
• Soft start and the load and torque of the motor are temporarily reduced during start-up
• Best work result with speed pre-selection for applications requiring material specific speed
• Compatible with the Bosch Click & Clean dust extraction system as well as various stands

Suitable For:

• Cross, Mitre, Bevel and Groove Cuts
• Wood
• Timber Beams
• Wood Composites
• Board Materials
• Floor Panels
• Aluminium
• Plastic

Specifications:

• Rated Input Power: 1800W
• No-load Speed: 3100 - 4000RPM
• Cutting Capacity:
  • 0º: 85mm x 370mm
  • 0º with Spacer (Max Vertical): 120mm x 200mm
  • 0º with Spacer (Max Horizontal): 70mm x 400mm
  • 45º Mitre: 85mm x 250mm
  • 45º Bevel: 60mm x 360mm
• Mitre Setting: 52ºL/60ºR
• Bevel Setting: 47ºL/47ºR
• Saw Blade Diameter: 305mm
• Saw Blade Bore Diameter: 30mm
• Total Vibration Values (Sawing Wood):
  • Vibration Emission Value Ah: 2.5
  • Uncertainty K: 1.5
• Noise Vibration Information:
  • Sound Pressure Level: 92dB(A)
  • Sound Power Level: 105dB(A)
  • Uncertainty K: 3dB
• Dimensions: 600mm x 860mm x 530mm
• Weight: 28.6kg

Warranty:

• 6 Years Standard Warranty Covered By Bosch Australia With Online Registration
