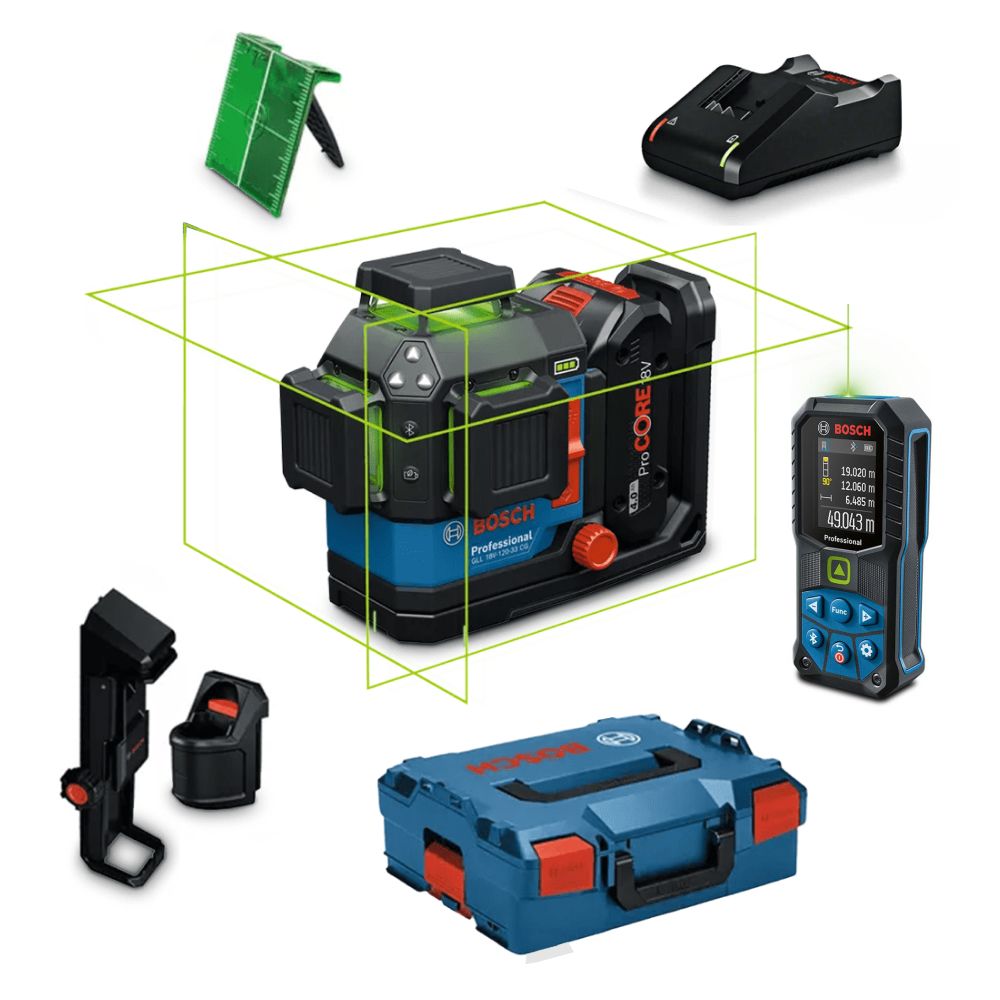

Bosch 0.615.V00.04Y 18V 4.0Ah Li-ion Cordless Professional Green Line Laser & Range Finder Combo Kit

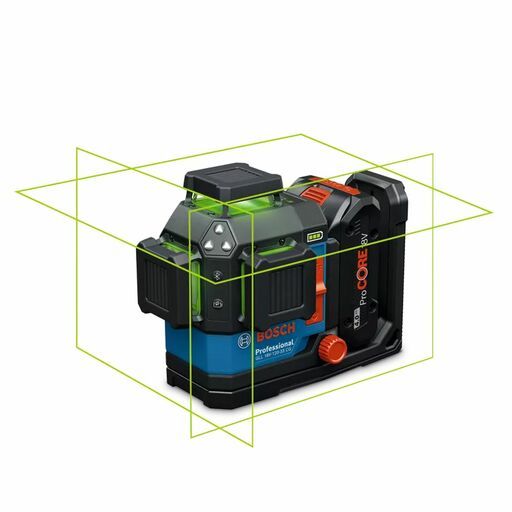

The GLL 18V-120-33 CG Professional provides construction professionals with reliable accuracy in the toughest work conditions. The triple power source concept allows you to switch between 18V and 12V platforms, as well as alkaline C-cells to avoid downtime and stay focused on the job. This robust line laser features rubber-enforced housing and laser windows, as well as an IP65 rating, so you can work without worrying about water, dust, or impact. To make your job easier, the laser features a backlit corner keypad for individually selecting laser lines and an integrated mount with strong magnets for quick and secure mounting. The laser line fine adjustment lets you alter the vertical line without losing the reference point.

• 1 x GLL 18V-120-33 CG Skin
• 1 x DK 20 (Ceiling Clip)
• 1 x BA 18-12 (Battery Adapter)
• 1 x Green Target Plate
• 1 x Procore 18V Charger
• 1 x Laser warning label
• 1 x Manufacturer certificate
• 1 x L-Boxx 136
• 1 x Procore 4Ah Battery

Application:

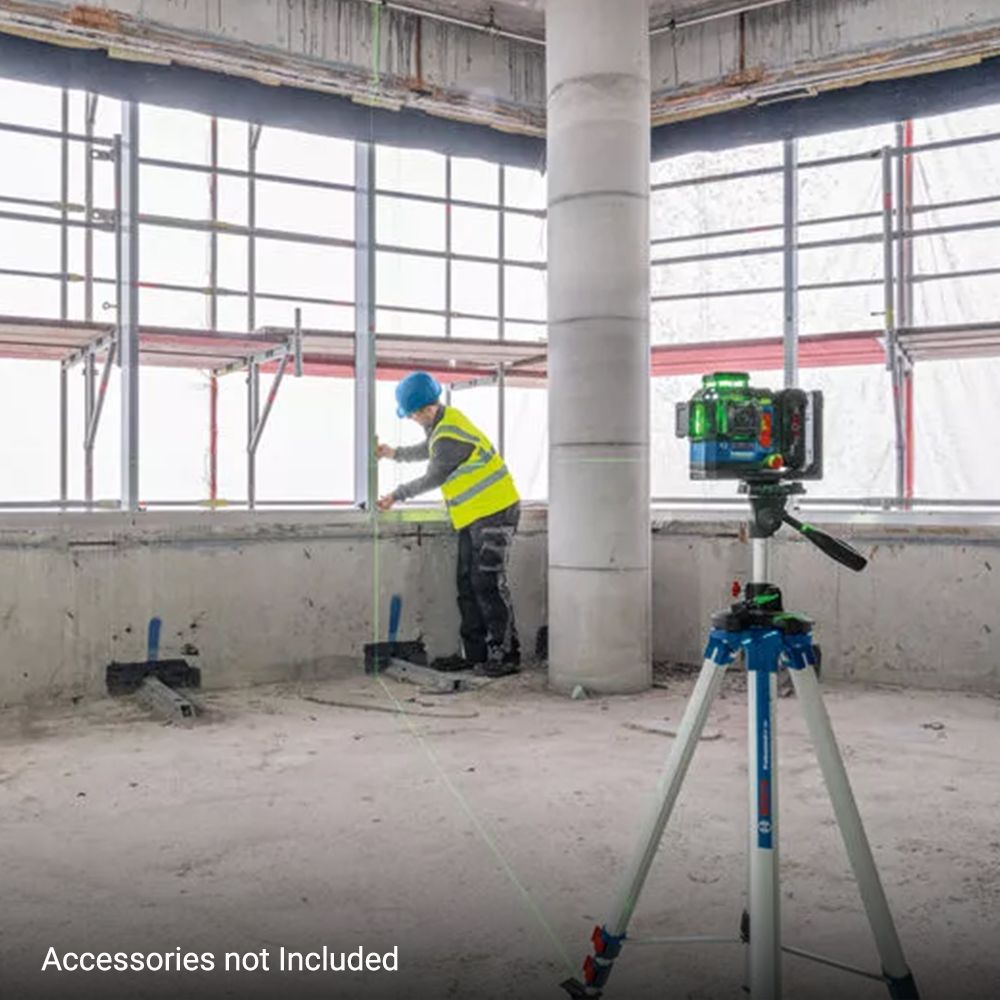

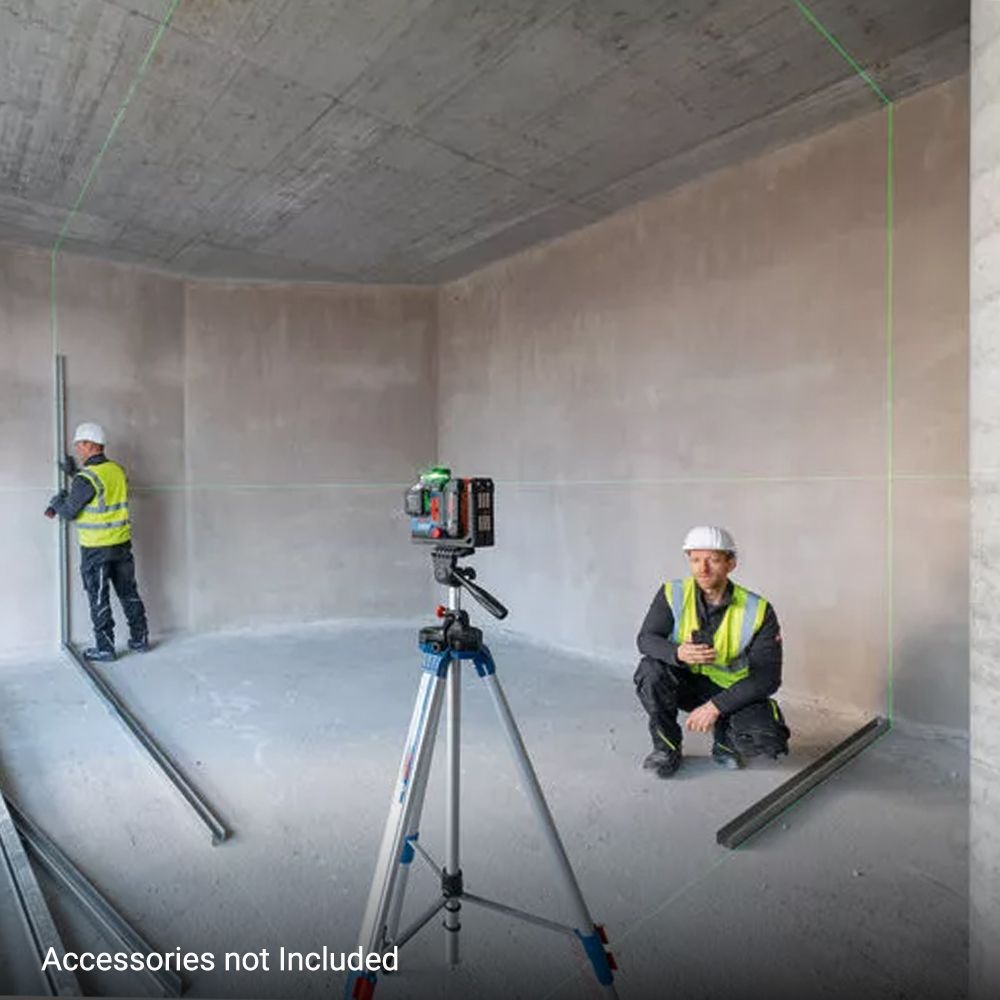

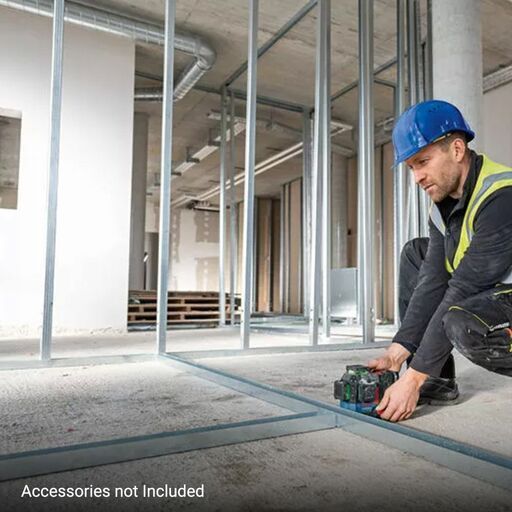

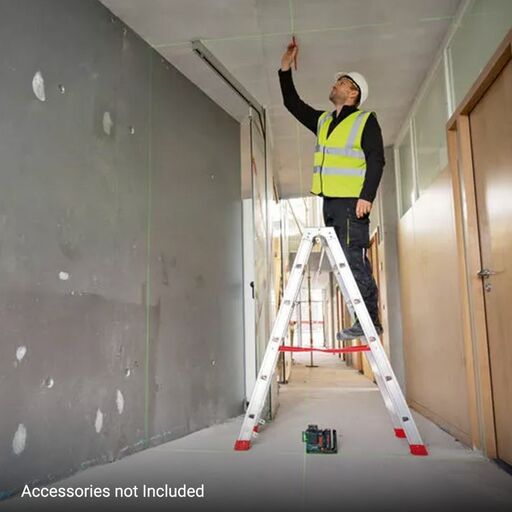

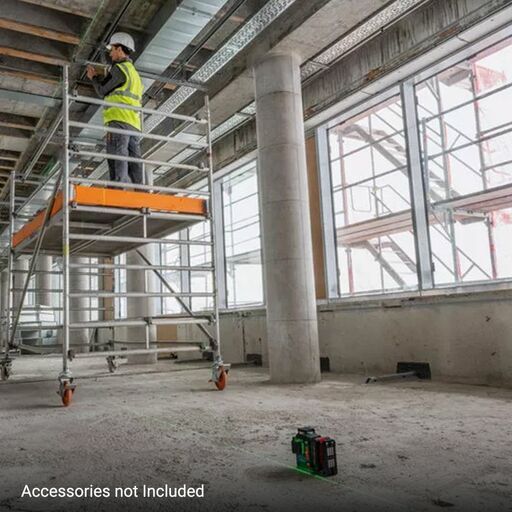

• Alignment of walls and partitions
• Installing and running electrical cable channels across a wall
• Suspending HVAC piping/ventilation and hangers
• Interior alignment of major (wooden) structural elements
• Installation of cabinets and shelves

Features:

• Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime
• Rubber-enforced housing and laser windows, and an IP65 rating for peace of mind on the toughest jobsites
• Secure mounting and precise work are made easy thanks to the integrated mount with strong magnets and pivot fine adjustment

Specifications:

• Battery Voltage: 18.0 V, 12.0 V
• Laser Colour: Green
• Laser Diode: 500 – 540 nm, < 10 mW
• Operating Temperature: -10 – 40 °C
• Storage Temperature: -20 – 70 °C
• Laser Class: 2
• Working Range*: up to 35 m
• Working Range with Receiver*: up to 120 m
• Accuracy*: ± 0.3 mm/mᵃ
• Self-levelling Range: ± 4°
• Levelling Time: 3 s
• Dust and Splash Protection: IP65 (except for the battery or battery adapter)
• Power Supply: 18 V Li-ion battery, 12 V Li-Ion battery, 4 x 1.5 V LR14 (C)
• Operating Time (max.): 20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode
• Tripod Thread: 1/4", 5/8"
• Projection: 3 x 360° line
• Compatible laser receivers: LR 7
• Dimensions (L x W x H): 205 x 103 x 158mm
• Weight, approx**: 1.3 kg
• Weight with 4.0 Ah battery**:1.9 kg
• Weight with Alkaline Batteries**: 1.8 kg

Warranty:

• 6 Years Standard Warranty Covered By Bosch With Online Registration

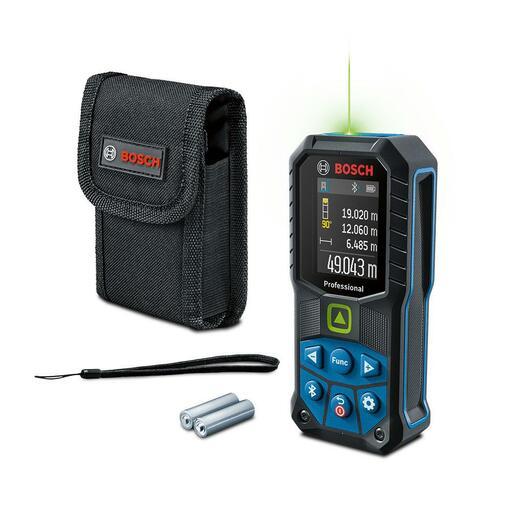

Includes:

• 2 x 1.5 V LR6 Battery (AA)
• 1 x Pouch
• 1 x Manufacturer’s Certificate

Features:

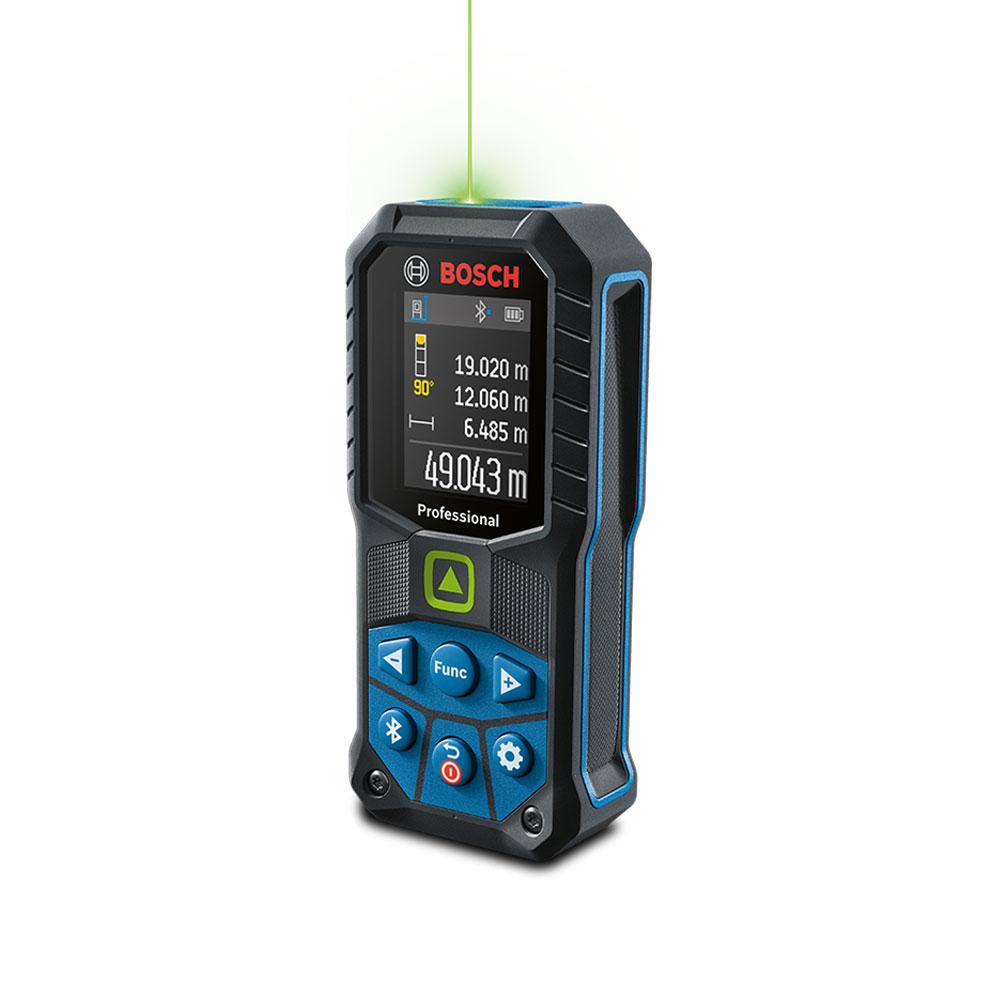

• Green Laser Technology - Excellent visibility for long-distance measurements in bright indoor conditions

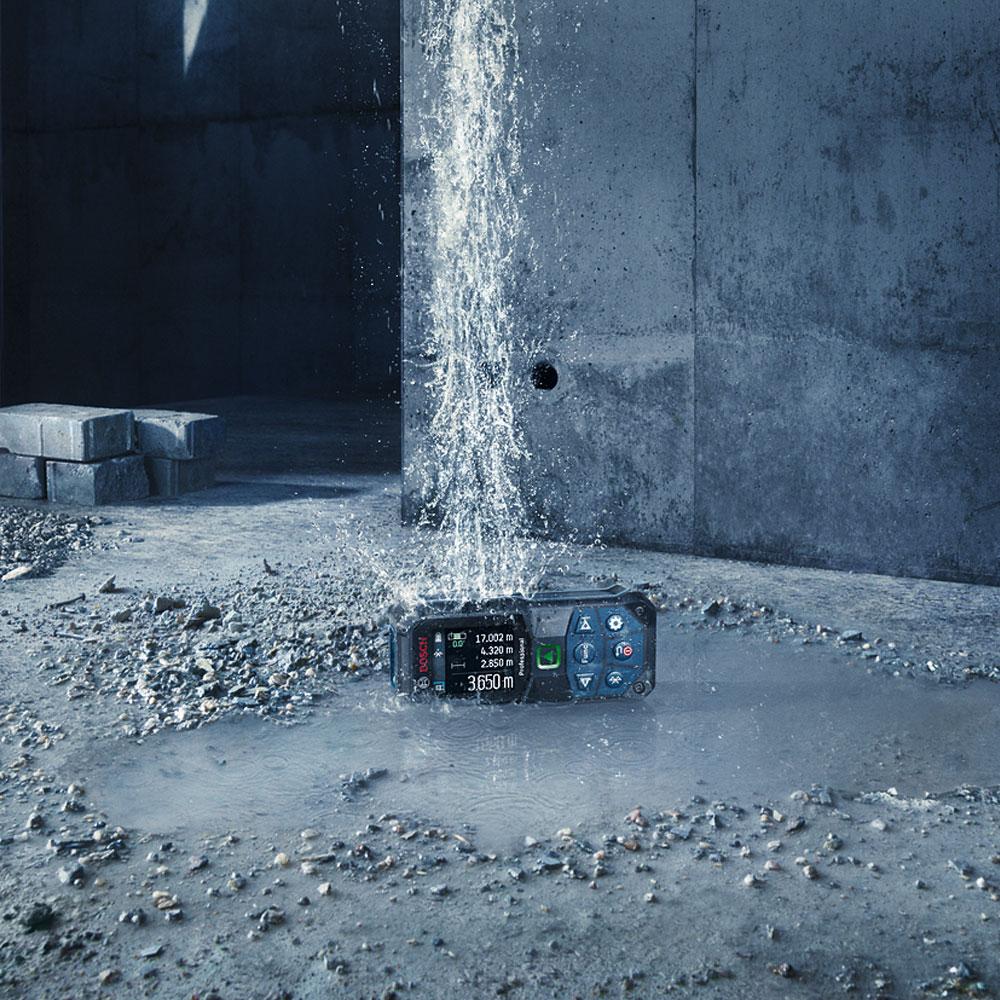

• IP65 Rating - Water and dust protection and shock absorbing rubber casing with 1.5m drop resistance; ideal for tough jobsites
• 360° Tilt Sensor - For easy angle measurement and levelling applications.

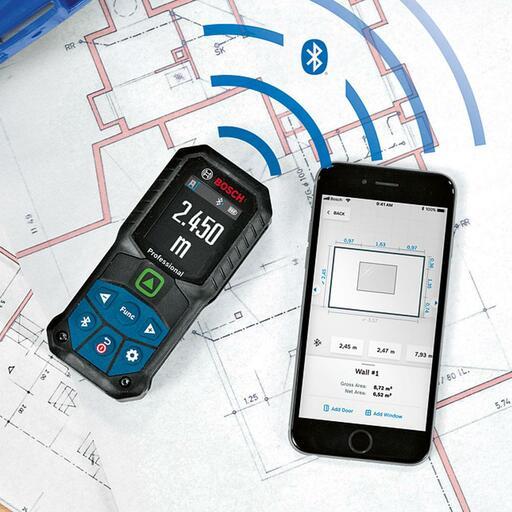

• Quick Documentation and Fast Data Transfer of Measurements for Exporting Projects or Quotes thanks to Bluetooth ® connectivity and the Bosch MeasureOn app.

Specifications:

• Laser Diode: 515 nm, < 1 mW
• Measurement Range: 0.05 – 50.00 m
• Laser Class: 2
• Measurement Accuracy, Typical: ± 1.5 mm* (*plus use-dependent deviation)
• Measurement Range of Incline Measurement: 0 – 360° (4 x 90°)
• Measuring Accuracy (Typical): ± 0.2°* (*plus use-dependent deviation)
• Measurement Time, Typical: < 0.5 s
• Measurement Time, Max: 4
• Power Supply: 2 x 1.5 V LR6 (AA)
• Automatic Deactivation: 5
• Units of Measurement: m/cm, ft/inch
• Memory Capacity (values): 30
• Rating: IP65 Dust and Splash Protection
• Tripod Thread: 1/4"
• Data Transfer: Bluetooth™ 4.2 Low Energy
• Laser Colour: Green
• Weight: 0.43kg
• Dimensions (L x W x H): 20.8cm x 26.8cm x 18.7cm

Warranty:

• 6 Years Warranty via registration covered by Bosch
