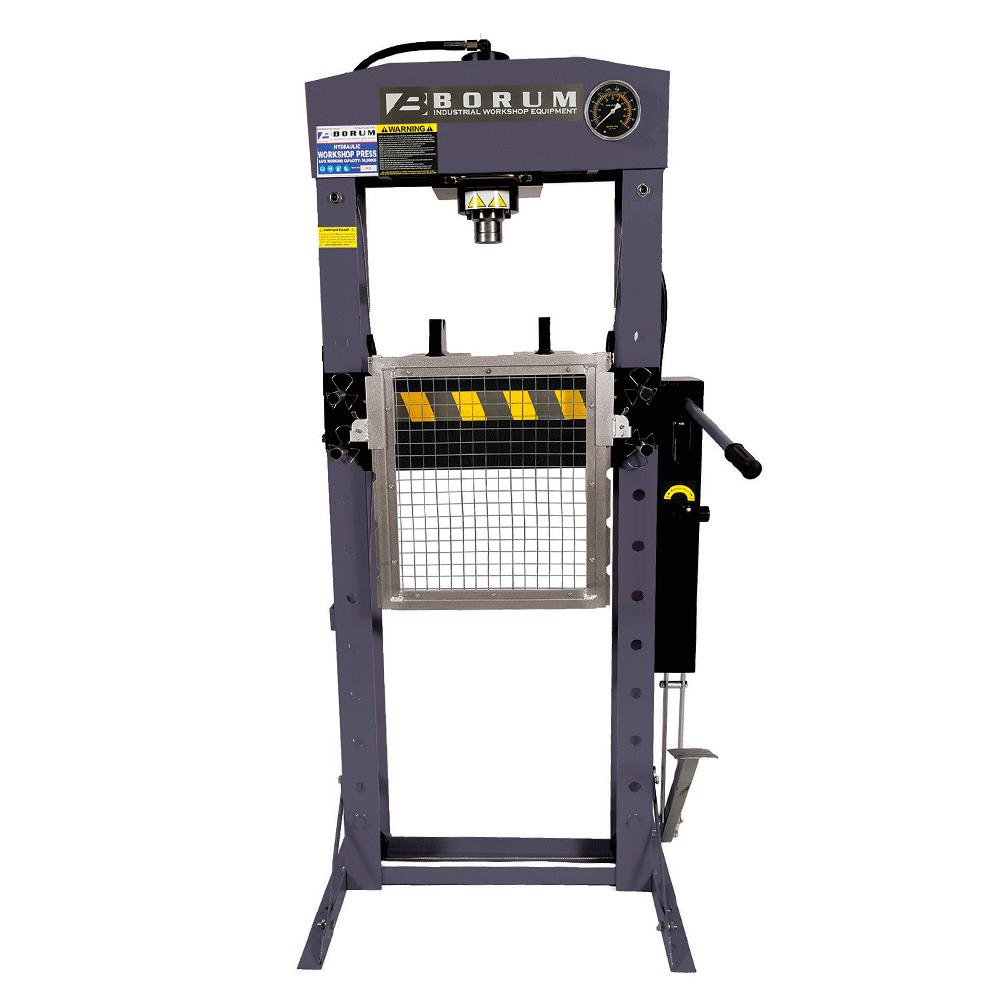

Borum BHSP20T 20,000kg Hydraulic Workshop Press

Borum BHSP20T 20,000kg Hydraulic Workshop Press

The “Borum Industrial" 20,000kg Hydraulic Workshop Press is great for straightening, stamping, bending, and pressing any component that is hard to handle. The polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high-performance seals, wear rings, and dust seals.

Features:

• Heavy-duty H-frame manufactured of superior-grade steel to exacting standards for industrial quality and durability
• 2 speed foot & hand pump operates the ram at a slow or fast speed to improve operator efficiency
• Non-slip bed winch and steel cable roller offers easy raising and lowering of the press bed
• Steel mesh safety cage provides operator safety and visibility
• 100mm pressure gauge ensures accurate monitoring
• Superior quality hydraulic cylinder unit requires lower oil pressure to apply load, reducing wear and extending service life
• Treated & polished ram is fitted with heavy duty backup ring, preventing bypass oil drift
• Superior quality hydraulic oil, improves corrosion resistance and high/low temperature flexibility
• Integrated overload protection eliminates overloading
• Double spring ram return for fast ram retraction
• Lead-free paint for a long-lasting finish and to minimise corrosion
• Oil, grease and dirt-resistant paint finish for easy cleanup
• Pair of bed plates included

Specifications:

• Safe Working Capacity: 20,000kg
• Working Range: 38-918mm
• Overall Height: 1626mm
• Overall Width: 730mm
• Overall Depth: 560mm
• Bed Outside: 172mm
• Bed Inside: 152mm
• Bed Width: 510mm
• Ram Stroke: 185mm
• Ram Diameter: 72mm
• Nett Weight: 115kg
• Carton: 1690 x 705 x 270mm
• Gross Weight: 142kg
