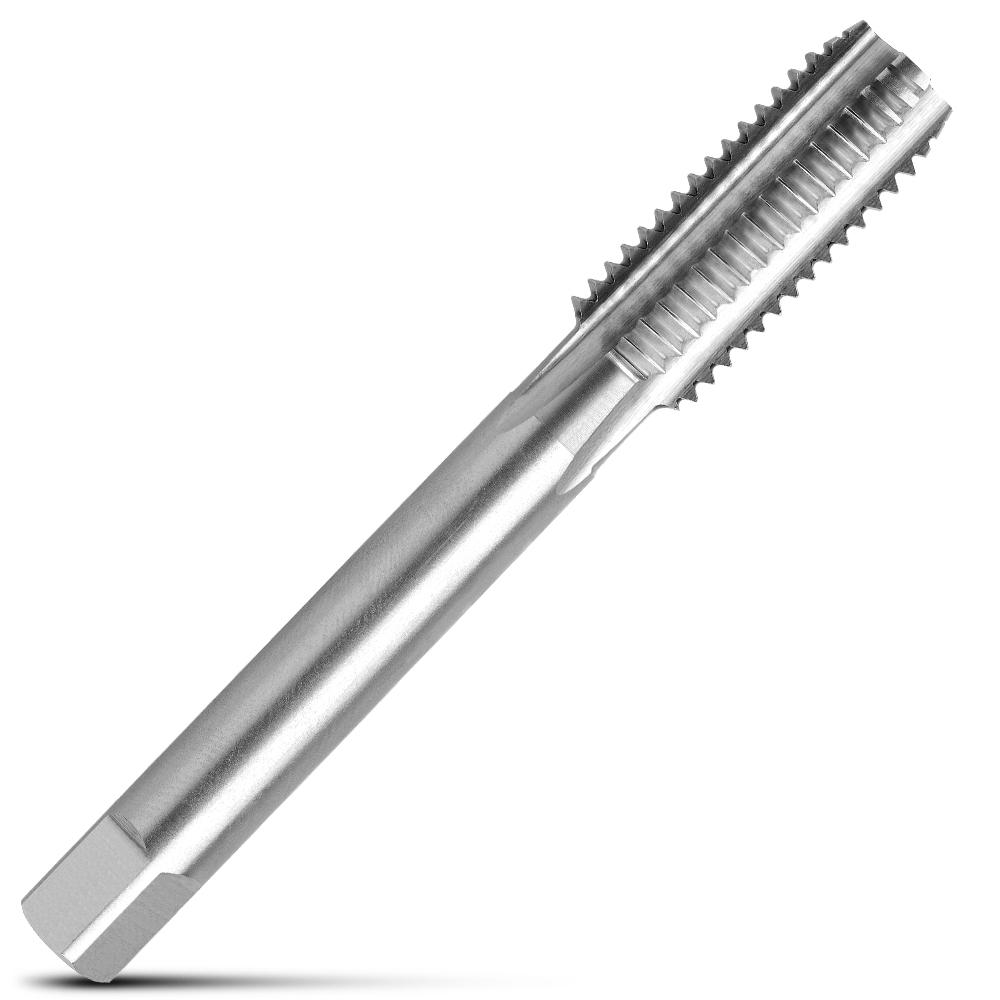

Bordo 4220-B MC Bottoming Chrome Tap

Bordo 4220-B MC Bottoming Chrome Tap

This metric coarse and fine tap has a flat crest and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).

Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole. Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap

Features:

• Flat crest with clearance at the root, allowing external thread and internal thread to engage well
• Coarse & fine with a thread angle of 60°
• Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
