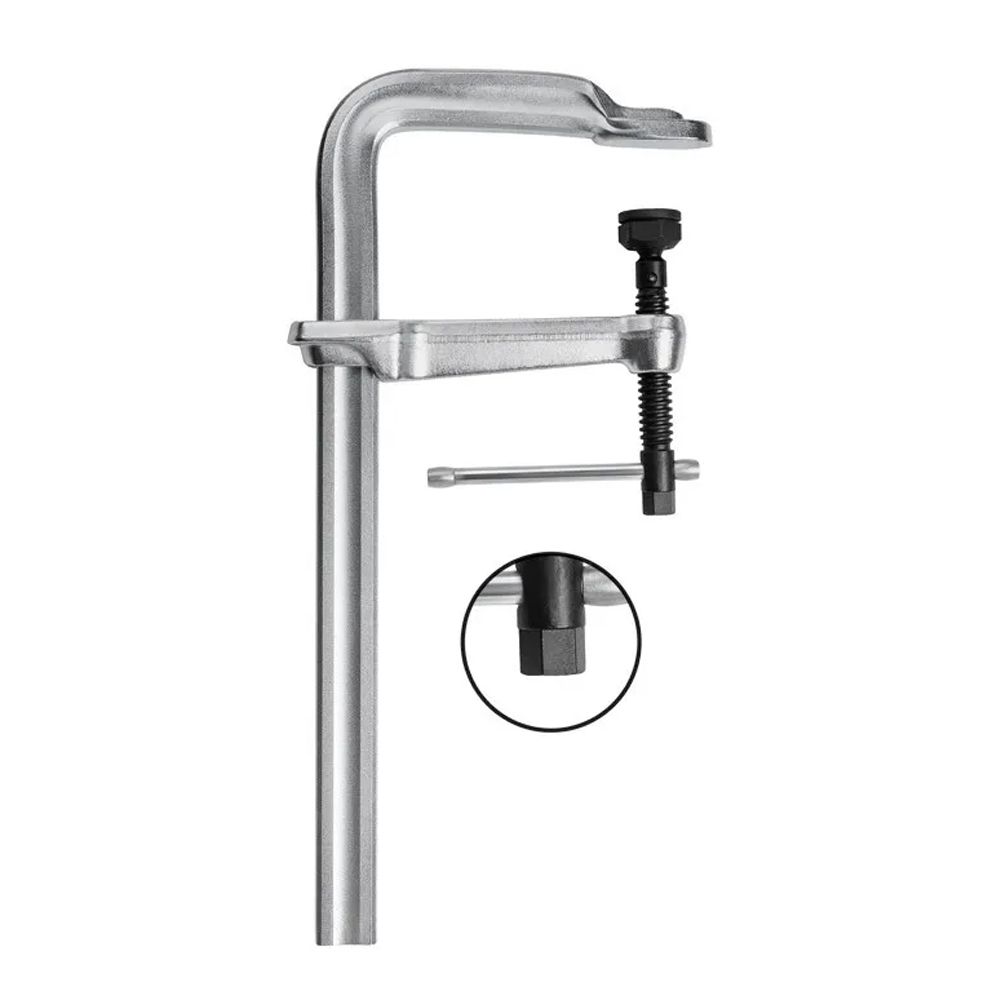

Bessey STB60M 600mm x 175mm High Performance Clamp

Bessey STB60M 600mm x 175mm High Performance Clamp

Clamping force up to 22,000N at tightening torque of 70 Nm. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°. With 19 mm hexagonal bolt on the end of the spindle.

Features:

• Clamping force up to 22,000 N at tightening torque of 70 Nm
• Long life due to heat‐resistant pressure plate with sintered steel insert, which can be tilted up to 35°
• With 19 mm hexagonal bolt on the end of the spindle
• Fixed and sliding bracket made of tempered steel, galvanised
• Spindle with trapezoidal thread in tempered, rolled steel, phosphated
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated

Applications:

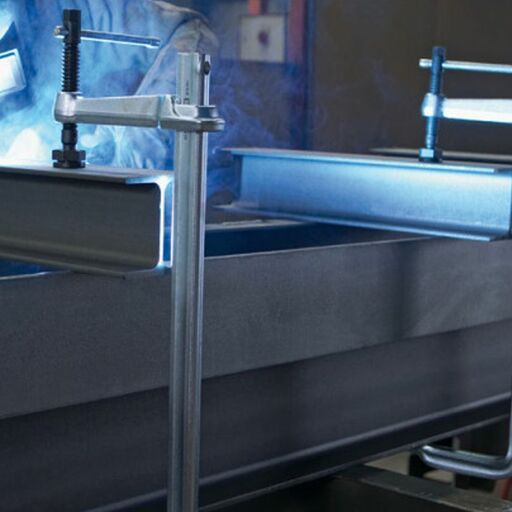

• Metal construction
• Locksmith work
• High-performance clamping

Specifications:

• Opening: 600mm
• Throad Depth: 175mm
• Rail: 40mm x 20mm
• Weight: 7.23kg
