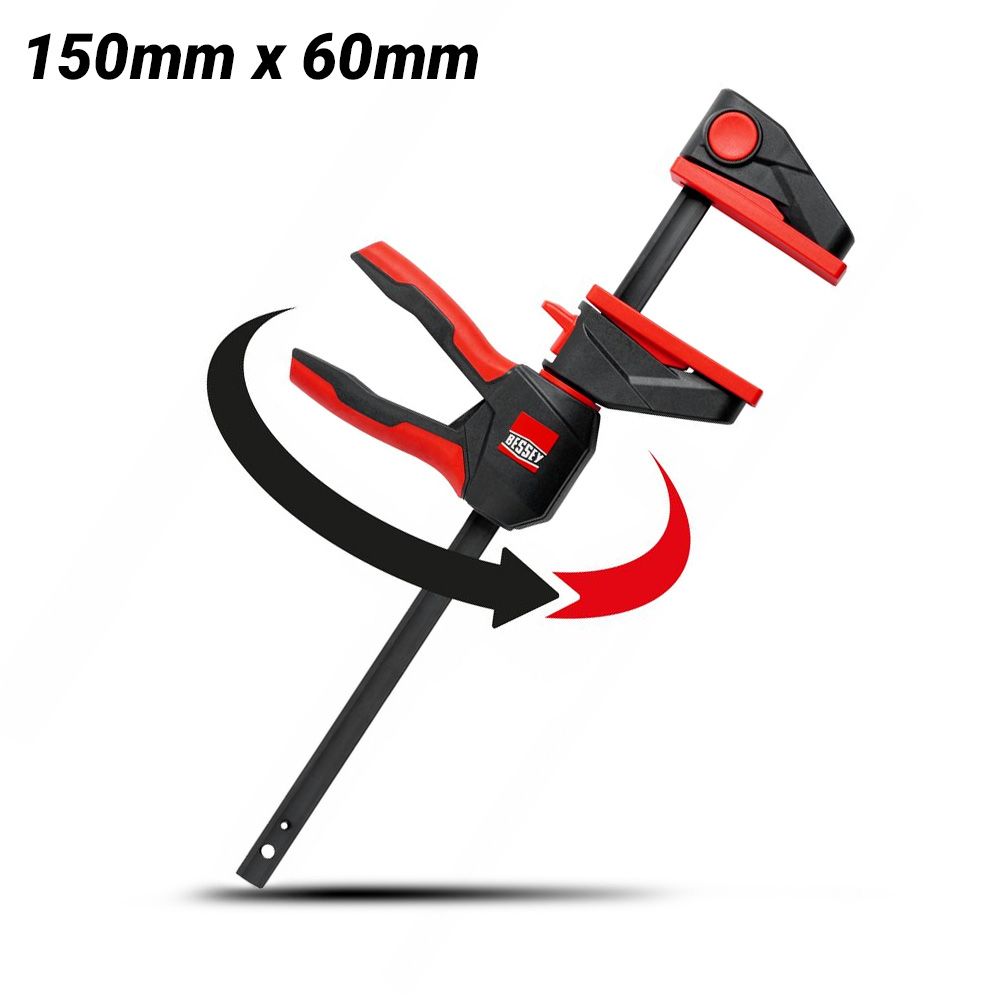

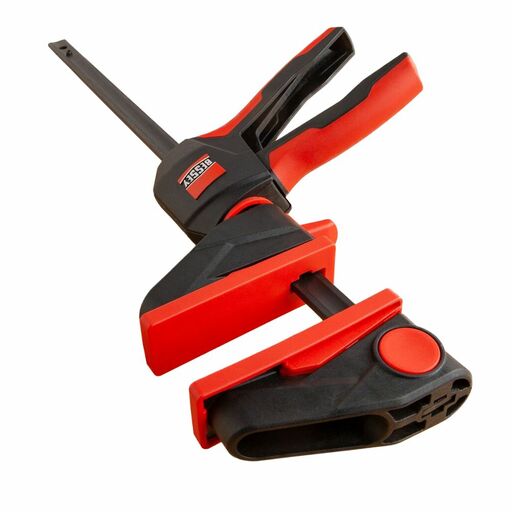

Bessey EZ360M-15 150mm x 60mm One Handed Rotating Handle Clamp

Bessey EZ360M-15 150mm x 60mm One Handed Rotating Handle Clamp

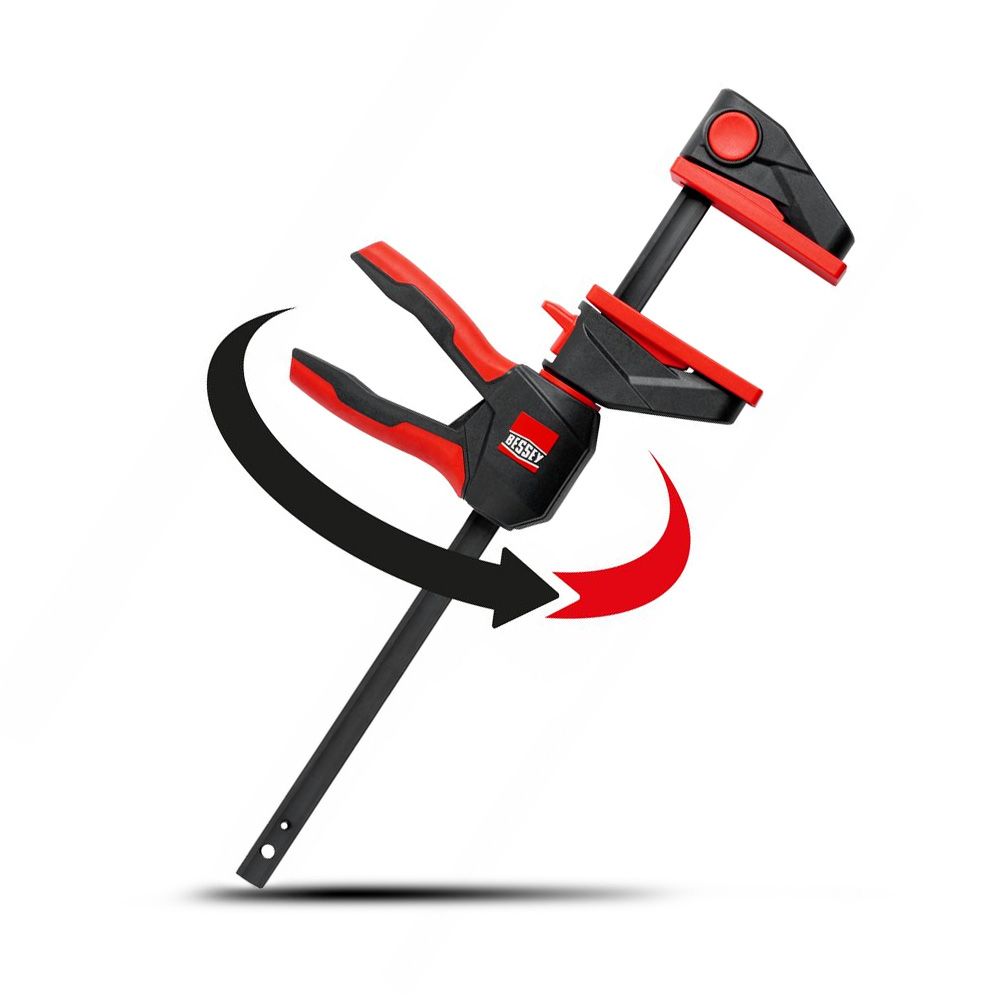

This innovative clamp features a 360° rotating mechanism, allowing the handle to be positioned effortlessly around the rail for maximum versatility. Its 12-step latching system ensures the handle stays securely in place while providing a clamping force of up to 750 N. Large clamping surfaces with removable protective caps safeguard your workpiece during use. Easily convertible for spreading tasks without tools, thanks to a convenient push-button release mechanism. Designed for one-handed operation, it requires minimal effort while delivering precision and control for a wide range of applications.

Features:

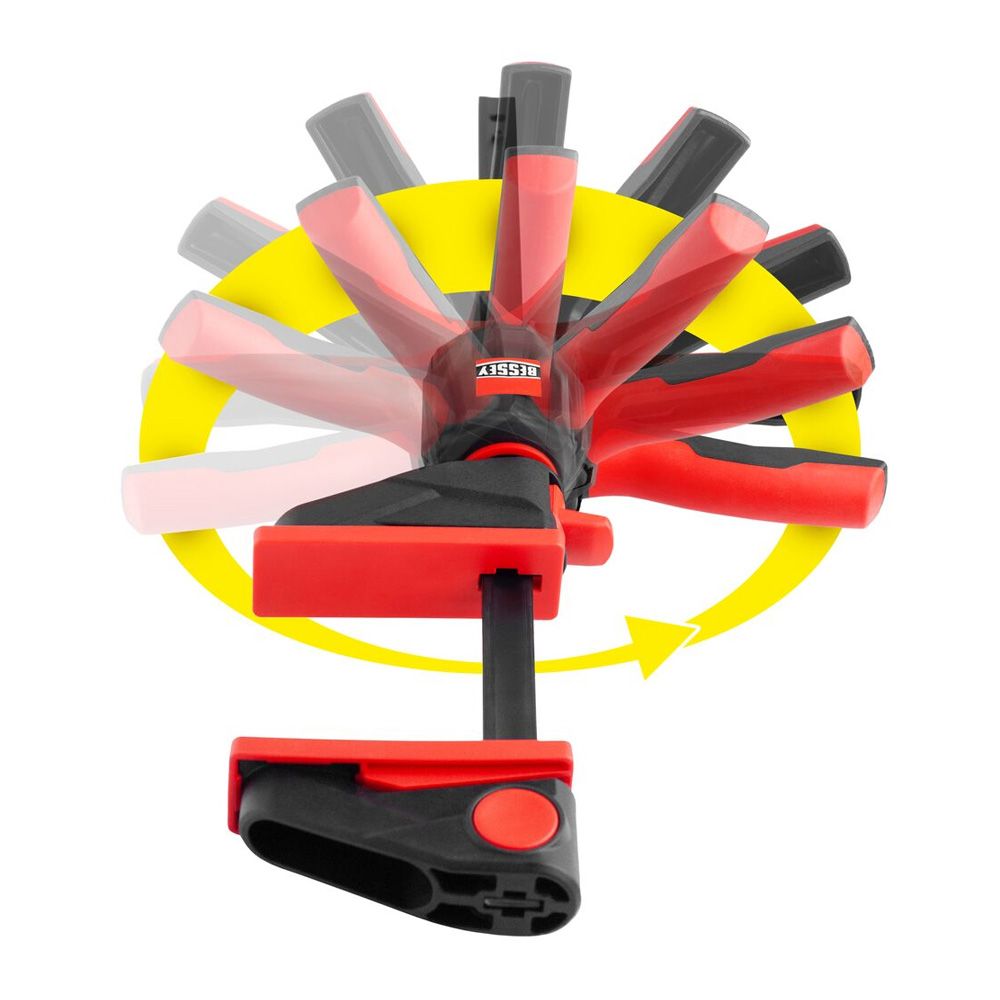

• Innovative 360° rotating mechanism allows the handle unit to be placed around the rail
• 12-step latching mechanism to securely hold the selected handle position
• Large clamping surfaces with removable protective caps
• Clamping force up to 750 N
• Can be repositioned for spreading without tools thanks to simple release mechanism by push-button on the top part
• One-handed operation with little effort required

Specifications:

• Opening: 150mm
• Throat Depth: 60mm
• Spreading Width: 154mm - 302mm
• Rail: 14mm x 5mm
• Clamping Force: Up to 75kg (750N)
• Weight: 0.39kg
