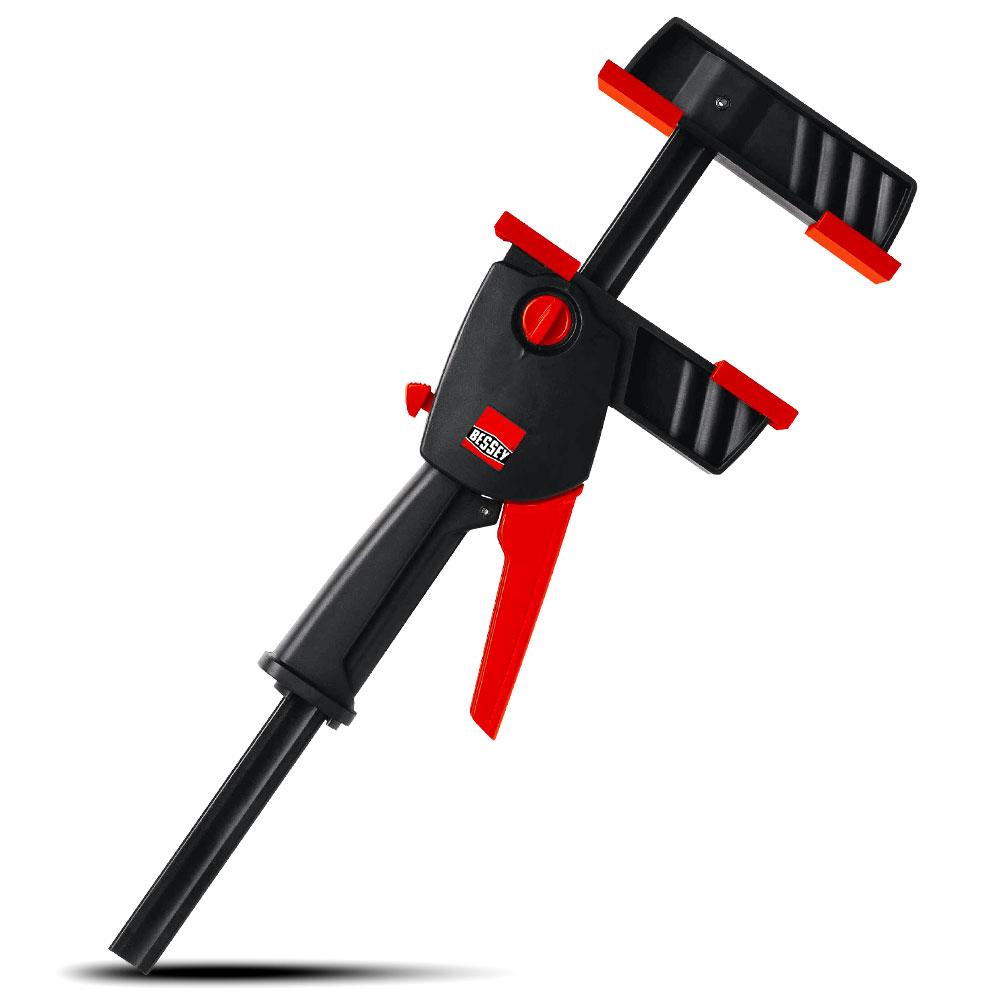

Bessey DUO30-8 300mm x 85mm DuoKlamp Quick Action Clamp & Spreader

Bessey DUO30-8 300mm x 85mm DuoKlamp Quick Action Clamp & Spreader

No more disassembling the jaws of the clamp to convert it to a spreader. The DuoKlamp incorporates a handy mini-dial that reverses the action from clamping to spreading...with a simple twist! Thanks to the large, flat clamping jaws and the soft pads, one can easily clamp sensitive surfaces, right angles, and both rounded and pointed work pieces with one hand. The DuoKlamp clamps from the front, at the side, behind the rail and is well balanced.

Features:

• Change from clamping to spreading by switching, not converting
• Handle with pump lever parallel to the rail
• Convenient one-handed operation, with little effort required
• All-round clamping - in front of, behind and at the side of the rail

Specifications:

• Clamping force: up to 1200N
• Opening: 300mm
• Throat depth: 85mm
• Rail width: 20mm
• Rail thickness: 5mm
• Weight: 0.72kg
