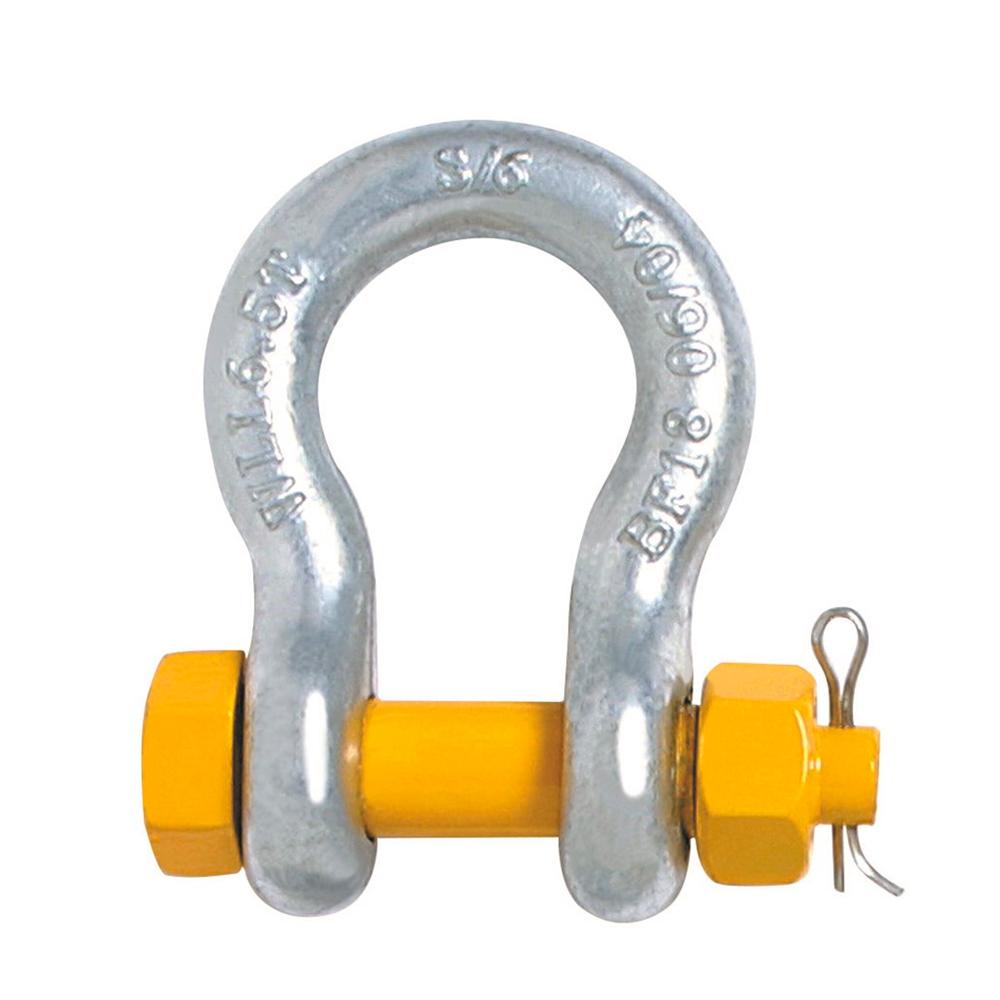

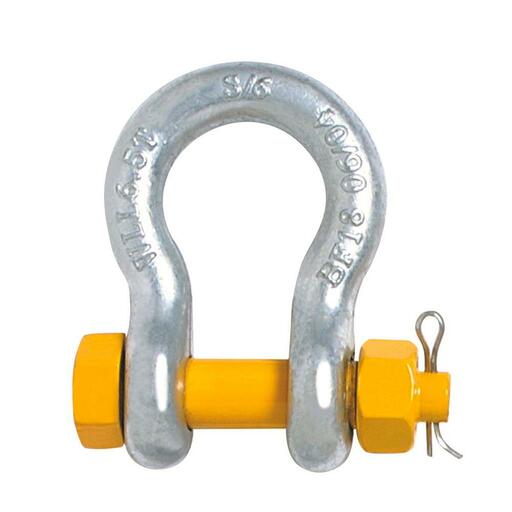

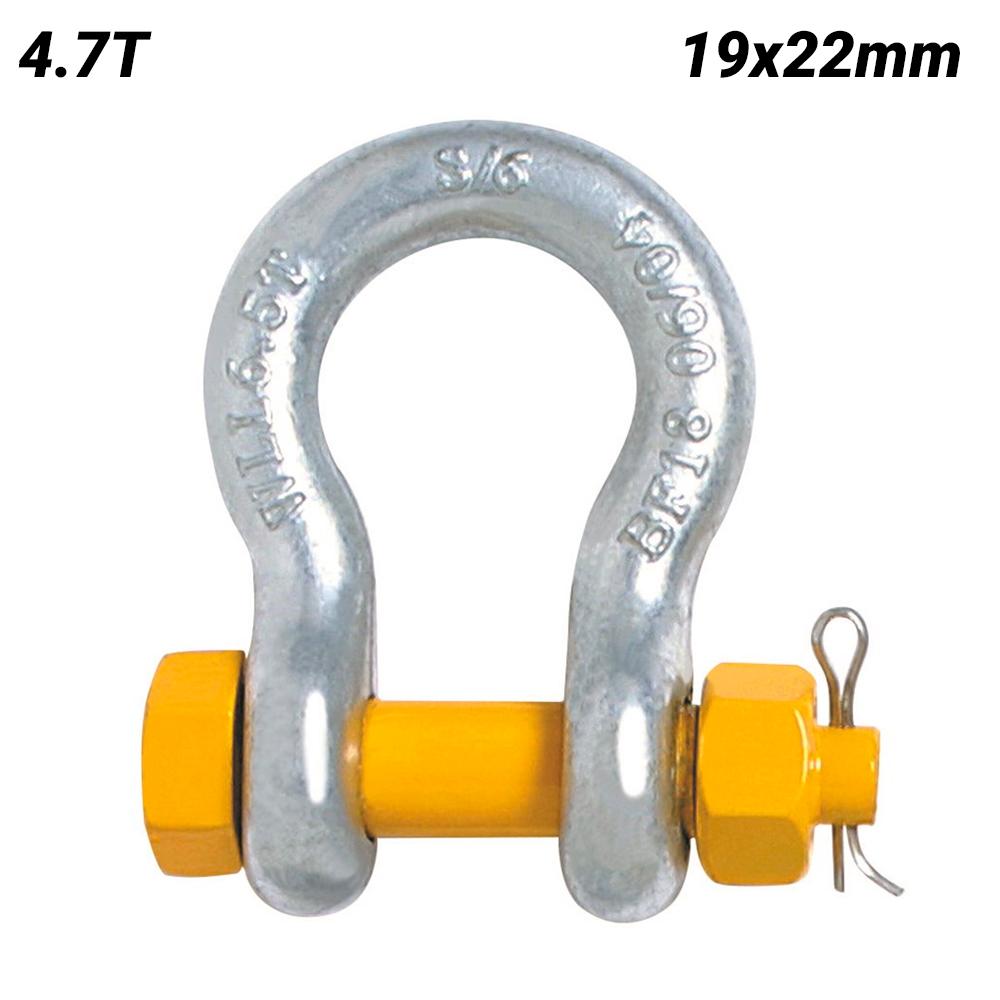

Beaver 244319 4.7T 19mm x 22mm GS Safety Pin Anchor Bow Shackle

Beaver 244319 4.7T 19mm x 22mm GS Safety Pin Anchor Bow Shackle

These yellow pin Grade S safety pin shackles comply to AS 2741. Safety pin shackles are used for long-term or permanent applications, or where the load may slide on the pin, causing rotation of the pin. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

Specifications:

• Size: 19mm x 22mm
• Working Load Limit: 4.7 Tonne
• Type: Grade S
• Shape: Bow
• Closing Method: Safety Pin
• Weights: 1.26kg
• Diameter: 19mm
• Pin Diameter: 22mm
• Inside Width: 32mm
• Inside Length: 72mm
• Width of Bow: 51mm
• Diameter Boss: 48mm
