Bayer SHT45010DUCT 1700W 450mm (18") Dust Extractor Ventilator Fan with 10m PVC Ducting

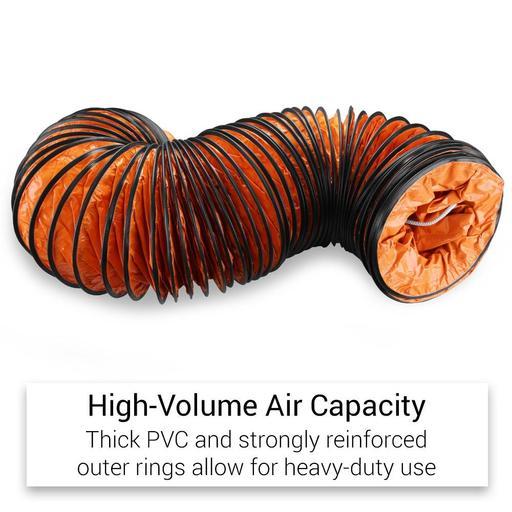

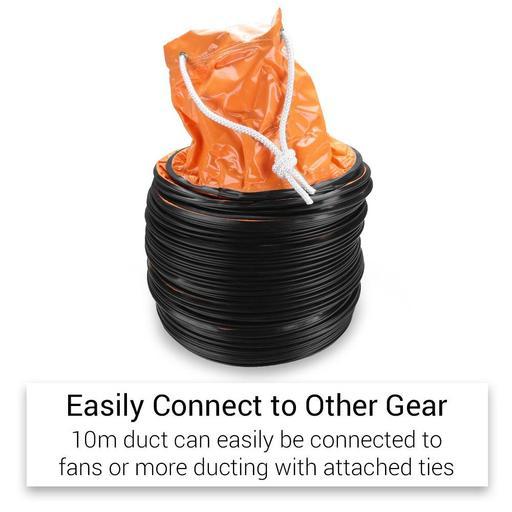

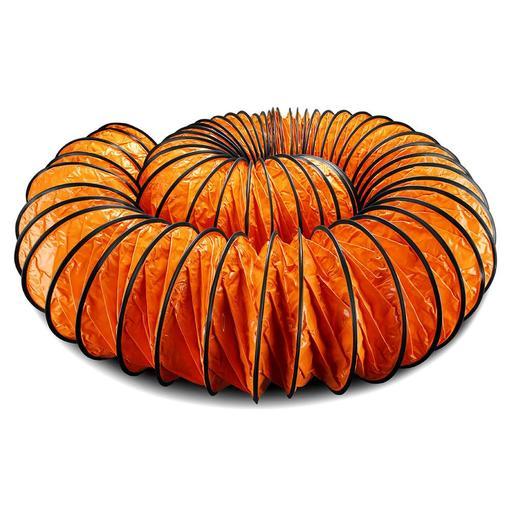

The Bayer DUCT18 450mm (18") 10m PVC Ducting is industrial-grade ducting that is designed to suit the Bayer 18" ventilation fan, as well as other 18" ventilation fans.

Features:

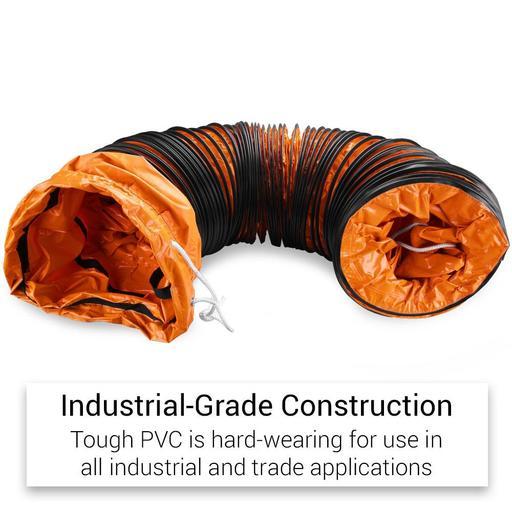

• Industrial-grade build
• Capable of high air volume
• Can be used to ventilate closed spaces

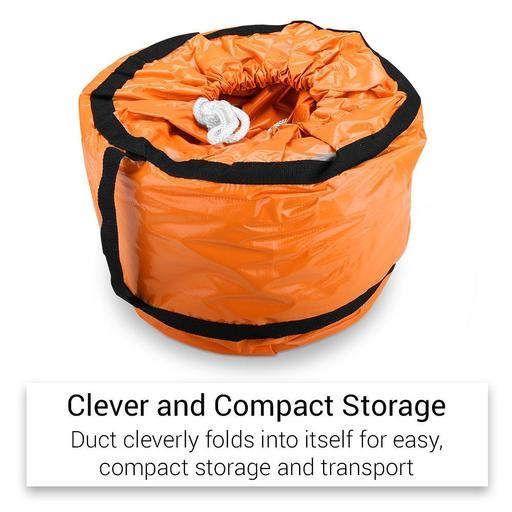

• Can be compressed for easy storage and transportation
• Steel wire spiral is abrasion resistant with strip cover
• Polyester fabric coated with PCV is leakage resistant
• Kink proof design
• Small bending radius

Applications:

• Air conditioning and ventilation of fumes, light duty dust extraction, and air movement
• Working environments such as airport, tunnel, basement, waste gas exhaust out
• As a flexible connection between grilles diffusers, fans and other air movement units

Specifications:

• Diameter: 450mm (18")
• Length: 10m
• Working temperature: -20°C to 80°C

The Bayer 450mm 18" Super Speed Dust Extractor Ventilator Fan is extremely powerful and useful from job sites to home use. This ventilator is portable, light weight and easy to carry. The Ventilator Fan's flow is reversible and the fan blades are durable and built strong to provide high pressure and large air volume. The ventilator can also be used to ventilate a closed space.

Features:

• Delivers powerful performance with a 1700W motor and high-speed airflow up to 125 m³/min for demanding industrial and commercial ventilation
• Produces strong wind pressure of 798pa through ducts and large spaces
• Circulates or extracts large volumes of air quickly, ideal for enclosed or contaminated environments
• Designed to be portable and lightweight for its class, making it easy to transport between job sites
• Built with a durable die-cast iron housing for excellent heat dissipation, rust resistance and long service life
• Includes a heavy-duty galvanised steel handle for safe, reliable handling in rugged working conditions
• Equipped with good electrical insulation and overheat protection to enhance user safety and operational lifespan
• Suitable for ventilating closed or confined spaces such as warehouses and tight crawl spaces
• Engineered for low maintenance and long-term use with durable fan blades and robust constructions

Applications:

• Ventilating large or enclosed job sites (e.g., warehouses, construction zones)
• Extracting dust, fumes, or odors in industrial workshops or garages
• Providing airflow in confined spaces such as containers, crawl spaces, or tunnels
• Speeding up drying in damp or recently flooded areas
• Supporting HVAC work by moving air during installation or servicing

Specifications:

• Voltage: 240V
• Frequency: 50Hz
• Fan Diameter: 450mm
• Power: 1700W
• Air Flow: 125m³/min
• RPM: 2800
• Wind Pressure: 798pa
• Noise Level: 80dB
• Blades: 6
• Type: Portable
• Dimensions (L x W x H) : 570mm x 520mm x 370mm
• Weight: 21kg

Warranty:

• 12 Months Warranty Covered by Bayer
