Bayer CD5550 5.5HP Drive Unit Powered By Honda Engine with 50mm Vibrator Shaft

Power your concrete vibrator shafts and submersible trash pumps with the Bayer CD55 Drive Unit. Built for demanding jobsites, this reliable unit features a heavy-duty roll cage and standard connections for fast, everyday concrete consolidation and dewatering.

Features:

• Reliable Power: Equipped with a trusted 5.5HP Honda GX 4-stroke petrol engine
• Versatile Use: Effortlessly runs concrete vibrator shafts of all sizes and flexible drive trash pumps
• Fast Swaps: Standard 3-pronged dog-clutch for quick attachment changes
• Jobsite Tough: Robust roll-cage frame protects the engine and makes transport easy

Specifications:

• Engine Type:  5.5HP Air-cooled 4-stroke, OHV
• Displacement: 163 cm³ (9.9 cu-in)
• Bore x Stroke: 68 mm x 45 mm
• Compression Ratio: 9.0 : 1
• Net Power Output: 4.8 HP (3.6 kW) @ 3,600 rpm
• Net Torque: 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
• Fuel Type: Unleaded 86 octane or higher
• Fuel Tank Capacity: 3.1 Liters (3.3 U.S. qts)

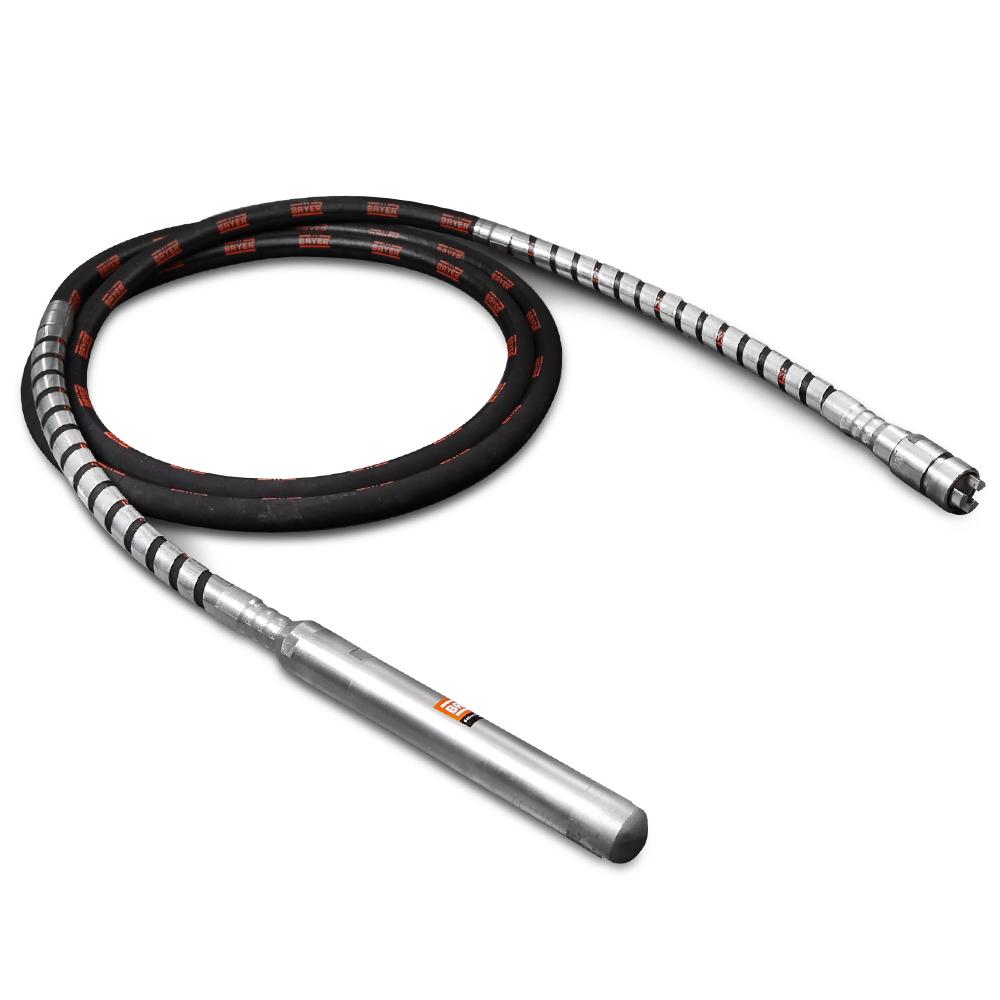

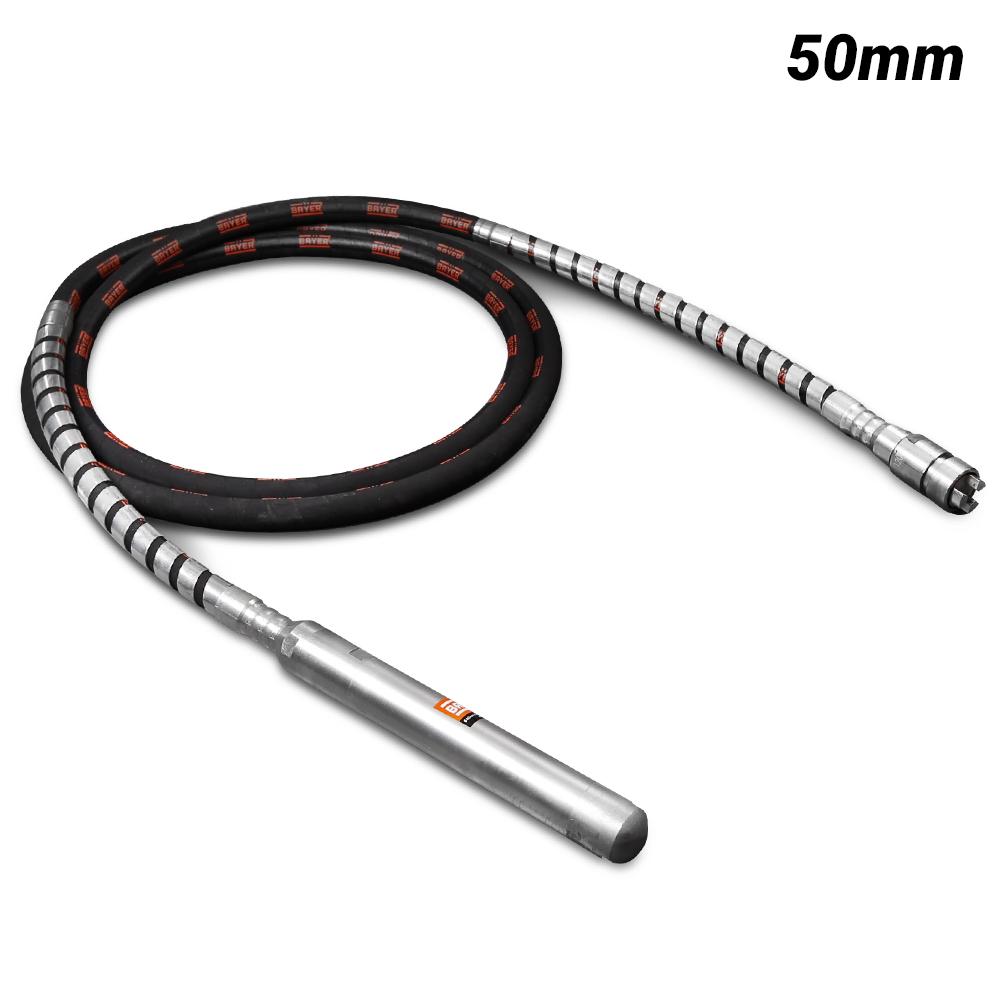

Bayer CV50 Vibrator Shaft (50mm) is an essential instrument in concrete construction. Widely used in the construction industry to consolidate and compact various plastic, semi-plastic or nearly dry concrete.

Specifications:

• Head Diameter: 50mm (1.97")
• Head Length: 545mm (21.5")
• Flexible Shaft Length: 6m
• Maximum Speed: 3600RPM
• Vibration Amptitude: 2.2mm
• Weigh: 20kg

Warranty:

• 12 Months Warranty Covered By Bayer
