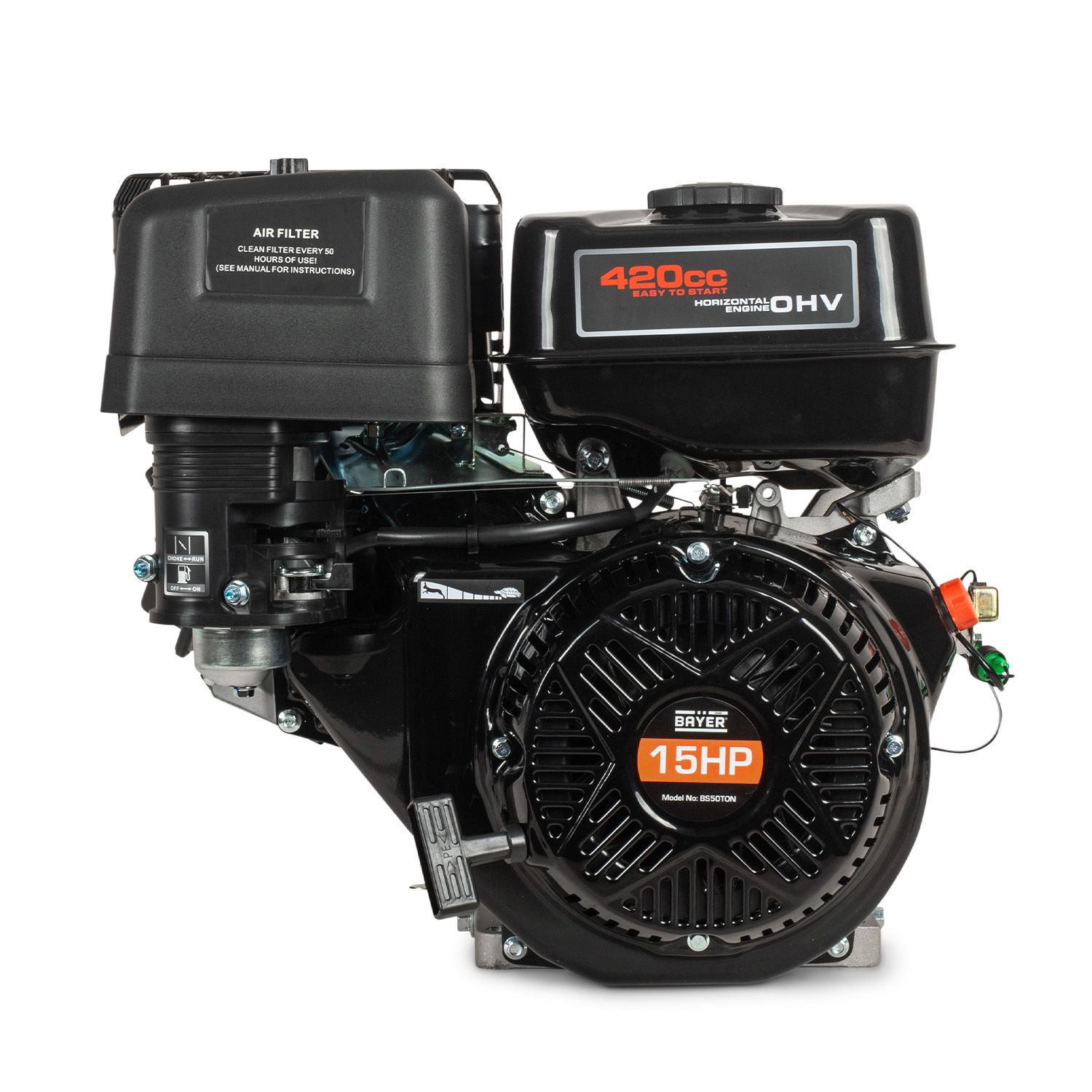

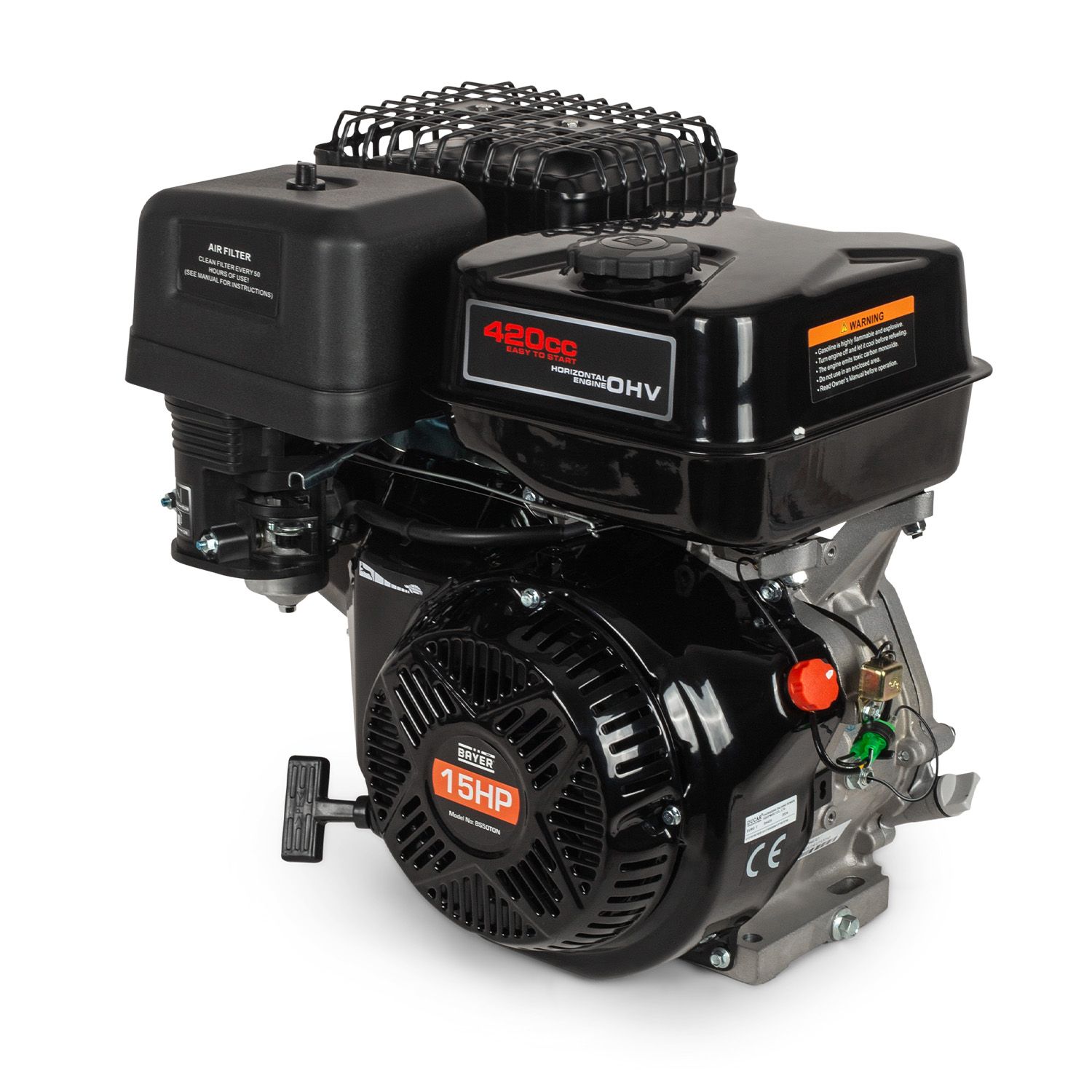

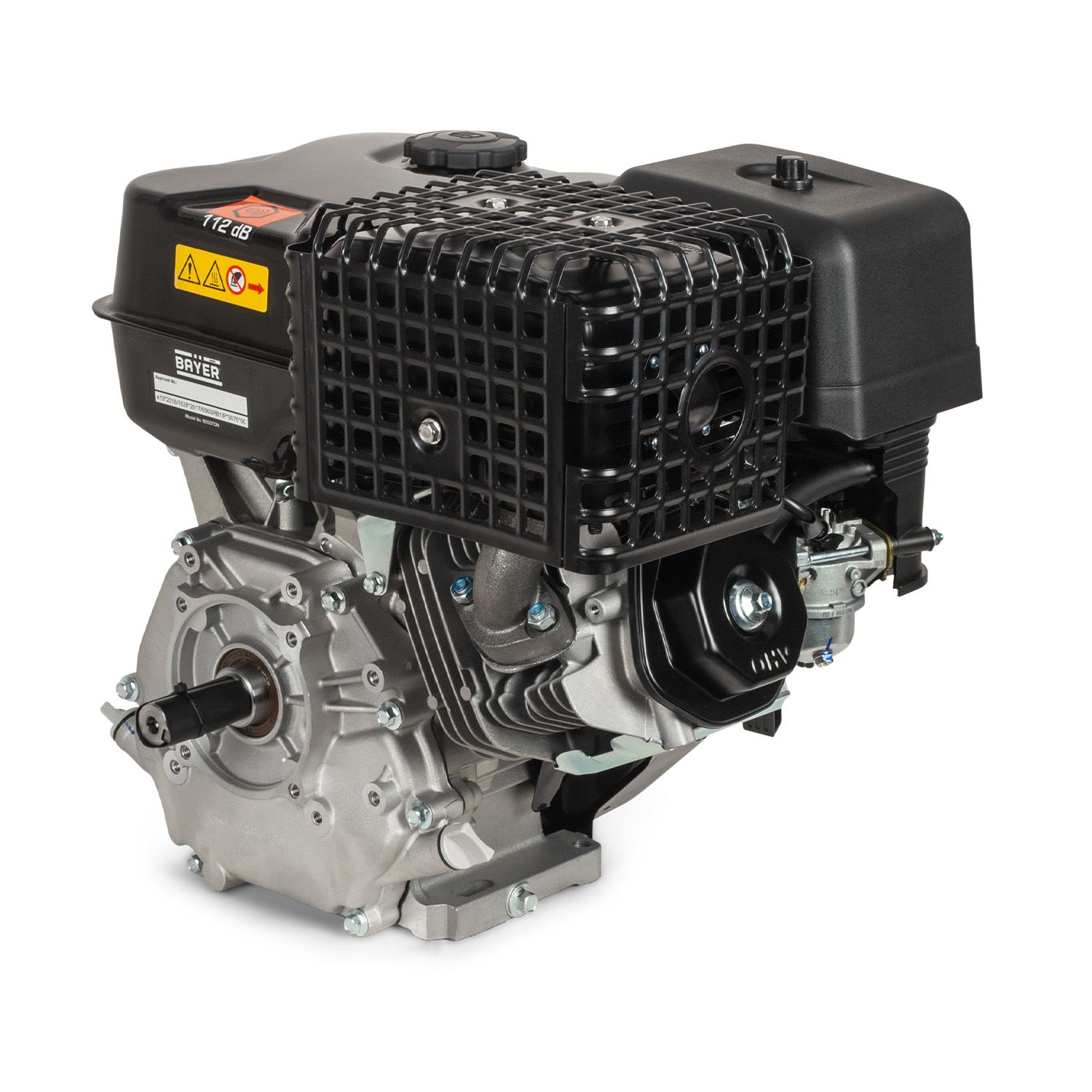

Bayer BS50TONENGCOMP 15HP 420cc Replacement Engine #103 Suits BS50TON

Bayer BS50TONENGCOMP 15HP 420cc Replacement Engine #103 Suits BS50TON

Replacement Engine for Bayer BS50TON Log Splitter.

Suitable for:

• Bayer BS50TON 15 HP 50 Tonne Petrol Log Splitter

Specifications:

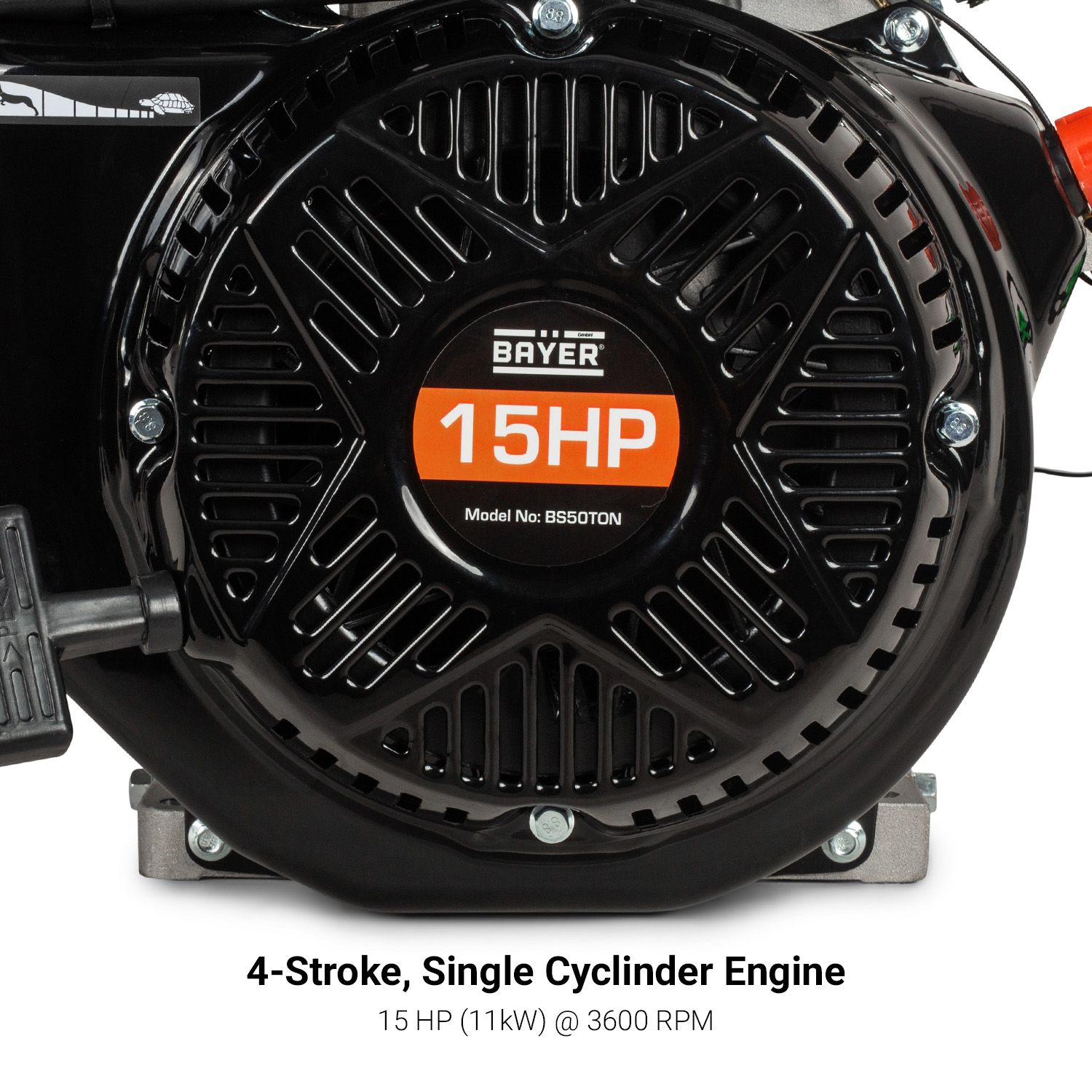

• Engine type: 4-Stroke Single Cylinder, OHV forced air cooling
• Displacement: 420cc
• Power/Torque: ~15 HP (11 kW) @ 3600 RPM / 26.5 N.m @ 2500 RPM
• Bore x Stroke: 90mm x 66mm

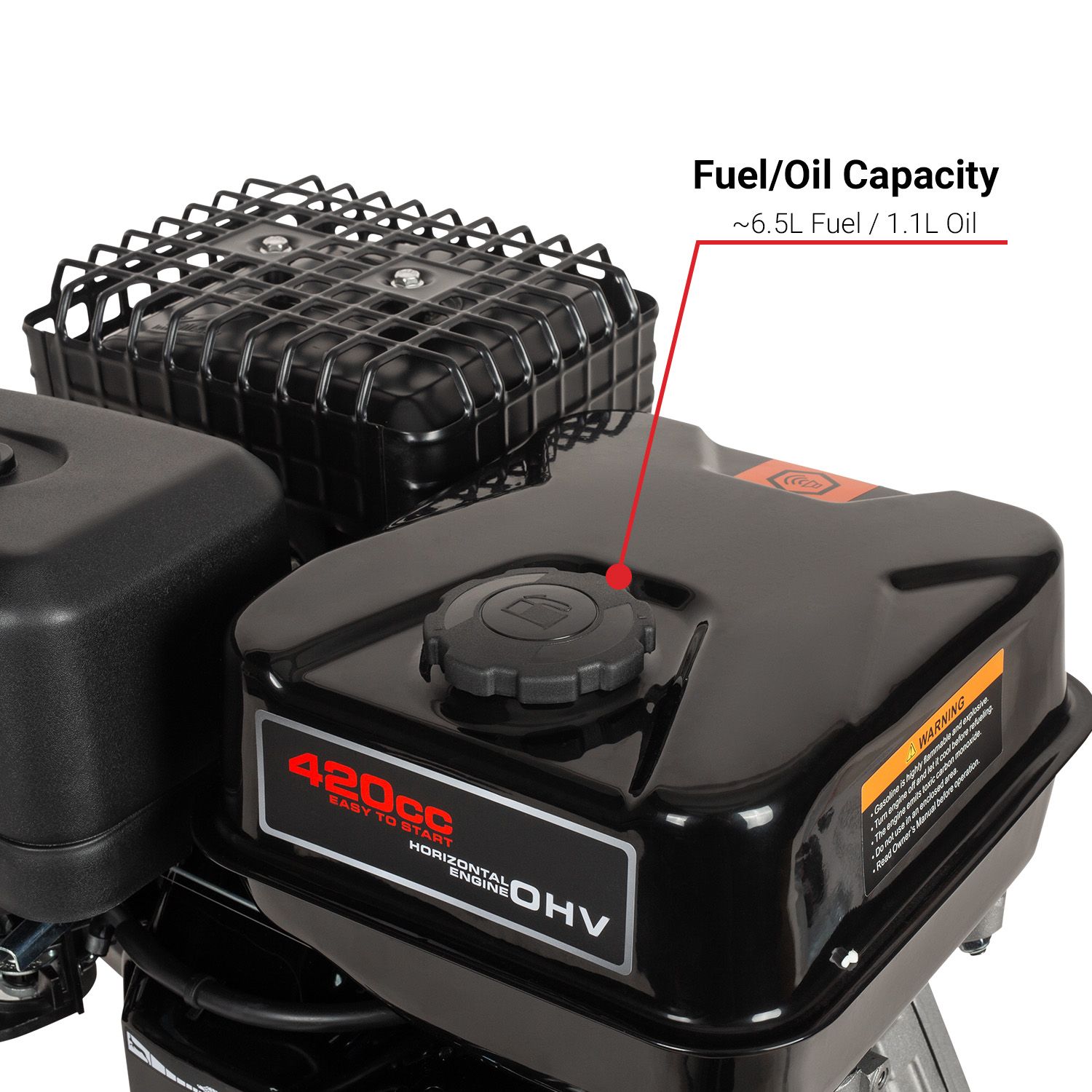

• Fuel/Oil Capacity: ~6.5L Fuel / 1.1L Oil
• Spark Plug Gap: 0.7-0.8mm
• Spark Plug Torque: 18-22Nm
• Intake Valve Clearance: 0.08-0.12mm
• Exhaust Valve Clearance: 0.13-0.18mm
• Dry Weight: 33kg
