Bayer BCS200 200mm Compact Core Drill Rig Stand

Bayer BCS200 200mm Compact Core Drill Rig Stand

The Bayer Diamond Core Drill Rig Stand is designed to mount Bayer Core Drill motor using the standard 4 bolt spacer that is included with this stand. The drill stand guides the motor and Bayer core bit so that it is possible to drill perfectly straight cuts in a safe and controlled manner. This stand must be securely fastened to the workpiece using a concrete anchor.

Features:

• Frame with general fast connecting block, quick installation and is suitable for the majority of products on the market

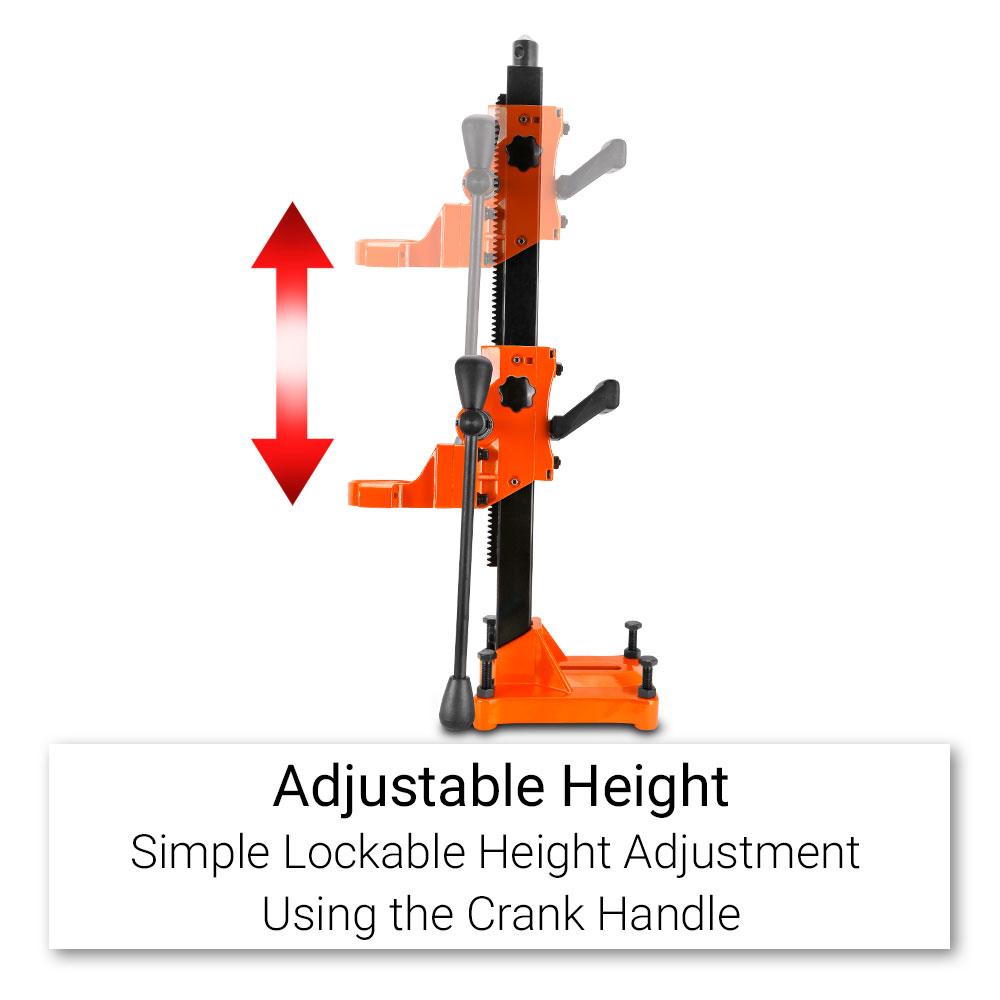

• Base, frame, bracket, and all adjusting screw can be used with the pushing handle attached to adjust
• This stand must be securely fastened to the workpiece using a concrete anchor
• Lightweight alloy bracket with levelling bolts
• Mounts core drill motors so that it is able to drill perfectly straight cuts

Specifications:

• Max Capacity: 200mm
• Collar Size: 60mm
• Column Size: 39mm x 39mm x 705mm
• Column Material: Steel
• Dimensions (L x W x H): 765mm x 190mm x 340mm
• Weight: 10.6kg
