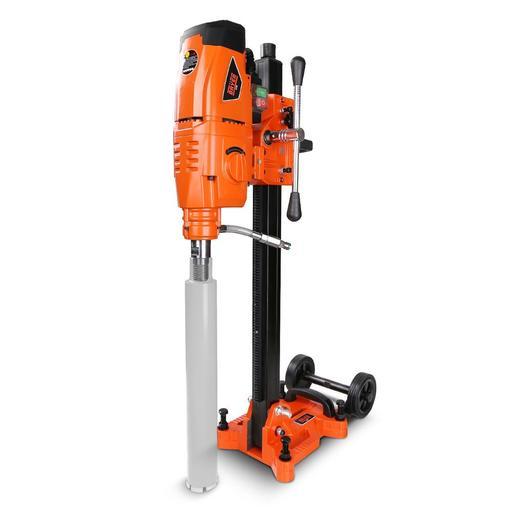

Bayer BAYCR250 3000W 250mm 2-Speed Core Drill with Rig Stand

This Bayer Core Drill Rig Stand is designed to mount Bayer Core Drill Motor by using a suitable mounting spacer. A standard 4 bolt mounting spacer is included with this stand. The drill stand guides the motor and Bayer core bit so that it is possible to drill perfectly straight cuts in a safe and controlled manner. The stand is also able to slant so that holes may be cored at an angle as required. This stand must be securely fastened to the workpiece using a concrete anchor.

Features:

• Angle adjustable column: Adjustable aluminium alloy bracket can drill inclined holes from 0° to 45°
• 900mm column with guidance roller
• Heavy-duty no flat tyre. Allows easy transportation without physical lifting
• Lightweight alloy bracket with levelling bolts
• Stepless speed regulation when controlling the guide
• Guidance handle allows for smooth operation and control
• Mounts core drill motors so that it is able to drill perfectly straight cuts

Specifications:

• Capacity: 250mm (w/o extension spacers)
• Max. capacity: 350mm (with extension spacers)
• Effective stroke: 650mm
• Dimensions (L x W x H): 460mm x 290mm x 930mm
• Weight: 15kg

Warranty:

• 12 Months Warranty Covered By Bayer

The Bayer 3000W 250mm 2-Speed Core Drill is a comfortable yet powerful core drill with superb power to weight ratio. This drill is an all round tool for trades wanting quick and simple cores drilled. Wet or dry environment, these units are designed to offer enhanced workflow. They also feature a two speed motor with a progressive start. They are the perfect tool for users who expect the core to be drilled at ease.

Features:

• Oil immersed gearbox to prolong the lifespan of mechanical gears
• Two speed gearbox. Low and high speed
• Safety clutch/overload protection. Safety friction clutch protects personnel and machine against high mechanical overloads
• Controlled system with soft start. Keeps drill and user safe from unexpected starts
• Water resistant on/off switch
• Easy to identify coloured on/off switch
• Easily mounts onto stand. Stand increases stability and control (Bayer stand BR250 sold separately)*
• PRCD protected cord. Cuts off power when there is a power overload or fault with the device
• Spirit level to keep drill straight
• Vented drill top, to keep the motor cool

Specifications:

• Drill Range: 250mm
• Amperage: 15A
• Rated input power: 3000W
• Rated frequency: 50-60Hz
• Rated voltage: 240V
• No-load speed: 550/830RPM
• Dimensions (L x W x H): 540mm x 380mm x 240mm

Warranty:

• 12 Months Warranty Covered by Bayer
