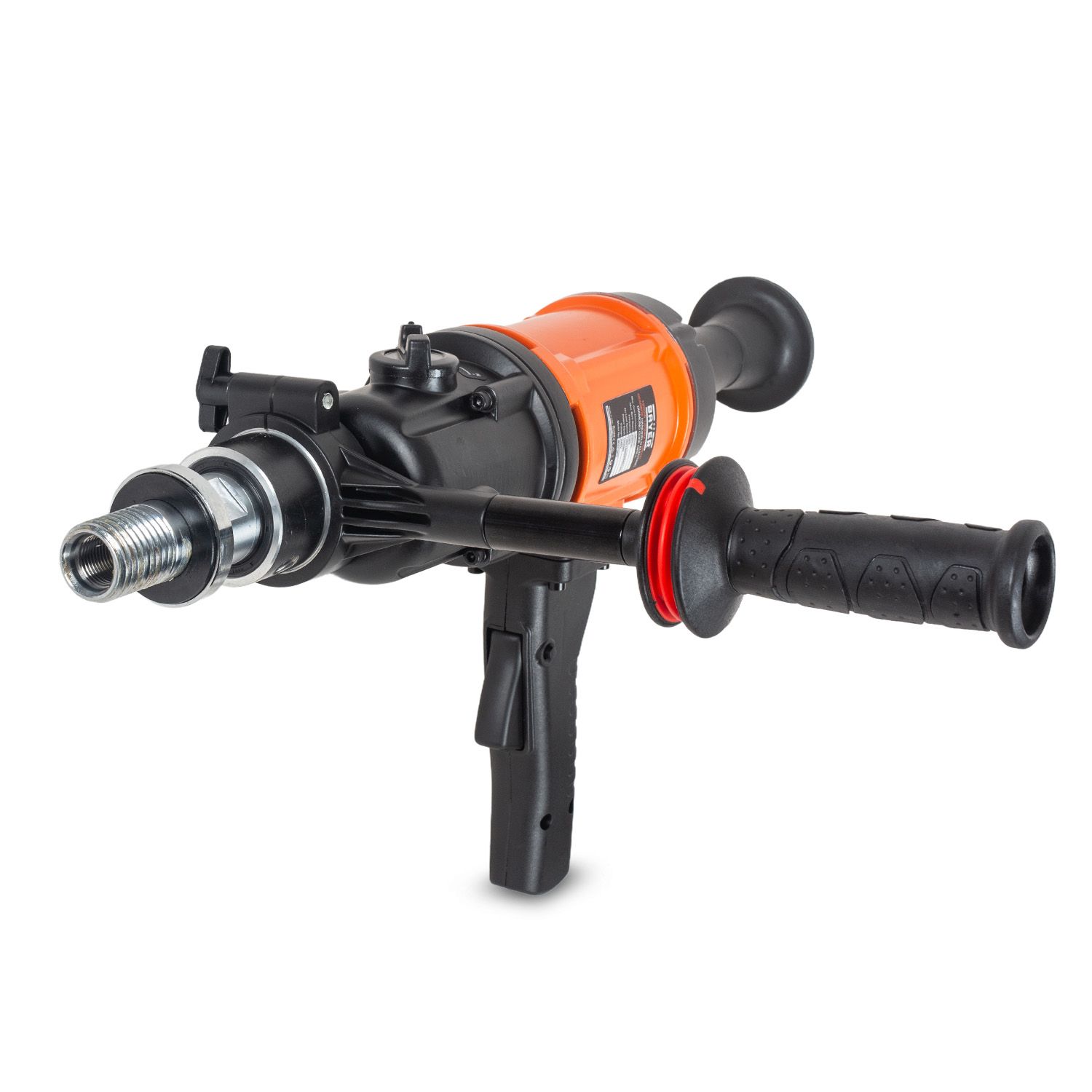

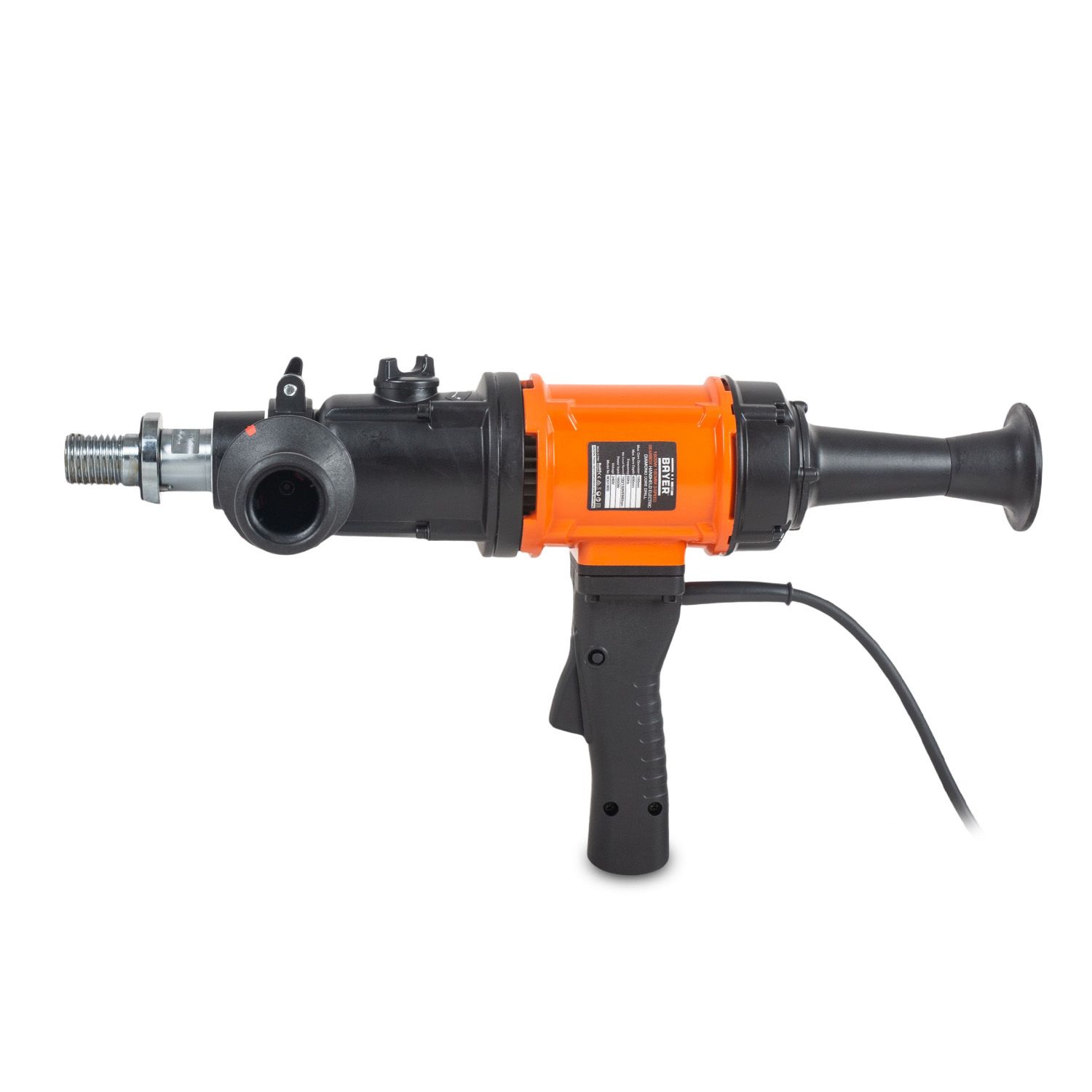

Bayer BCD1900 1900W 180mm 3-Speed Gearbox Handheld Electric Diamond Core Drill

Bayer BCD1900 1900W 180mm 3-Speed Gearbox Handheld Electric Diamond Core Drill

The Professional Standard for High-Performance Coring
Engineered for uncompromising reliability in the most demanding environments, the Bayer 1900W Handheld Diamond Core Drill represents the pinnacle of portable structural boring. This industrial-grade unit is purpose-built to bridge the gap between heavy-duty rig setups and handheld agility, providing contractors with the precision-controlled power necessary for reinforced concrete, natural stone, and high-density masonry.

At the heart of the tool is a precision-engineered oil-immersed gearbox, designed to deliver superior lubrication and thermal stability, ensuring whisper-quiet operation and an significantly extended service life. The integrated mechanical 2/3-speed gearbox allows for optimized torque delivery across a wide range of bit diameters, while the Stepless Speed Control and Soft Start technology provide a smooth, controlled ramp-up for perfect hole positioning.

Housed in a rugged aluminum alloy body for maximum heat dissipation, this drill features an Intelligent Overload Protection system that actively monitors motor stress to prevent burnout and ensure user safety. Whether performing deep borehole sampling or precision HVAC installations, the Bayer Core Drill maximizes output through its energy-efficient design, making it the definitive choice for professionals who refuse to compromise on brute performance or job site mobility.

Includes

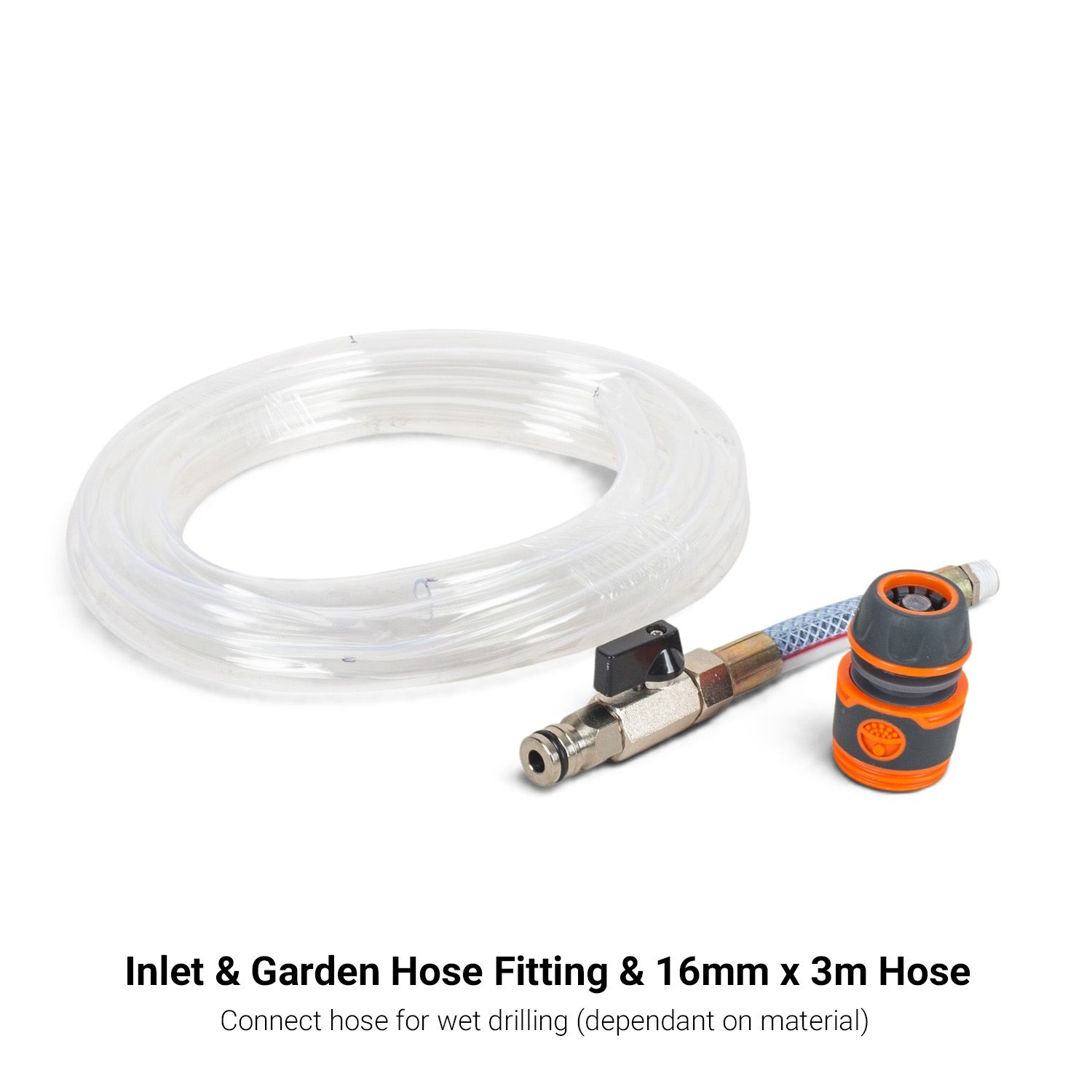

• 1 x Inlet Fitting
• 1 x 32mm Spanner
• 1 x 16mm x 3m Clear Plastic Hose
• 1 x Garden Hose Fitting

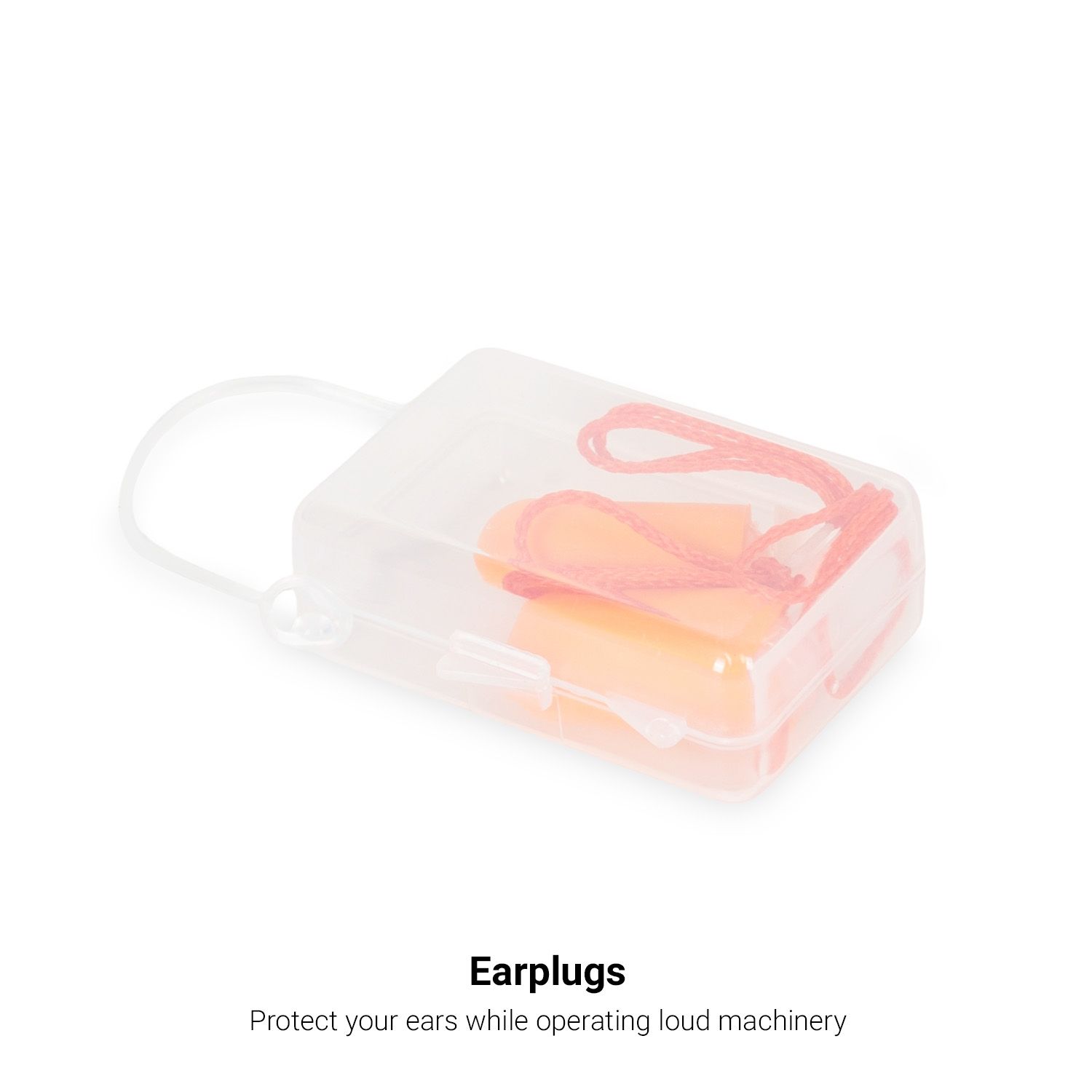

• 1 x Standard Ear Plugs
• 1 x Accessories Case

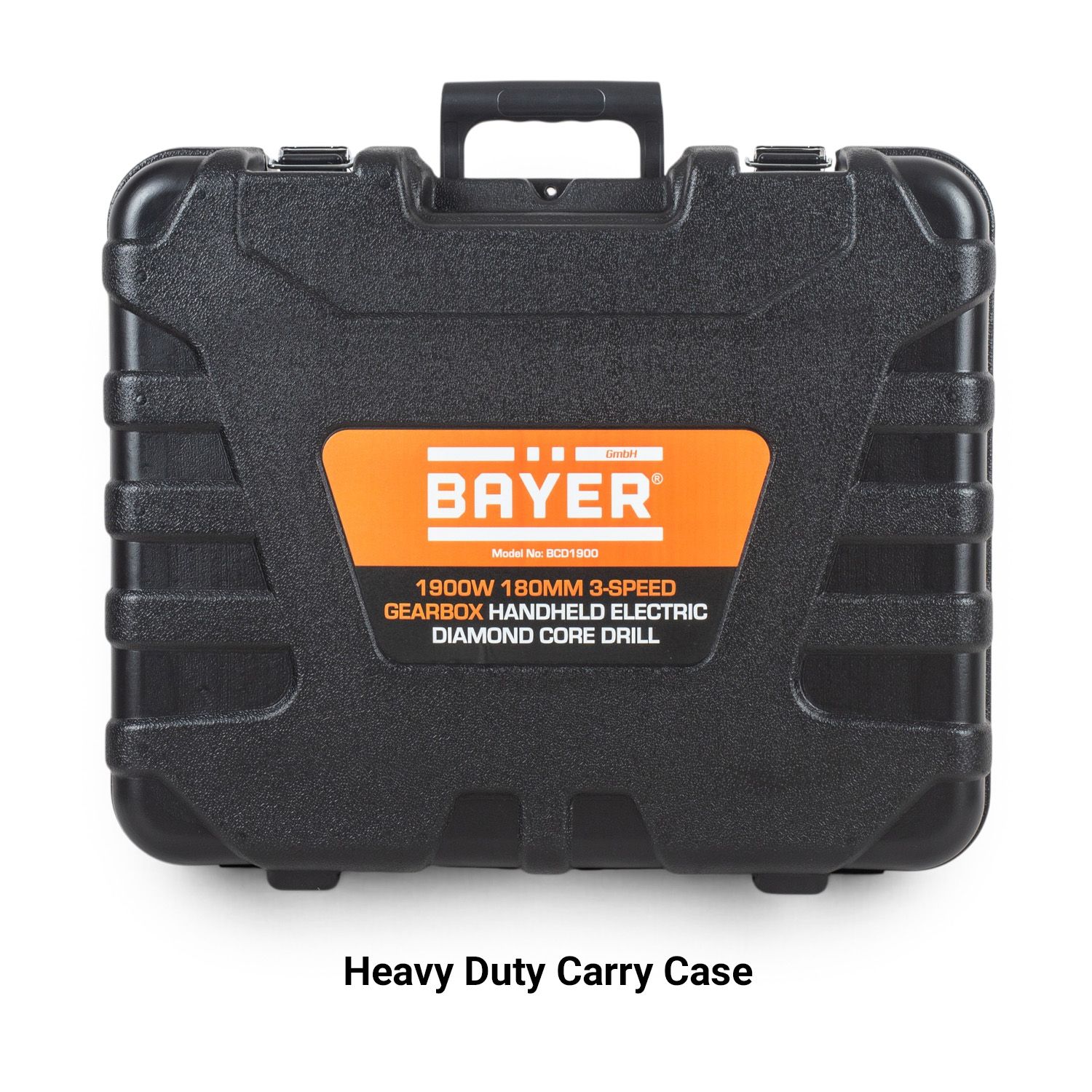

• 1 x Hard Carry Case
• 1 x Manual

Features:

• Precision-Engineered Oil Gearbox: High-efficiency oil-immersion provides constant lubrication and ultra-low noise under heavy load

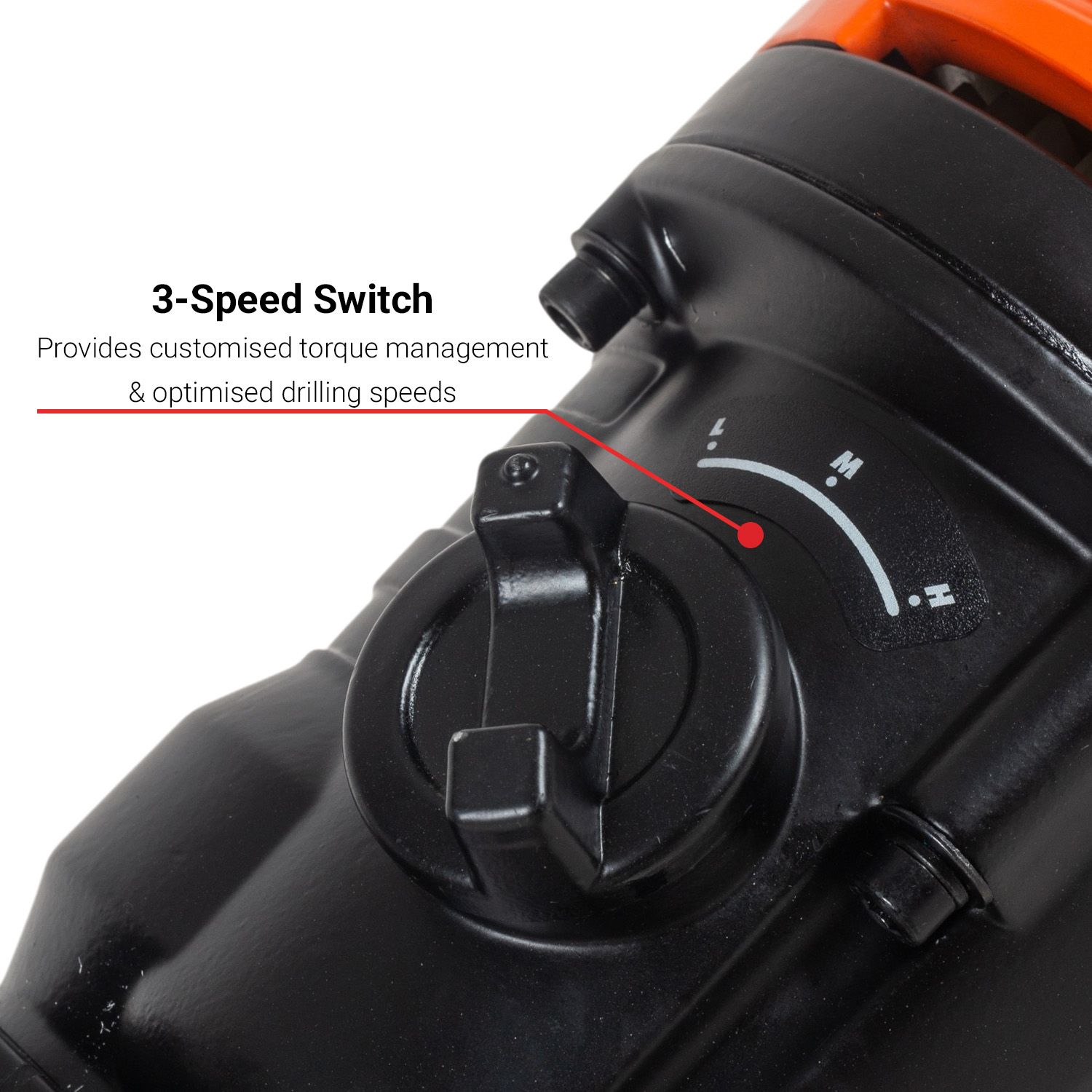

• Mechanical Multi-Speed Versatility: Integrated speed selection for customized torque management and optimised drilling speeds
• Rugged Alloy Construction: Lightweight, industrial-grade aluminum housing for superior durability and heat management
• Intelligent Protection System: Dual-layer defense featuring Soft Start for precision starts and Overload Protection for motor longevity

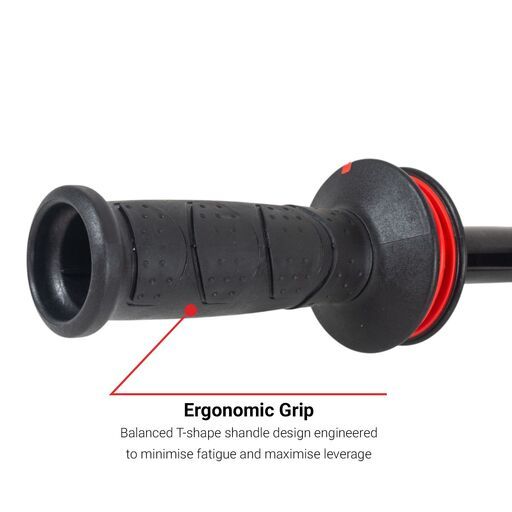

• Ergonomic T-Grip Stability: Balanced T-shape handle design engineered to minimize operator fatigue and maximize leverage
• Accessible External Water Seal: High-performance seal design allows for seamless wet-drilling transitions and easy maintenance
• Stepless Variable Speed: Ultra-responsive trigger control for real-time adjustments across varying material densities

Specifications:

• Max Drill Diameter: 180mm (7")
• Borehole Depth: 400mm
• Voltage: 220V
• Frequency: 50-60Hz
• Input Power: 1900W
• No-Load Speed: 700 / 1500 / 2980rpm

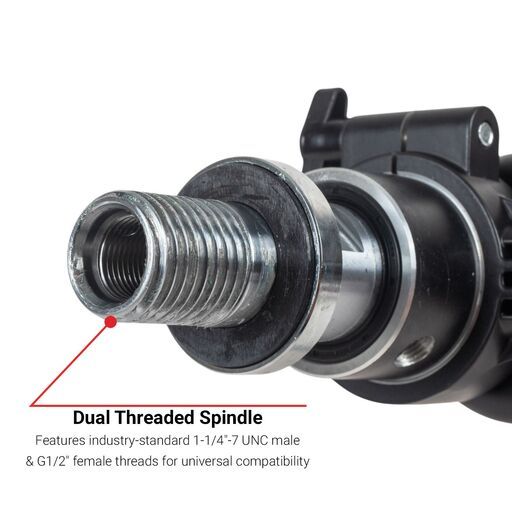

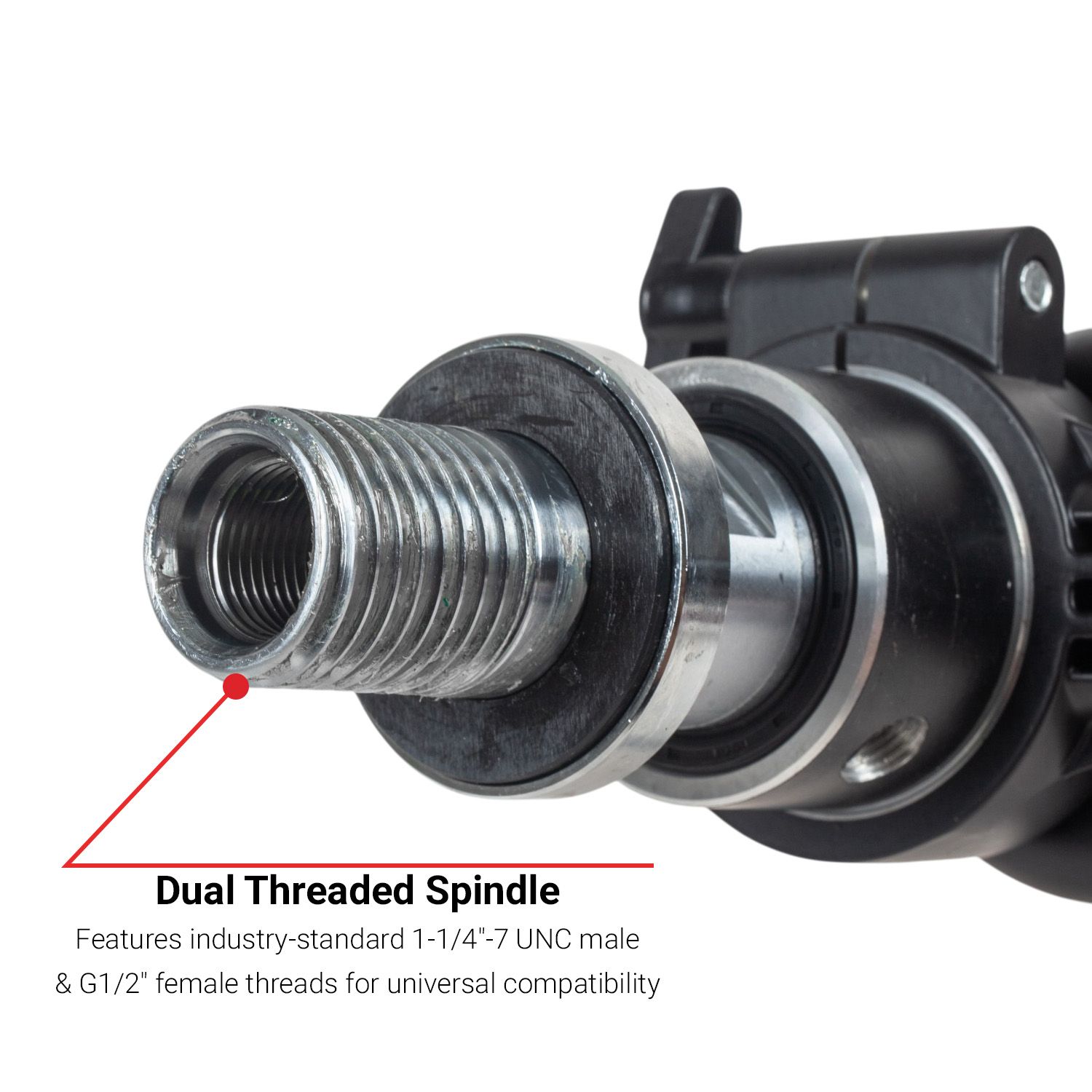

• Spindle Thread: 1-1/4"-7UNC^G1/2
• Cable Length: 3.5m
• Neck Diameter: 60mm
• Variable Speed: Yes
• Torque Control: Yes
• Overload Protection: Yes
• Soft Start: Yes
• Carbon Brush: Yes
• Dimensions (L x W x H): 520mm x 160mm x 430mm
• Weight: 7.8kg

Warranty:

• 12 Month Warranty Covered by Bayer
