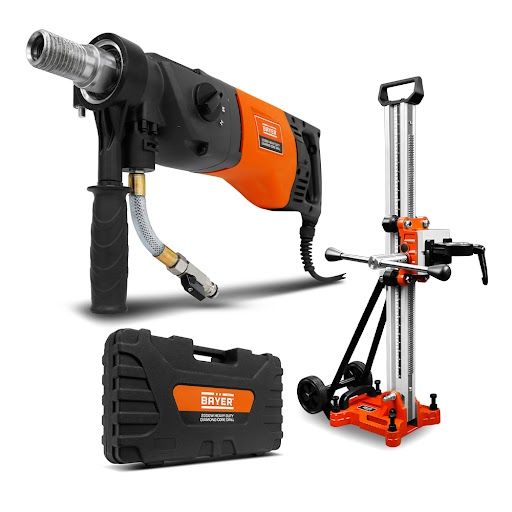

Bayer BAYRSKCY200F+BCD2300 2300W 180mm Handheld Diamond Core Drill With 200mm Diamond Core Drill Rig Stand

The Bayer BCD2300 2300W 180mm Handheld Diamond Core Drill packs a versatile 3-speed gearbox and a progressive start motor for superior control in both wet and dry conditions. Featuring an integrated water feed and built-in PRCD protection, this heavy-duty drill easily and safely tackles your toughest concrete and brick tasks.

Includes:

• 1x Auxiliary grip handle
• 1x 32/30mm wrench
• 1x Water feed adaptor head
• 1x Vacuum adaptor head
• 1x Clear plastic hose
• 1x Hose adaptor
• 1x Protective carry case

Features:

• Motor with progressive start
• Designed for wet and dry use
• SAA Approved
• PRCD
• Water feeding connection
• Ideal for concrete and brick
• 3 Speed gearbox

Specifications:

• Power: 2300W
• Voltage: 240V, 50-60Hz
• No load speed:
  • Low: 740rpm
  • Medium: 1630rpm
  • High: 3270rpm
• Spindle thread: 1 1/4" UNC Thread
• Maximum drilling:
  • Brick: 180mm
  • Concrete: 125mm
• Weight (without cable): 6.5kg

This Bayer Diamond Core Drill Rig Stand is designed to mount Bayer Core Drill Motor by using a suitable mounting spacer. A standard 4 bolt mounting spacer is included with this stand. The drill stand guides the motor and Bayer core bit so that it is possible to drill perfectly straight cuts in a safe and controlled manner. The stand is also able to slant so that holes may be cored at an angle as required. This stand must be securely fastened to the workpiece using a concrete anchor.

Features:

• The light adjustable aluminum alloy bracket can drill inclined holes from 0-45°

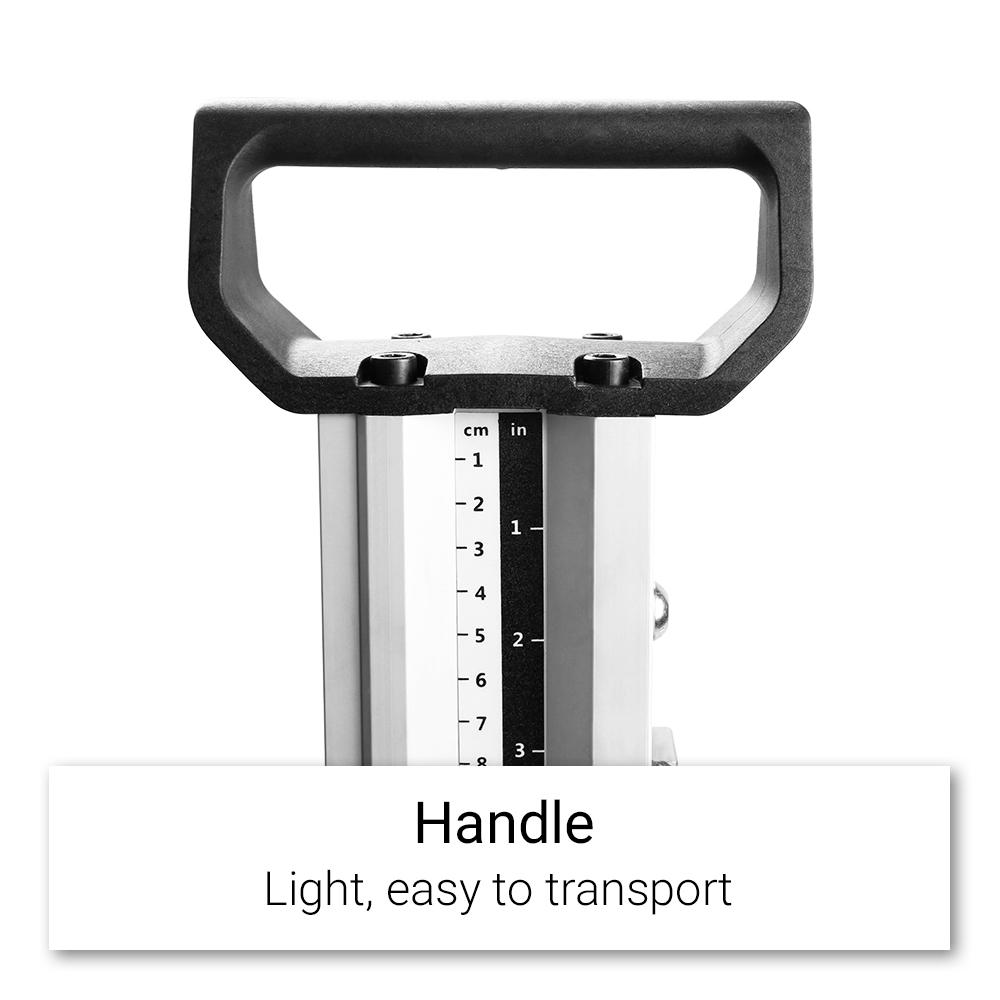

• Light, easy to transport and install drill frame tight and equipped with wheels
• Frame with general fast connecting block, quick installation and is suitable for the majority of products on the market

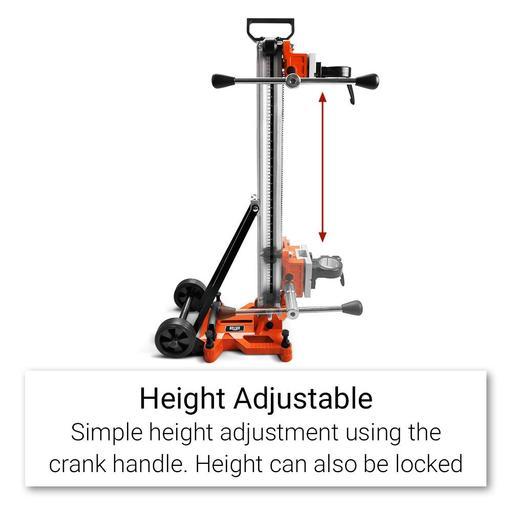

• Base, frame, the bracket, and all adjusting screw can be used with the pushing handle attached to adjust

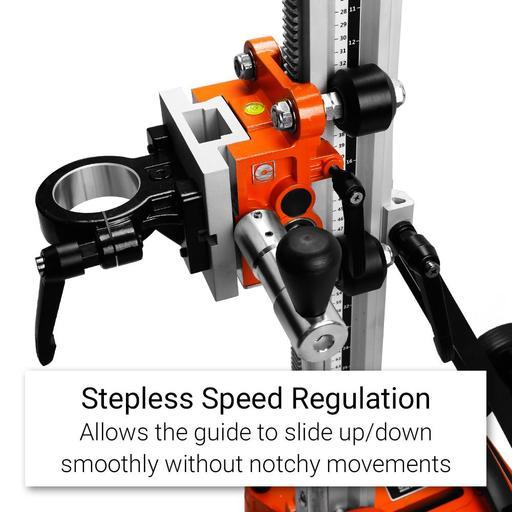

• Guidance handle allows for smooth operation and control

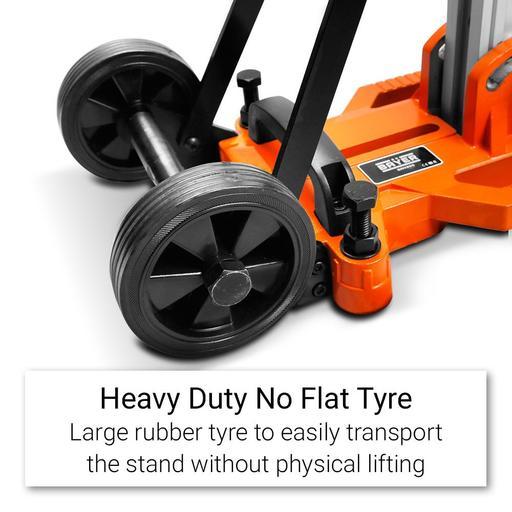

• Heavy-duty no flat tyre. Allows easy transportation without physical lifting

Specifications:

• Max. capacity: 200mm
• Effective stroke: 690mm
• Dimensions (L x W x H): 450mm x 300mm x 950mm
• Weight: 14.5kg

Warranty:

• 12 Months Warranty Covered By Bayer
