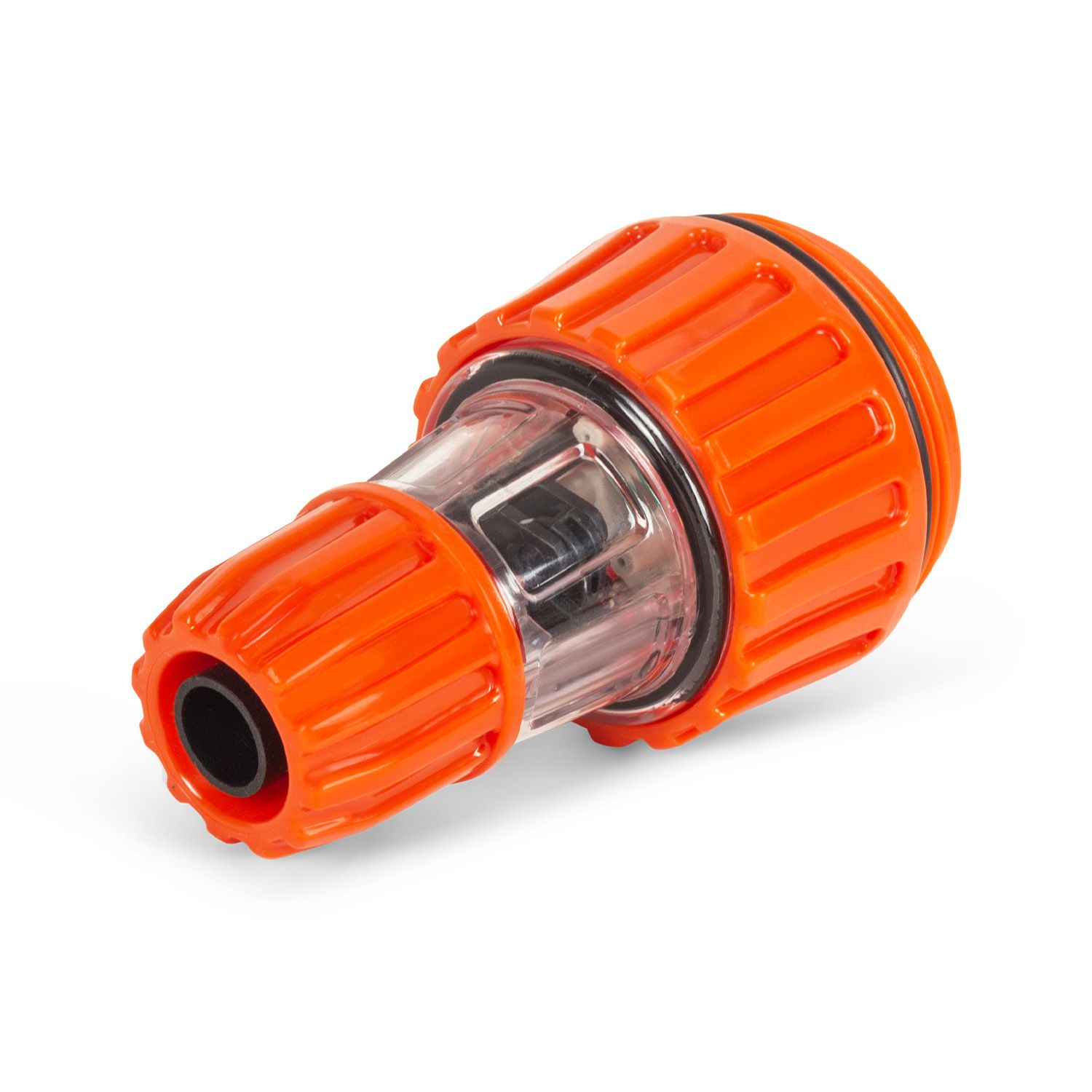

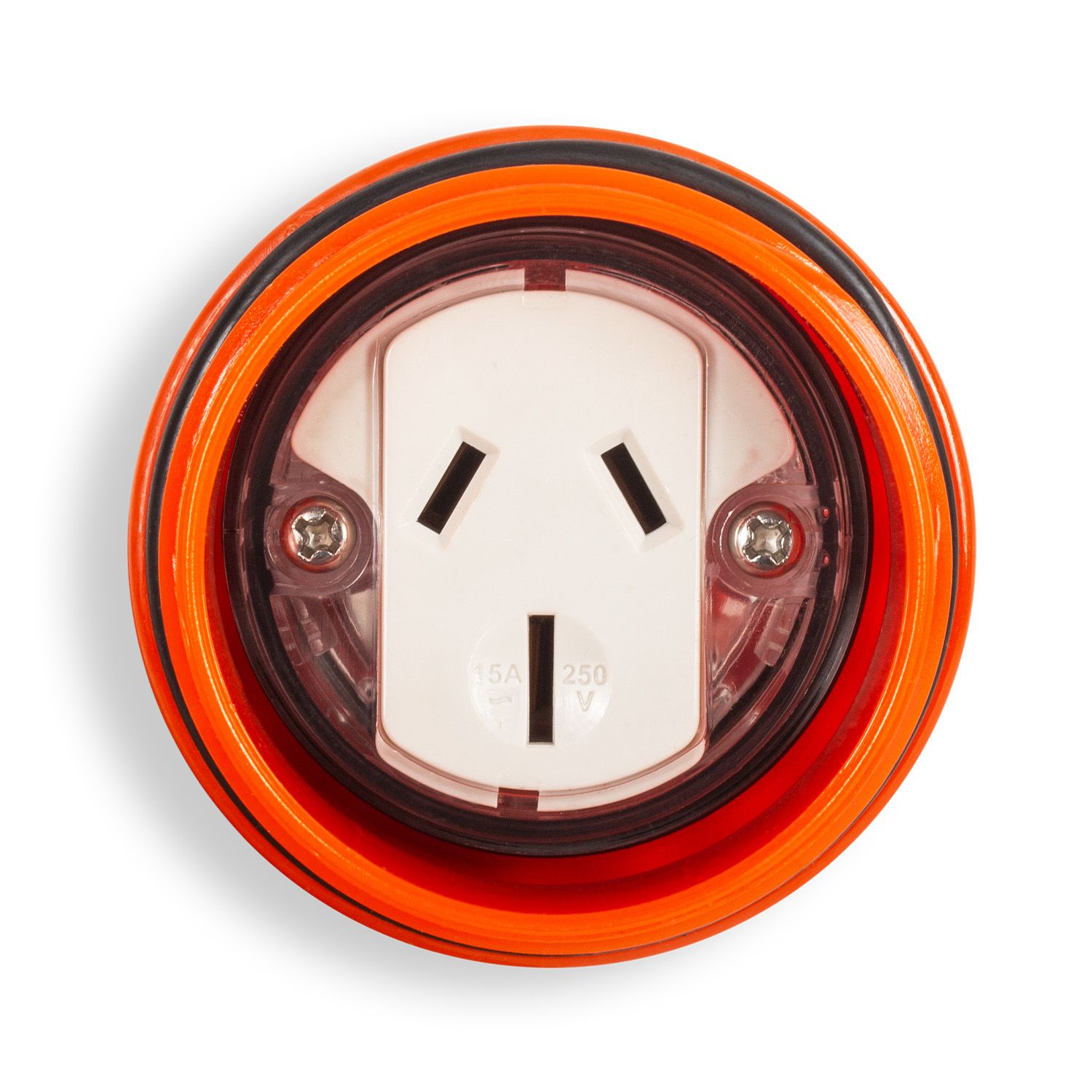

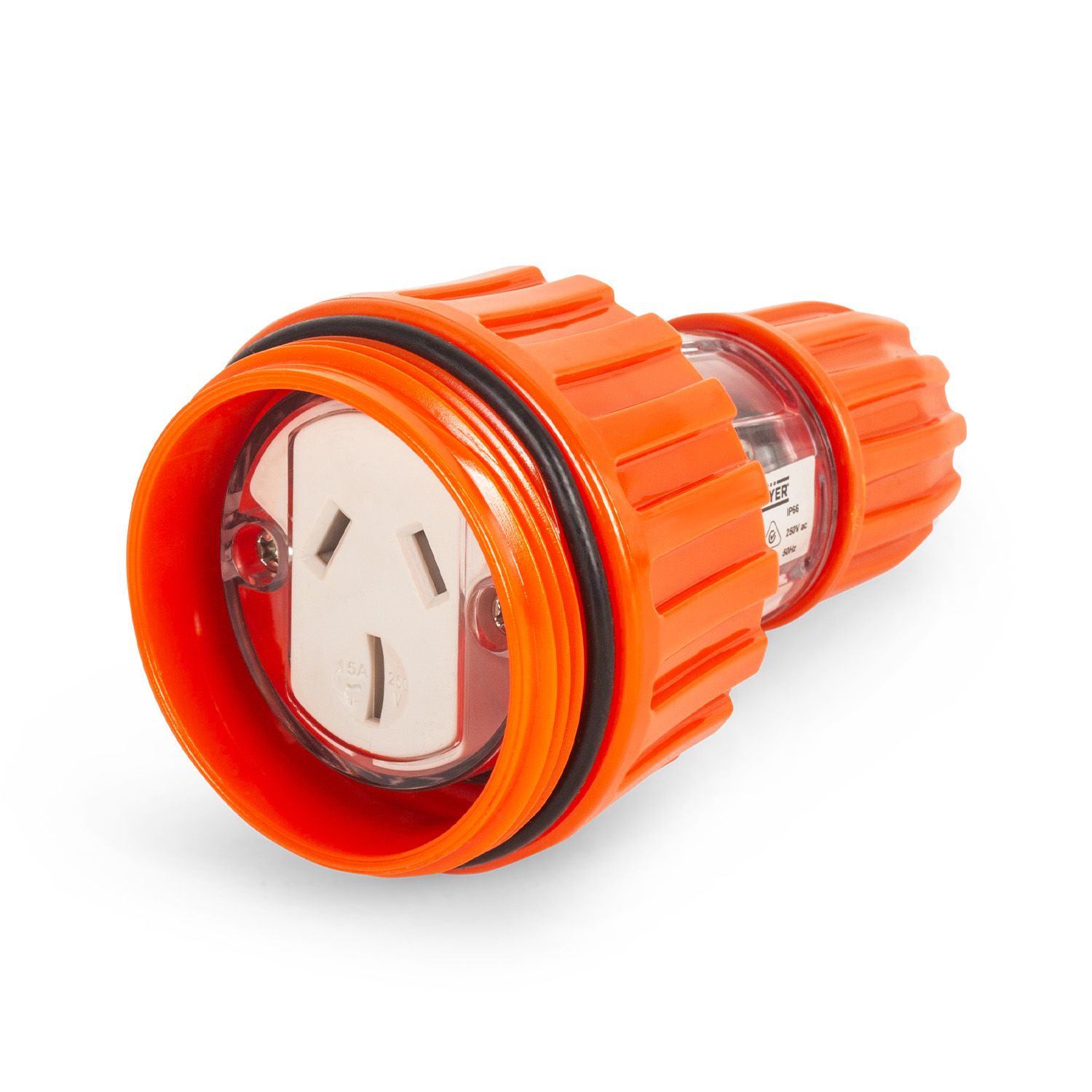

Bayer B3P15S Industrial 15AMP 250V Straight Flat Socket

Bayer B3P15S Industrial 15AMP 250V Straight Flat Socket

Built for demanding work environments, the Bayer Industrial Straight Flat Socket features a tough, IP66-rated polycarbonate body that provides exceptional impact resistance and long-lasting durability. Designed with the tradesperson in mind, it includes a transparent housing for quick visual inspections of internal connections and an ergonomic profile that is easy to grip and operate, even when wearing heavy work gloves.

Features:

• Heavy-duty IP66 rated socket
• Tough, impact resistant ploycarbonate body for long lasting durability
• Transparent housing allows for quick visual inspection of internal connections
• Easy to grip and operate even with gloved hands
• Corrosion-resistant stainless steel screws
• Compliant with Australian Standards: AS/NZS 3120 & AS/NZS 3100
• Terminal: Up to 4mm² bootlaced (Maximum Flex Sheath Diameter 12.5mm)

Specifications:

• Voltage: 250V
• Frequency: 50Hz
• Max Load: 2500W
• Amperage: 15A
• Pin Number: 3 Flat Pins
• Rating: IP66
• Temperature Rating: -15°C - +40°C
• Body Material: Polycarbonate
• Cable Connection:
• • 3 Core Circular Ordinary Duty Flexible Cord:
    • Nominal Area of Conductor: 1.5mm² or 2.5mm²
    • Cord Diameter: Minimum 6.8mm² to Maximum 10.6mm²
  • 3 Core Circular Heavy Duty Flexible Cord:
    • Nominal Area of Conductor: 1.5mm²
    • Cord Diameter: Minimum 6.8mm² to Maximum 10.6mm²
• AUS / NZ Safety Standards: 3120 Inc A1-2, 3100 Inc A1-3
• Dimensions (L x W x H): 105mm x 66mm x 66mm
• Weight: 0.12kg

Warranty:

• 12 Month Warranty Covered By Bayer
