Bahco BMMTRMS1 Digital Multimeter Set

Bahco BMMTRMS1 Digital Multimeter Set

Take the guesswork out of electrical diagnostics with the Bahco digital multimeter set, a complete professional solution built for precision, safety, and reliability in every test. Supplied as a fully equipped kit with premium probes, connectivity tools, and storage case, it’s designed to deliver accurate results and dependable performance for demanding electrical work in the field or workshop.

Features:

• Precise and reliable, the Bahco BMMTRMS1 digital multimeter is the perfect solution for users looking for a tester that is easy and safe to use for measuring AC/DC voltage, current, frequency, resistance, capacitance, continuity, polarity and temperature.

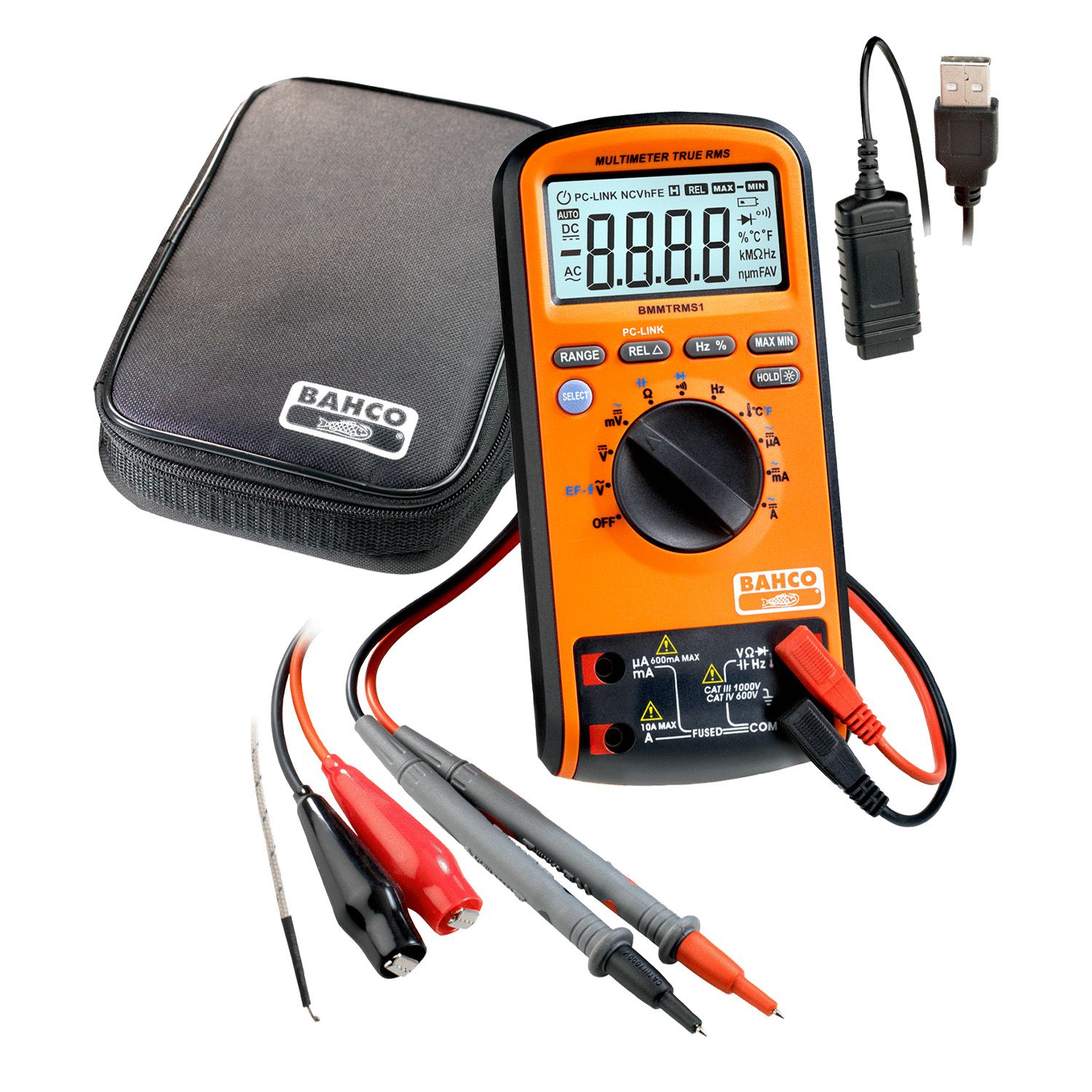

• It includes:
• Multimeter bag with multimeter strap holder
• Needle probe set with silicone leads 1m long: Cat III 1000V, 10A
• Alligator clip test probe lead sets, spring-loaded copper clips with wide 12.7 mm (0.5 inch) jaw opening and serrated teeth, 1m long: Cat III 1000V, 10A
• T° sensor probe lead 1 m long
• Multimeter PC connectivity USB cable 1.2 m long
• USB memory stick loaded with PC Link connectivity software and user manual in the following 12 languages:English-French-Spanish-Swedish-Turkish-Russian-Portugese-Italian-Greek-Slovenian-Czech-Polish
• Calibration report
• 1 battery 6F22 (9V) included

Specifications:

• True RMS measurement
• Non contact voltage feature
• Relative measurement
• Auto power-off
• Data hold
• Backlight function
• Auto/manual range
• Polarity indication
• Diode test
• Continuity test
• Low battery power indication
• DC voltage range: 600mV ±0.5%, 6V/60V/600V ±0.8%, 1000V ±1.0%
• AC voltage range: 600mV/6V/600V ±1.0%, 1000V ±1.5%
• DC current: 600uA/6mA/60mA/600mA6A/10A ±1.5%
• CAT rating: CATIII 1,000V CATIV 600V
• Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±0.5%, 60MΩ ±1.5%
• Capacitance: 6nF ±3.0%, 600nF/6uF/60uF/300uF ±5.0%
• Logic frequency: 10Hz~1MHz ±(0.1%+3)
• Linear frequency: 10Hz~10KHz ±(0.05%+8)
• Duty cycle: 1%~99%
• Temperature: -55°C~1000°C ±(2%+2)
• Fuse protection: 0.63A/1000Vx1 for µA and mA ranges and 10A/1000Vx1 for 10A range
• Dimensions (L x W x H): 155mm x 60mm x 225mm
• Weight: 0.8kg
