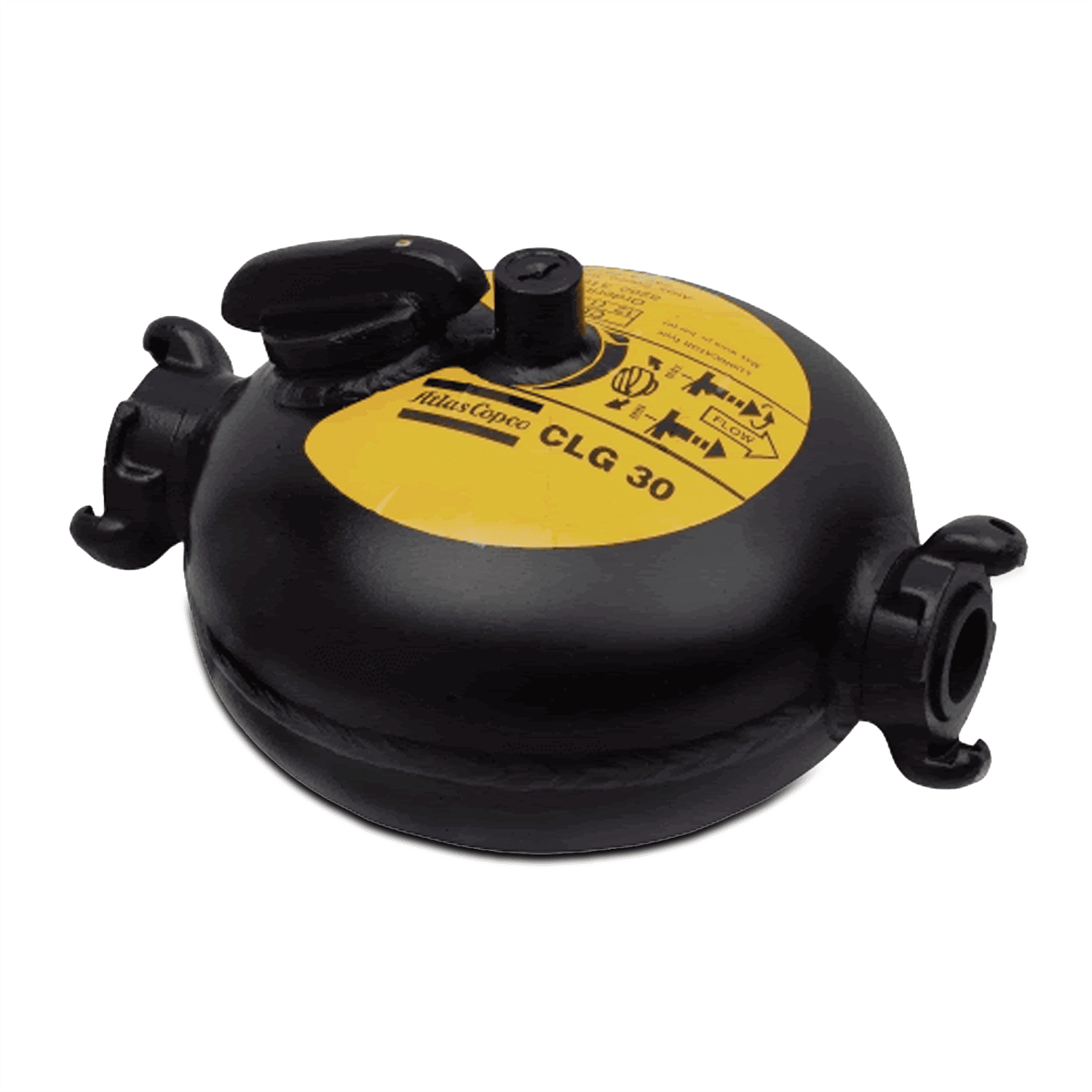

Atlas Copco CLG30 1.3L Lubricator

Atlas Copco CLG30 1.3L Lubricator

The Atlas Copco CLG30 is a durable, high-capacity inline lubricator designed to provide continuous and reliable lubrication for pneumatic tools and compressed-air equipment. Installed directly between the compressor and air tool, it introduces a controlled oil mist into the airflow to reduce friction, internal wear and premature component failure. Its generous 1.3L oil reservoir and high airflow capacity make it ideal for demanding construction, demolition and industrial applications where larger pneumatic tools are operated for extended periods. The adjustable oil dosage allows the lubrication rate to be matched to the connected equipment, helping maintain efficient performance and extend tool service life.

Features:

• Continuous Inline Lubrication: Delivers oil directly through the compressed-air supply to protect internal tool components
• 1.3L Reservoir: Provides extended operating periods between oil refills
• Adjustable Oil Dosage: Stepless adjustment enables the lubrication rate to suit different pneumatic tools and applications
• High Airflow Capacity: Supports airflow requirements from 25L/s to 130L/s for demanding pneumatic equipment
• Low Pressure Drop: Maintains efficient airflow with only a 0.28 bar pressure drop at 6 bar and maximum flow
• Heavy-Duty Construction: Designed for demanding construction, demolition and industrial environments
• Improved Tool Life: Helps reduce friction, heat and premature wear inside pneumatic tools
• Broad Oil Compatibility: Suitable for use with approved mineral or synthetic pneumatic-tool oils
• Easy Servicing: Large filler opening allows straightforward oil level maintenance and refilling

Specifications:

• Product Type: Inline Pneumatic Lubricator
• Model: CLG30
• Oil Capacity: 1.3L
• Airflow Range: 25L/s–130L/s
• Airflow Range: 53CFM–275CFM
• Oil Dosage Range: 0.1g/m³–2.4g/m³
• Pressure Drop at 6 Bar and Maximum Flow: 0.28 Bar
• Maximum Working Pressure: 20 Bar
• Connection Size: 25mm
