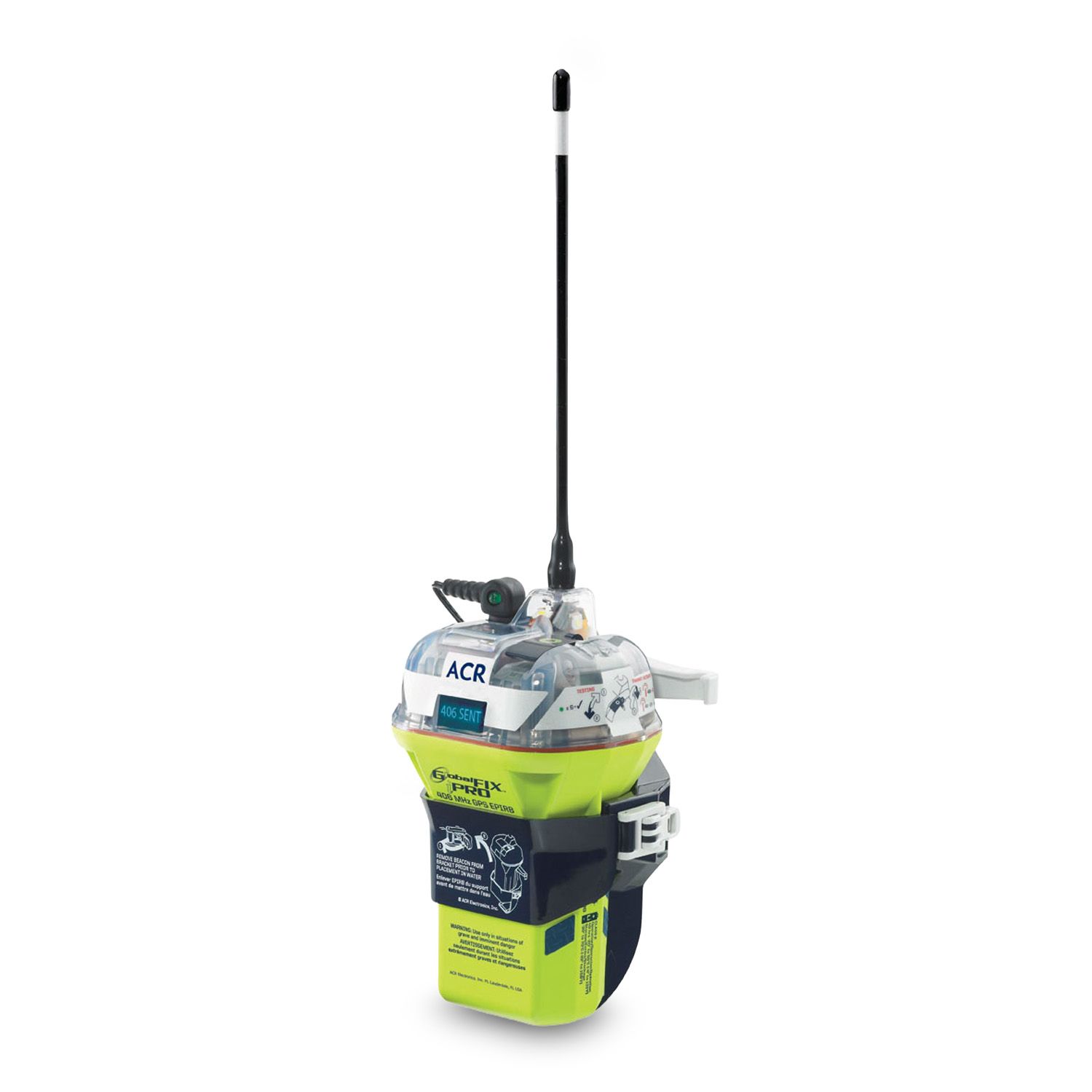

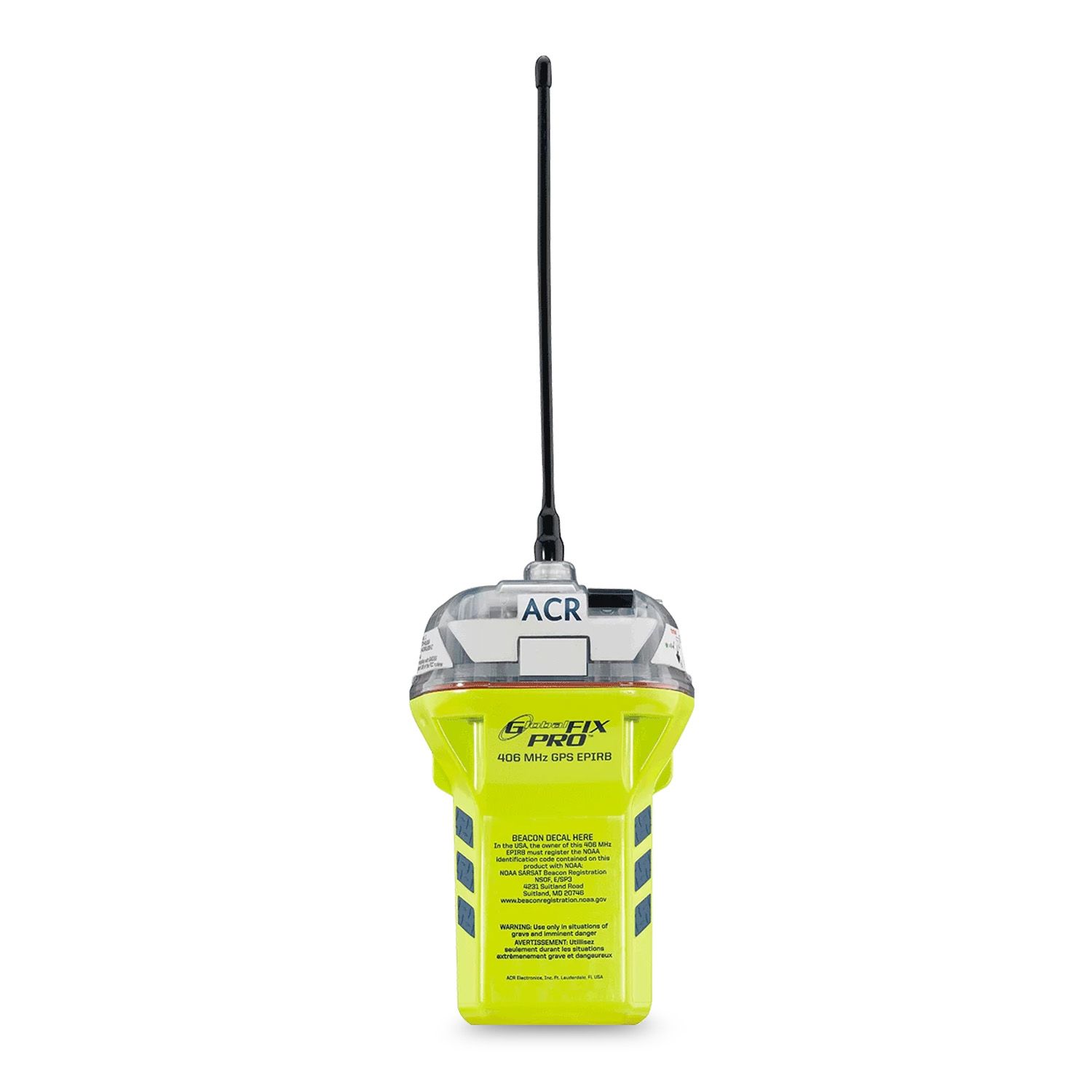

ACR 3330031 (ACR2844) 406MHz GlobalFix PRO EPIRB - Category II Manual Bracket

ACR 3330031 (ACR2844) 406MHz GlobalFix PRO EPIRB - Category II Manual Bracket

The next-generation GlobalFix PRO features a professional grade, 16-channel GPS receiver for faster location acquisition — typically 3 to 5 times faster than a conventional GPS from a cold start. Upon activation, the built-in GPS receiver transmits your position coordinates in a powerful 406 MHz signal along with your registered, digitally-coded distress signal and a 121.5 MHz SAR homing frequency. The 100-m GPS position accuracy is the optimum allowed by Cospas-Sarsat. The GlobalFix PRO also features a built-in LED strobe light, full-function test mode, and GPS acquisition testing. The exclusive polycarbonate blend case is designed for maximum UV, chemical, temperature, and shock resistance. The Automatic Category I Sea Shelter bracket is fully enclosed and is made of high-density, UV-stabilized polyethylene for years of extreme abuse, while the manual Category II LowPro bracket has a low profile and features a 2-part design for easy mounting and quick removal when needed.

EPIRBs in a Category II bracket need to be manually deployed and activated. They can be mounted above or below deck, in a location that is protected from outside influences (i.e. green water, traffic impacts, cabin doors, etc).

It is mandatory that you register your beacon. Visit www.acrartex.com/support/registrations/ to find the appropriate registration agency. When activated, the unique identification code in your beacon is linked to the registration database. This way authorities can retrieve valuable information about you and your trip.

Includes:

• LowPro™3 (P/N 9502)

Features:

• Faster Notification = Faster Response
• Bright LED strobe conserves battery power without sacrificing intensity
• Full self-check of circuitry, battery voltage and GPS acquisition
• Minimum 48 hours operating life, typical performance is 70+ hours
• High Efficiency Electronics
• Ergonomic, Compact Design
• Highly Visible LED Strobe
• Internal 16 Channel GPS Receiver
• Marine Tough Design for Years of Useful Service
• Non-Hazmat Battery
• Electronic Battery Witness Seal
• Made in the U.S.A.

Specifications:

• GPS: Internal GPS
• Material: High impact UV resistant polymer
• Deployment: Category II manual
• Activation: Manually
• Waterproof: 10m @ 10 min (Exceeds RTCM requirements)
• Output Power:
  • 6.3 W +/-2dB (406.037 MHz)
  • 50 mW +/-3dB (121.5 MHz)
• Operational Life: 48hr minimum @ -20°C (-4°F)
• Typical Performance:
  • 70+ hrs @ -20°C
  • Longer in higher ambient temperature
• Operating Temperature: -20°C to +55°C (Class 2)
• Storage Temperature: -34°C to +70°C
• Approvals:
  • Cospas-Sarsat, FCC, IC, MED
  • Acceptances: USCG
  • Meets: GMDSS, RTCM, IEC, and IMO standards
• Replacement:
  • Due 6 years from date of manufacture or
  • 5 years after becaon is placed into service or
  • After any emergency (whichever first)
• Battery: Class 2 (non-hazmat) lithium batteries
• Dimensions (L x W x H): 107mm x 91mm x 177mm
• Weight: 581g

Warranty:

• Limited 5 Year Warranty covered by ACR
